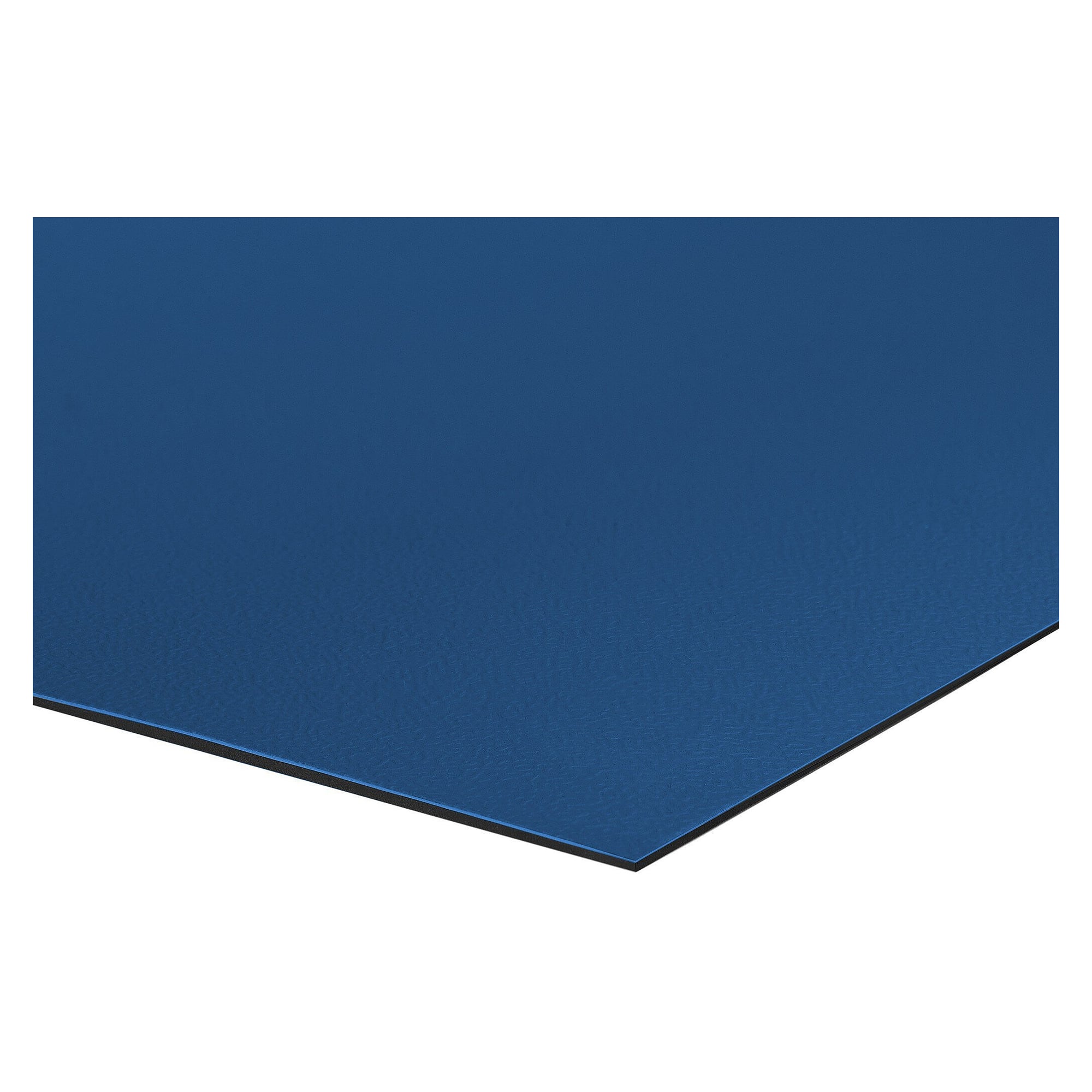

ESD Bench Covering Roll Royal Blue 1220 mm x 10 m x 2 mm, Two-Layer - Safeguard SG-TBRO-RB-GL-ODK-10000X1220X2
Two-layer ESD bench covering on a roll, 1220 mm wide and 10 m long, for cutting to size on long workbenches and whole rows of workstations. A surface resistance of 10⁶ to 10⁷ ohms provides controlled dissipation and the surface resists heat and solder.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
When several workstations or extra-long benches need covering, single mats soon reach their limits. This royal blue roll, 1220 mm wide and 10 m long, is cut to size and delivers a surface resistance of 10⁶ to 10⁷ ohms to EN 61340-2-3 across the whole area.
Key benefits
- 10 m roll length at 1220 mm width, cut to match bench depth and length

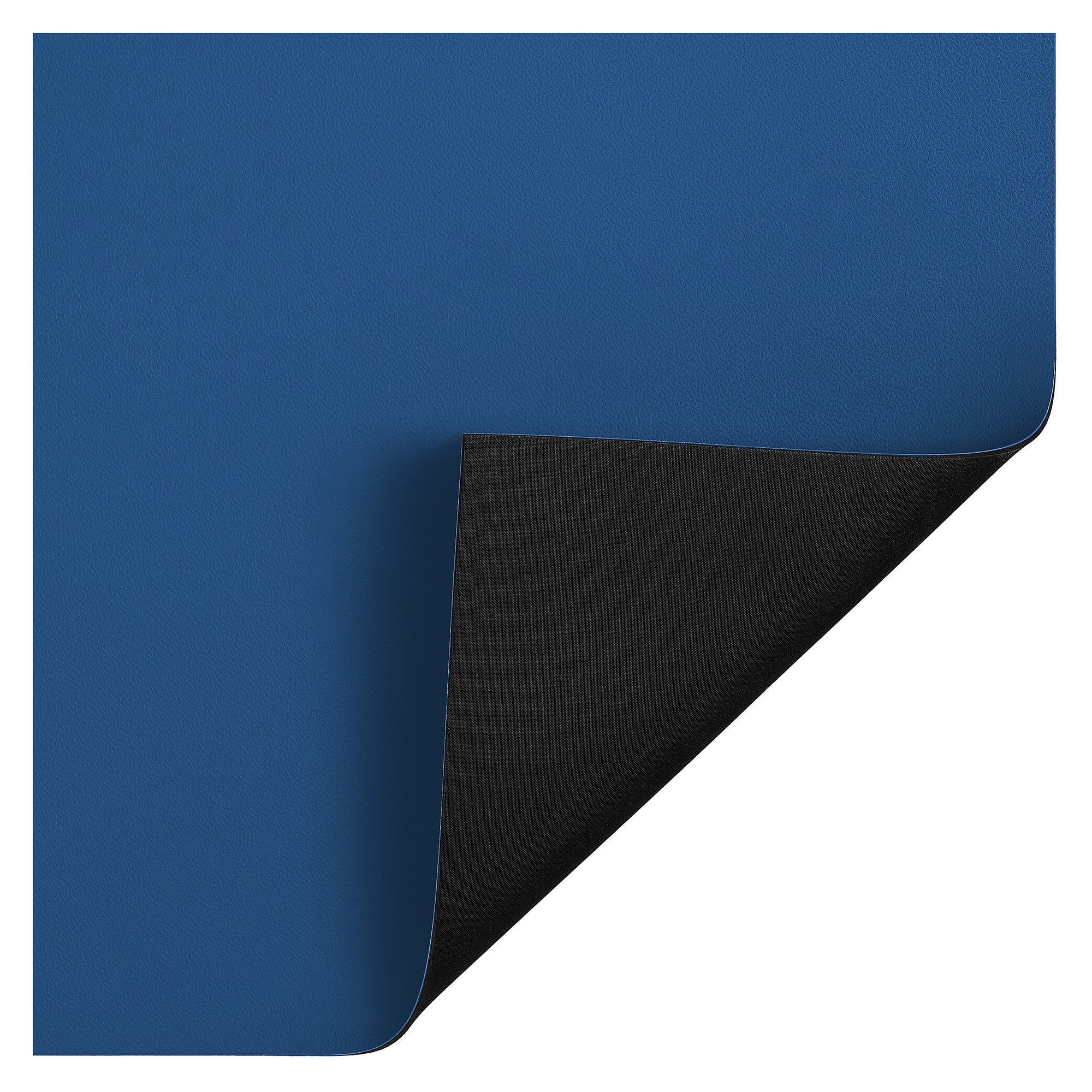

- Two-layer construction, dissipative and conductive, volume resistance 10⁶ ohms

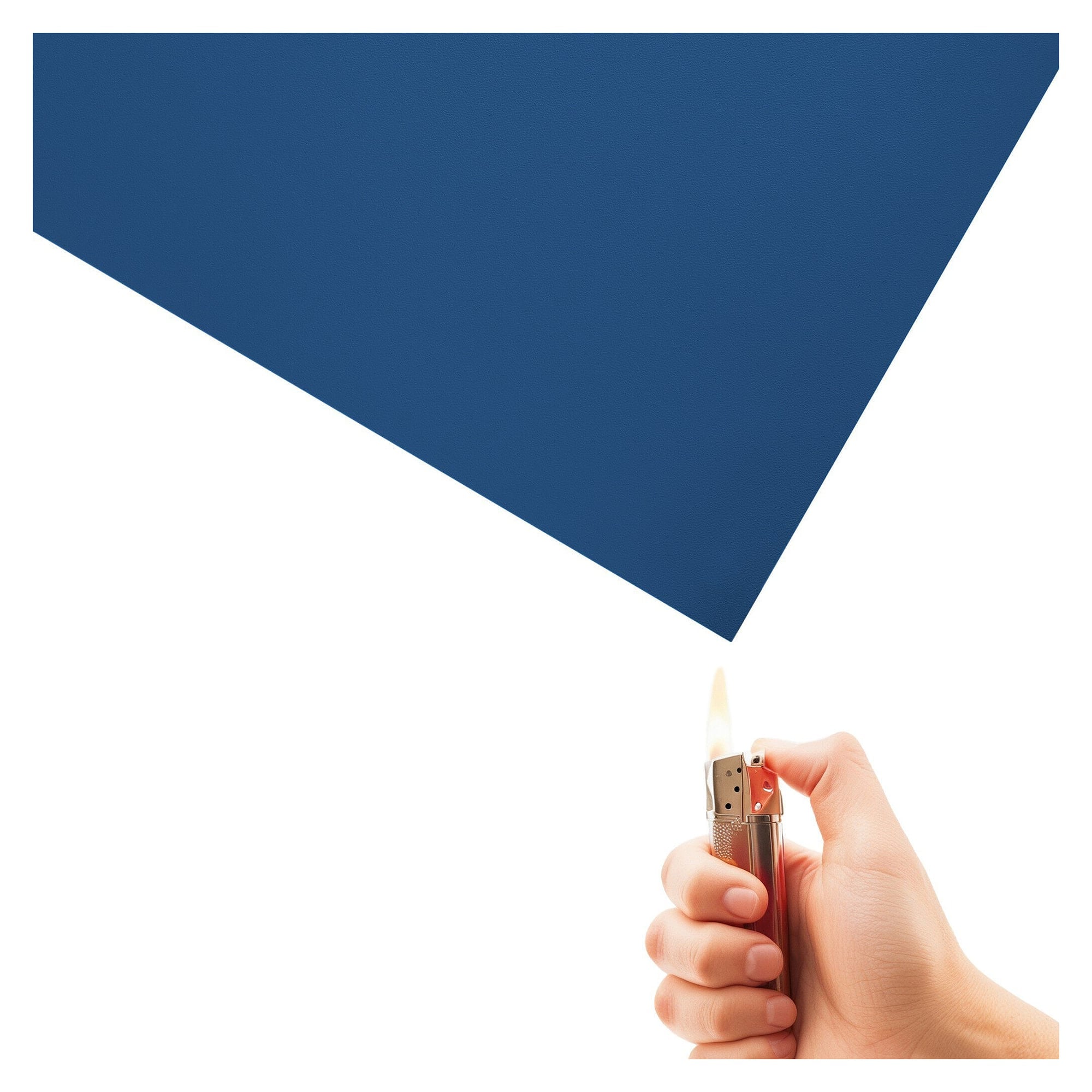

- Heat and solder resistant, glow wire test to IEC 60335-1 up to 750 °C
- Resistant to chemicals, oil and grease (ASTM D471)
- Permanently elastic and abrasion resistant (abrasion below 200 mm³ to ISO 4649), anti-reflective surface
Applications
Fitting out production lines, soldering stations, assembly and test benches in the EPA where custom sizes or many identical workstations are needed.
Earthing
The roll is supplied without press studs. After cutting, press studs or earthing connectors are fitted for grounding.
Standards and compliance
ESD certified to IEC 61340-5-1, resistance measured to EN 61340-2-3, RoHS compliant.
Technical data
| Type | Bench covering (roll) |
|---|---|
| Length | 10000 mm |
| Width | 1220 mm |
| Thickness | 2 mm |
| Colour | royal blue |
| Material | Natural rubber and synthetic rubber |
| Construction | two-layer, dissipative and conductive |
| Typical surface resistance Rpp (EN 61340-2-3) | 10⁶ to 10⁷ ohms |
| Typical volume resistance RV (EN 61340-2-3) | 10⁶ ohms |
| ESD certification to IEC 61340-5-1 | yes |
| Hardness (ISO 7619) | Shore A 75 |
| Residual indentation (EN ISO 24343-1) | < 0.20 mm |
| Abrasion (ISO 4649, method A, 5 N) | < 200 mm³ |
| Flexibility (EN ISO 24344, method A, 20 mm mandrel) | passed |
| Glow wire test (IEC 60335-1:2010) | up to 750 °C |
| Needle flame test (IEC 60695-11) | up to 30 s |
| Dynamic coefficient of friction (EN 13893) | > 0.30 |
| Stain resistance (EN ISO 26987) | resistant, depending on concentration and contact time |
| Oil and grease resistance (ASTM D471) | limited change in volume and mass |
| RoHS compliant | yes |
| Corners | square |
| Cleaning | with a suitable ESD cleaner |
| Sales unit | 1 roll |
| Weight | 40.5 kg |
| Manufacturer | Safeguard |
| Manufacturer Nr. | WL93531 |
| HS-Code | 40082190 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | China |
| ESD version | ESD (antistatic) |
