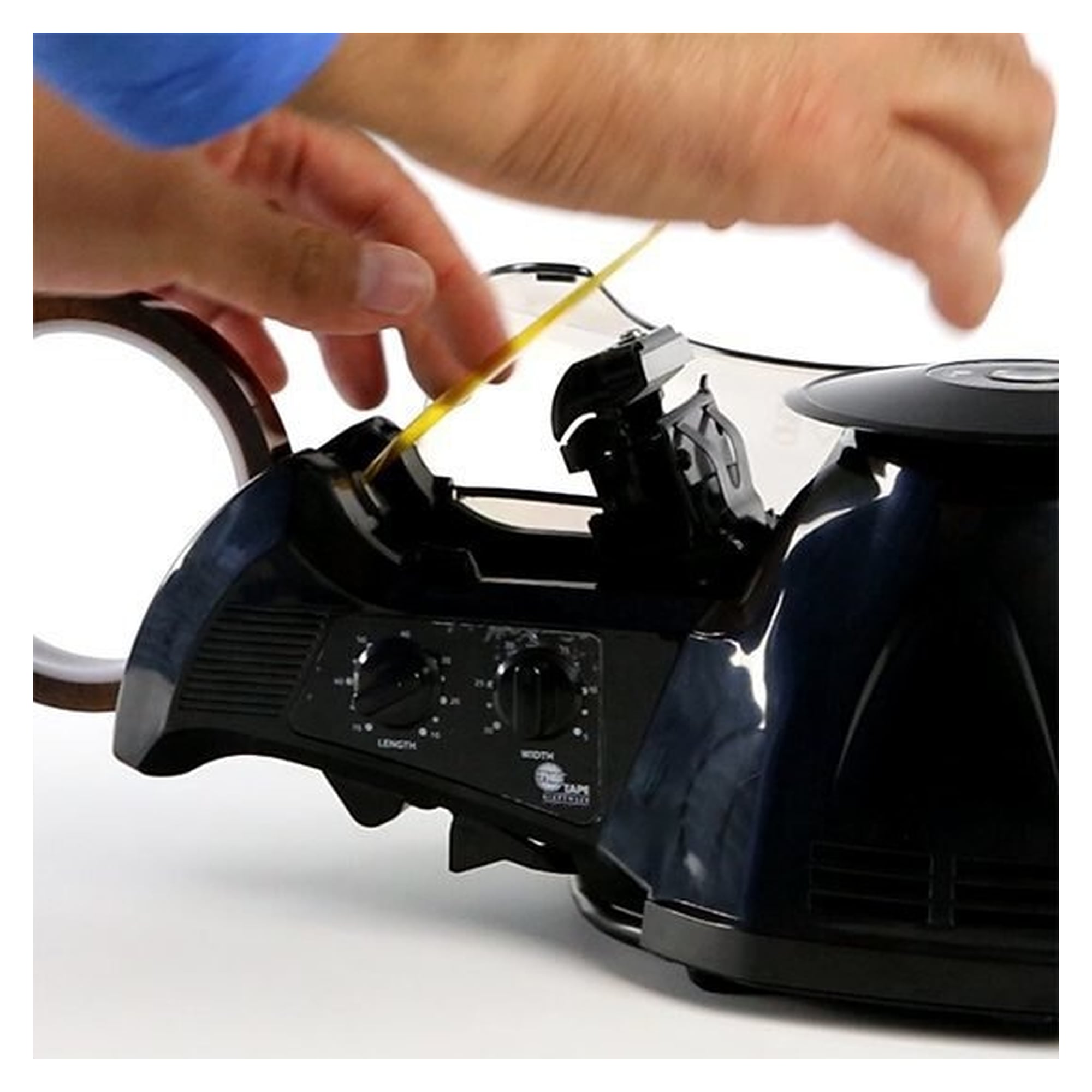

Electric carousel tape dispenser, tape width 3 to 25 mm, cut length 15 to 70 mm - Start International TDA025B
Electric tape dispenser that automatically cuts tape pieces from 15 to 70 mm long and places them on a carousel. Up to 20 pieces at the push of a button, tape widths from 3 to 25 mm. Built for workstations where several operators take tape from one unit.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Tearing off tape by hand costs minutes every day at assembly and packing stations and gives uneven lengths. The TDA025B automatically cuts tape pieces from 15 to 70 mm to length and places them on a carousel for easy removal. Up to 20 pieces are produced at the push of a button.
Benefits in use
- Carousel feed: several operators can take tape from one unit at the same time.
- Automatic feeding and cutting to a set length from 15 to 70 mm.
- Tape widths from 3 to 25 mm, core diameters 25, 32 and 76 mm, rolls up to 150 mm outer diameter.
- Three cutting modes: automatic, semi-automatic and manual, with light sensor.
- Small footprint of 300 x 160 x 160 mm and low weight.
Applications
Electronics and device assembly, cable assembly, masking before coating or soldering, labelling and packing stations.
Mains voltage note
According to the data sheet the unit is designed for 117 V. Clarify the power supply before operating it on a European 230 V mains.
Technical data
| Manufacturer | START International |
|---|---|
| Model | TDA025B |
| Device type | electric carousel tape dispenser |
| Tape width | 3 - 25 mm |
| Cut length | 15 - 70 mm |
| Core diameter | 25 mm, 32 mm, 76 mm (1, 1.25, 3 in) |
| Max. roll outer diameter | 150 mm |
| Pieces per cycle | up to 20 |
| Cutting modes | automatic, semi-automatic, manual |
| Sensor | light sensor |
| Voltage | 117 V |
| Colour | black |
| Length | 300 mm |
| Width | 160 mm |
| Height | 160 mm |
| ESD safe | no |
| Sales unit | 1 piece |
| Weight | 2 kg |
| Manufacturer Nr. | TDA025B |
| HS-Code | 84729080 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Spain |
