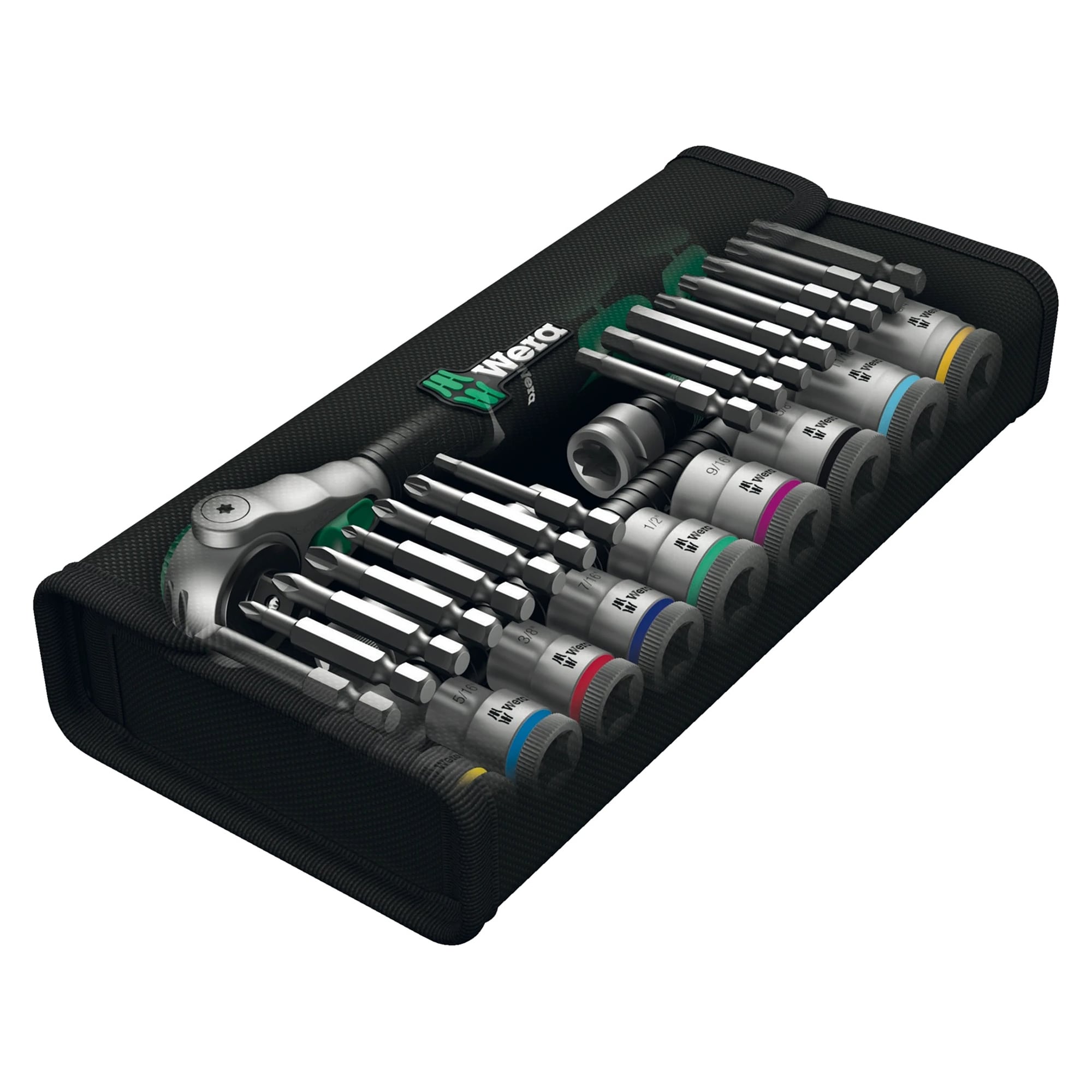

8100 SB 9 Zyklop Speed Ratchet Set 3/8" drive, imperial, 29 pieces - Wera 05004049001
Imperial 3/8" ratchet set with Zyklop Speed ratchet, nine sockets from 1/4" to 3/4", extensions and 17 bits. The freely pivoting 72-tooth ratchet head needs a return angle of only 5°. Everything is packed in a compact textile box measuring 265 x 135 x 65 mm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For work on imperial fasteners, the 8100 SB 9 combines a Zyklop Speed ratchet with 3/8" drive, sockets from 1/4" to 3/4", extensions and bits in a compact textile box. The fine pitch with 72 teeth gives a return angle of only 5° for precise work where space is tight.
Benefits
- Freely pivoting ratchet head with 5 predefined locking positions at 0°, 15° and 90° to the left and right
- Free-turning sleeve and gyrating mass design for high working speeds
- Thumbwheel switches between clockwise and anticlockwise rotation in any position
- Usable like a conventional screwdriver in the 0° position with adaptor and bit
- Take it easy tool finder with colour coding by size
- Textile box protects surfaces, stands upright on the shelf and saves weight
Applications
Assembly and maintenance on vehicles, machines and equipment with imperial screws and nuts, especially in confined or hard-to-reach areas and for mobile use.
Technical data
| Drive | 3/8" |
|---|---|
| Set size | 29 pieces |
| Ratchet | 1 x 8000 B Zyklop Speed ratchet 3/8" x 199 mm |
| Sockets | 8790 HMB 1/4", 5/16", 3/8", 7/16", 1/2", 9/16" (29 mm), 5/8", 11/16", 3/4" (30 mm) |
| Extensions | 8794 LB with free-turning sleeve 200 mm, 8794 B wobble 76 mm |
| Bit adaptor | 8784 B1, 1/4" x 3/8" x 44 mm |
| Bits 50 mm | PH 1, PH 2, PH 3, PZ 1, PZ 2, PZ 3, TX 20, TX 25, TX 27, TX 30, TX 40, hex 3/16", 7/32", 1/4", 5/16", slotted 1 x 5.5 mm |
| Teeth | 72, return angle 5° |
| Size | 265 x 135 x 65 mm |
| Weight | 1630 g |
| Manufacturer | Wera |
| Manufacturer Nr. | 5004049001 |
| EAN | 4013288173980 |
| HS-Code | 82041200 |
| GPSR manufacturer information | WERA Werkzeuge GmbH Korzerter Strasse 21-25 DE-42349 Wuppertal-Cronenberg www.wera.de |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Czechia |
| Height | 65 mm |
| Width | 135 mm |
