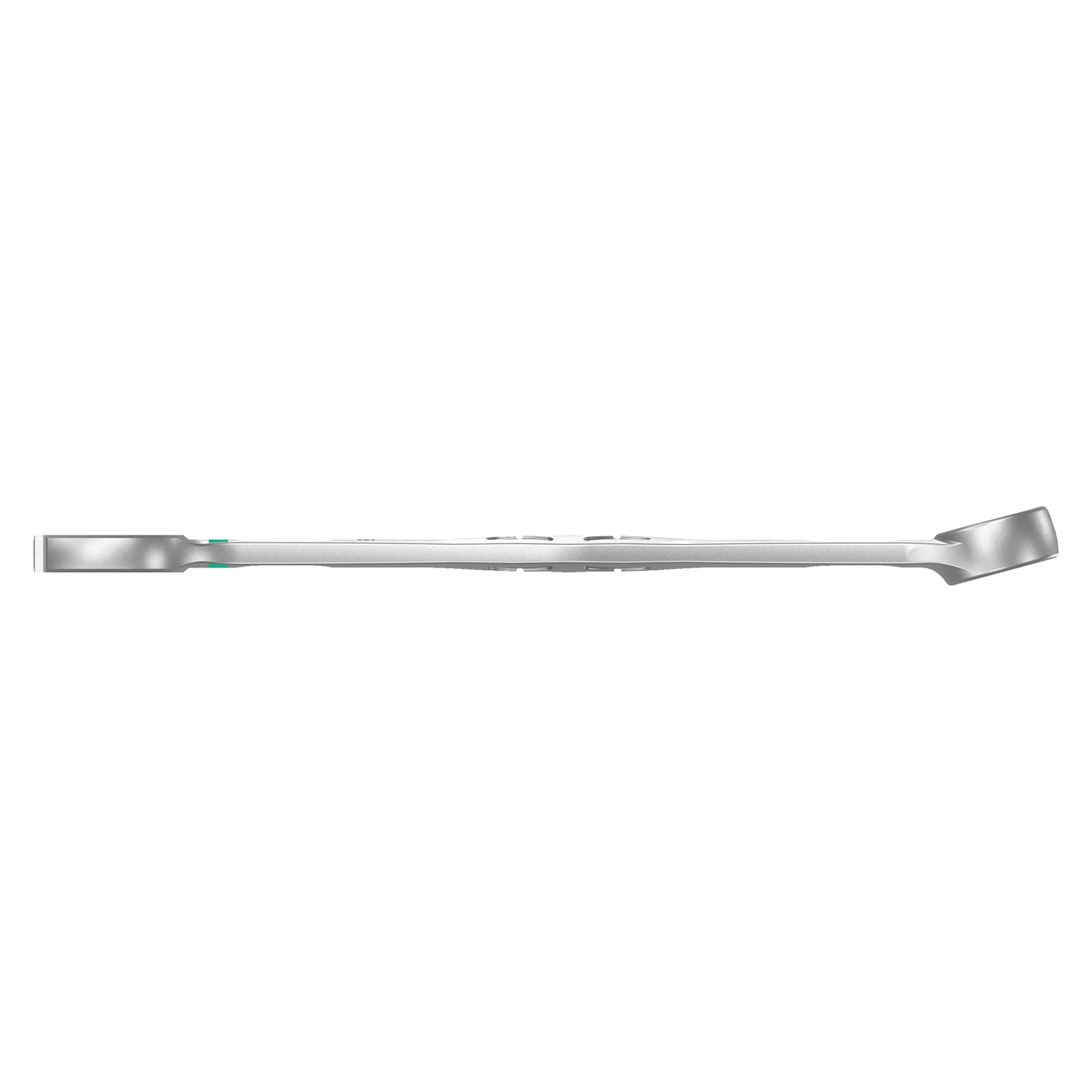

6003 Joker combination wrench 22 x 260 mm, open end takes the screw every 15°, 15° cranked ring - Wera 05020502001
Joker 6003 combination wrench in size 22 mm with 260 mm length for very tight spaces. The 7.5° offset open end with double hexagon geometry takes the screw every 15°, and the slim ring side is cranked by 15°.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Where there is little swing angle between components, a conventional spanner quickly reaches its limits. The Joker 6003 in 22 x 260 mm doubles the placement points with its 7.5° offset open end and double hexagon geometry: turning the wrench around its longitudinal axis lets it take nuts or screw heads every 15°, so even situations with less than 30° swing angle can be solved.
Benefits
- Special open end geometry with low return angle for very tight spaces, the placement point is found automatically after every turn
- Double hexagon geometry on open end and ring side ensures a positive connection and reduces the risk of slipping
- Slim ring side tilted by 15° to the tool axis to help prevent injuries
- High-quality surface treatment for long-lasting corrosion protection
- Take it easy tool finder: colour coding by size for quick selection of the right wrench
Applications
Assembly and maintenance on vehicles, machines and plants, especially where there is not enough room for a conventional spanner.
Technical data
| Wrench size | 22 mm |
|---|---|
| Overall length | 260 mm |
| Outer width open end | 49 mm |
| Head thickness open end | 7.5 mm |
| Outer width ring end | 31.5 mm |
| Head thickness ring end | 13 mm |
| Open end | 7.5° offset, double hexagon |
| Ring end | 15° crank, double hexagon |
| Size | 270 x 50 x 25 mm |
| Weight | 268 g |
| Manufacturer | Wera |
| Manufacturer Nr. | 5020502001 |
| EAN | 4013288218841 |
| HS-Code | 82041100 |
| GPSR manufacturer information | WERA Werkzeuge GmbH Korzerter Strasse 21-25 DE-42349 Wuppertal-Cronenberg www.wera.de |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Czechia |
| Height | 25 mm |
| Width | 50 mm |
| Overall length [mm] | 260 |
