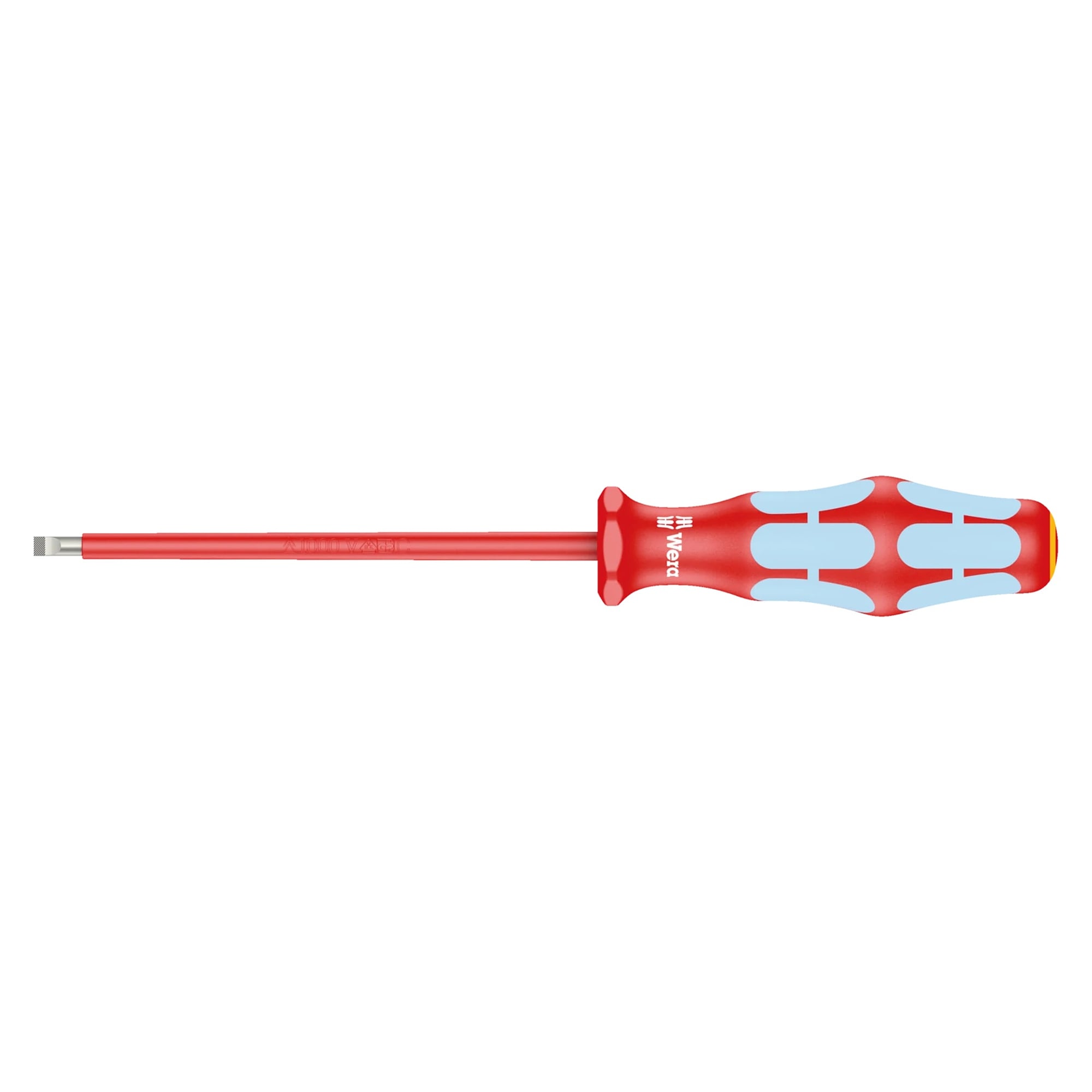

3160 i VDE insulated slotted screwdriver stainless 1.0 x 5.5 x 125 mm - Wera 05022732001
VDE insulated slotted screwdriver with a 1.0 x 5.5 mm stainless blade and 125 mm blade length for safe work up to 1,000 V. Individually tested at 10,000 V to IEC 60900, and stainless steel prevents extraneous rust on stainless screws.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Live work on installations with stainless steel screws calls for insulation and rust-free material at the same time. The Wera 3160 i VDE combines an insulated 1.0 x 5.5 x 125 mm stainless blade with the Kraftform handle and is approved for work up to 1,000 V.
Benefits
- Insulated VDE stainless blade for safe work up to 1,000 V, vacuum ice-hardened for the required hardness and strength
- Stainless steel prevents extraneous rust on stainless screws
- Conical blade with Lasertip tip for a secure hold in the slot
- Multi-component Kraftform handle for high working speeds and ergonomic screwdriving
- Take it easy tool finder with colour coding by profile and size stamp, hexagonal anti-roll feature
Applications
Electrical installation, control cabinet building and maintenance of electrical systems, especially where stainless screws are used, for example in food processing, outdoor installations or medical technology.
Standards and safety
Each screwdriver is individually tested at 10,000 V as per DIN EN 60900 (IEC 60900) and is therefore suitable for live work up to 1,000 V. Tested cold impact resistance at -40 °C ensures safety even under extreme conditions.
Technical data
| Profile | slotted |
|---|---|
| Blade thickness | 1.0 mm |
| Blade width | 5.5 mm (7/32") |
| Blade length | 125 mm (5") |
| Handle length | 98 mm |
| Blade | stainless steel, VDE insulated, Lasertip |
| Size | 223 x 33 x 33 mm |
| Weight | 69 g |
| Manufacturer | Wera |
| Manufacturer Nr. | 5022732001 |
| EAN | 4013288122162 |
| HS-Code | 82054000 |
| GPSR manufacturer information | WERA Werkzeuge GmbH Korzerter Strasse 21-25 DE-42349 Wuppertal-Cronenberg www.wera.de |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Czechia |
| Height | 33 mm |
| Width | 33 mm |
| Norm | DIN EN IEC 60900 |
| Overall length [mm] | 223 |
