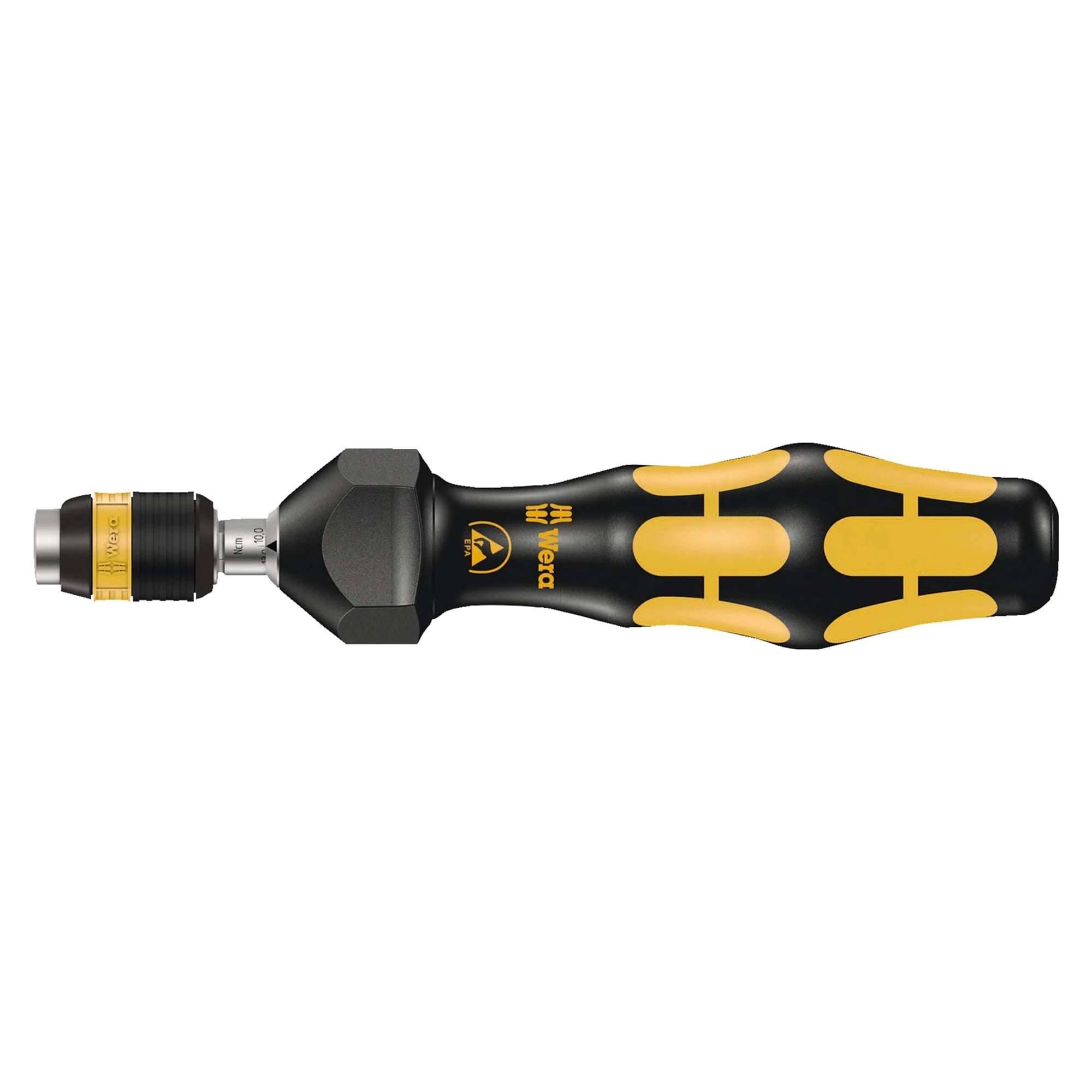

Kraftform 7431 ESD adjustable torque screwdriver 0.30-1.00 Nm, 1/4" Rapidaptor - Wera 05074782001

When screws on electrostatically sensitive assemblies have to be tightened to a defined torque, the Kraftform 7431 ESD can be set by hand to any value between 0.30 and 1.00 Nm, without any special tools. A distinctly audible and noticeable signal indicates when the pre-set torque is reached.

Benefits

• Protection against electrostatic energy thanks to surface resistance of ≤ 10⁹ Ohm
• Measurement accuracy ± 6 % to DIN EN ISO 6789 and a finely graduated 0.05 Nm scale
• Attachable magnifying glass included for improved scale visibility
• Rapidaptor quick-release chuck for rapid change of 1/4" bits or sockets
• Unlimited torque for loosening seized screws
• Multi-component Kraftform handle with hard and soft zones and hexagonal anti-roll feature

Applications

Torque-controlled screwdriving in electronics production, in ESD protected areas (EPA) and in repair and service of controllers, circuit boards and devices.

Standards and safety

The resistance requirements for ESD screwdriving tools are specified in DIN EN 61340-5-1, which includes a handle made of a defined conductive material. Measurement accuracy complies with DIN EN ISO 6789.
