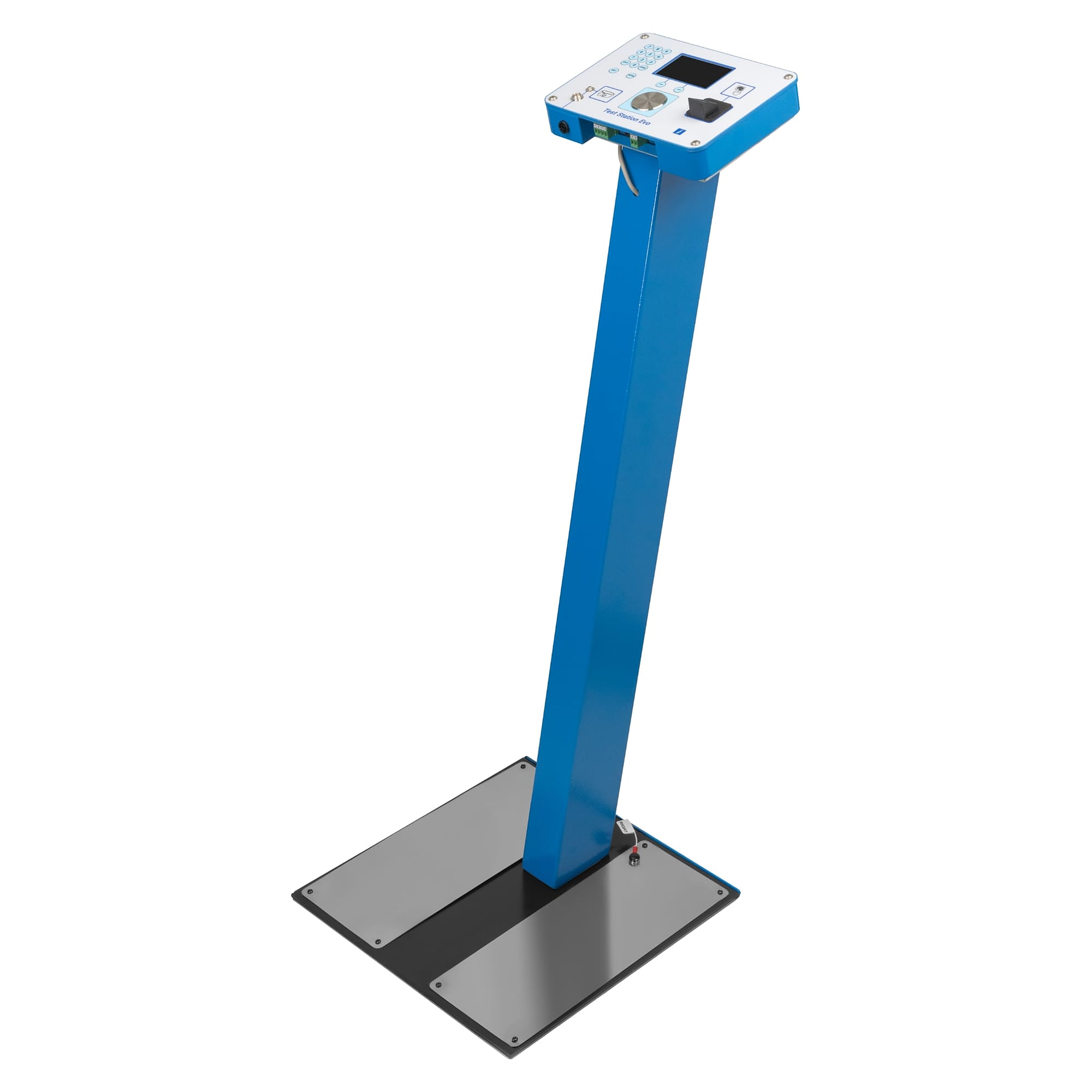

Where an explosive atmosphere can occur, high resistance ATEX footwear also has to be recognised as a pass. The Wristlab II 9264.952.1G combines this ATEX rating with the free standing layout: the complete station sits on its own column and measures footwear against a fixed upper limit of 1 GΩ.
Two differences in one article
- ATEX rating: footwear high limit fixed at 1 GΩ instead of a selectable 10 to 200 MΩ
- Free standing layout on a column, no wall fixing required
- Wrist strap test unchanged at 750 kΩ to 35 MΩ to IEC 61340-5-1
- Left and right shoe measured separately at 50 V or 100 V
- Relay contact for releasing a turnstile or a door
Four operating modes
- Simultaneous measurement of wrist strap and footwear in a single test
- Wrist strap only, for operators seated at the workstation
- Footwear only, for visitors without a wrist strap
- HandsFree: if both shoes pass the series measurement, the internal relay switches and releases the access gate to the EPA
Technical data
| Test standard | IEC 61340-5-1 |
|---|---|
| Items tested | Wrist strap and footwear, left and right shoe measured separately |
| Test voltage | 50 V or 100 V, selectable |
| Wrist strap limits | low limit 750 kΩ / high limit 35 MΩ |
| Footwear low limit | 0 to 100 kΩ, selectable |
| Footwear high limit | 1 GΩ fixed, ATEX compliant version |
| Operating modes | 4 (wrist strap and footwear together, wrist strap only, footwear only, HandsFree) |
| Output | relay contact for releasing access to the EPA |
| Power supply | internal 9 V battery or external 9 V DC |
| Instrument dimensions | 156 x 110 x 34 mm |
| Instrument weight | 340 g |
| Calibration | ISO 9000 traceable calibration report included |
| Mounting | free standing on a column support |
| Scope of delivery | Wristlab-II instrument in ATEX version, footplate, yellow instruction panel, stand-up support, calibration report |
| Panel language | English |
| Origin | Italy |
Applications
Entrances to areas with both an ESD and an explosion protection requirement where no wall surface is available for the test station, for example at airlocks in chemical and paint processing or in the production of igniters and battery modules.
Accessories and compatibility
The dual footplate 9264.965 and the turnstile 9266.100 can be combined with it. If the same ATEX rating is needed on a wall it is available as 9264.950.1G, the instrument alone as 9264.960.1G. Recalibration is covered by 9264.955.
The order code is completed with a language letter (I, F, E, D, H, S). This version is supplied with the English instruction panel.
Made in Italy by Iteco, with an ISO 9000 traceable calibration report.
| Norm | DIN EN ISO 9000 |
|---|---|
| Certification | ATEX, IEC 61340-5-1 |
| ESD version | ESD (antistatic) |
| Manufacturer Nr. | 9264952.1G |
| Manufacturer | Iteco |
| Country of Manufacture | Italy |
| Weight | 1.000000 |
| Sales unit | Stück |
| GPSR manufacturer information | Iteco Trading S.r.l, Via Paisas 1, IT-10094 Giaveno (TO), www.iteco.it |
| Series | Wristlab II |
| Operating voltage | 9 V |
