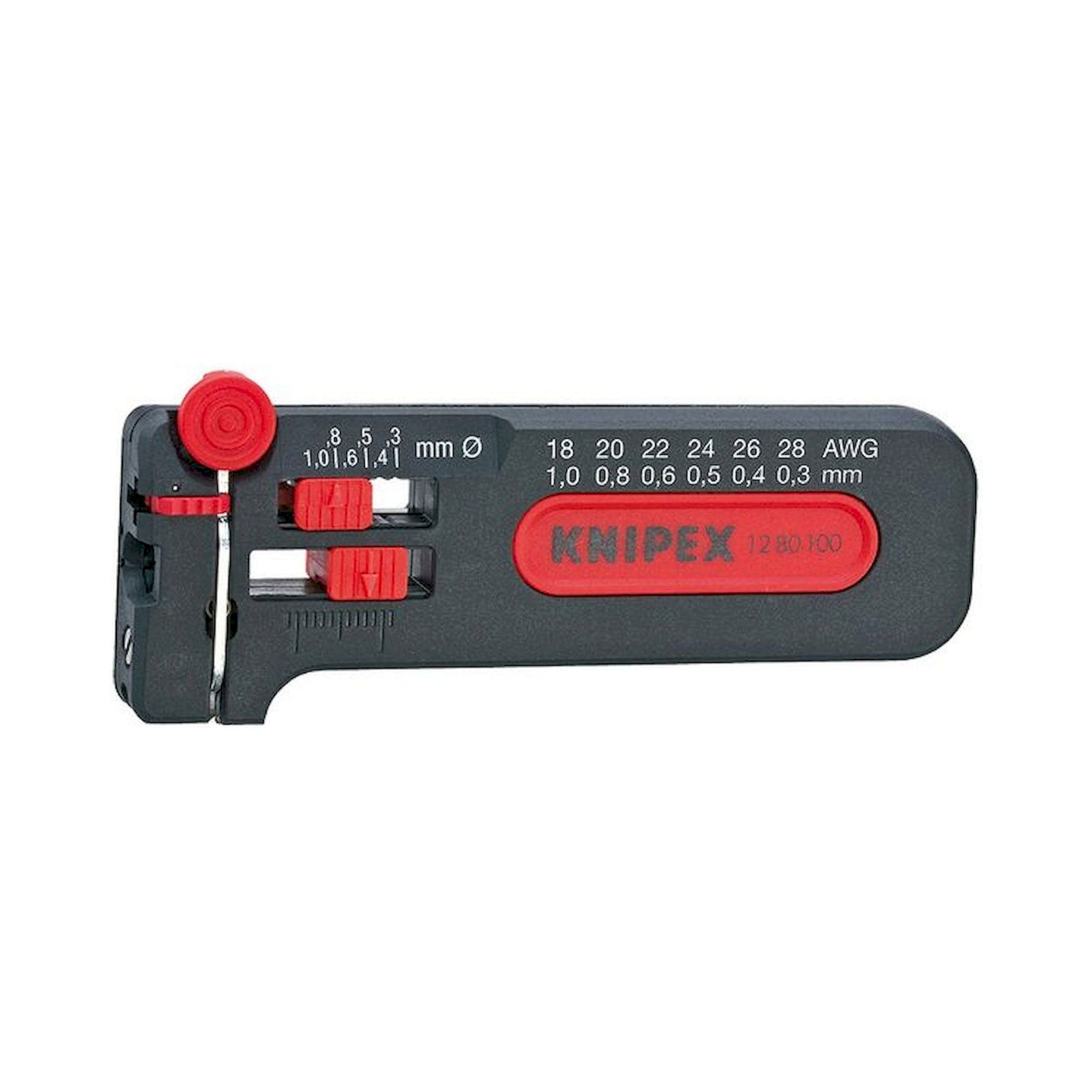

Mini wire stripper for thin copper conductors 0.3 - 1.0 mm dia., with length stop - Knipex 12 80 100 SB

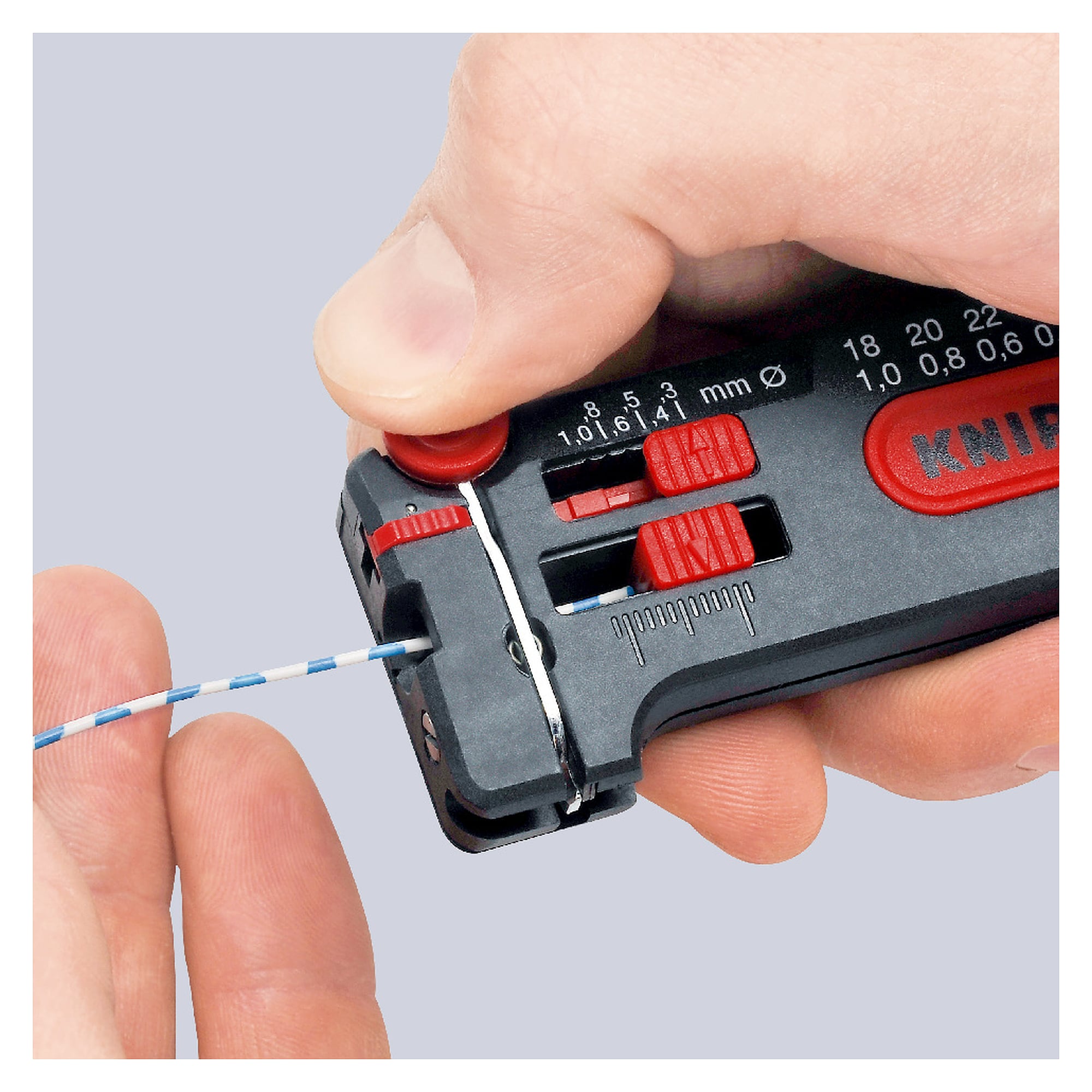

On thin copper conductors of 0.3 mm dia. a tool set too coarsely leaves no room for error, nicked strands break off later. The 12 80 100 SB mini wire stripper is therefore adjusted stepwise to the conductor diameter and covers the range from 0.3 to 1.0 mm dia.

Benefits

• Precise stripping thanks to stepwise adjustment of the tool to the conductor diameter, from 0.3 to 1.0 mm dia.
• Length stop adjustable from 4.0 to 15.0 mm, so every core is stripped to the same length.
• With locking device that holds the setting and prevents the tool from slipping.

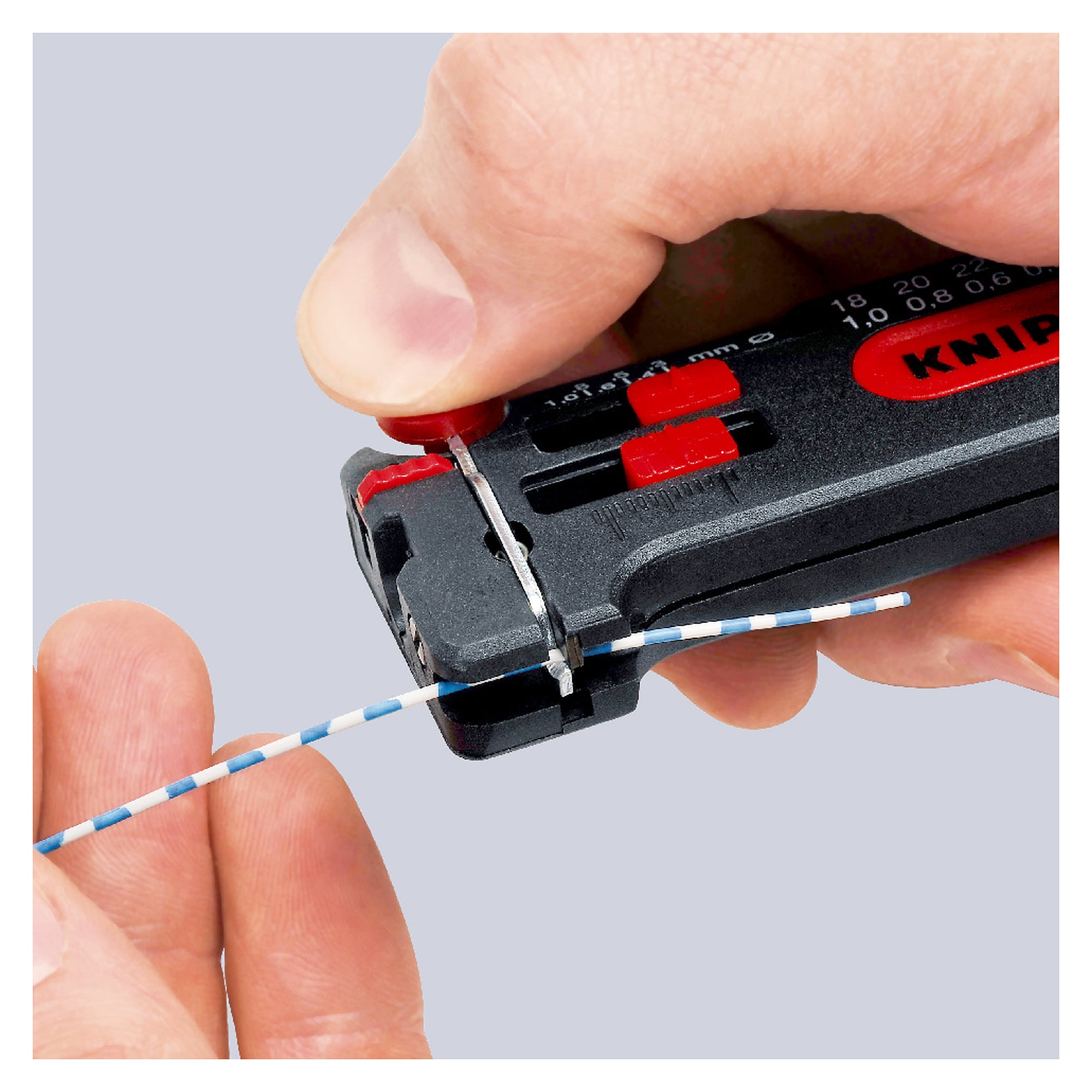

• With built-in wire cutter, so cutting to length and stripping need only one tool.

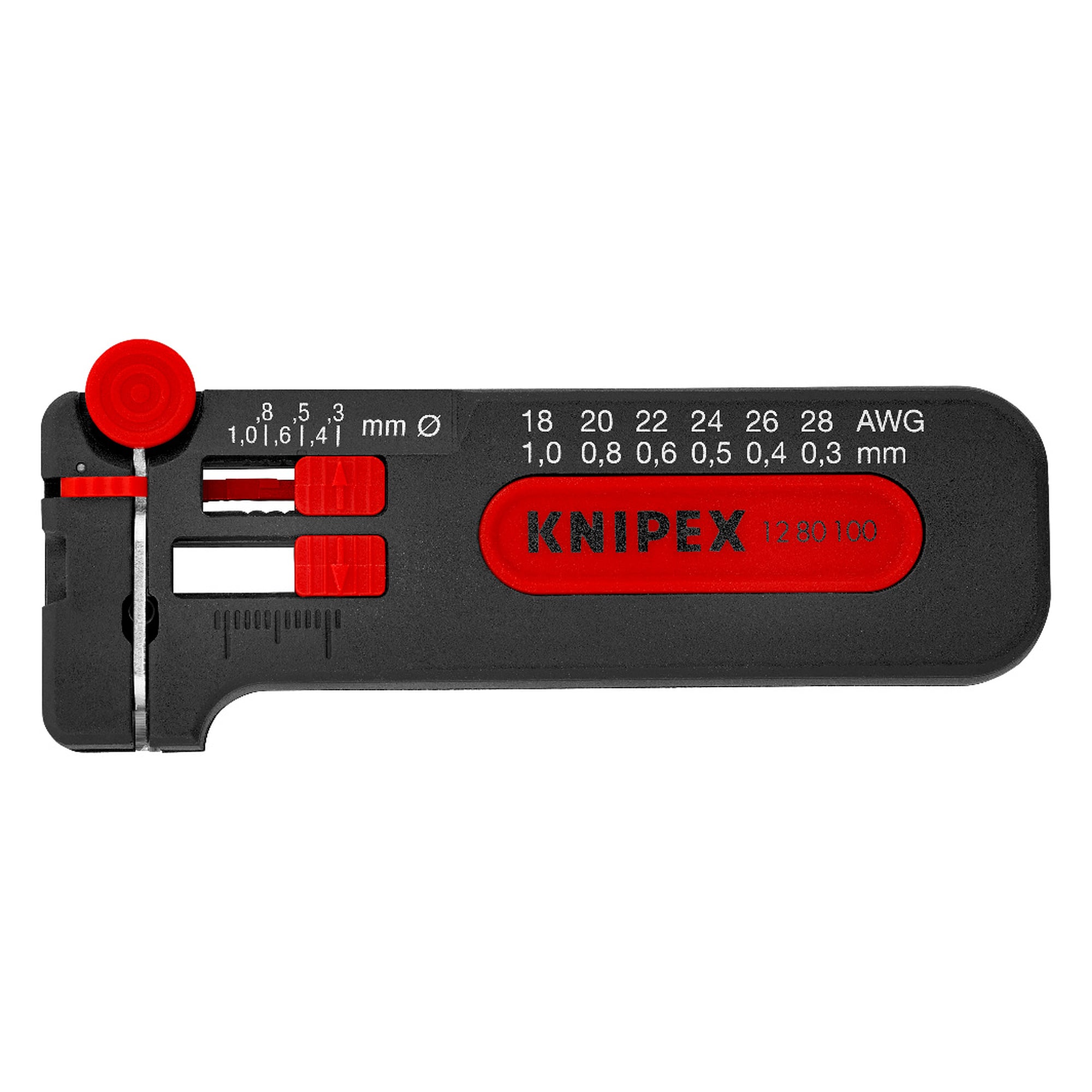

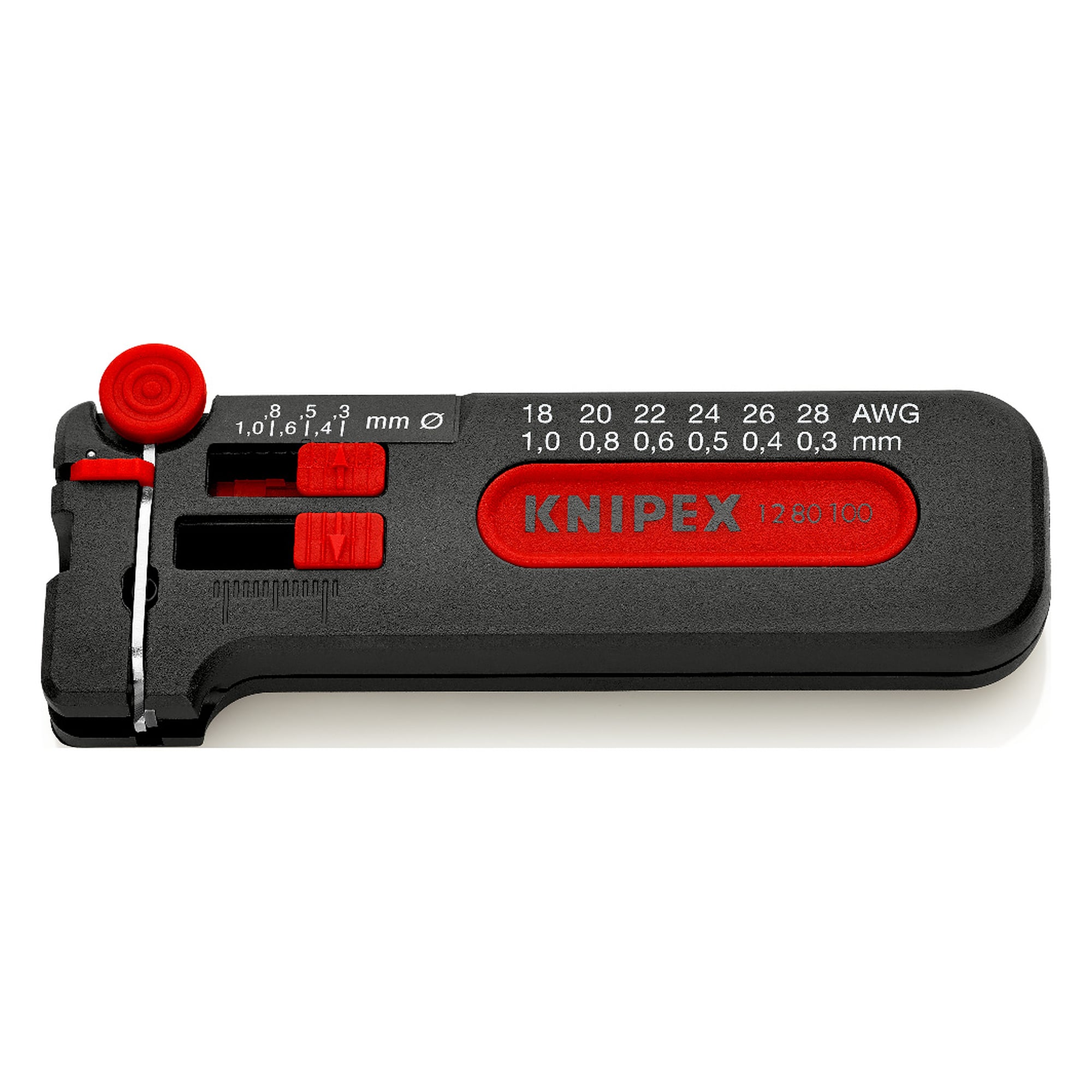

• Stripping range AWG 28 to 18, suited to electronics, model making and fine installation work.
• Only 100 mm long and 34 g in weight, small enough for a shirt pocket or a service case.

Areas of use

Electronics and precision mechanics, model making, laboratory and service work on thin copper conductors. Suited wherever a few cores have to be stripped cleanly and to a repeatable length without carrying a large automatic tool.

Standards and conformity

According to the manufacturer the tool contains no substances of very high concern under REACH. The RoHS directive does not apply to this product.
