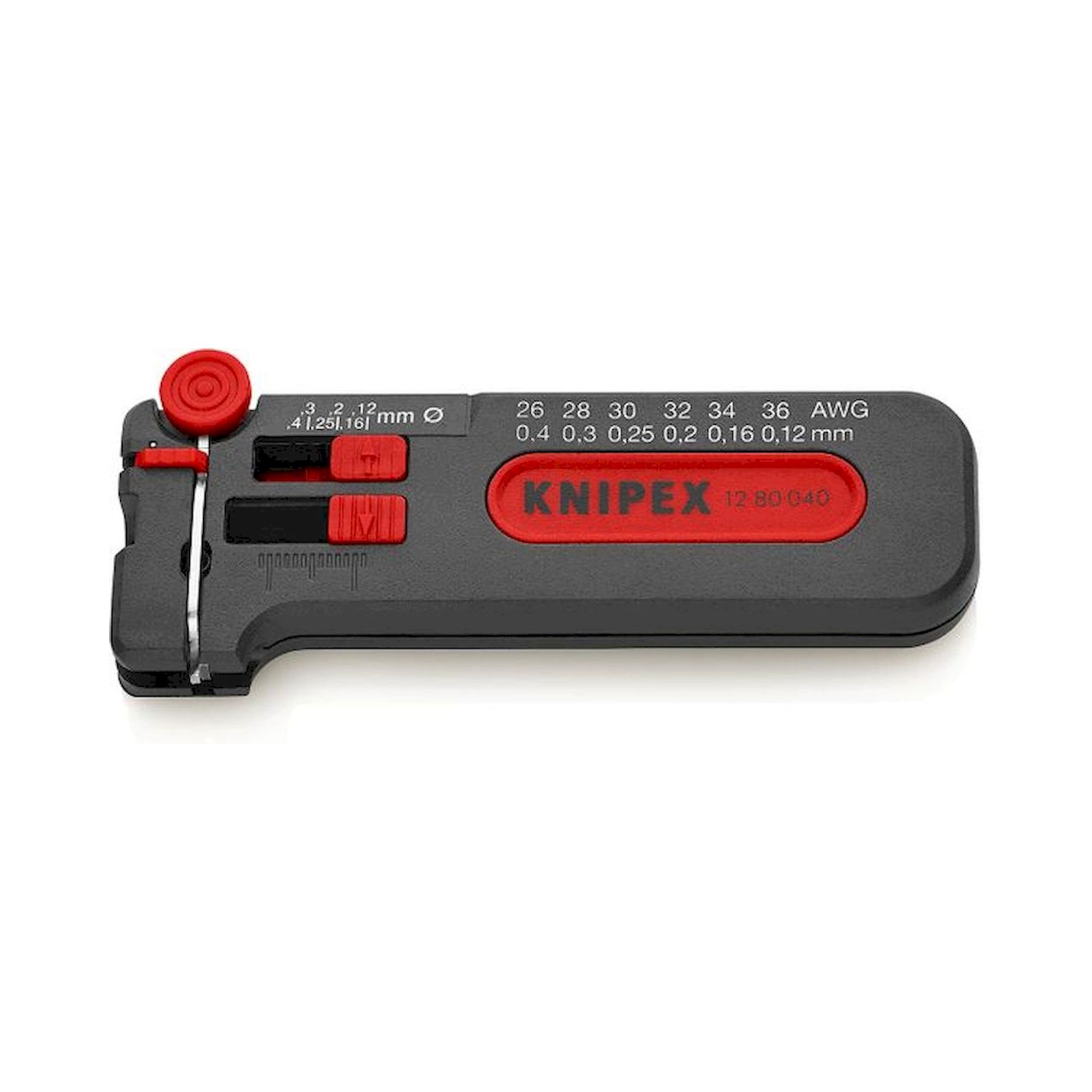

Mini wire stripper for thin copper conductors Ø 0.12 to 0.4 mm, length stop, 100 mm - Knipex 12 80 040 SB

With conductors just a few tenths of a millimetre thick, stripping leaves no room for error, because a nicked wire breaks at the terminal. The 12 80 040 SB mini wire stripper is adjusted stepwise to the conductor diameter and separates the insulation of thin copper conductors from Ø 0.12 to 0.4 mm cleanly.

Benefits

• Stepwise adjustment to the conductor diameter for precise stripping in the Ø 0.12 to 0.4 mm range.
• Adjustable length stop from 4.0 to 15.0 mm for constant stripping lengths in repetitive work.
• Integrated wire cutter, so cutting to length and stripping are done with one tool.
• Locking device holds the set position, the tool does not open unintentionally.
• Compact design, 100 mm long and weighing 35 g, suited to fine work at the bench.

Technical data

Areas of use

Electronics production, laboratory and test setups, repair of very fine wiring and model making. Wherever strands and wires below 0.5 mm diameter are handled and a standard stripper is simply too coarse.

Standards and conformity

The manufacturer does not state a tool standard for this product. According to the manufacturer it contains no substances of very high concern under REACH. The RoHS directive does not apply.
