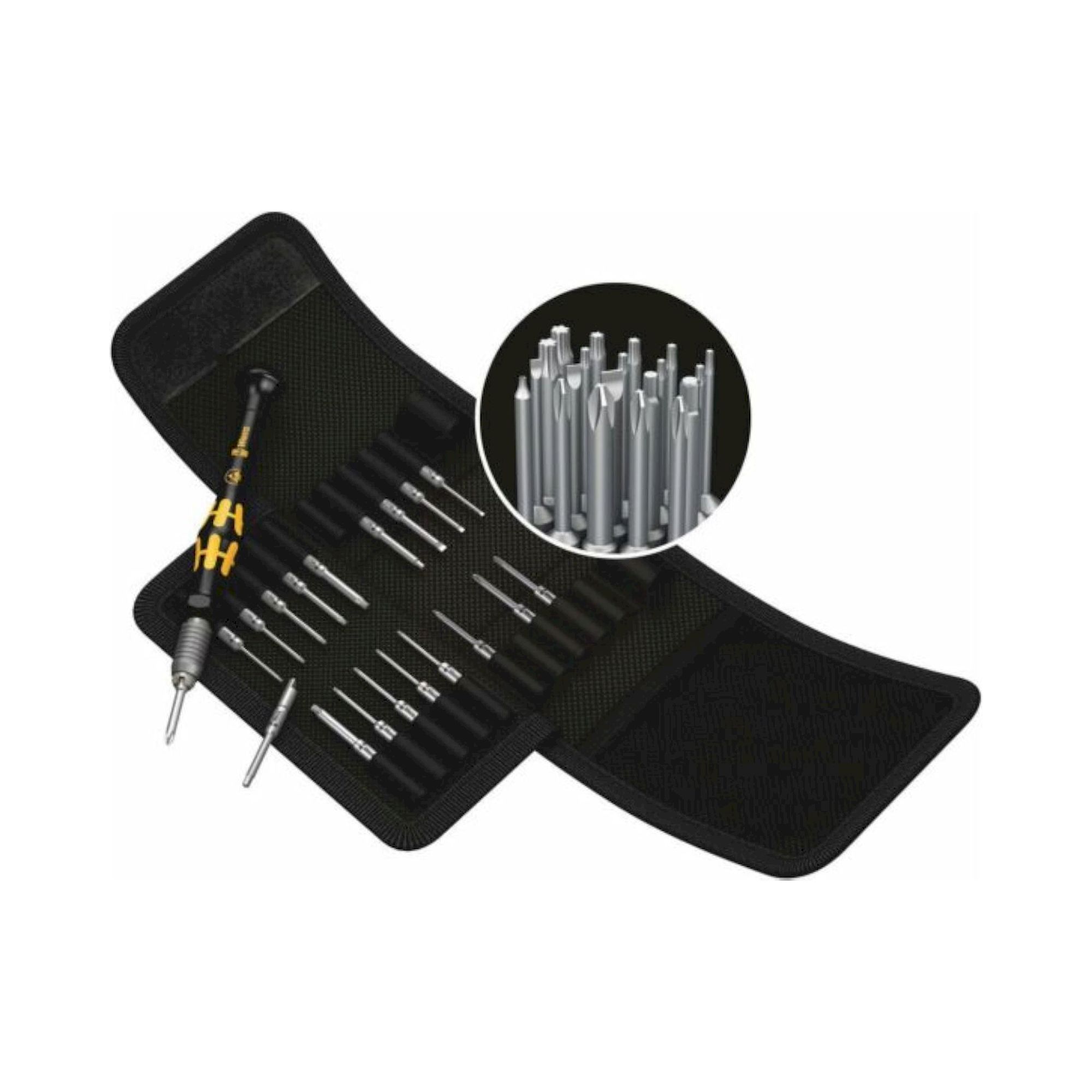

Kraftform Kompakt Micro 20 ESD 1 bits assortment with ESD bitholding screwdriver, 20 pieces - Wera 05073671001
20-piece ESD Micro set for precision mechanical work: Kraftform Micro ESD bitholding screwdriver with 19 halfmoon bits in PH, TORX, TORX PLUS, hexagon and slotted. The handle with a surface resistance of ≤ 10^9 Ohm protects electronic components, and bits lock automatically.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Assembling electronics, cameras or precision devices calls for many small profiles at hand without putting components at risk from electrostatic discharge. The Kraftform Kompakt Micro 20 ESD 1 combines an ESD bitholding screwdriver with 19 micro bits in a compact case measuring 157 x 100 x 32 mm.
Benefits
- Handle made of material with an electrical surface resistance of ≤ 10^9 Ohm, manufactured in accordance with DIN EN 61340-5-1
- Combination holder for bits with 4 mm halfmoon drive (Wera series 9) and 4 mm HIOS drive (Wera series 21)
- Push in the bit for automatic locking, push the sleeve forward to change it
- Free-turning sleeve for simple guidance of the tool while screwdriving
- Kraftform Micro handle with rotating cap, fast-turning zone, power zone and precision zone
- Bits for manual as well as power tool operations
Applications
For precision mechanical work, electronics production and repair of cameras, mobile devices and laptops in EPA areas. The PH 00 and PH 1 bits are optimised for Asian PH screws, PH 0 corresponds to JCIS 0.
Standards and safety
The requirements for ESD-safe screwdrivers are specified in DIN EN 61340-5-1. The handle of the bitholding screwdriver is made of a defined conductive material with a surface resistance of ≤ 10^9 Ohm.
Technical data
| Bitholding screwdriver | 1 x 1013 Kraftform Micro ESD, 97 mm |
|---|---|
| Phillips PH | PH 00 x 44 x 1.8 mm, PH 0 x 44 x 1.8 mm, PH 1 x 44 x 3 mm |
| TORX | TX 1, TX 2, TX 3, TX 4, TX 5, TX 6, each 44 mm |
| TORX PLUS | 1 IP, 2 IP, 3 IP, 4 IP, each 44 mm |
| TORX PLUS IPR | 1 IPR x 44 x 1.8 mm (without bore hole) |
| Hexagon Hex-Plus | 1.5 x 44 mm, 2 x 44 mm |
| Slotted | 0.23 x 1.5 x 44 mm, 0.40 x 2 x 44 mm, 0.50 x 3 x 44 mm |
| Bit drive | 4 mm halfmoon |
| Size | 157 x 100 x 32 mm |
| Weight | 199 g |
| Manufacturer | Wera |
| Manufacturer Nr. | 05073671001 |
| EAN | 4013288169662 |
| HS-Code | 82079030 |
| GPSR manufacturer information | WERA Werkzeuge GmbH Korzerter Strasse 21-25 DE-42349 Wuppertal-Cronenberg www.wera.de |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Czechia |
| Height | 32 mm |
| Width | 100 mm |
| ESD version | ESD (antistatic) |
| Norm | DIN EN 61340-5-1 |
| Certification | IEC 61340-5-1 |
