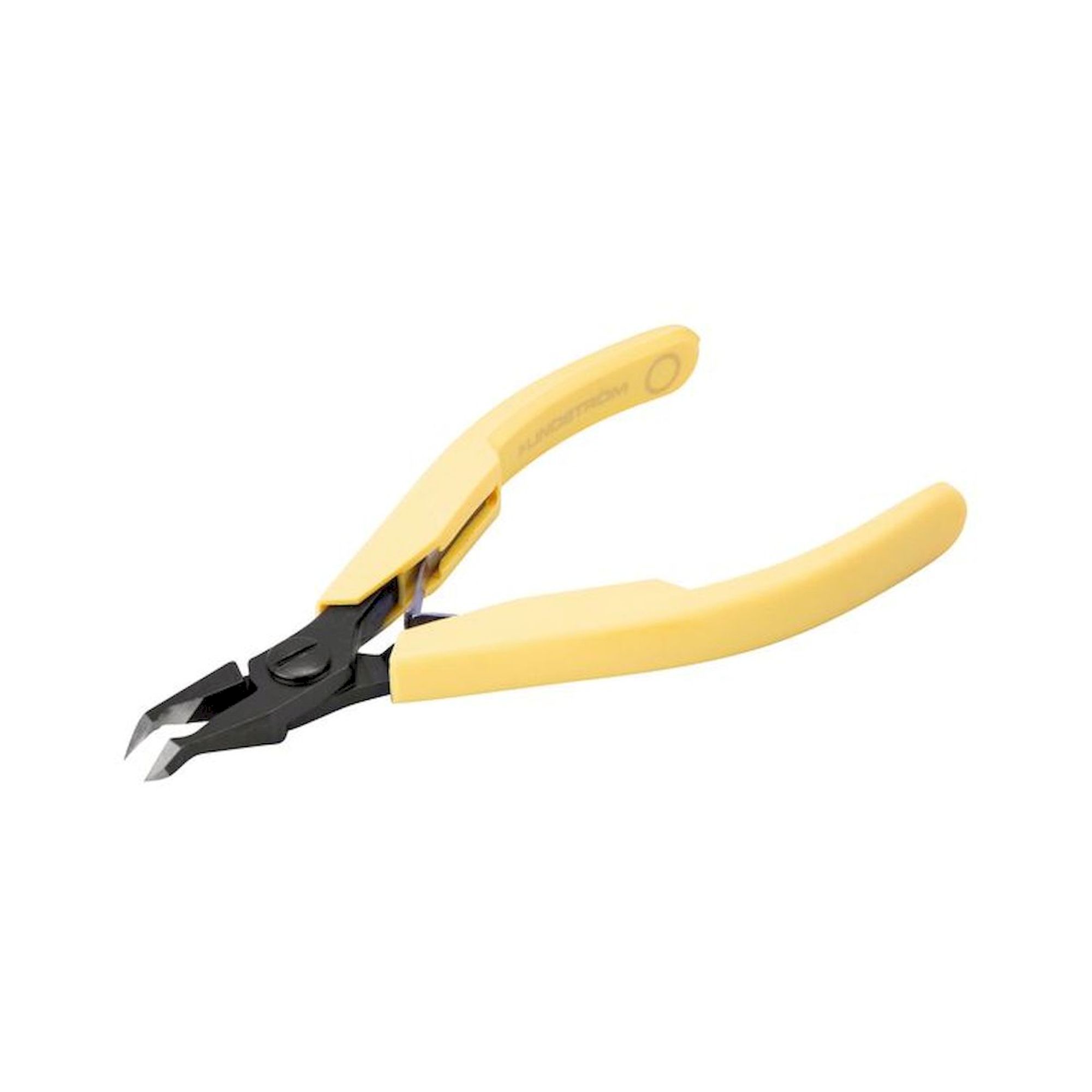

Lindström 8248 Co. Diagonal end cutter, 80 series, 45°, fluted jaws, antistatic
Diagonal end cutter, 80 series, 45°, fluted jaws, antistatic. Diagonal end cutter 45°, long and fluted head, flush cut, conductive handles 0.2 mm - 0.8 mm. The numerically controlled machine grinding guarantees cutting angle accuracy and contact; increases the load capacity and durability of the tool. Diagonal end cutters, series 80, tapered jaws, 45° angled.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
In hard-to-reach areas on assembled circuit boards you need a cutter that cuts close to the surface. Lindström 8248 CO provides the matching key data: dimensions (LxWxH) 155 mm x 100 mm x 65 mm, head width 10 mm.
Benefits
- Diagonal end cutter 45°, long and fluted head, flush cut, conductive handles 0.2 mm - 0.8 mm. The numerically controlled machine grinding guarantees cutting angle accuracy and contact; increases the load capacity and durability of the tool.
- Diagonal end cutters, series 80, tapered jaws, 45° angled
- ESD-safe handles made of synthetic material with opening spring
- Cut/wage: Flush
- The specified cutting capacity applies to copper wire
- Suitable for cutting copper
Further features
- High Performance Steel Alloy
- Burnished
- The numerically controlled machine grinding guarantees cutting angle accuracy and contact; increases the load capacity and durability of the tool
- Induction hardened cutting edges, 63-65 HrC
- Friction-reducing screw connection which increases the line accuracy of the cutting edges
- Especially suitable for assembly and reworking
- Version "CO" with antistatic, conductive grip sleeves
Technical data
| Brand | Lindström |
|---|---|
| Manufacturer part number | 8248 CO |
| Weight | 50 g |
| dimensions (LxWxH) | 155 mm x 100 mm x 65 mm |
| order unit | piece |
| head width | 10 mm |
| ESD safe | yes |
| packaging mass | piece |
| VDE | no |
| type of side cutter | diagonal end cutter |
| Manufacturer | Lindström |
| Manufacturer Nr. | 8248 CO |
| HS-Code | 82032000 |
| GPSR manufacturer information | SNA Europe SAS/ LINDSTRÖM Antigua Carretera Altube km 5.5 ES-01006 Vitoria-Gasteiz www.lindstromtools.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Spain |
