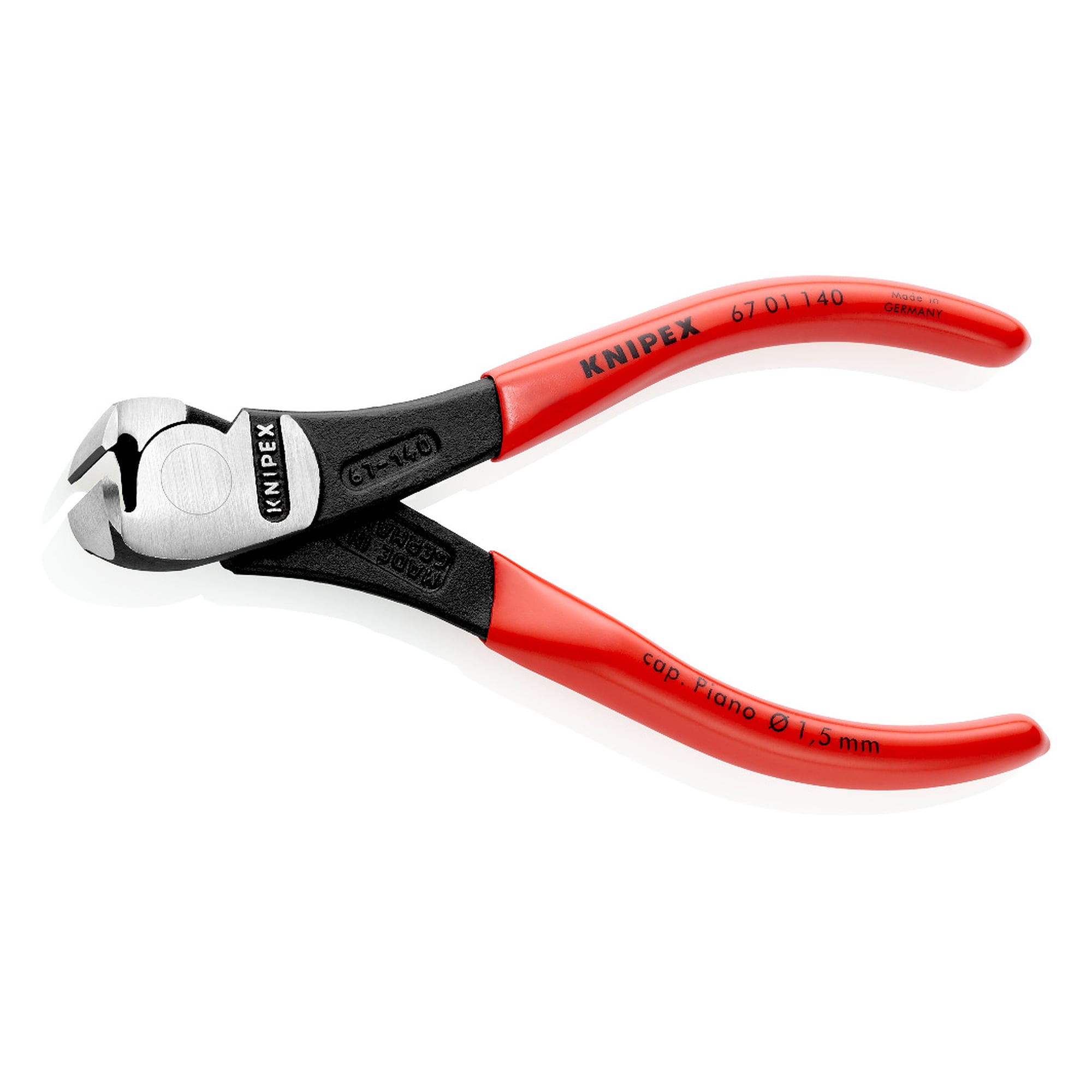

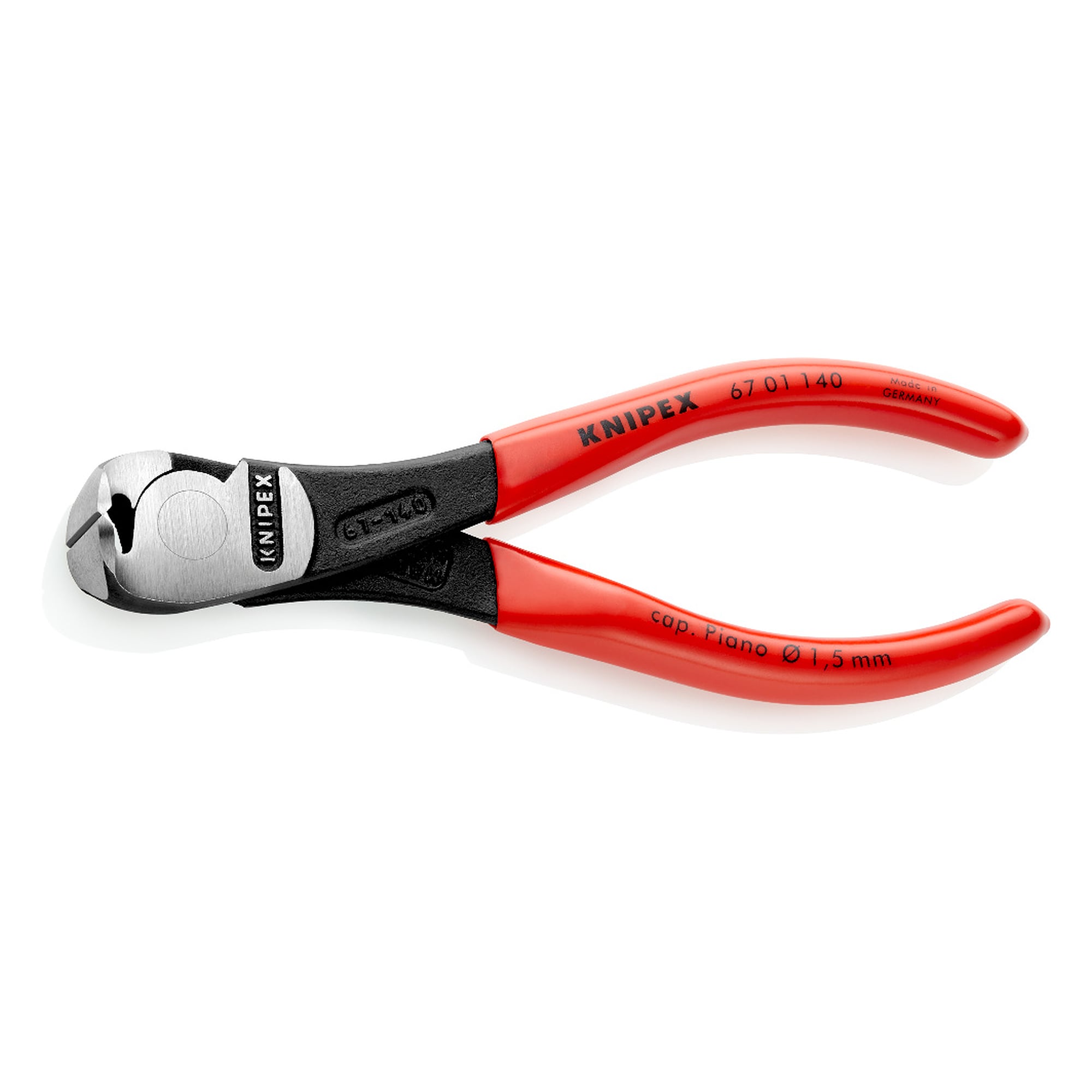

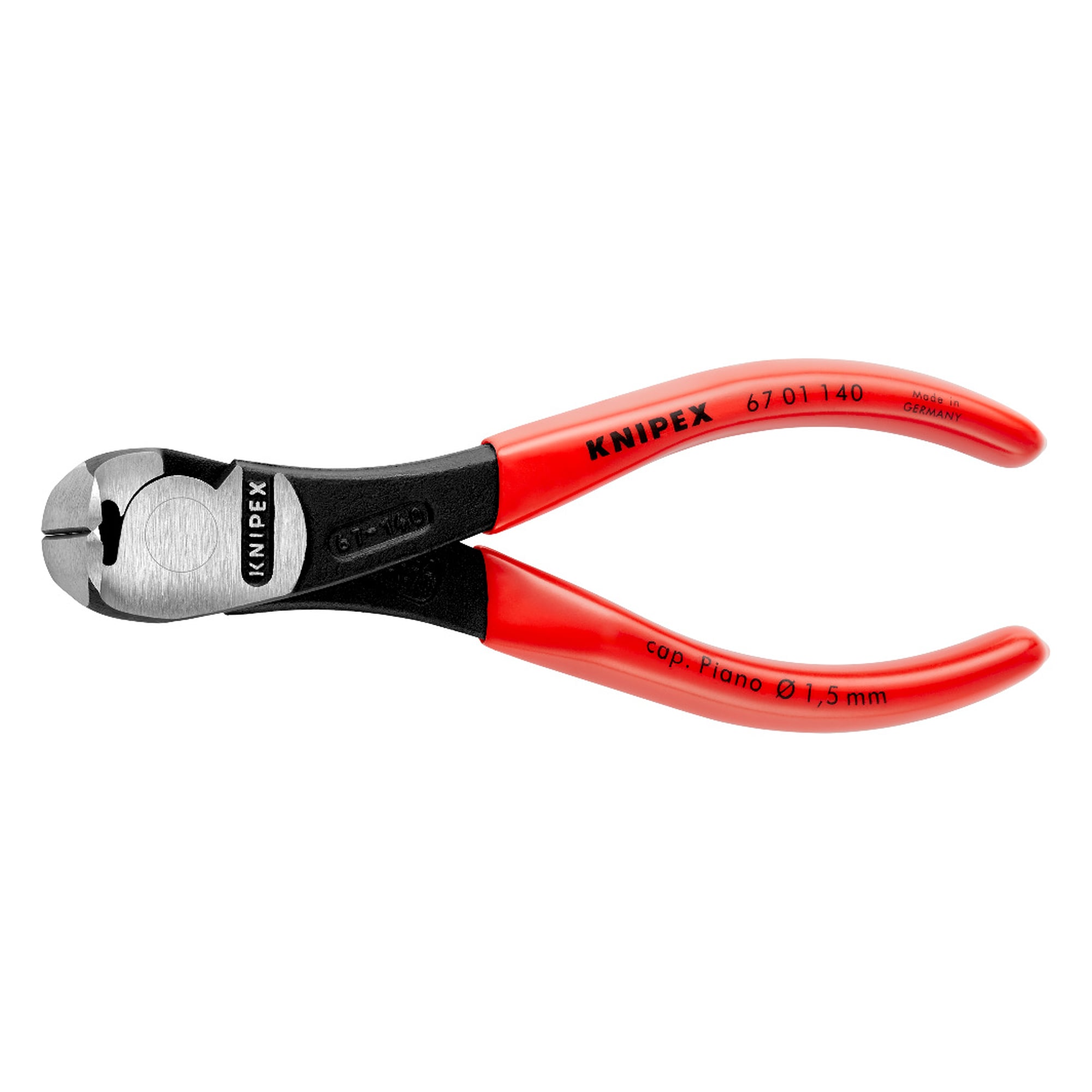

High leverage end cutting nipper for wire up to 4 mm dia., 64 HRC edges, 140 mm - Knipex 67 01 140
High leverage end cutting nipper that delivers high cutting capacity with little hand force thanks to the matched cutting edge angle and leverage. The induction-hardened edges of about 64 HRC cut soft wire up to 4 mm dia., hard wire up to 2.0 mm dia. and piano wire up to 1.5 mm dia. Length 140 mm, 152 g.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Nipping nails, rivets and wire flush with the surface costs a lot of hand force with a weak end cutter. The 67 01 140 high leverage end cutting nipper matches the cutting edge angle to the transmission ratio and cuts soft wire up to 4 mm dia. at only 140 mm overall length.
Benefits
- High cutting capacity with little effort due to the optimum coordination of cutting edge angle and transmission ratio.
- Cutting edges for soft and hard wire as well as piano wire, soft wire up to 4 mm dia. and hard wire up to 2.0 mm dia.
- Cutting edges additionally induction-hardened, cutting edge hardness approx. 64 HRC, which keeps the edge sharp over many cuts.
- Piano wire up to 1.5 mm dia., so spring steel can be cut as well.
- Compact length of 140 mm at 152 g, the nipper also works close to the surface of the workpiece.
Areas of use
Assembly and maintenance, metal construction, fencing and wire work, and workshop tasks where nails, rivets and wire ends are cut flat against the surface. Also suitable for spring steel and piano wire within the stated diameters.
Standards and conformity
According to the manufacturer the nipper complies with DIN ISO 5748. The manufacturer states that it contains no substances of very high concern under REACH. The RoHS directive does not apply.
Technical data
| EAN | 4003773043690 |
|---|---|
| Pliers | black atramentized |
| Head | polished |
| Handles | plastic coated |
| Weight | 152 g |
| Dimensions | 140 x 50 x 15 mm |
| Standard | DIN ISO 5748 |
| Cutting capacity soft wire (diameter) | max. 4 mm |
| Cutting capacity medium hard wire (diameter) | 3.1 mm |
| Cutting capacity hard wire (diameter) | 2.0 mm |
| Cutting capacity piano wire (diameter) | 1.5 mm |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
| Weight | 0.152000 |
| Manufacturer | Knipex |
| Manufacturer Nr. | 67 01 140 |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Height | 15 mm |
| Width | 50 mm |
| Colour | Black |
| Farbe | schwarz |
| Norm | DIN ISO 5748 |
| Overall length [mm] | 140.000000 |
