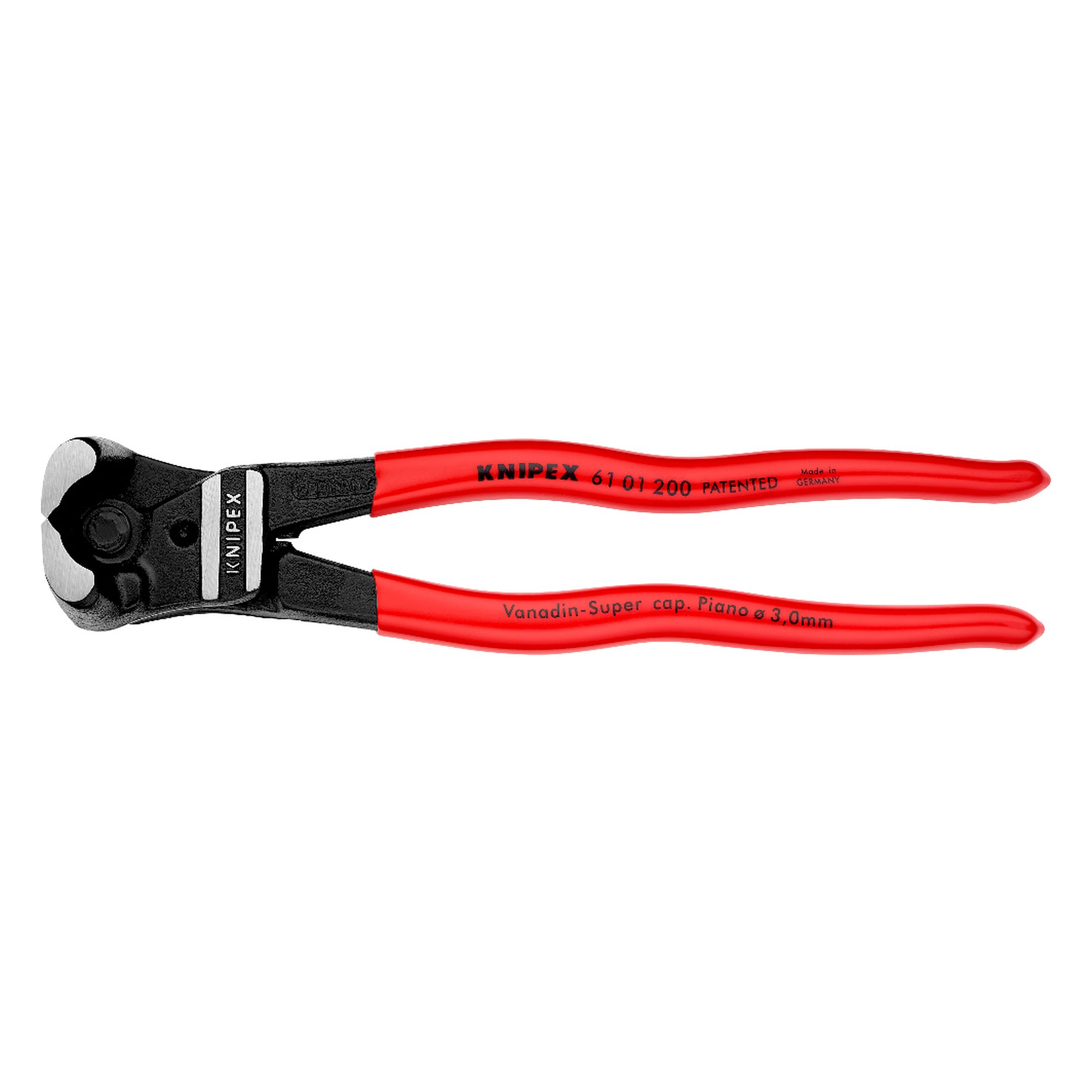

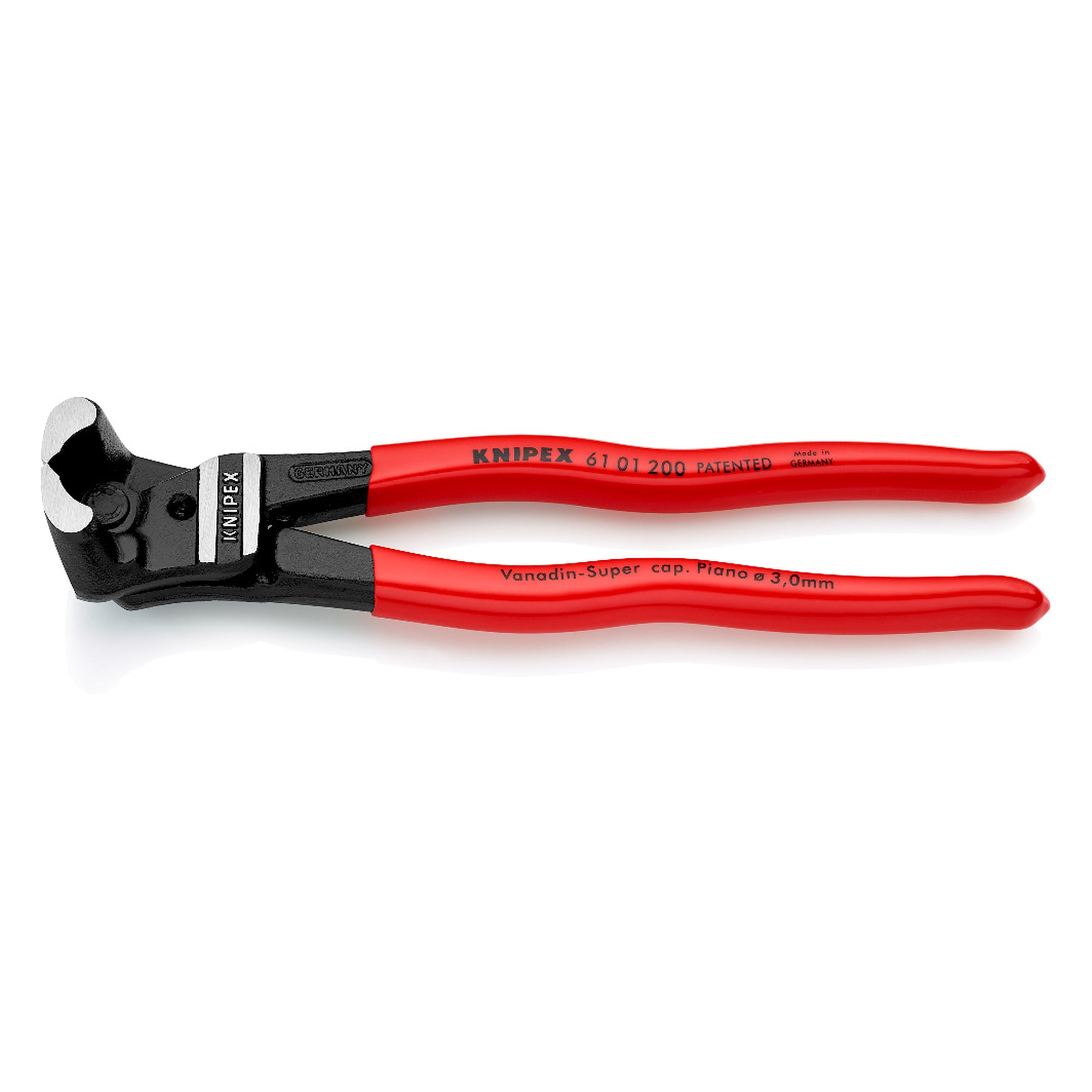

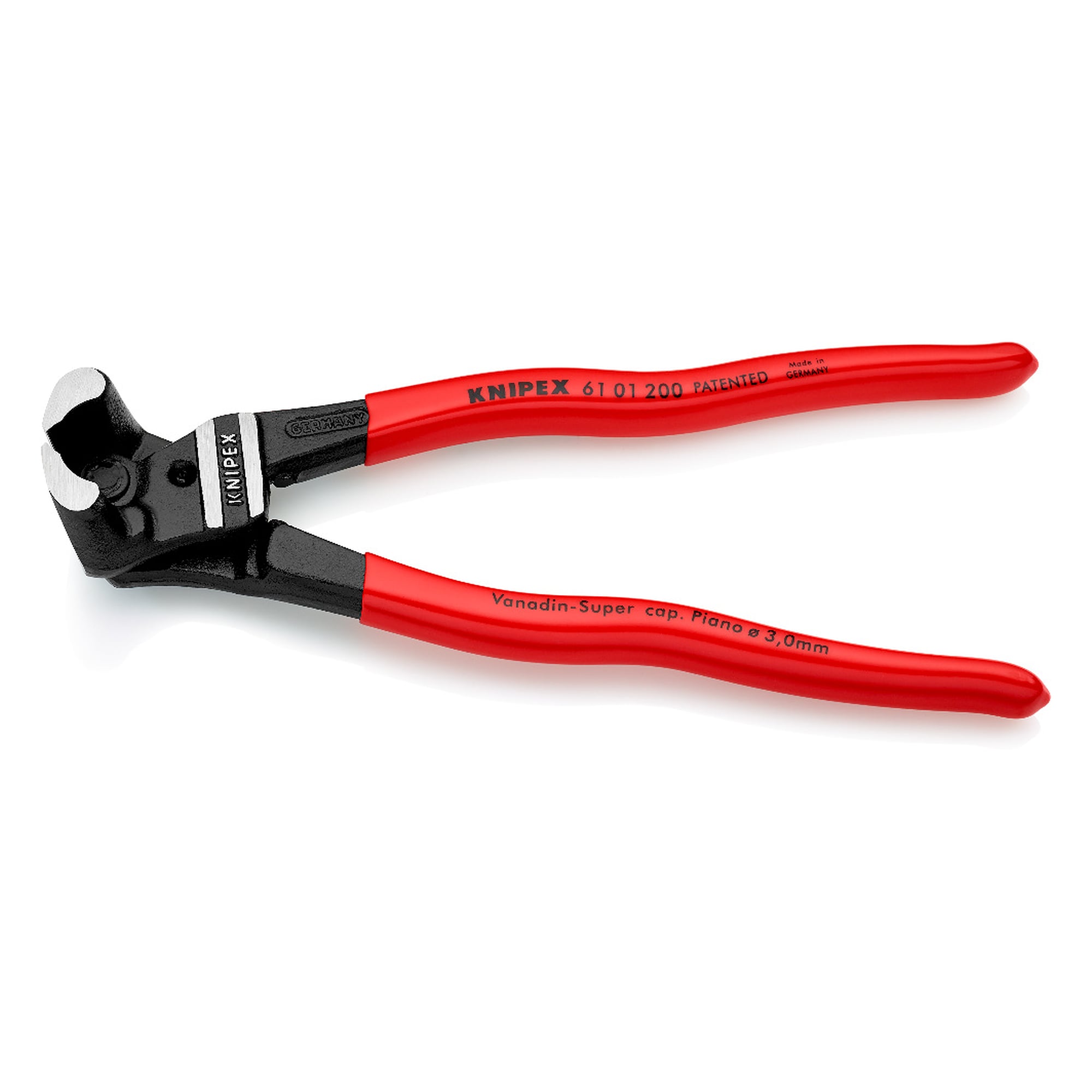

Bolt end cutting nippers with high lever transmission, hard wire 3.5 mm, 64 HRC edges, 200 mm - Knipex 61 01 200
Bolt end cutting nippers with a high lever transmission that cut hard wire up to 3.5 mm dia. and piano wire up to 3.0 mm dia. at just 200 mm in length. The induction hardened cutting edges reach approx. 64 HRC. Greater capacity with less effort than conventional end cutters, 435 g.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Cutting reinforcing wire, bolts and nails flush costs noticeable effort with conventional end cutting nippers. The 61 01 200 answers with an optimised transmission ratio and cuts hard wire up to 3.5 mm dia. and piano wire up to 3.0 mm dia. from a body just 200 mm long.
Benefits
- High lever transmission, greater capacity with lower hand force than conventional bolt end cutting nippers.
- Cutting edges for soft wire 1 to 6 mm dia., hard wire up to 3.5 mm dia. and piano wire up to 3.0 mm dia.
- Cutting edges additionally induction hardened, cutting edge hardness approx. 64 HRC.
- Compact 200 mm length, so the tool still works in tight positions.
- 435 g at a head width of 45 mm, a balance that suits overhead work.
- Polished head, black atramentised body and plastic coated handles.
Areas of use

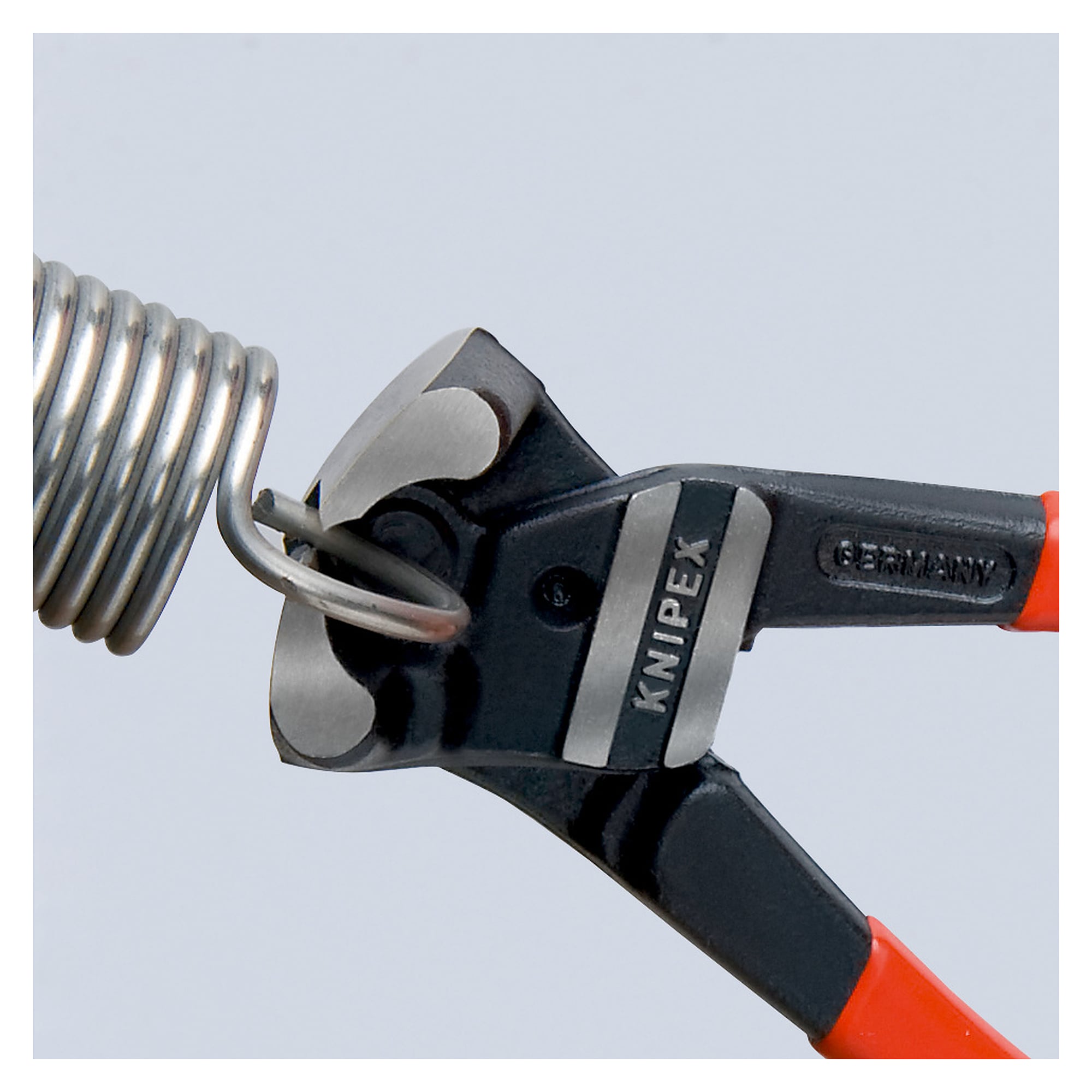

Metalwork, plant and scaffolding construction, concrete work and maintenance. For cutting bolts, nails, reinforcing and tying wire flush, including spring hard material.
Standards and conformity
No product standard is stated in the manufacturer source. According to the manufacturer the nippers contain no substances of very high concern under REACH. The RoHS directive does not apply to this product.
Technical data
| EAN | 4003773033172 |
|---|---|
| Pliers | black atramentised |
| Head | polished |
| Handles | plastic coated |
| Weight | 435 g |
| Dimensions | 200 x 45 x 15 mm |
| Cutting capacity soft wire (diameter) | 1 to 6 mm dia. |
| Cutting capacity medium hard wire (diameter) | 4.0 mm dia. |
| Cutting capacity hard wire (diameter) | 3.5 mm dia. |
| Cutting capacity piano wire (diameter) | 3.0 mm dia. |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
| Manufacturer | Knipex |
| Manufacturer Nr. | 61 01 200 |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Height | 15 mm |
| Width | 45 mm |
| Colour | Black |
| Farbe | schwarz |
| Overall length [mm] | 200 |
