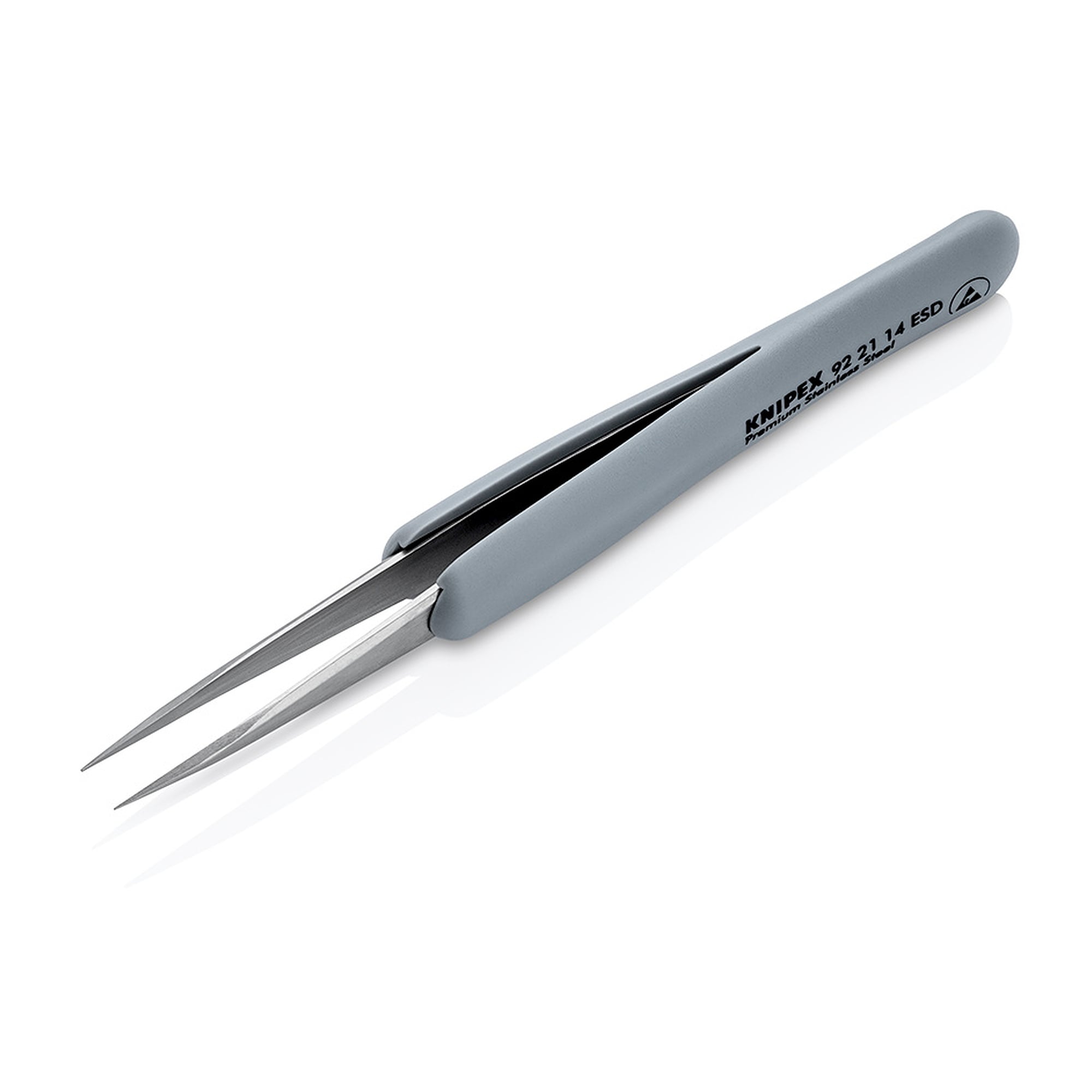

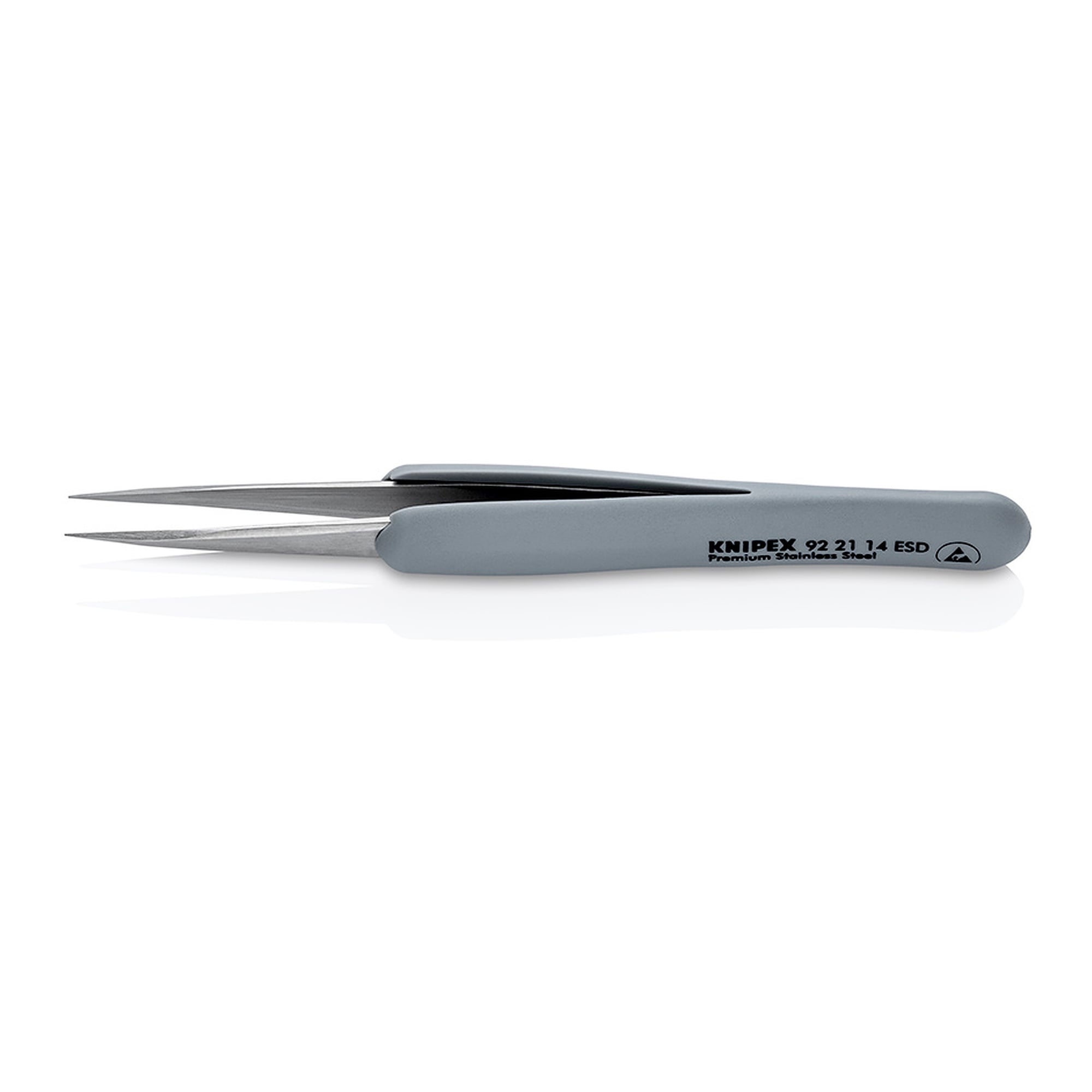

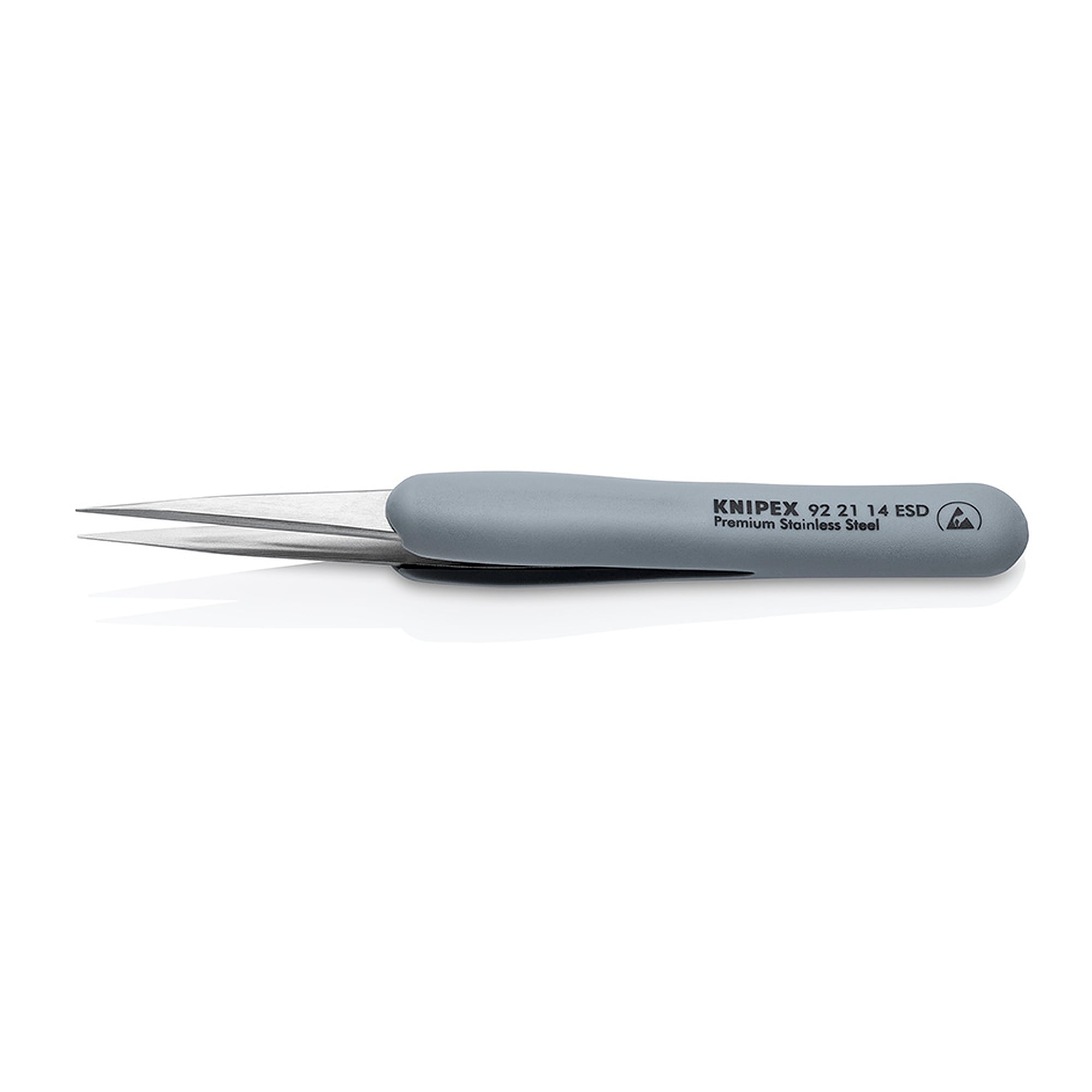

ESD precision tweezers with rubber-coated handle, straight, pointed, tip width 0.5 mm, 130 mm - Knipex 92 21 14 ESD

Reaching across a populated assembly calls for distance between hand and component. These precision tweezers provide 130 mm of overall length, grip with pointed jaws 0.5 mm wide and dissipate charge through rubber-coated handle sleeves with a surface resistance between 10^3 and 10^9 ohms.

Benefits

• Pointed jaws with a constant 0.5 mm tip width (A and B) give even contact across the whole gripping surface.
• ESD-tested handle sleeves to DIN EN 61340-5-1 equalise potential differences between user and workpiece in a controlled way.
• Soft, ergonomic handle sleeves keep the grip pressure even through long shifts, total weight 20 g.
• Premium stainless steel body, antimagnetic and rust-free, resistant to many corrosive media.
• Handles are suitable for use in clean rooms and controlled environments.

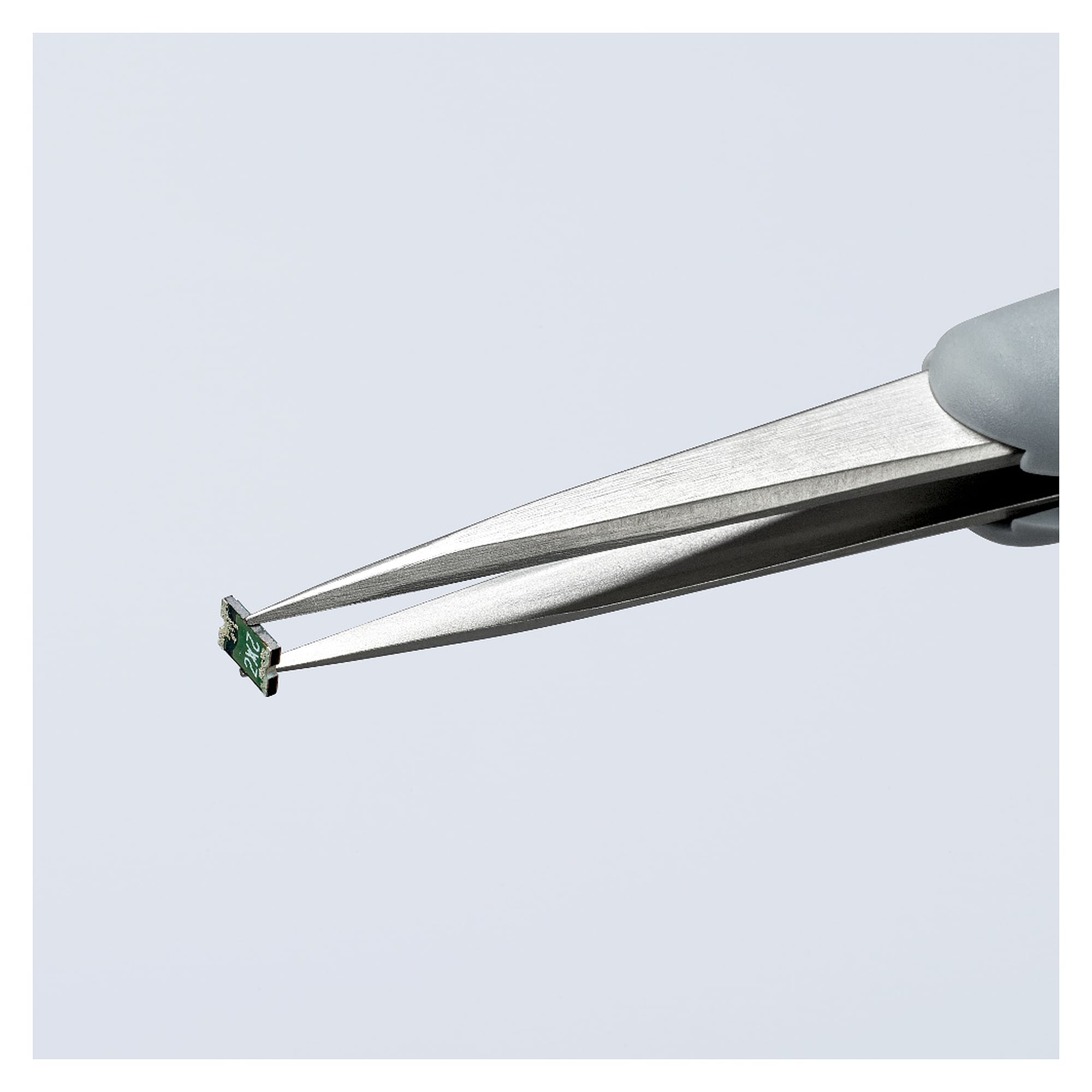

• 130 mm of overall length creates distance between hand and work area under the microscope.

Applications

Working at a distance over populated assemblies at ESD stations, medical technology, microscopy and laboratory work, plus precision assembly in industry.

Standards and compliance

The handle sleeves are ESD tested to DIN EN 61340-5-1 with a surface resistance between 10^3 and 10^9 ohms. The tool contains no substances of very high concern under REACH and the RoHS directive does not apply here. There is no VDE test, so the tweezers are not intended for work on live parts.
