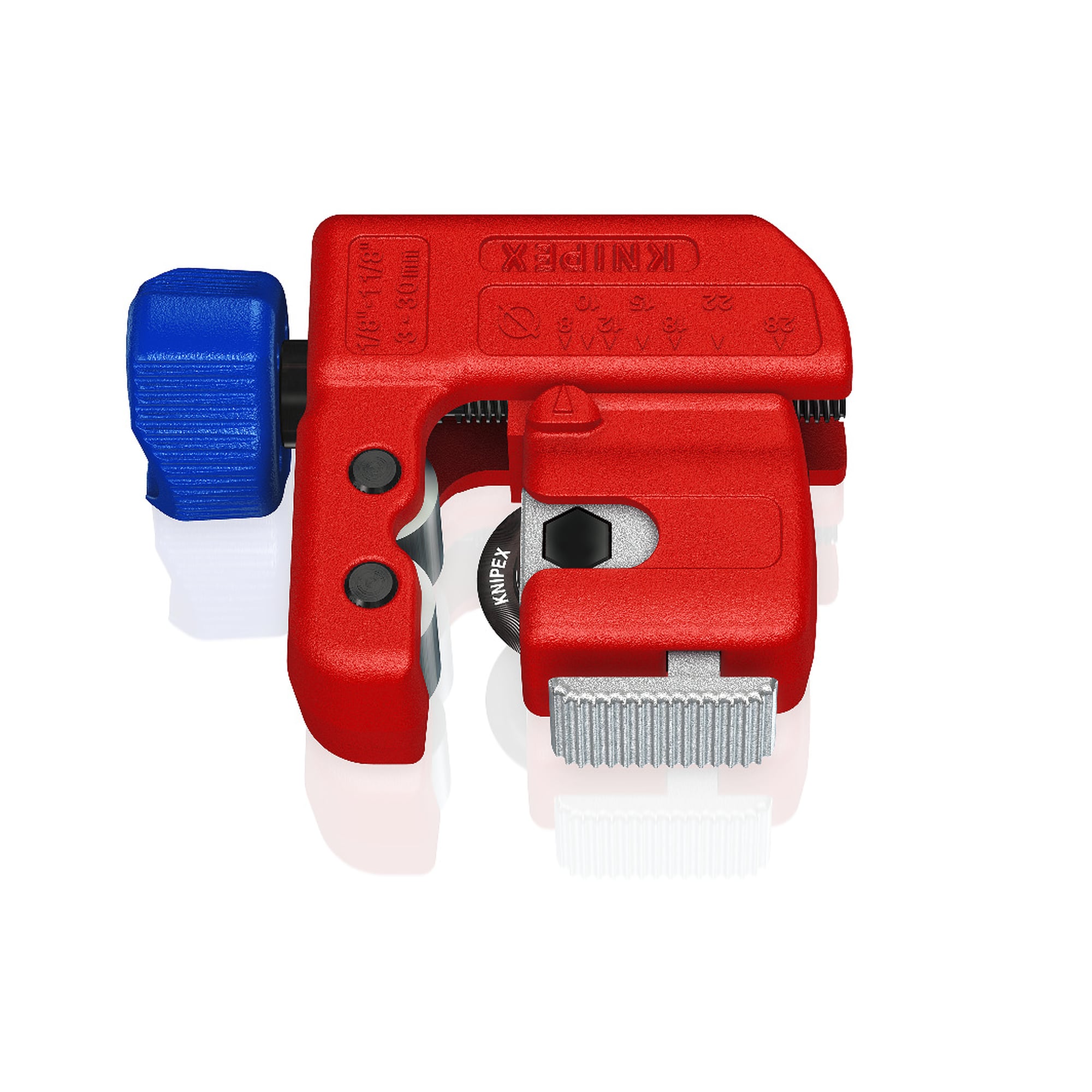

TubiX S pipe cutter for metal pipes 3 - 30 mm dia., QuickLock one-hand locking - Knipex 90 31 01

In stud wall installations and narrow shafts there are often only a few centimetres left for the tool. The TubiX S works with a very small cutting circle and cuts pipes from 3 to 30 mm dia., that is 1/8 to 1 1/8 inch, with wall thicknesses up to 2 mm. At 261 g and a size of 77 x 55 x 26 mm it fits in a trouser pocket and still cuts stainless steel.

Benefits

• Very small cutting circle, so the minimum of space is needed for cutting in the tightest places.
• QuickLock one-hand locking mechanism, the tool holds and clamps itself on the pipe and leaves the second hand free.

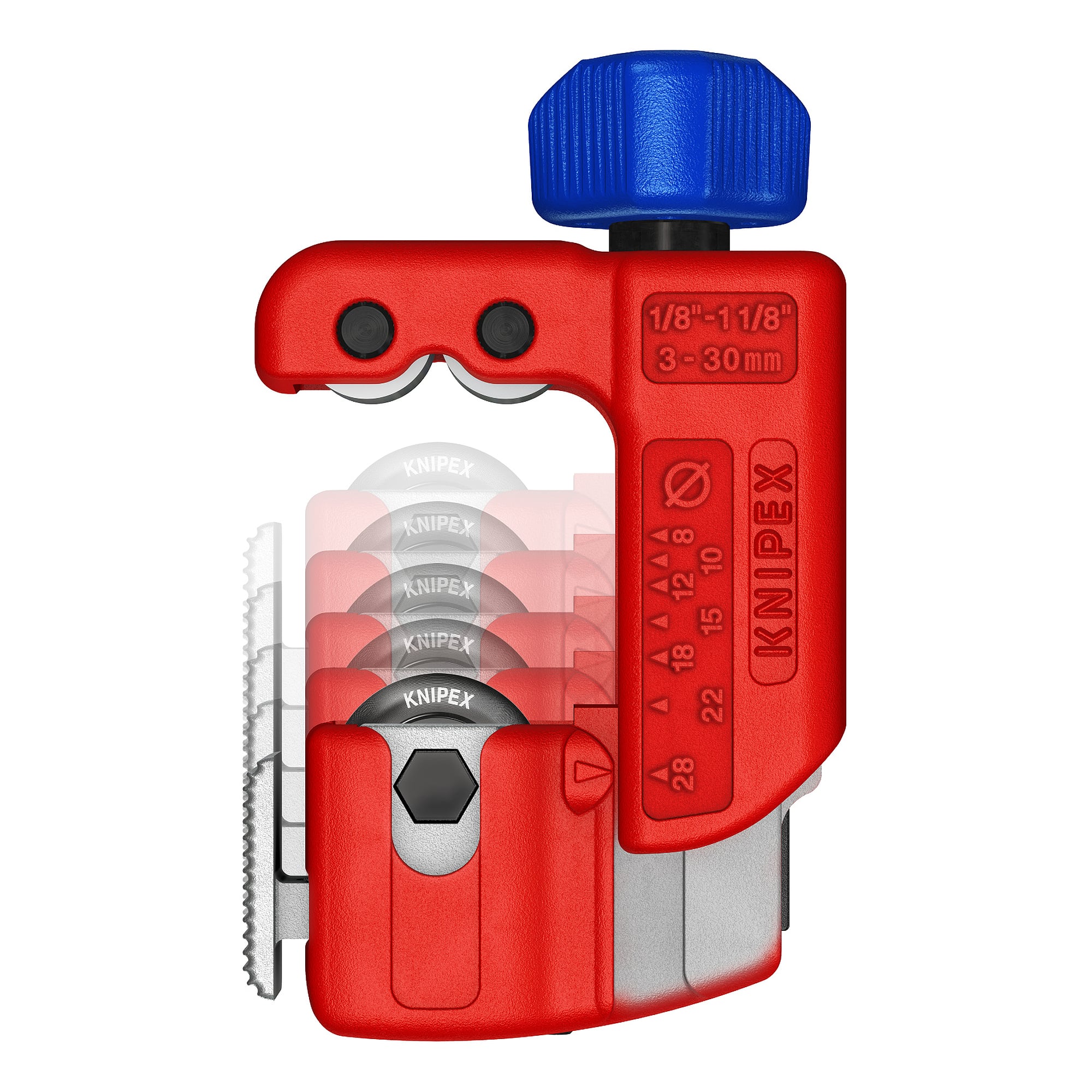

• Pipe diameter can be preset on the scale, the spring-loaded cutting wheel is simply clipped onto the pipe and positioned precisely.

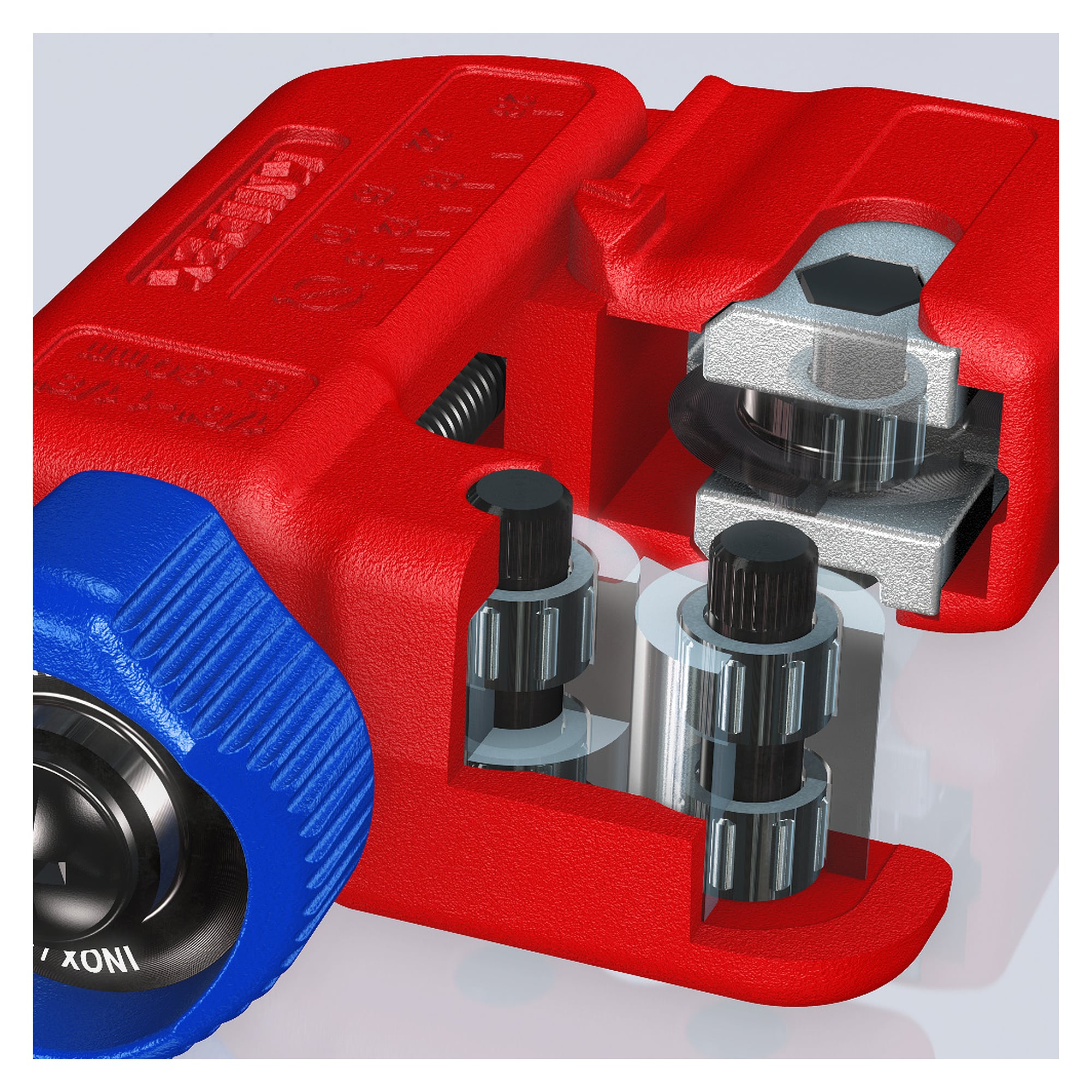

• High-quality needle bearings on the cutting wheel and the guide rollers keep the tool running smoothly around the pipe.
• Optimised turning knob with textured thumb recess, 20% higher torque and no slipping, even in wet conditions.

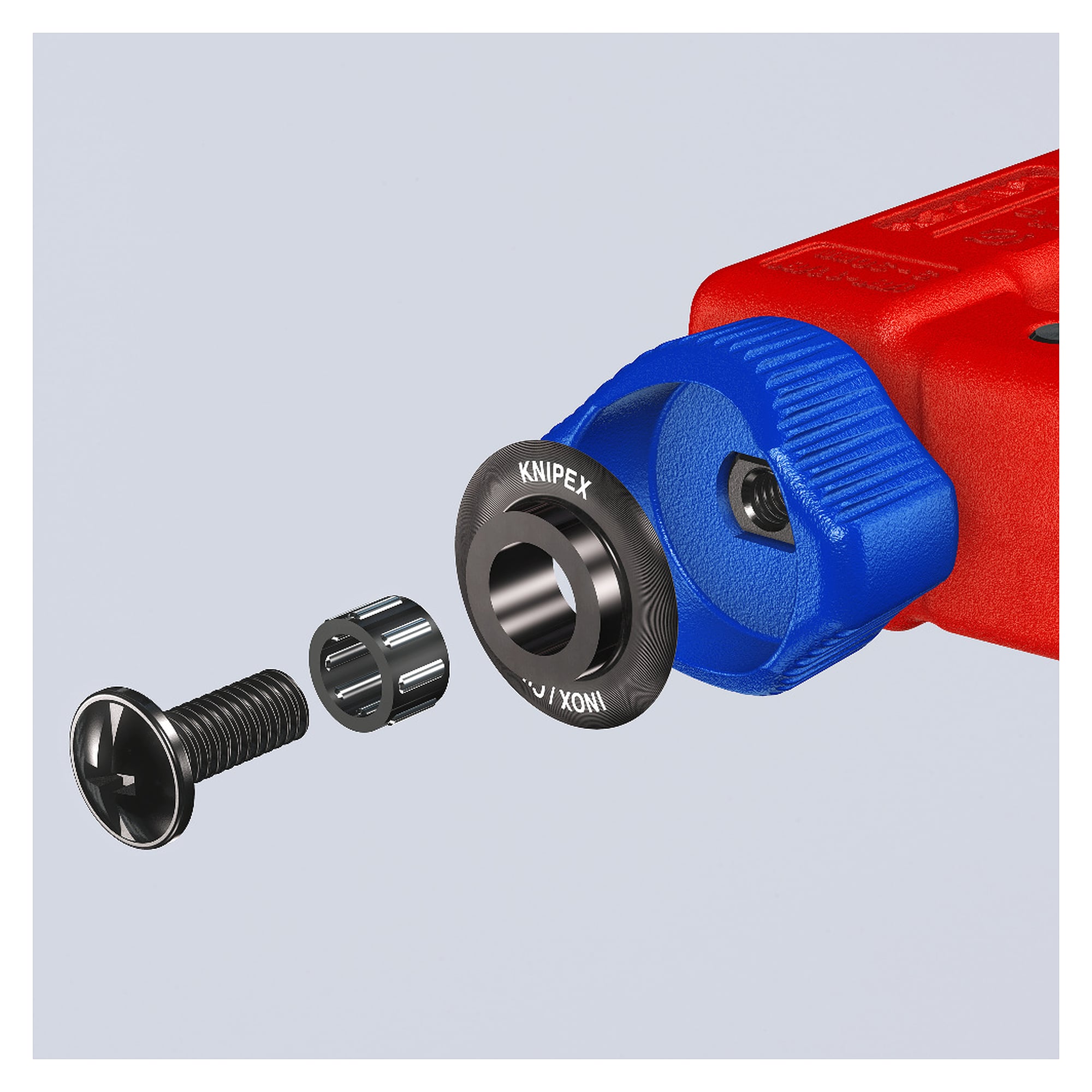

• Cutting wheel made of high-quality ball bearing steel, easy to change, with a spare wheel stored in the turning knob.

Technical data

Areas of use

Plumbing, heating and air conditioning as well as maintenance and service on metal pipes, above all in stud walls, shafts and under wash basins where a conventional pipe cutter can no longer complete a full turn. The manufacturer explicitly names stainless steel among the materials this tool cuts.

Standards and conformity

According to the manufacturer the pipe cutter contains no substances of very high concern as defined by the REACH regulation. The RoHS directive does not apply to this product.
