Extraction nozzle DN50, length 310 mm, aluminium, base version - Alsident 1-5032
Extraction nozzle with 310 mm length for Alsident System 50 extraction arms, made for concentrated pollution sources. It sits close to the source without interfering with the work. Base number, the colour of the PP mouth is chosen with -4 or -5.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With point sources such as a soldering tip, every centimetre of distance counts. The 310 mm 1-5032 nozzle reaches right up to the source and achieved 98% capture efficiency at 200 mm and 96% at 300 mm in the manufacturer test.
Benefits
- 98% capture efficiency at 200 mm (manufacturer data)
- 310 mm length to get close to the source
- Flared mouth for better capture
- Mouth in impact-resistant, chemically resistant PP
Specifications
Applications
- Hand soldering stations in electronics
- Goldsmiths soldering small parts
- Spot bonding and dispensing
Compatibility and scope of delivery
- Fits Alsident System 50 extraction arms (50 mm tube)
- Supplied without arm or bracket
Technical data
| Manufacturer part no. | 1-5032 |
|---|---|
| Type | extraction nozzle |
| System | Alsident System 50 aluminium (AL) |
| Tube diameter | 50 mm |
| Length | 310 mm |
| Tube | anodised aluminium, 10 µm |
| Mouth | impact-resistant, chemically resistant polypropylene |
| Mouth colour | by suffix: white (-5) or red (-4) |
| Capture efficiency | position A 98% / 96% (distance 200 / 300 mm) |
| ESD-safe | no |
| Sales unit | 1 piece |
| Weight | 0.5 kg |
| Manufacturer | Alsident |
| Manufacturer Nr. | 1-5032 |
| HS-Code | 84219990 |
| GPSR manufacturer information | Alsident system A/S Finlandsvej 10 DK-8450 Hammel www.alsident.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Denmark |
| Compatible with | Alsident System 50 |
Downloads
Datasheet
Accessories
Alsident
Extraction arm DN50 3 joints 765 mm reach table mounting - Alsident 50-3727-1-4
Item AL-50-3727-1-4
€282.05
Alsident
Alsident 50-3727-1-6. ESD extraction arm system DN50 3 joints, 765 mm, black - table mounting
Item AL-50-3727-1-6
€325.79
Alsident
Alsident 50-4737-1-5. Extraction arm system DN50 3 joints, 945 mm, white - table mounting
Item AL-50-4737-1-5
€300.70
Questions about this item
Any other question?
Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
Customers Who Bought This Item Also Bought
Alsident

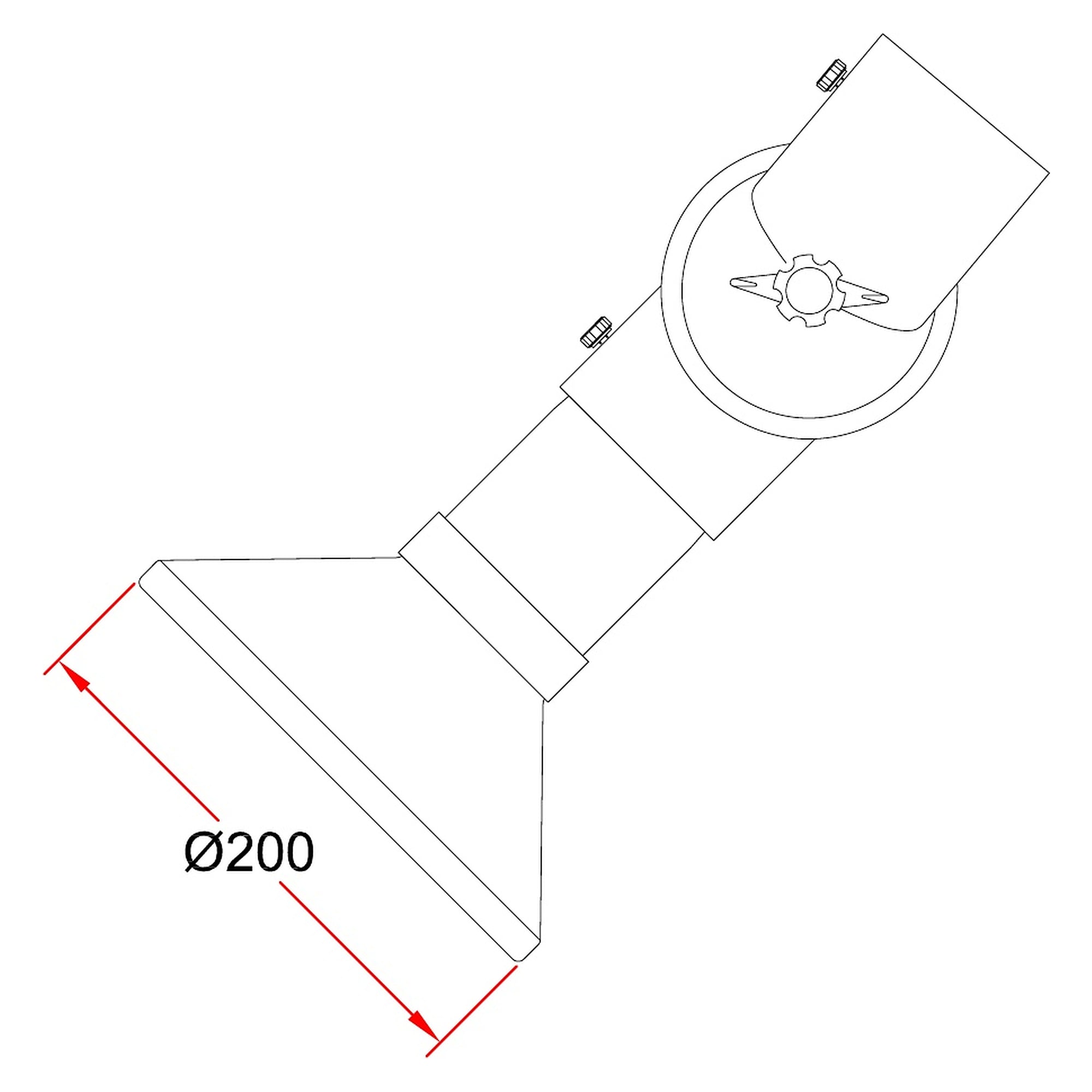

Metal hood DN75, round, Ø200 mm, white coated, PP stub, chemical resistant - Alsident 1-7524-7-5
Item AL-1-7524-7-5
€125.08
Alsident
Extraction hood DN63, chemically resistant PP, white - Alsident 1-63-33-7-5
Item AL-1-63-33-7-5
€227.94
Alsident
ESD extraction nozzle DN50 length 310 mm conductive - Alsident 1-5031-6
Item AL-1-5031-6
€76.70
Alsident

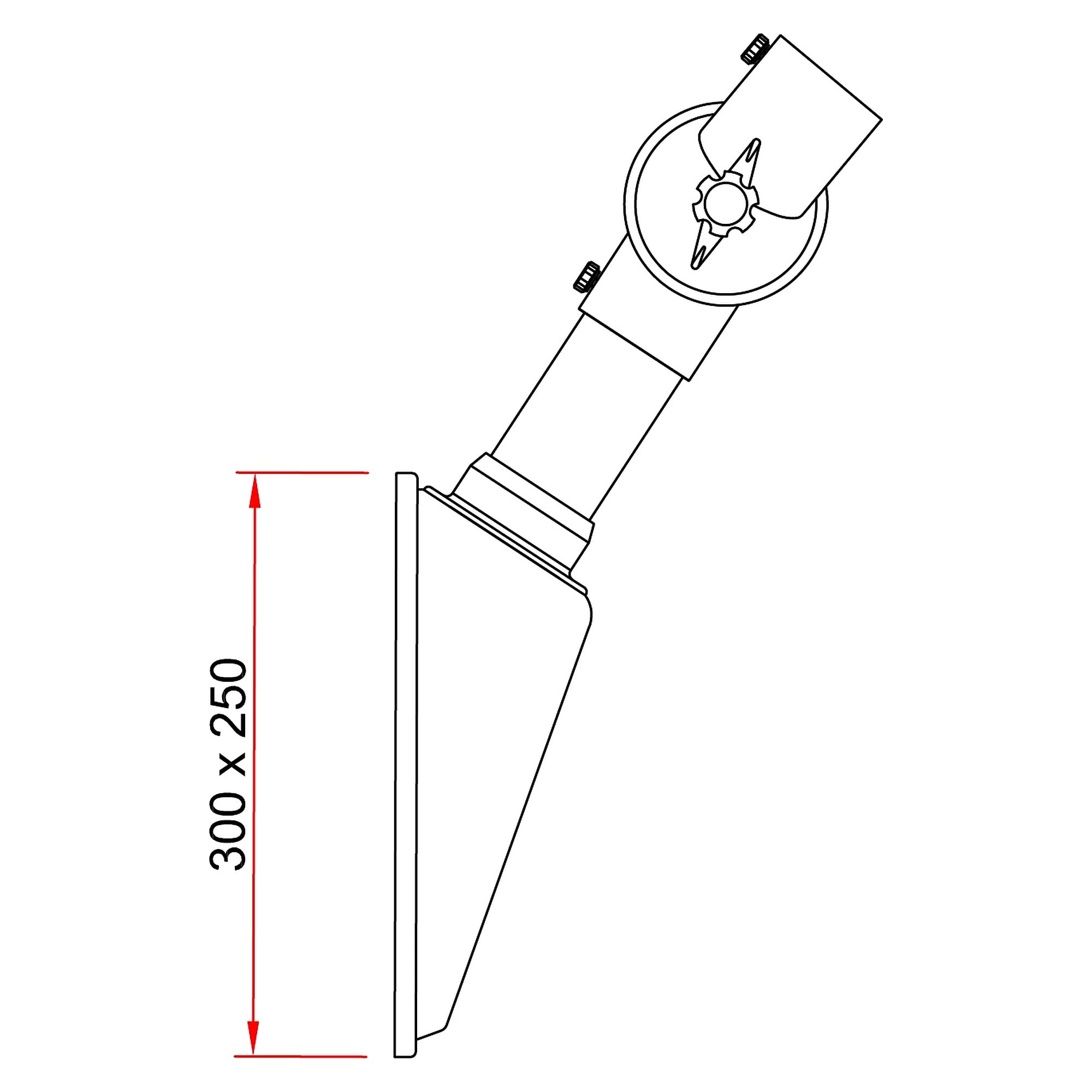

Extraction hood DN50, rectangular, 300 x 250 mm, transparent PETG, base version - Alsident 1-502422
