PROFILED AC LED profile light 500mm dimmable, 1670lm, 5700K, 100°, GST18 - LED2WORK 150314-08

The PROFILED AC with internal dimmer lights workshops, logistics areas and system workstations evenly and with low shadowing. Over 500 mm it delivers 1670 lm at around 14 W, and brightness can be matched to each task.

Benefits

• Continuously adjustable via the internal dimmer

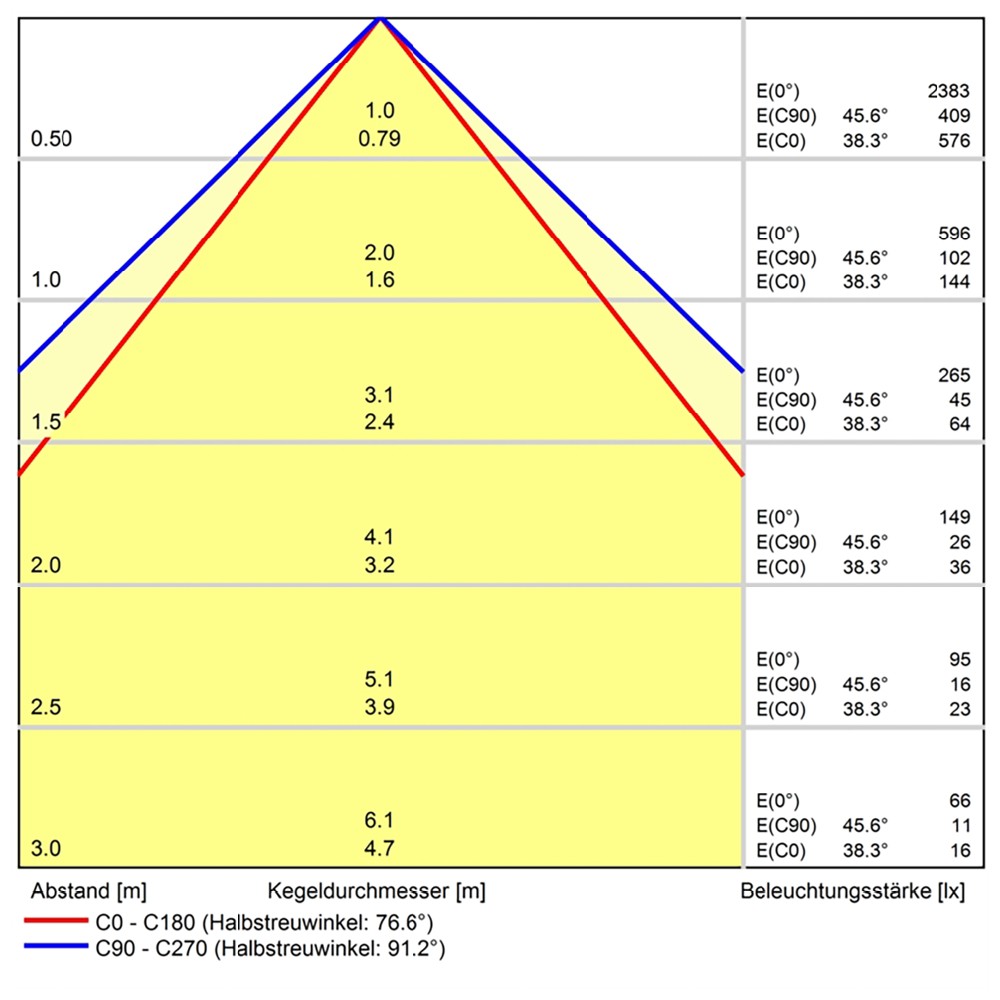

• Even area lighting from a 100° beam angle and microprism optics
• Plug-ready Wieland GST18 connection with integrated driver for 120-277V AC
• Fast mounting via the rear T-slot profile
• 1670 lm at around 14 W, roughly 155 lm/W luminous efficacy
• Long service life of over 100,000 h (L80/B10), maintenance-free

Technical data

• Model: PROFILED AC
• Design: profile light with rear T-slot
• Light source: SMD LED
• Total power incl. driver: ~14 W
• Power: ~11 W
• Luminous flux: 1670 lm
• Luminous efficacy: ~155 lm/W
• Light colour: 5700K 3-step MacAdam
• Colour rendering (Ra): >85
• Supply voltage: 120-277V AC ± 10%, 50-60 Hz
• Connection: Wieland GST18
• Dimmable: internal dimmer
• Protection rating (IP): IP40
• Protection class: I
• Beam angle: 100°
• Operating temperature: -10 °C to +45 °C
• Service life: > 100,000 h (L80/B10)
• Housing material: aluminium
• Cover material: plastic

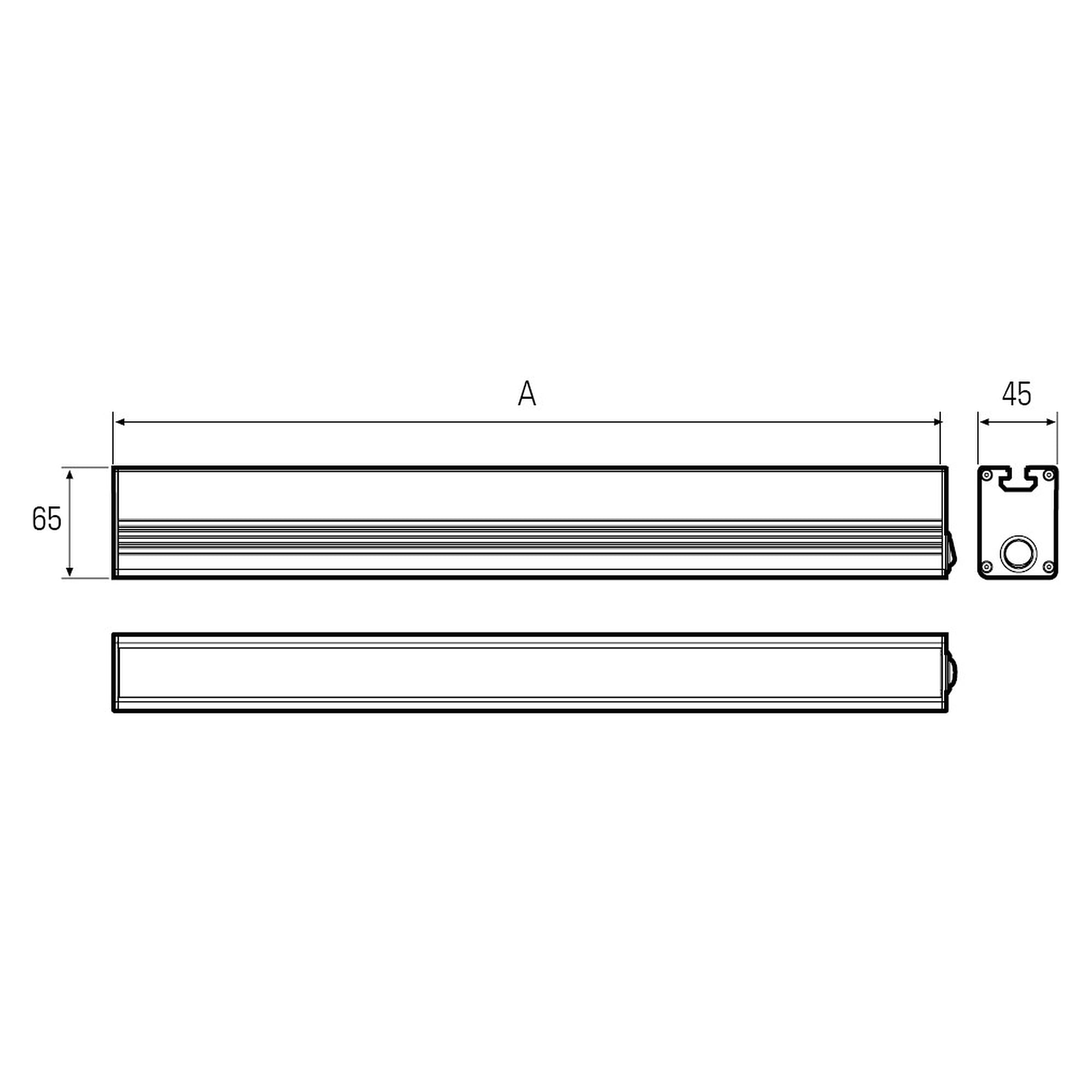

• Dimensions: 500 mm x 65 mm x 45 mm
• Weight: 1450 g
• Risk group (DIN EN 62471): exempt group
• Certifications: CE, UKCA
• Made in: Germany

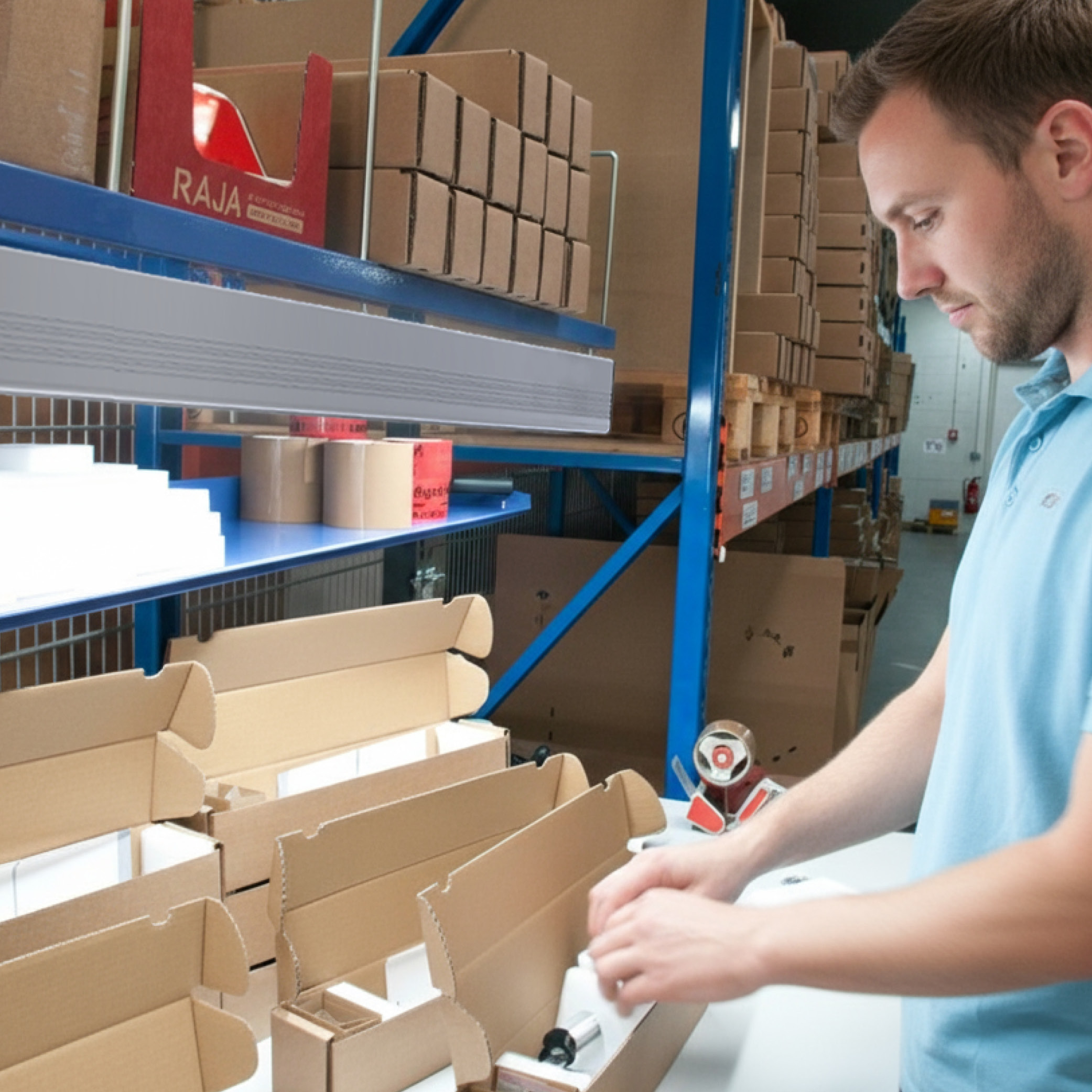

Applications

Ideal for lighting workstations in production, assembly and packaging where brightness needs to be adjusted flexibly. Mounting accessories are available as an option.
