Profiled DC LED profile light 900 mm dimmable, 3340 lm, 5700K, 100°, M12 A-coded - LED2WORK 150614-02

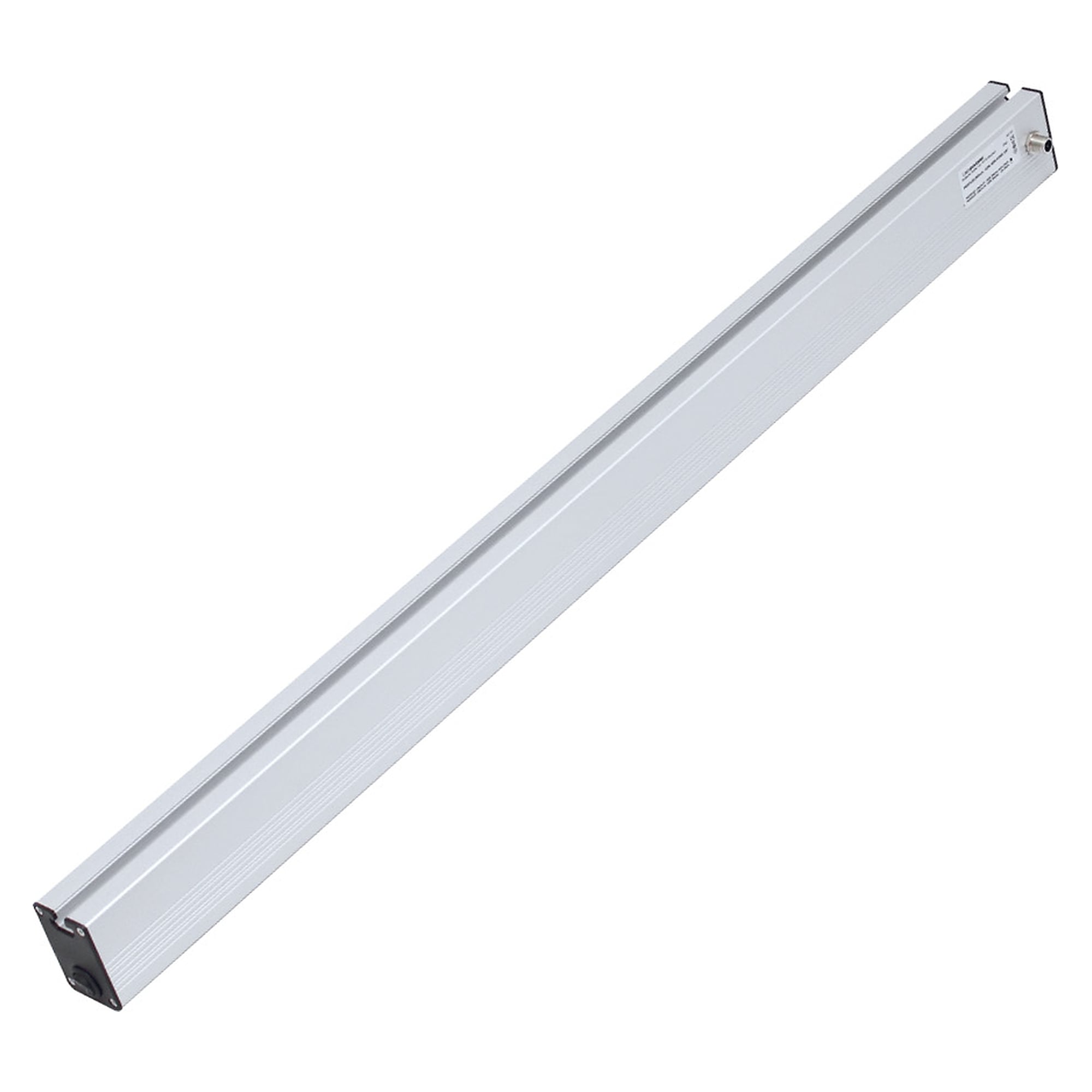

Dimmable LED profile light for workshops and system workstations, 900 mm long with 3340 lm luminous flux and an even 100° distribution. The rear T-slot allows quick mounting and the connection is made via M12 A-coded connector for 24V DC.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The PROFILED DC lights workshops, logistics areas and system workstations evenly and with low shadowing. Over 900 mm it delivers 3340 lm at around ~21 W, while the microprism cover spreads the light softly across the work surface.
Benefits

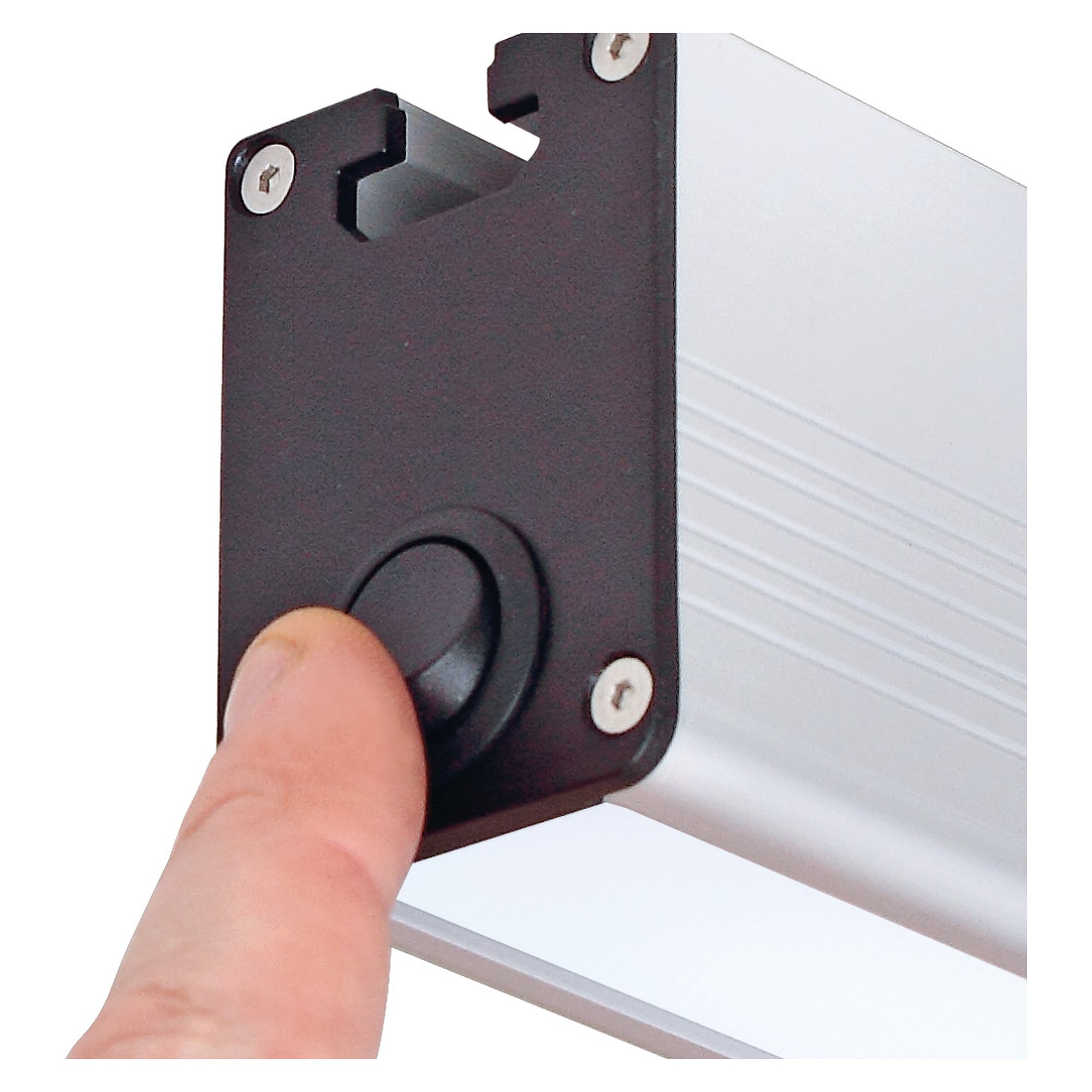

- Continuously adjustable via the internal dimmer
- Even area lighting from a 100° beam angle and microprism optics

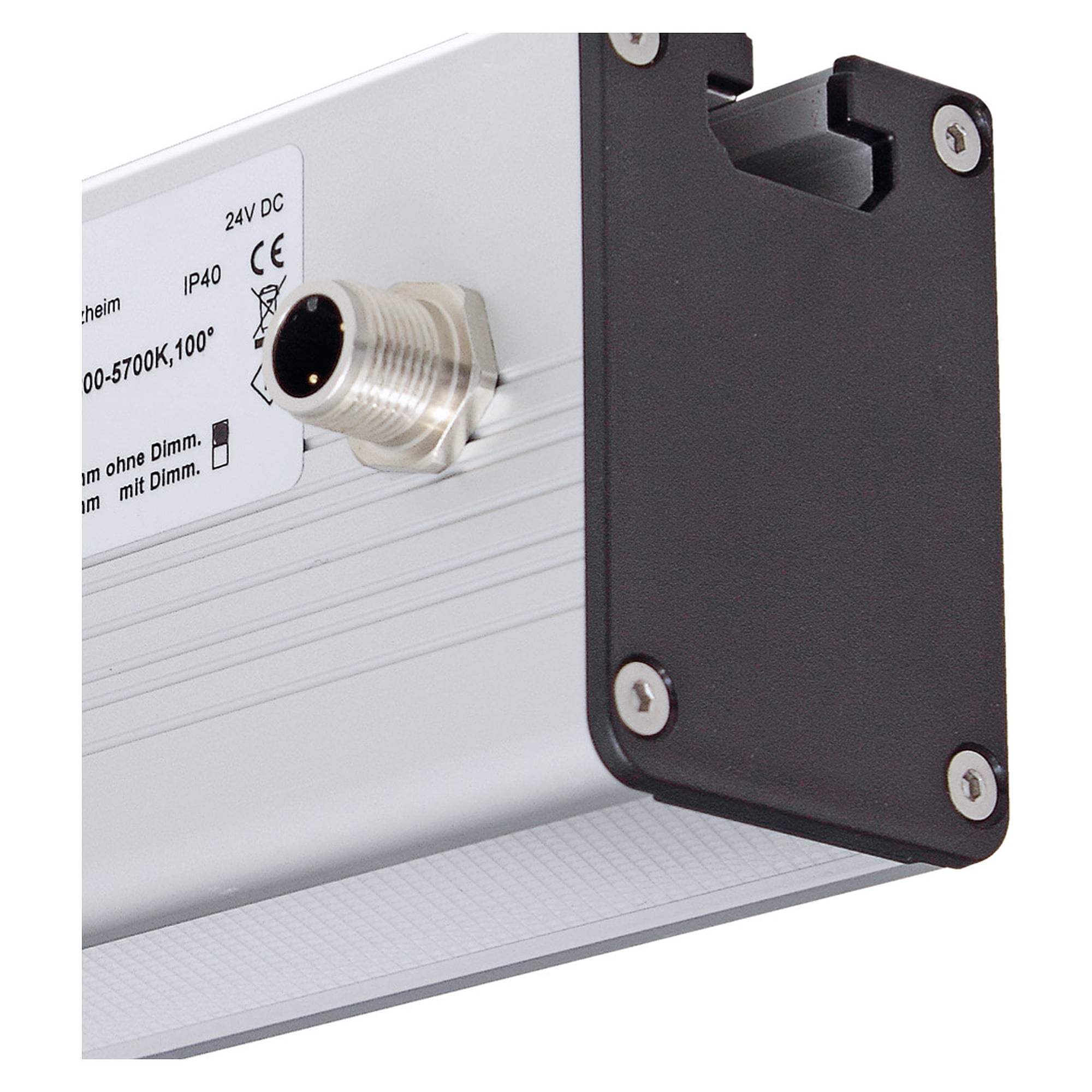

- Connection via M12 A-coded connector for 24V DC

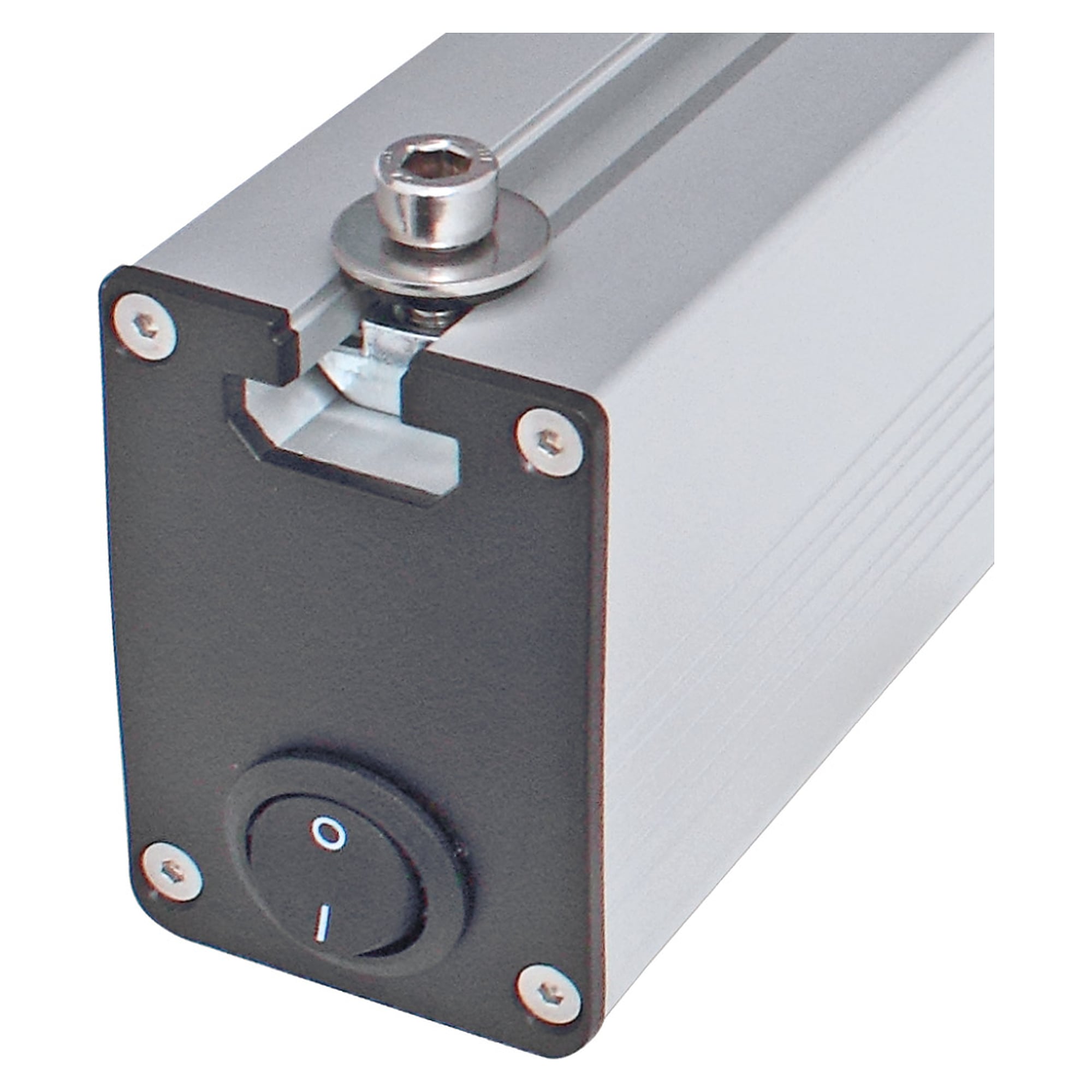

- Fast mounting via the rear T-slot profile
- 3340 lm at around ~21 W, roughly 155 lm/W luminous efficacy
- Long service life of over 100,000 h (L80/B10), maintenance-free
- Sturdy aluminium housing, neutral white 5700K light with Ra above 85
Applications

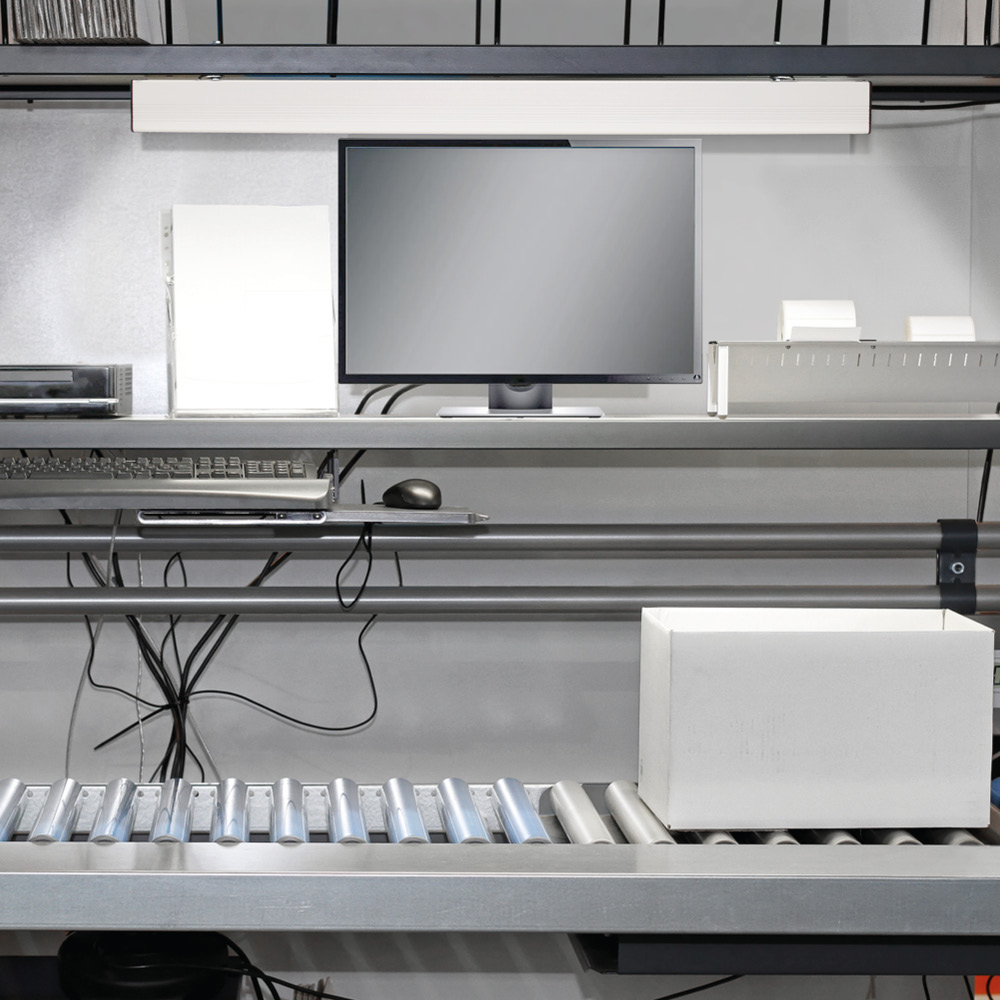

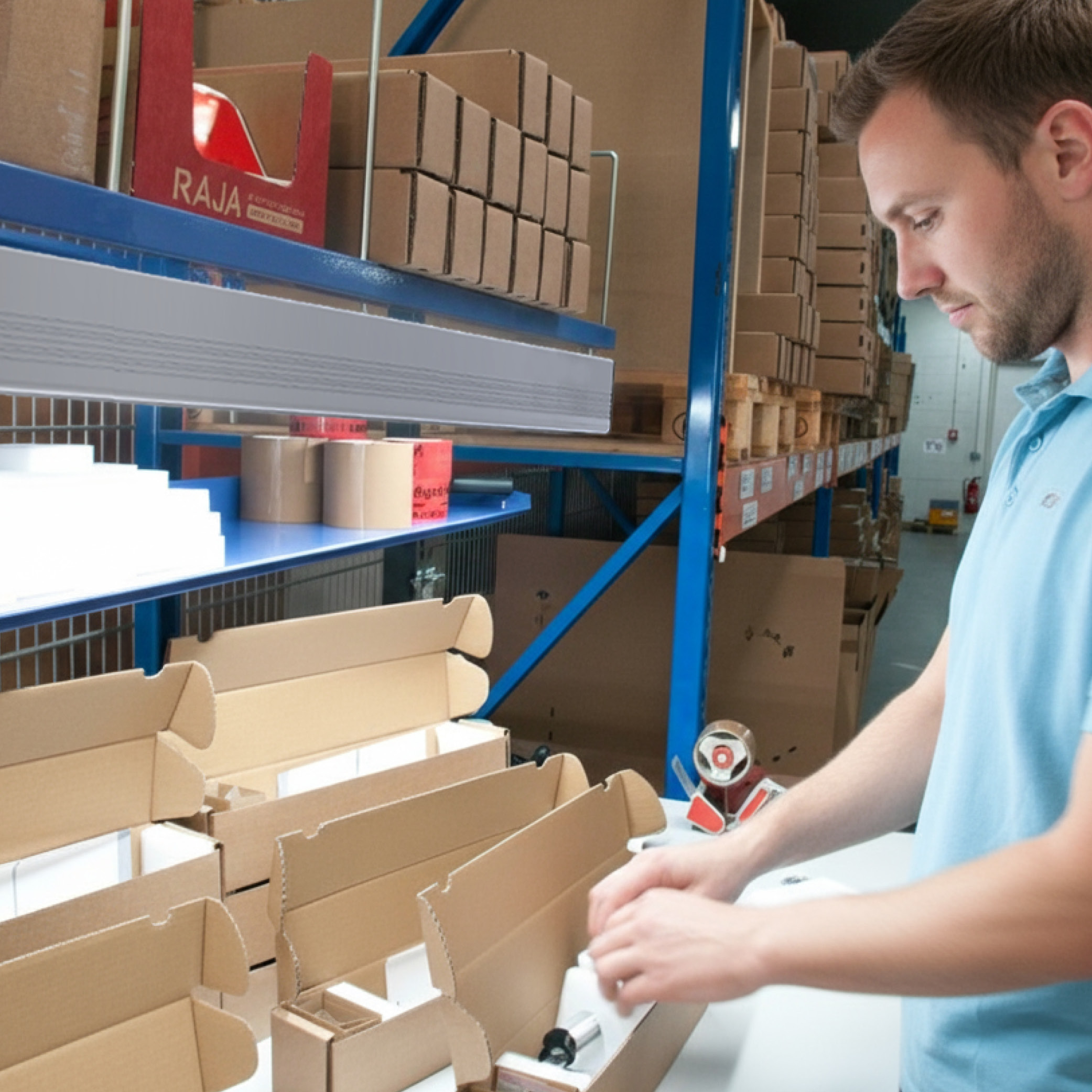

Ideal for lighting workstations in production, assembly and packaging as well as workshops and logistics areas. Mounting accessories are available as an option.
Technical data
| Model | PROFILED DC |
|---|---|
| Design | profile light with rear T-slot |
| Light source | SMD LED |
| Power | ~21 W |
| Luminous flux | 3340 lm |
| Luminous efficacy | ~155 lm/W |
| Light colour | 5700K 3-step MacAdam |
| Colour rendering (Ra) | >85 |
| Supply voltage | 24V DC ± 10% |
| Connection | M12 A-coded connector for 24V DC |
| Dimmable | internal dimmer |
| Protection rating (IP) | IP40 |
| Protection class | III |

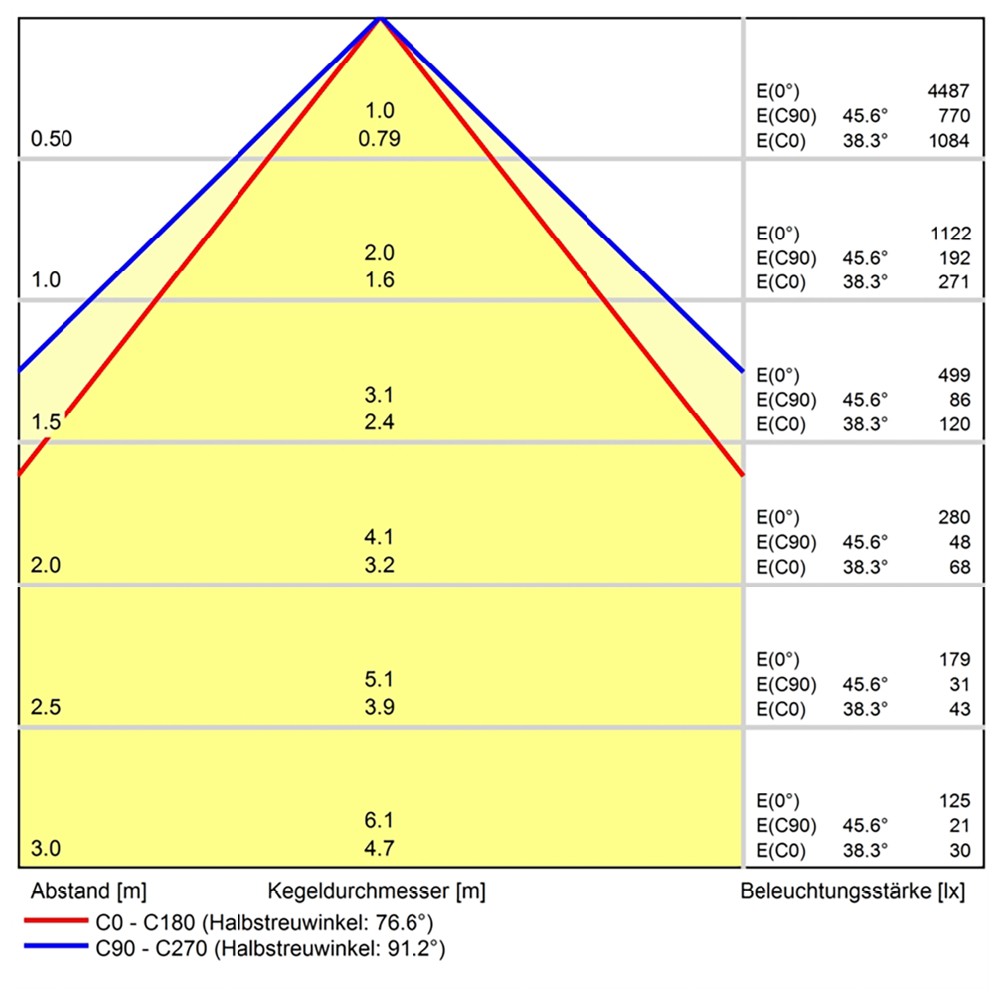

| Beam angle | 100° |
| Operating temperature | -10 °C to +60 °C |
| Service life | > 100,000 h (L80/B10) |
| Housing material | aluminium |
| Cover material | plastic |

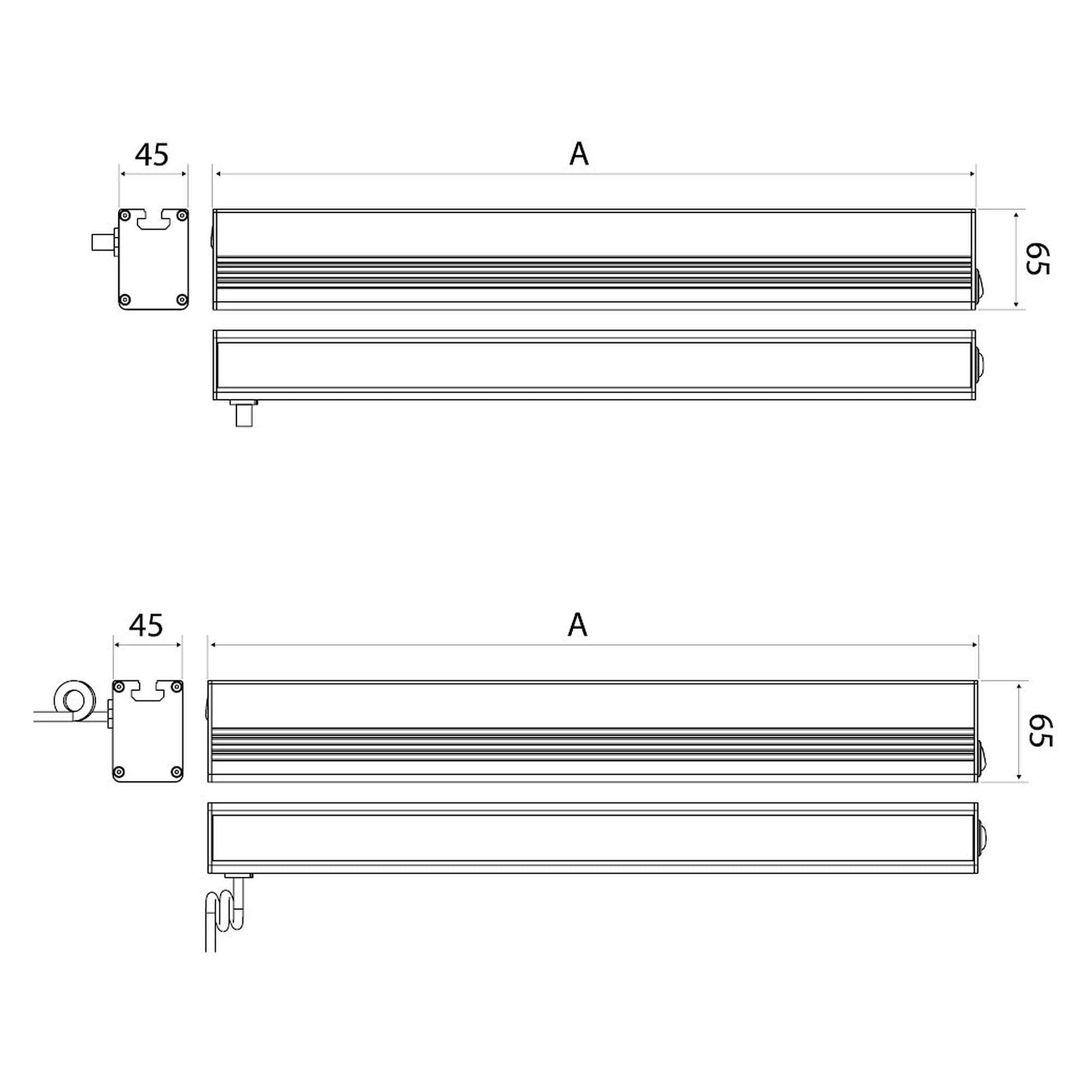

| Dimensions | 900 mm x 65 mm x 45 mm |
| Weight | 1500 g |
| Risk group (DIN EN 62471) | exempt group |
| Certifications | CE, UKCA, ETL Listed (5003529) |
| Made in | Germany |
| Manufacturer | LED2WORK |
| Manufacturer Nr. | 150614-02 |
| HS-Code | 94054239 |
| GPSR manufacturer information | LED2WORK GmbH, Stuttgarter Straße 13 A, 75179 Pforzheim www.led2work.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Norm | DIN EN 62471 |
| Control and dimming | Dimmable |
| Luminous flux (lumen) | 3340 lm |
| Power (W) | 21 W |
| Colour temperature | 5700K |
| Mounting type | T-slot / profile |
| Operating voltage | 24 V |
| Protection class (IP) | IP40 |
