Mounting adapter Karl

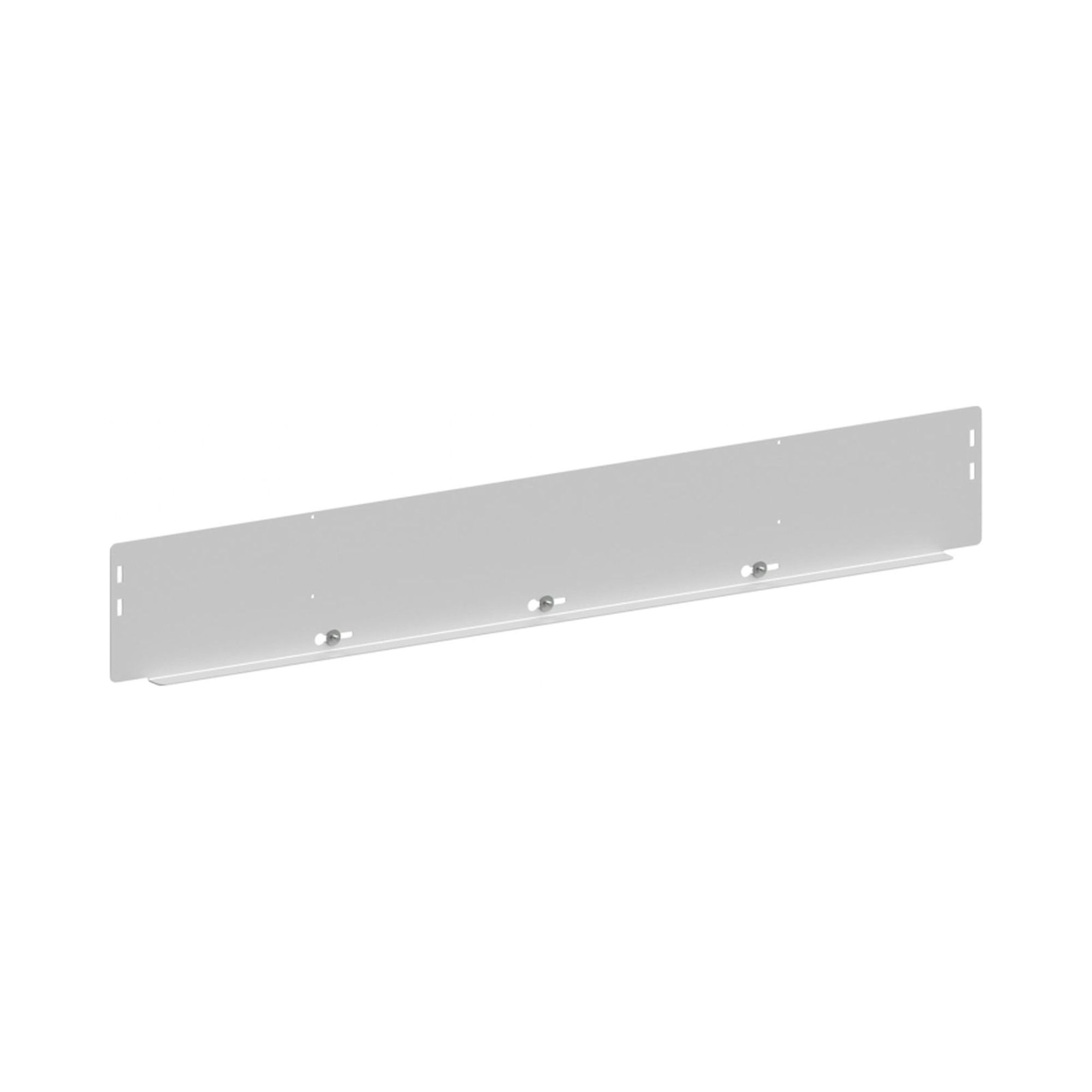

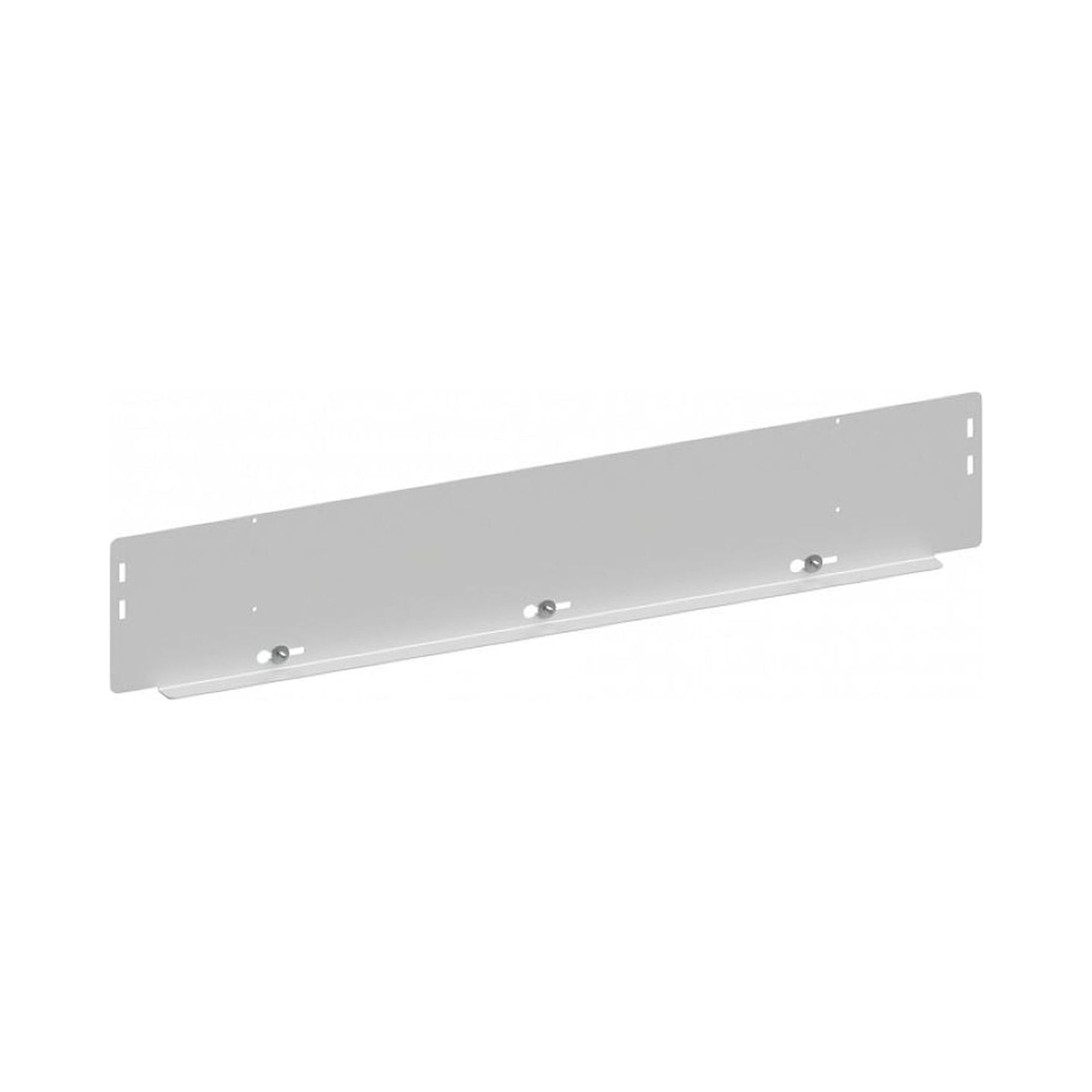

Karl Montageadapter are precision-machined mounting components designed to integrate Karl Basic ESD workstation uprights with standard accessory rails, shelf brackets, and tool holders. The adapters maintain a continuous ground path with surface resistance in the 10⁵-10⁹ Ω range (IEC 61340-5-1), ensuring every attached component remains within the electrostatic protected area (EPA). Fixing geometry follows Karl's modular 25 mm grid, allowing tool-free repositioning along the full upright height of up to 1 080 mm.

esd.equipment stocks all 3 current Karl Montageadapter variants for immediate dispatch, sourced directly from Karl's authorized distribution channel. Every part is supplied with conformity documentation referencing DIN EN 61340-5-1 and DIN EN 61340-5-2, making them audit-ready for ISO 13485, IATF 16949, and AS9100 production environments.

Typical application areas: Electronics manufacturing and SMT rework (IPC-A-610, IEC 61340-5-1), semiconductor assembly (SEMI S1/S2), medical device production (ISO 13485), automotive electronics (IATF 16949, VDA 6.3), aerospace and defense MRO (AS9100)
