Shelving system for Euronorm containers
Cabinet and shelf systems
The Karl EF shelving system is designed to hold Euronorm containers and combines a steel frame with top panels in either steel sheet or ESD laminate. Top panel dimensions are 1120 mm wide (depth 425 mm) and 1400 mm wide (depth 625 mm), in heights 1125 mm and 2125 mm. Suspension brackets in depths 400 mm (66.901.96) and 600 mm (66.902.96) allow flexible shelf division to match the Euronorm container sizes in use.
| Article | Dimensions (WxDxH mm) | Top panel |
|---|---|---|

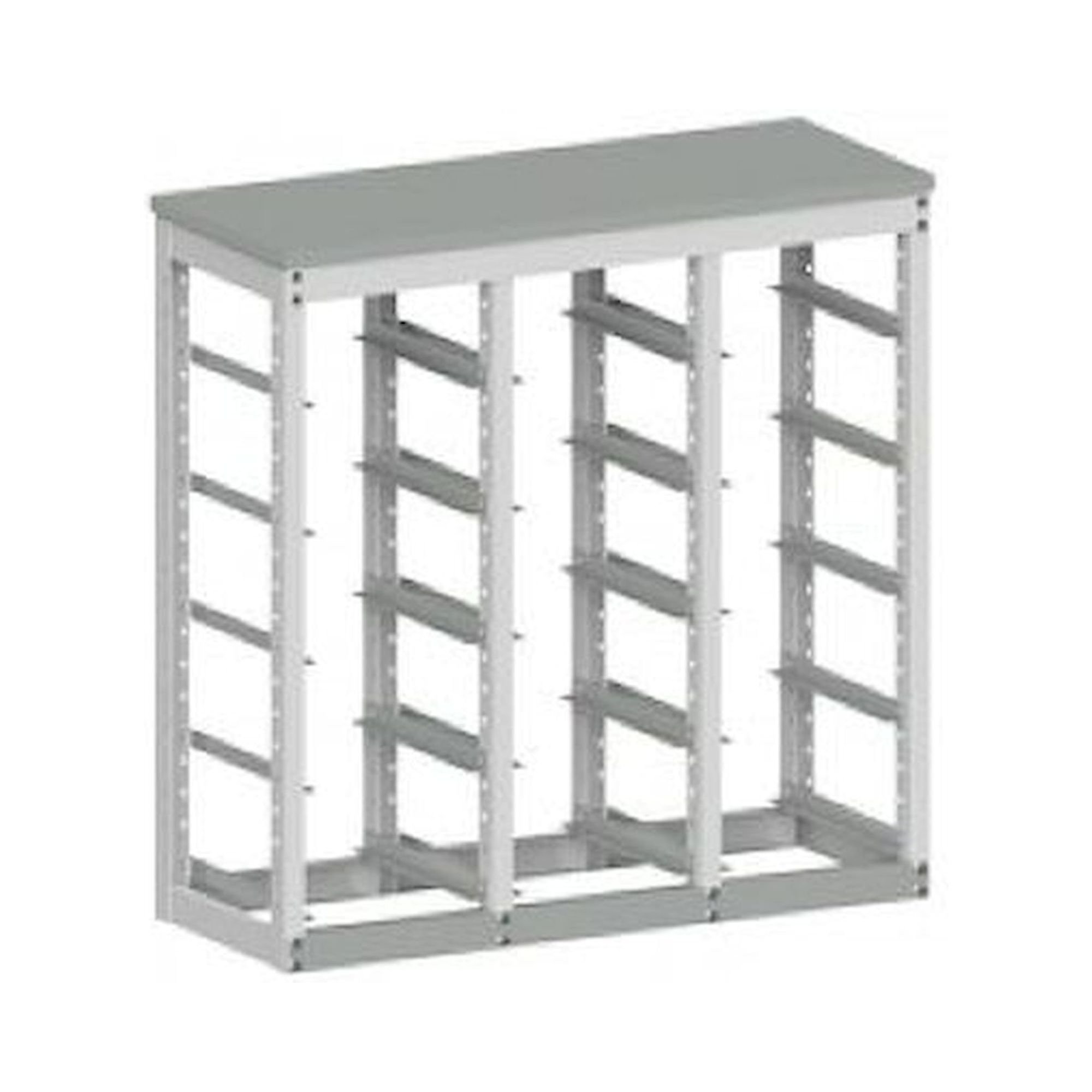

| 66.424.43 EF shelf | 1120x425x1125 | Steel sheet |
| 66.424.34 EF shelf | 1120x425x1125 | ESD laminate |

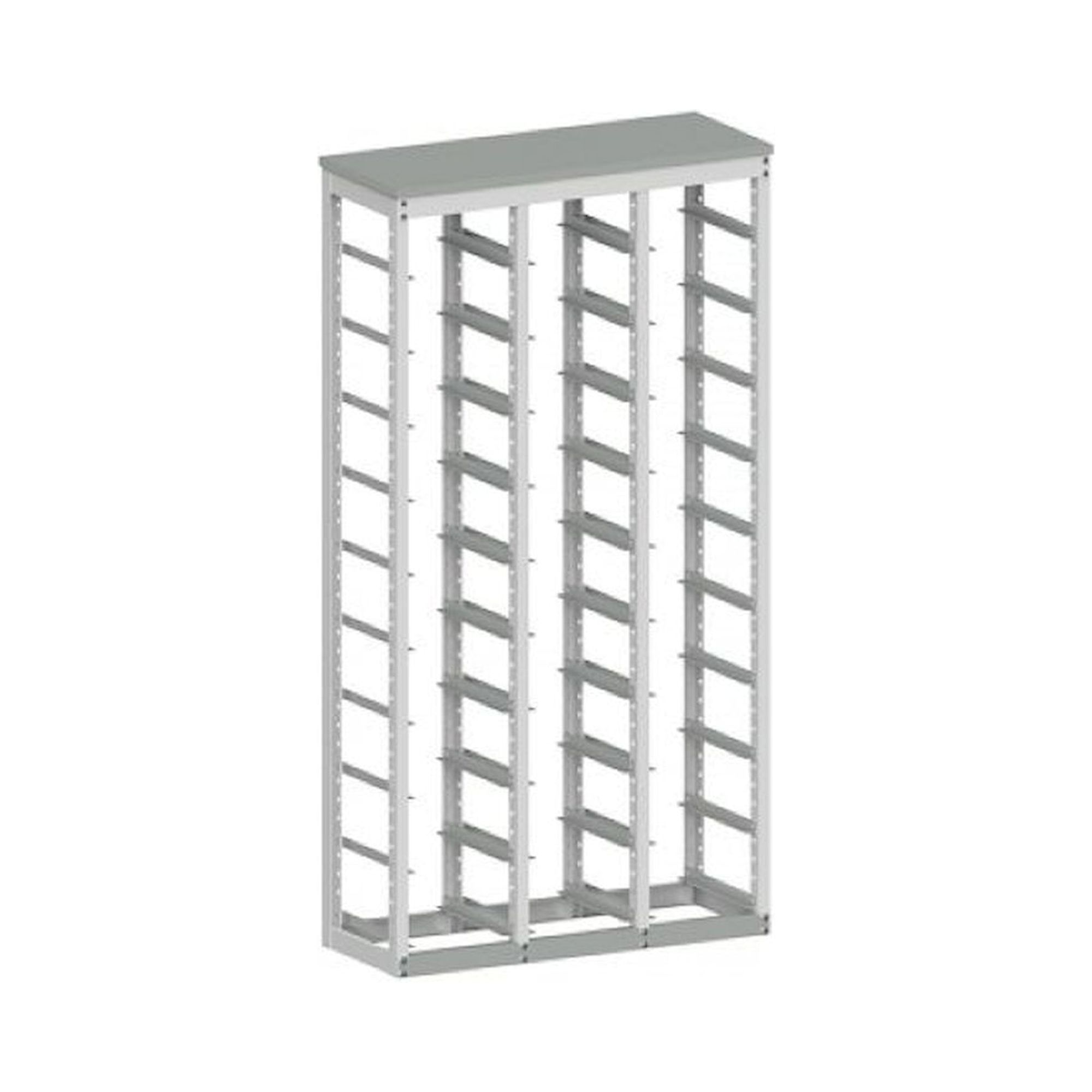

| 66.426.43 EF shelf | 1120x425x2125 | Steel sheet |

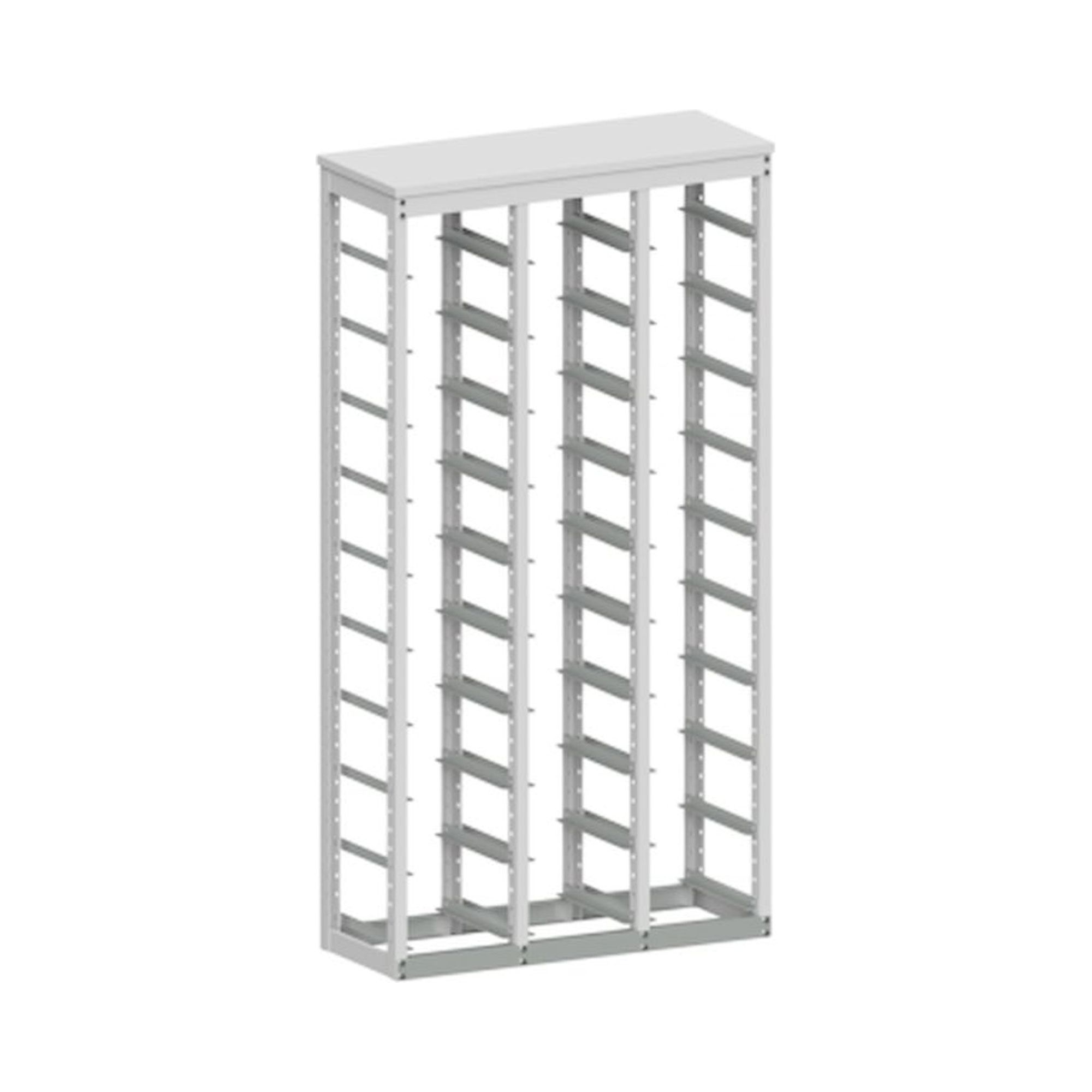

| 66.426.34 EF shelf | 1120x425x2125 | ESD laminate |

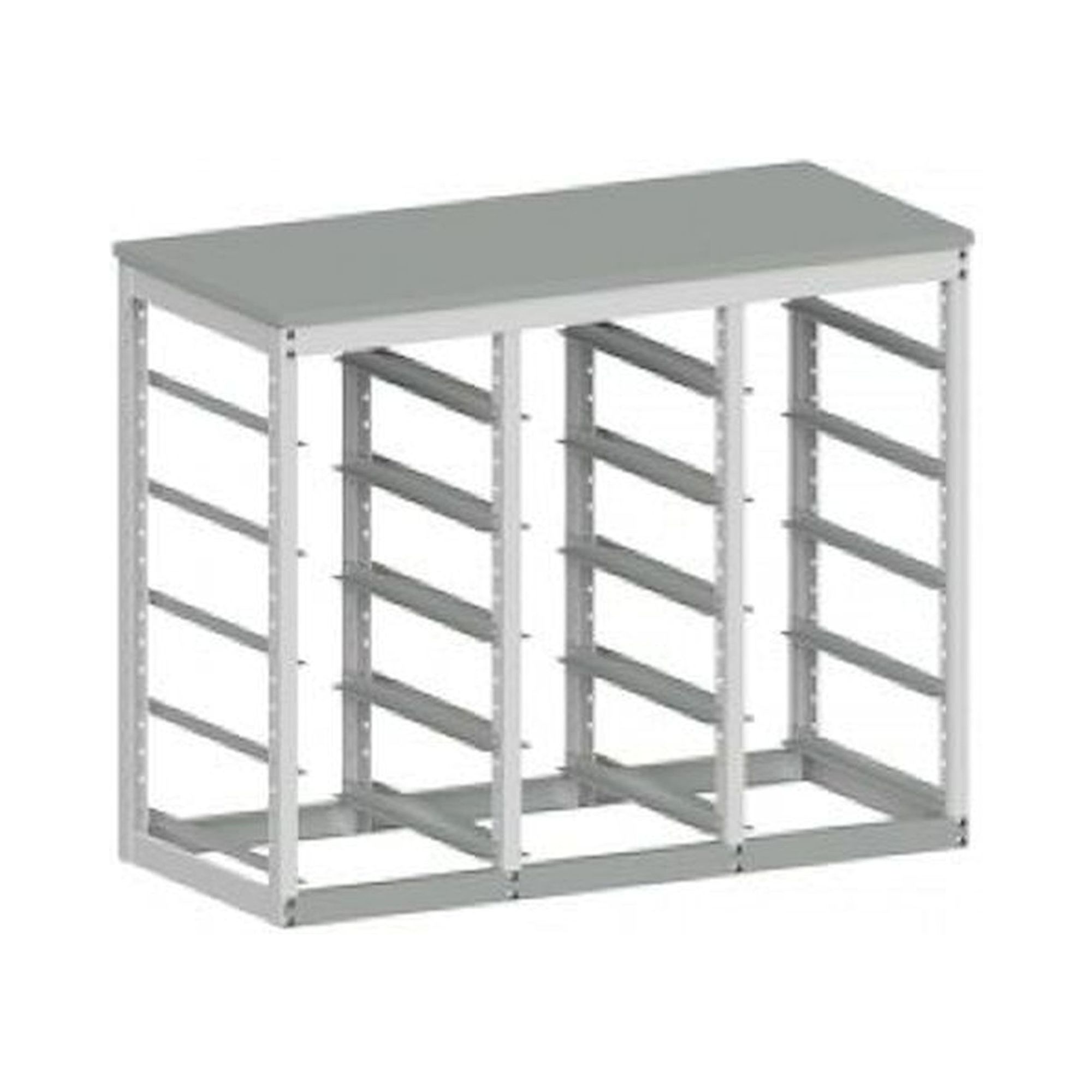

| 66.644.43 EF shelf | 1400x625x1125 | Steel sheet |

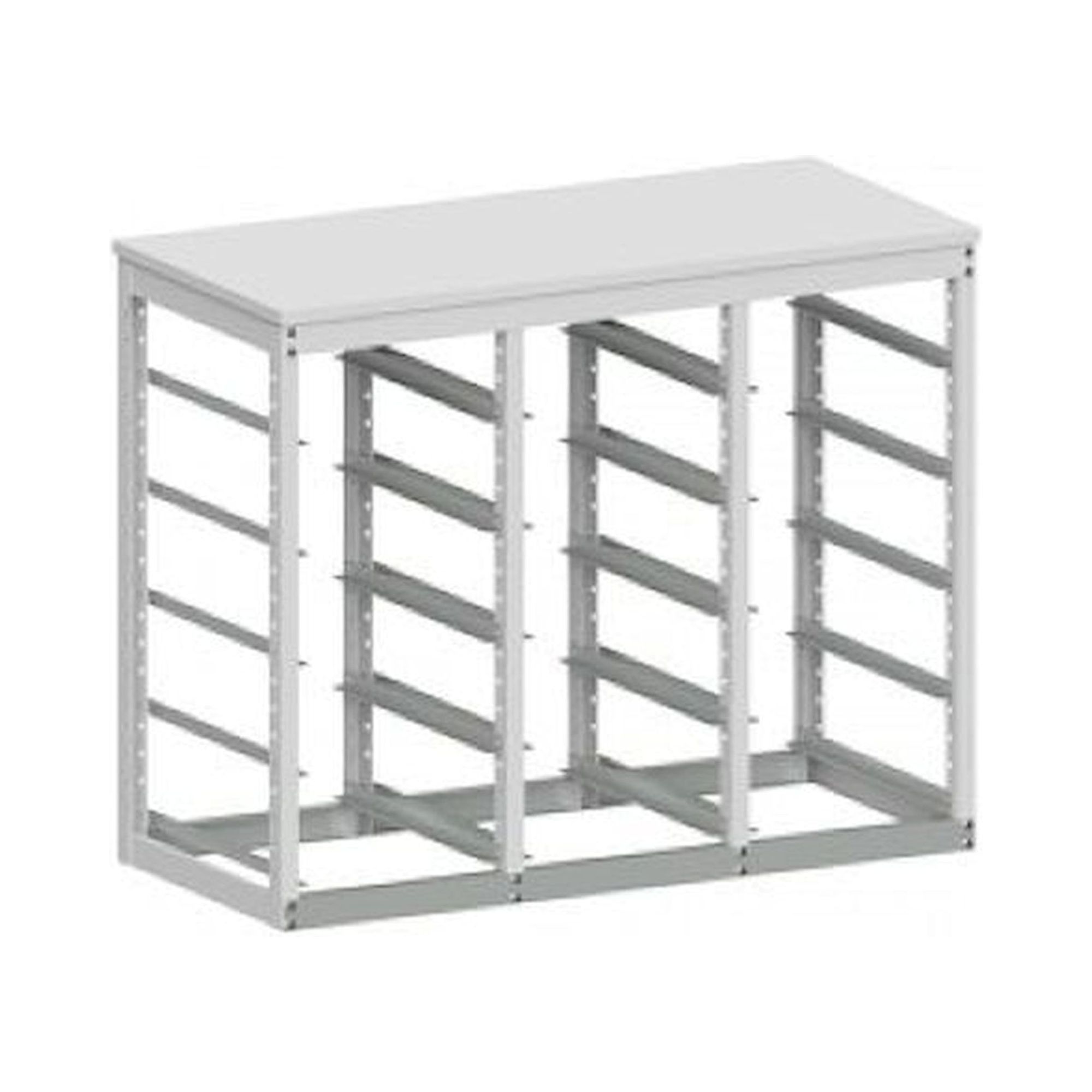

| 66.644.34 EF shelf | 1400x625x1125 | ESD laminate |

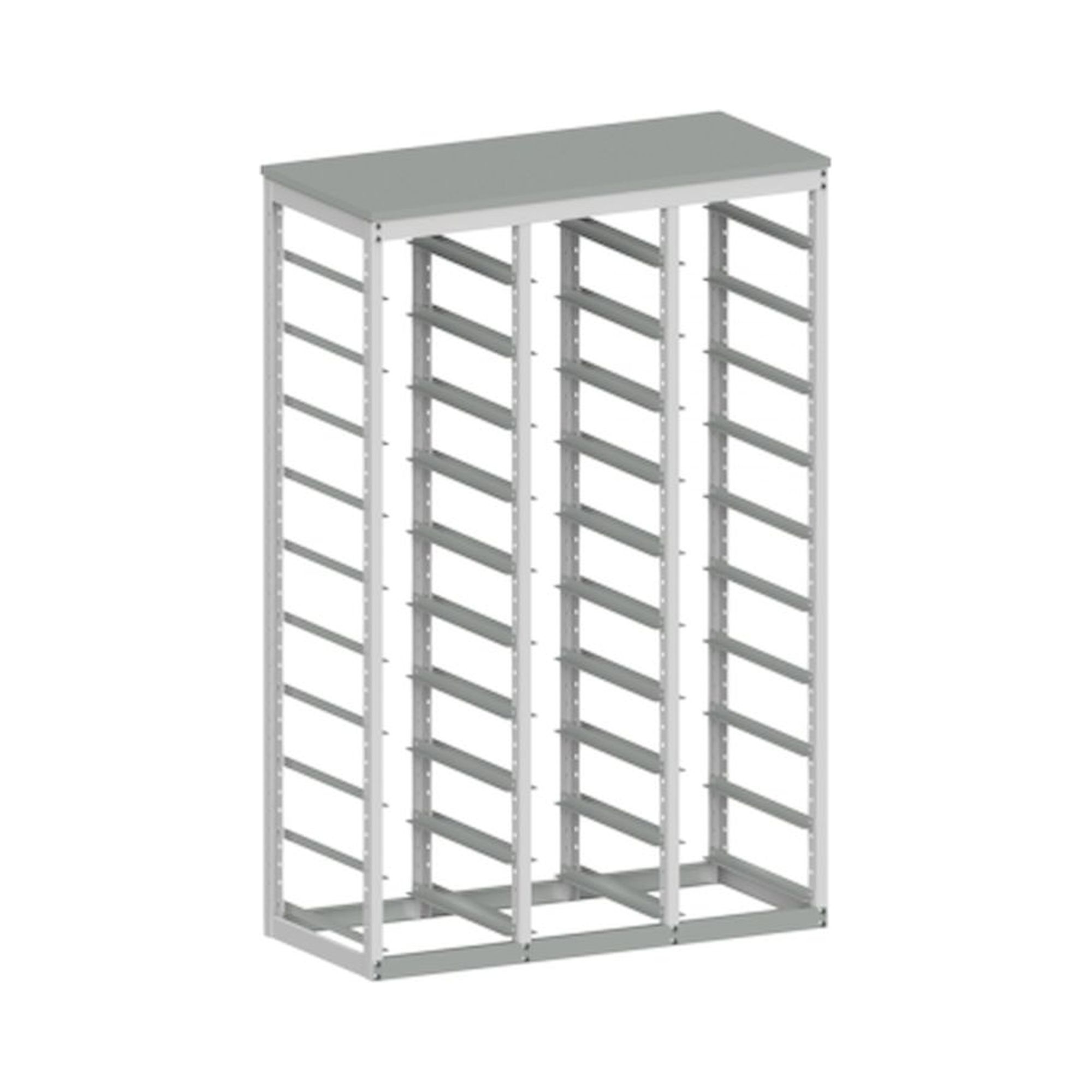

| 66.646.43 EF shelf | 1400x625x2125 | Steel sheet |

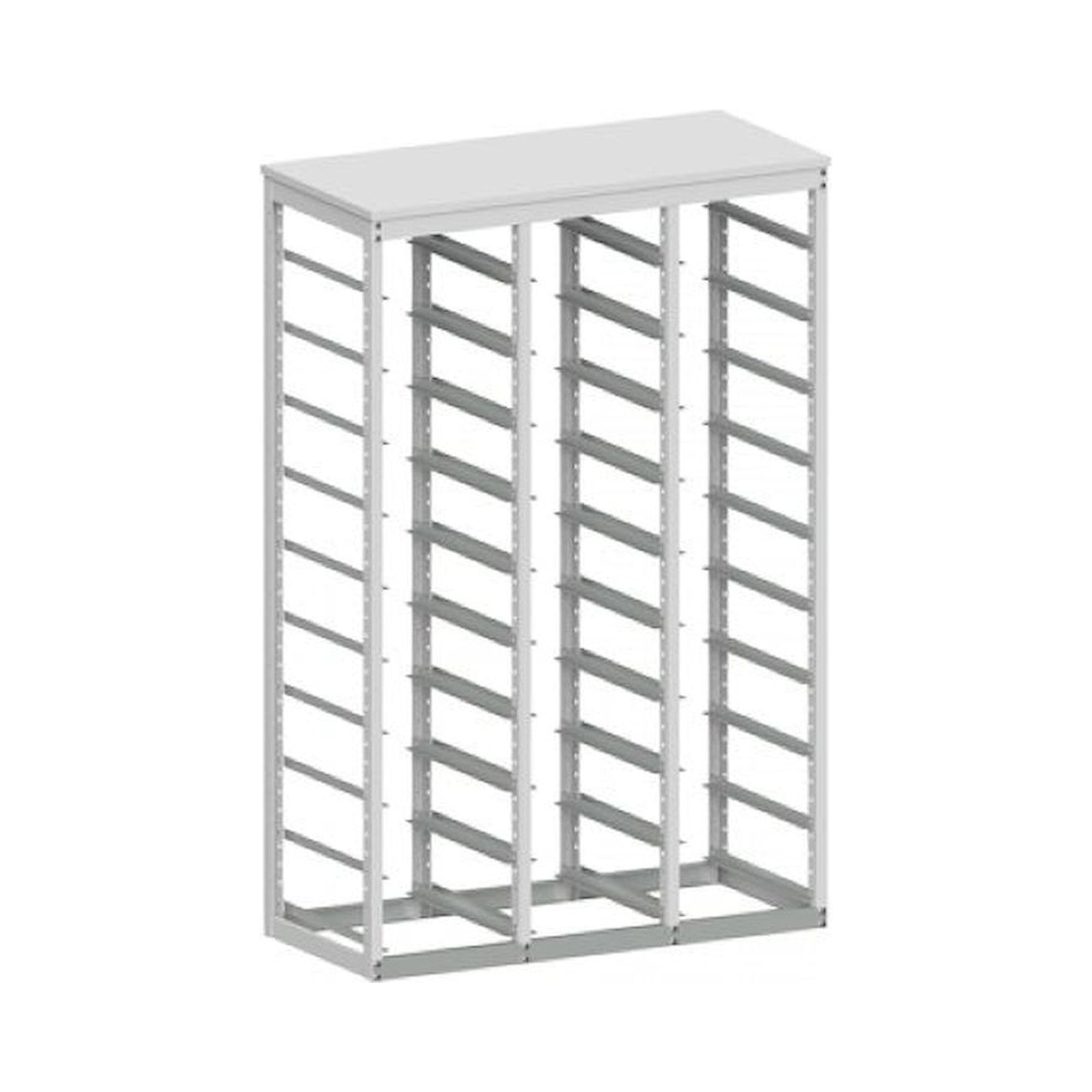

| 66.646.34 EF shelf | 1400x625x2125 | ESD laminate |

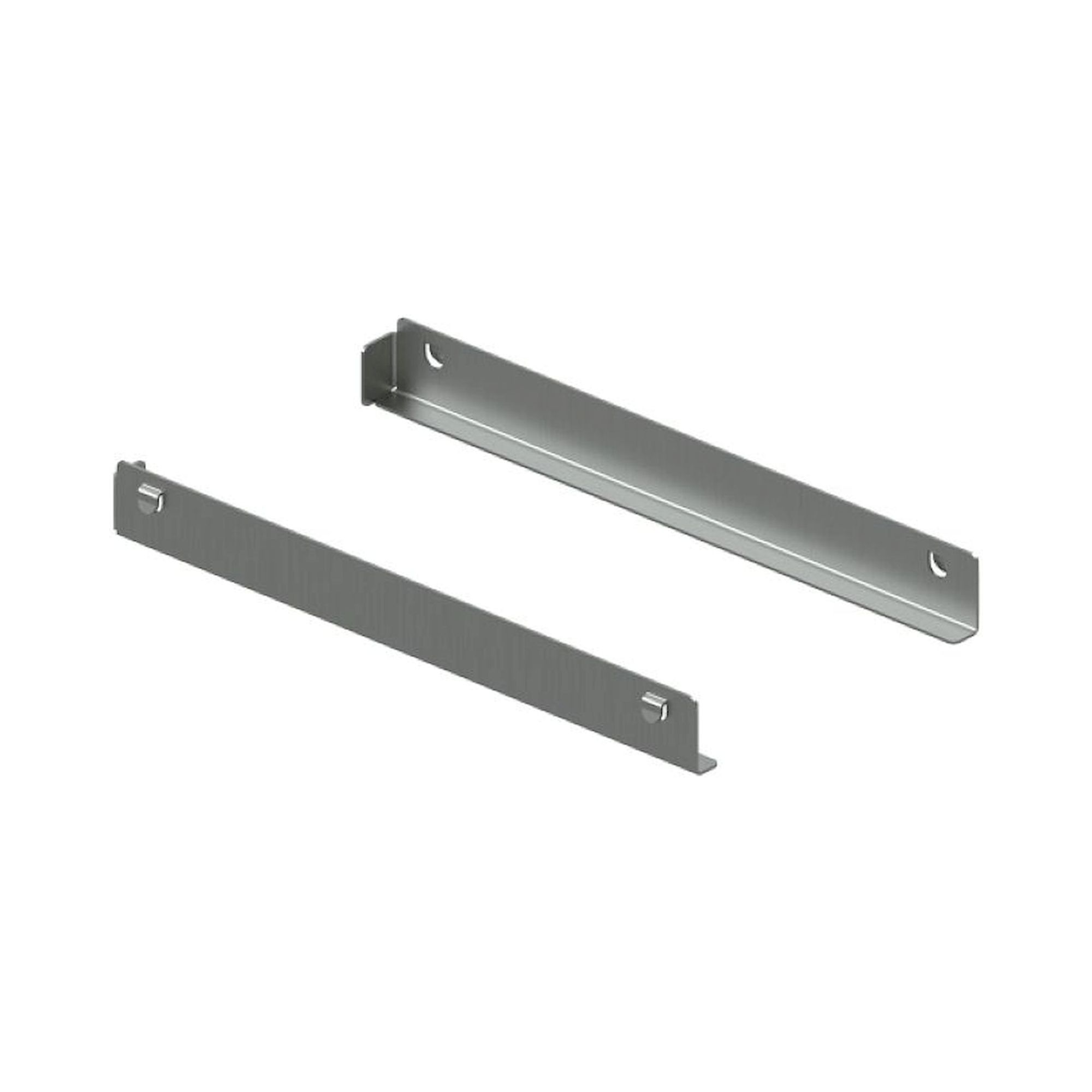

| 66.901.96 Suspension bracket | D=400 mm | - |

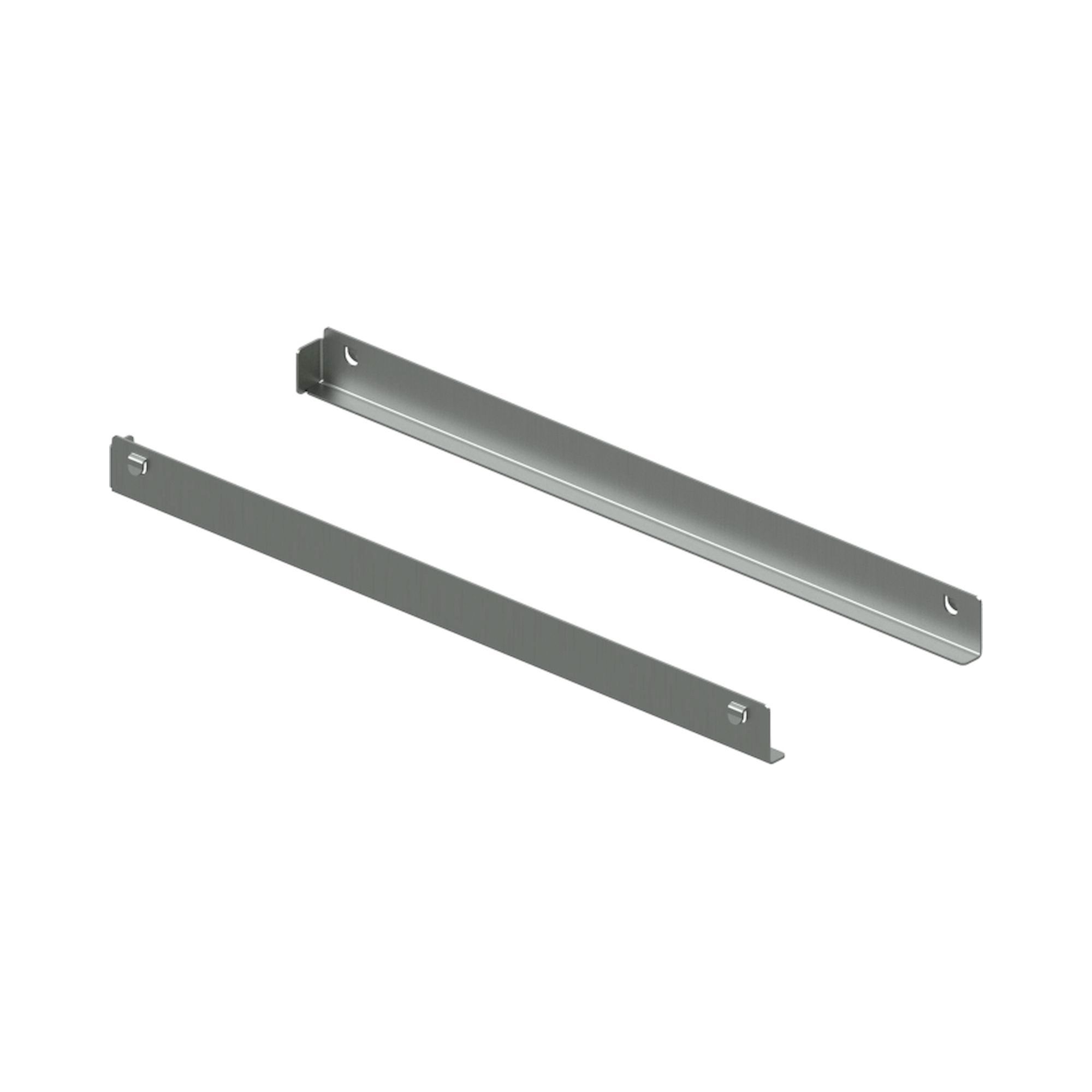

| 66.902.96 Suspension bracket | D=600 mm | - |
Typical applications: Small parts storage in Euronorm containers (KLT) at assembly lines and warehouse areas, material supply in electronics and automotive manufacturing with standardised containers, ESD-secured container storage with ESD laminate top panels in EPA zones, and high-bay shelving for space-efficient storage up to 2125 mm height.
