Bit Set with Torque Screwdriver 0.05 to 0.6 Nm, 46-piece in Plastic Case - Bernstein 4-930
This 46-piece set combines the mini torque screwdriver 0.05 to 0.6 Nm with an ESD bit holder, extension and the complete C4 bit set of 42 inserts. Tolerance +/-6% with factory certificate, supplied in a plastic case with foam insert.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For fully equipping an ESD workstation, this 46-piece set combines the mini torque screwdriver 0.05 to 0.6 Nm with a 42-piece C4 bit set, ESD bit holder and extension in a sturdy plastic case.
Advantages
- Tightening torque 0.05 to 0.6 Nm, tolerance +/-6% with factory certificate
- Adjustable via knurled screw with lock function, hex shank 1/4 inch (6.35 mm)
- ESD bit holder dissipative and 115 mm extension with ESD handle included in the set
- 42-piece C4 bit set covers slot, cross-recess, Torx, hex, wrench, triangle, square, Pentalobe, SIM-eject and Tri-Point
- Materials quality steel and aluminum, supplied in plastic case with foam insert
Application
For precision work on electronic assemblies, electronic enclosures and fine mechanics that require exact torques from 0.05 to 0.6 Nm. When the set torque is reached, the screwdriver clicks audibly.
Standards and Delivery Data
- Unit tested and certified to DIN ISO 6789 and ASME B107.300-2010
- EAN 4250838519113
- Customs tariff number 82060000
- Country of origin China
Technical data
| Feature | Value |
|---|---|
| Tightening torque | 0.05 to 0.6 Nm / 5 to 60 cNm / 0.51 to 6.1 kgdcm / 0.4 to 5.3 in-lb |
| Tolerance | +/-6%, factory certificate included |
| Adjustment | knurled screw with lock function |
| Shank | hex, 1/4 inch (6.35 mm), length 15 mm, dia. 10 mm |
| Accessories | C4 bit set 42-piece, bit adapter 1/4 inch to 4 mm, extension 115 mm, ESD handle |
| Material | quality steel and aluminum |
| Packaging | plastic case with foam insert, 175 x 160 x 45 mm |
| Weight | 420 g |
| Manufacturer | Bernstein |
| Manufacturer Nr. | 4-930 |
| EAN | 4250838519113 |
| HS-Code | 82060000 |
| GPSR manufacturer information | BERNSTEIN Werkzeugfabrik Industriehof Trecknase 1 DE-42897 Remscheid www.bernstein-werkzeuge.de |
| Condition of article | New |
| Article authenticity | Original product |
| Height | 45 |
| Lenght | 18 |
| ESD version | TEC |
| Norm | DIN EN ISO 6789 |
Scope of delivery

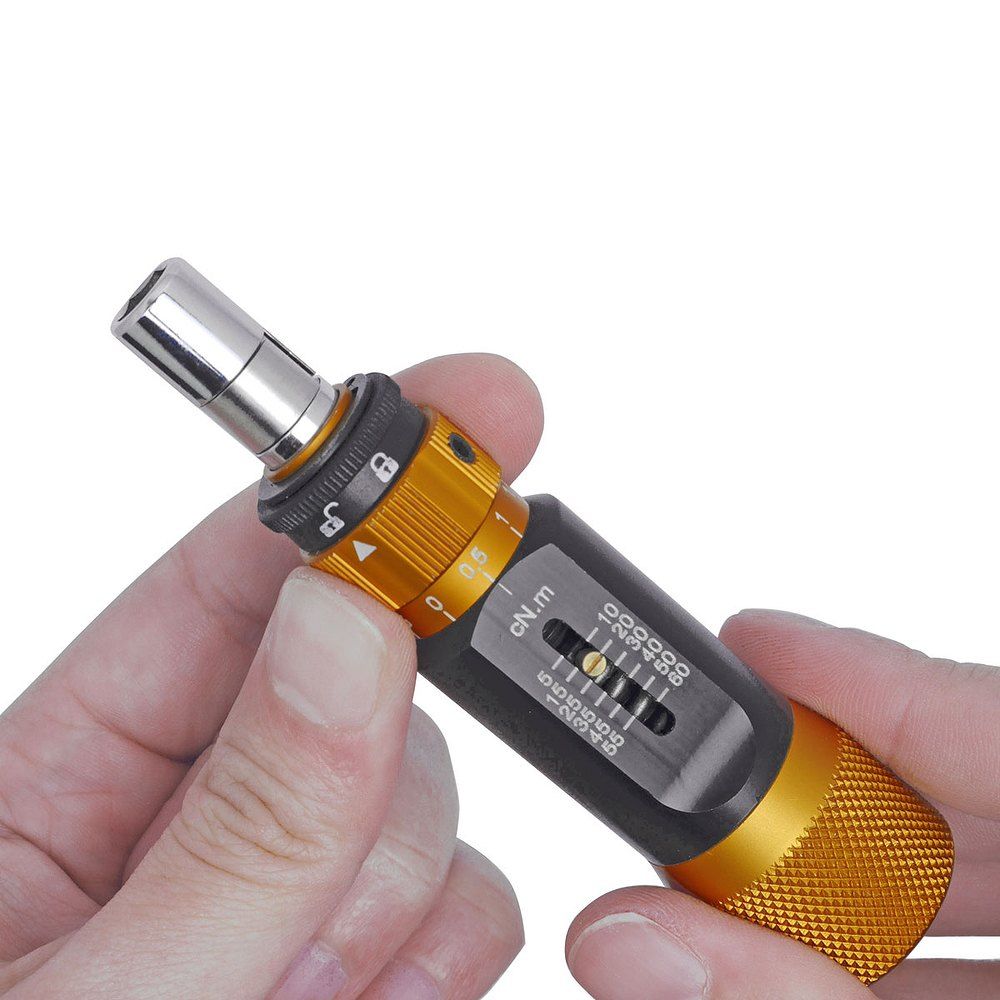

- 4-563-100 Mini torque screwdriver 0.05 to 0.6 Nm, hex 1/4 inch
- 6-340-1 ESD bit holder dissipative for 4 mm bits
- 6-340-2 bit extension for 4 mm bits
- 6-340-3 C4 bit set, 42-piece: slot 1.0 to 3.0, cross-recess PH000 to PH1, Torx T3 to T15, hex 0.9 to 3.0, wrench 2.5 to 5.0, triangle, square S0/S1, Pentalobe P2/P5/P6, SIM-eject, Tri-Point 0/1

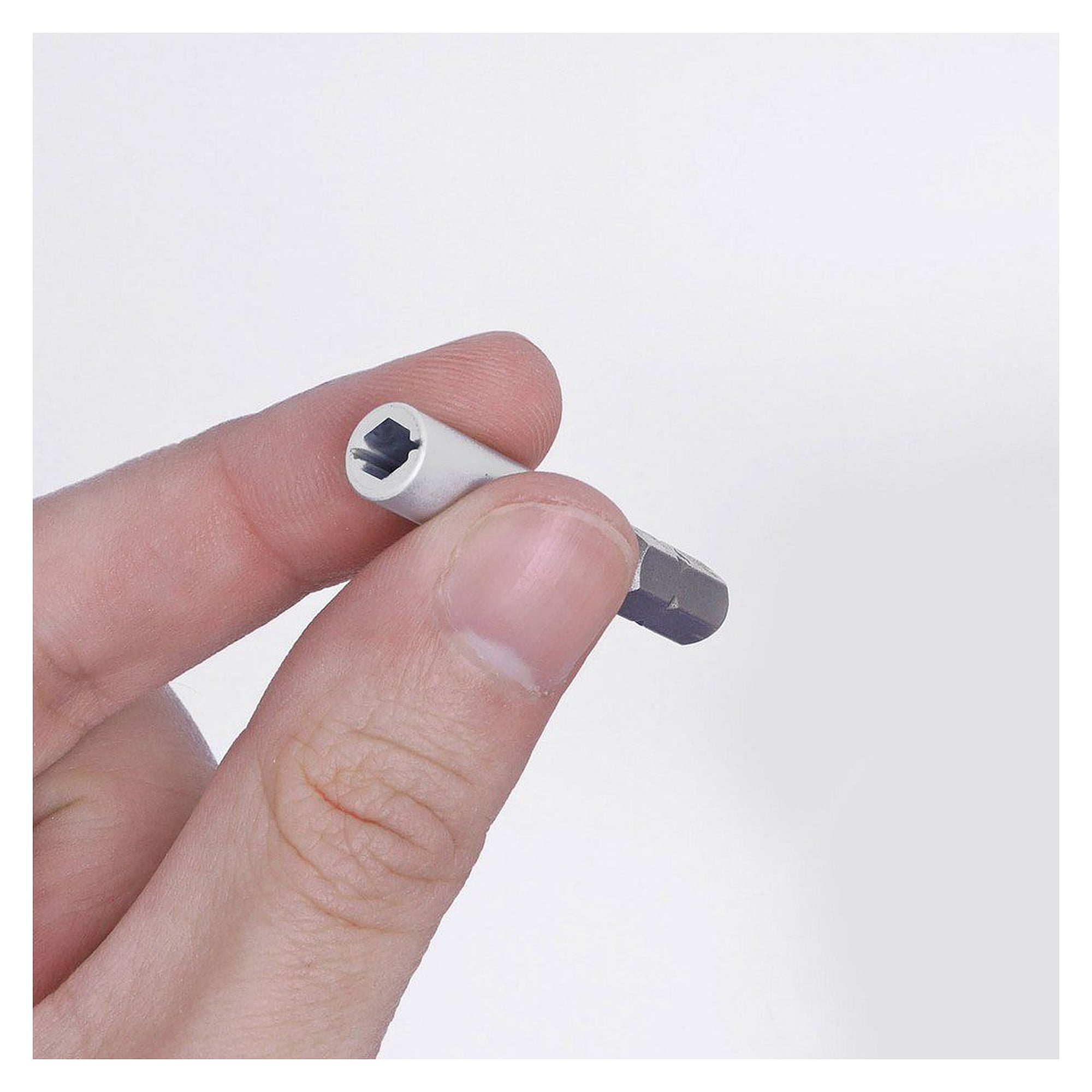

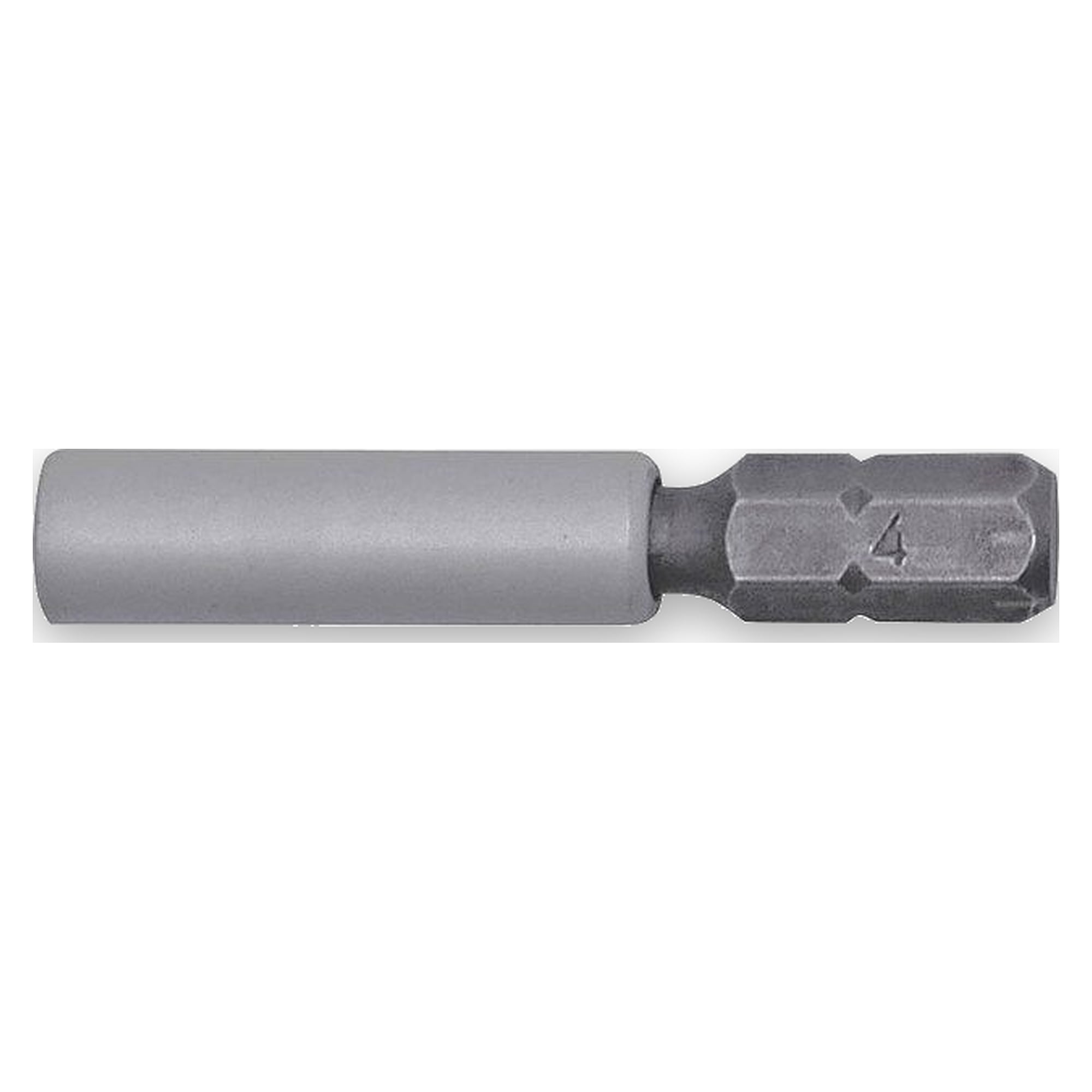

- 4-564 bit adapter 1/4 inch to 4 mm bits, length 42.5 mm
Downloads
Datasheet
Certificate
Other
- Cases and Sets EN
- Bernstein Catalogue Pages Ball Joint Vices and Holders EN
- Bernstein Catalogue Pages VDE Tools EN
- Bernstein Catalogue Pages Pliers EN
- Bernstein Catalogue Pages Screwing Tools, Torque and Bits EN
- Bernstein ESD Guide EN
- Drehmoment Schraubendreher DE
- Kugelgelenk Schraubstock DE
- Schonbacken DE
- Bernstein Katalogseiten Schraubstöcke und Halter DE
- ESD Leifaden DE
- Bernstein Katalogseiten ESD Arbeitsplatz und ESD Handwerkzeuge DE
- Bernstein Katalogseiten Pinzetten DE
- Bernstein Katalogseiten VDE Werkzeuge DE
- Zangen DE
