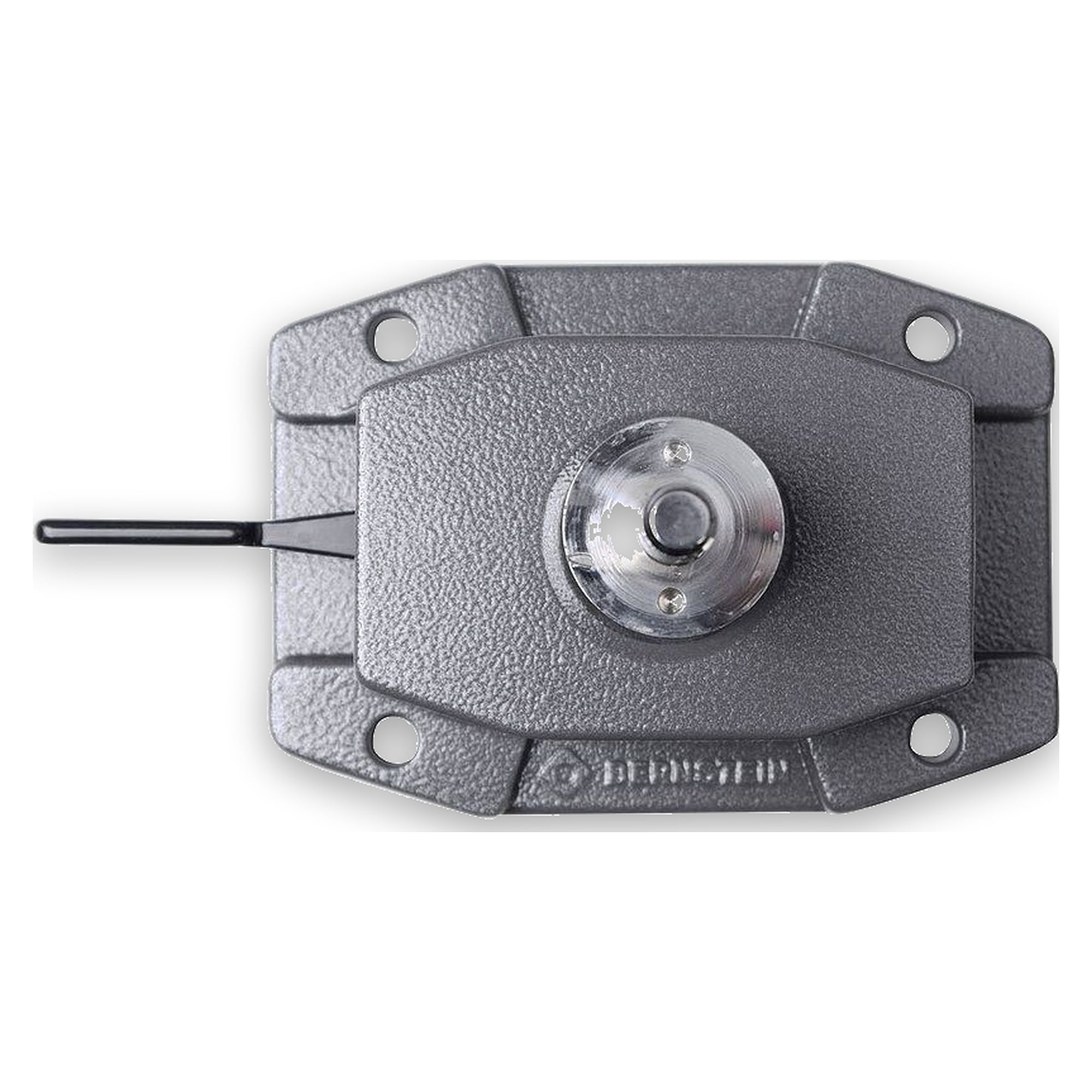

Ball joint base SPANNFIX for screw-on mounting, threaded pin M12 x 25 mm - Bernstein 9-262
The SPANNFIX ball joint base holds up to 45 kg and rotates a full 360°, locking instantly at any angle with a single lever movement. The M12 x 1.5 x 25 mm threaded pin bolts firmly to the workbench, keeping cameras, measuring instruments or clamping fixtures steady at inclinations up to +/- 45°.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Anyone who needs to align cameras, measuring instruments or clamping fixtures precisely needs a holder that adjusts in seconds and still locks rock solid. The SPANNFIX ball joint base holds up to 45 kg, rotates 360° and bolts firmly to the workbench through the M12 x 1.5 x 25 mm threaded pin.
Advantages
- Stepless locking with a single lever movement, holding force approx. 45 kg at the threaded pin

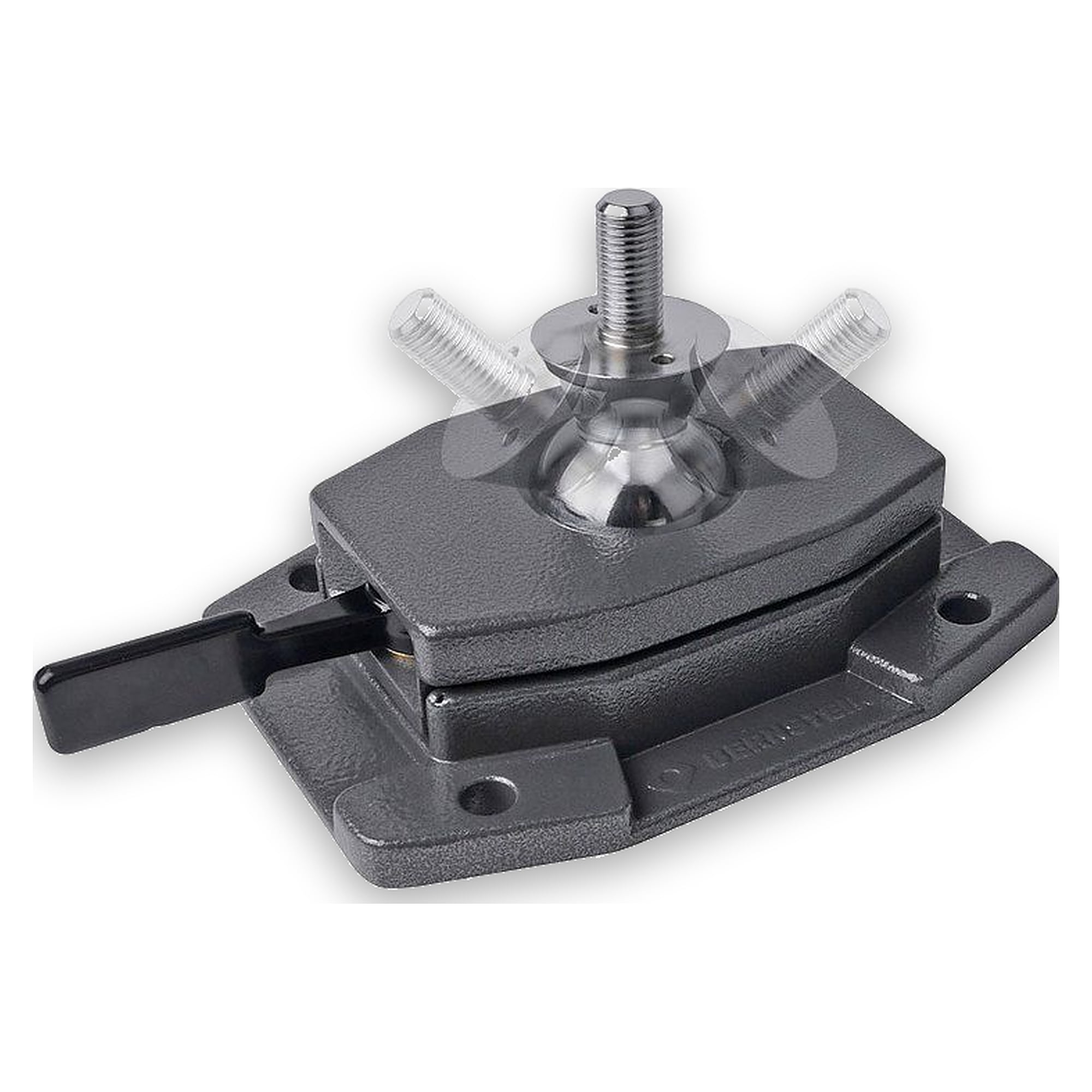

- Inclination angle of +/- 45° for precise alignment of cameras, sensors or measuring instruments
- Support surface approx. Ø 36 mm for matching adapters and extensions
- Durable cast aluminum, powder-coated in dark gray metallic
- Fixed mounting via the threaded pin, requiring only 150 x 106 mm of space
Application
The base bolts permanently to workbenches, tables and base plates via four 9 mm through holes. The thread on the ball accepts matching adapters for cameras, monitors, sensors and measuring instruments, and also holds e-bikes, e-scooters and bicycles free-floating for repair.
Standards and Delivery Data
- EAN 4250838511483
- Customs tariff number 82057000
- Country of origin Germany
Technical data
| Feature | Value |
|---|---|
| Clamping mechanism | Ball joint quick release for heavy parts, 360° rotatable, infinitely adjustable |
| Origin | Quality product, Made in Germany |
| Mounting | for screwing onto the workbench, space required 150 x 106 mm |
| Threaded pin | M12 x 1.5 x 25 mm |
| Support surface | approx. Ø 36 mm |
| Inclination angle | +/- 45° |
| Included items | Schnorr washer, lock nut, securing nut for the thread |
| Material | Cast aluminum, powder-coated, dark gray metallic |
| Dimensions | approx. 90 x 180 x 110 mm |
| Weight | 850 g |
| Manufacturer | Bernstein |
| Manufacturer Nr. | 9-262 |
| EAN | 4250838511483 |
| HS-Code | 82057000 |
| GPSR manufacturer information | BERNSTEIN Werkzeugfabrik Industriehof Trecknase 1 DE-42897 Remscheid www.bernstein-werkzeuge.de |
| Condition of article | New |
| Article authenticity | Original product |
| ESD version | TEC |
