This ESD screw-on plate with M12 x 1.5 thread fits onto every ball joint holder of the SPANNFIX system and rotates a full 360° with steplessly lockable quick release. Slots for standard screws up to M12 hold individual fixtures, with a dissipation resistance of 10^7 to 10^8 ohm for the ESD protected area.

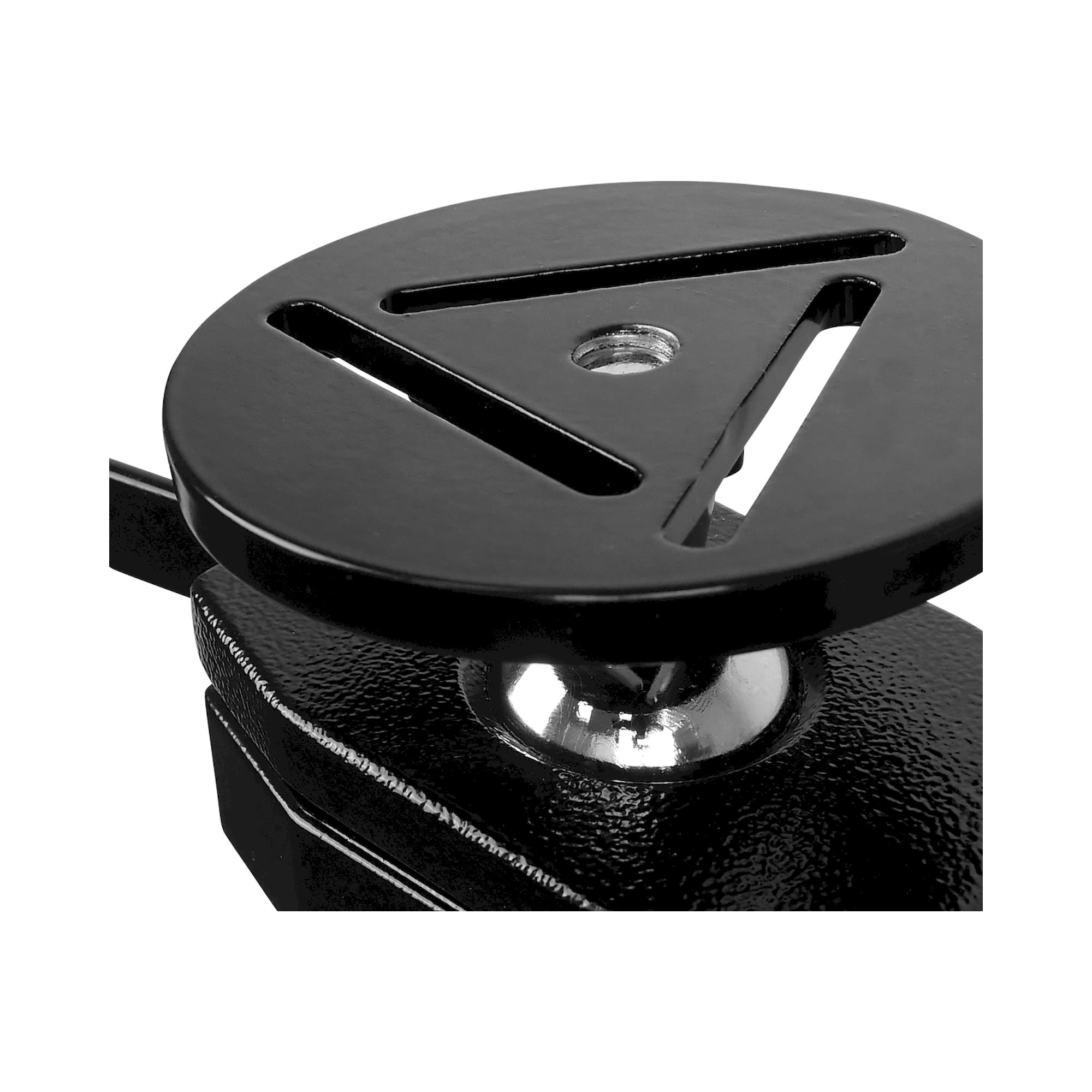

ESD Universal Screw-On Plate M12 x 1.5, 360 Degree Rotatable - Bernstein 9-254-ESD
BERNSTEIN Original product
Net price (excl. VAT)
€27.10
Item BS-9-254-ESD
Manufacturer no. 9-254-ESD
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.9-254-ESD
EAN4250838530095
Customs tariff number82057000
ConditionNew
Article
BS-9-254-ESD
Frequently Bought Together
- This Item: €27.10
- ESD Ball Joint Vise SPANNFIX for Clamping, 70 mm Clamping Width, Dissipative - Bernstein 9-205-ESD €185.98
- Ball joint vice SPANNFIX 4.0, 100 mm clamping width, for screwing on - Bernstein 9-292 €329.91
Total price
The ESD universal screw-on plate extends the ball joint vice 9-251-ESD with a mounting surface for individual fixtures. Its M12 x 1.5 thread screws onto any ball joint holder of the SPANNFIX system while keeping the full 360° rotation of the precision ball joint.
Advantages
- precision ball joint rotatable 360° with steplessly lockable quick release
- slots for standard screws up to M12 hold custom fixtures and adapters
- screws onto all ball joint holders of the system for flexible use
- dissipation resistance of 10^7 to 10^8 ohm suitable for the ESD protected area
- cast aluminum with black ESD powder coating, low weight of 95 g
Technical Data
| Feature | Value |
|---|---|
| Ball joint | rotatable 360°, steplessly lockable quick release |
| Mounting | slots for standard screws up to M12 |
| Thread | M12 x 1.5, fits all ball joint holders |
| Suitable for | 9-251-ESD in combination with 9-255-ESD |
| Material | cast aluminum with black ESD powder coating |
| Dissipation resistance | 10^7 to 10^8 ohm |
| Weight | 95 g |
Application
As an accessory or replacement for the ball joint vice 9-251-ESD, the plate holds individual fixtures, test adapters or brackets within the ESD protected area. Combined with the angle adapter 9-255-ESD it extends the turning circle of the ball. The base can be connected to the earthing point via a 10 mm push button.
Standards and Delivery Data
- EPA suitable for electrostatically protected areas
- EAN 4250838530095
- Customs tariff number 82057000
- Country of origin Germany
| ESD version | ESD (antistatic) |
|---|---|
| Manufacturer Nr. | 9-254-ESD |
| Manufacturer | Bernstein |
| EAN | 4250838530095 |
| Weight | 0.095000 |
| HS-Code | 82057000 |
| GPSR manufacturer information | BERNSTEIN Werkzeugfabrik Industriehof Trecknase 1 DE-42897 Remscheid www.bernstein-werkzeuge.de |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
