This set of ESD ball joint base, earth bonding plug, and 1.8 m grounding cable grounds the 360-degree rotating SPANNFIX holder directly at the Earth Bonding Point. The base clamps onto table tops up to 80 mm thick and is dissipative at 10^7 to 10^8 ohm through its ESD powder coating.
ESD Ball Joint Holder SPANNFIX for Clamping with Earth Bonding Plug and Grounding Cable - Bernstein 9-251-ESD-SET1
BERNSTEIN
Original product
Net price (excl. VAT)
€128.90
Item
BS-9-251-ESD-SET1
Manufacturer no.
9-251-ESD-SET1
Zertifiziert nach
ESD · IEC 61340-5-1
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.9-251-ESD-SET1
EAN4250838529723
Customs tariff number82057000
ConditionNew
Article
BS-9-251-ESD-SET1
Frequently Bought Together
-
This Item:
€128.90
-
Ball Joint Vise SPANNFIX Set with 5 Pairs of Interchangeable Jaws - Bernstein 9-205-K-SET1
€223.56
-
Set of Dowel Pins for SPANNFIX 9-290, Nickel-Plated Steel, Pack of 4 - Bernstein 9-900-S1000
€15.02
Total price

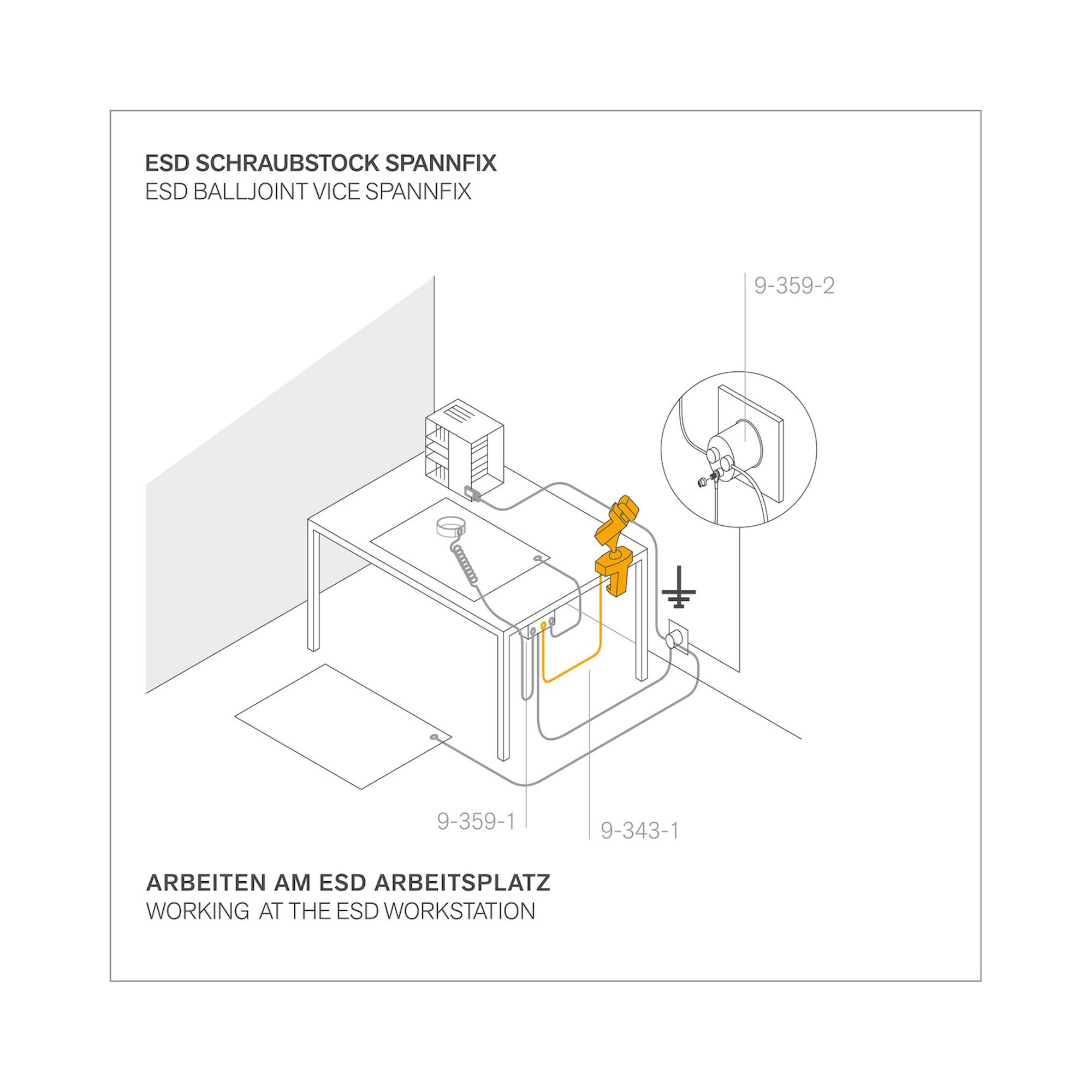

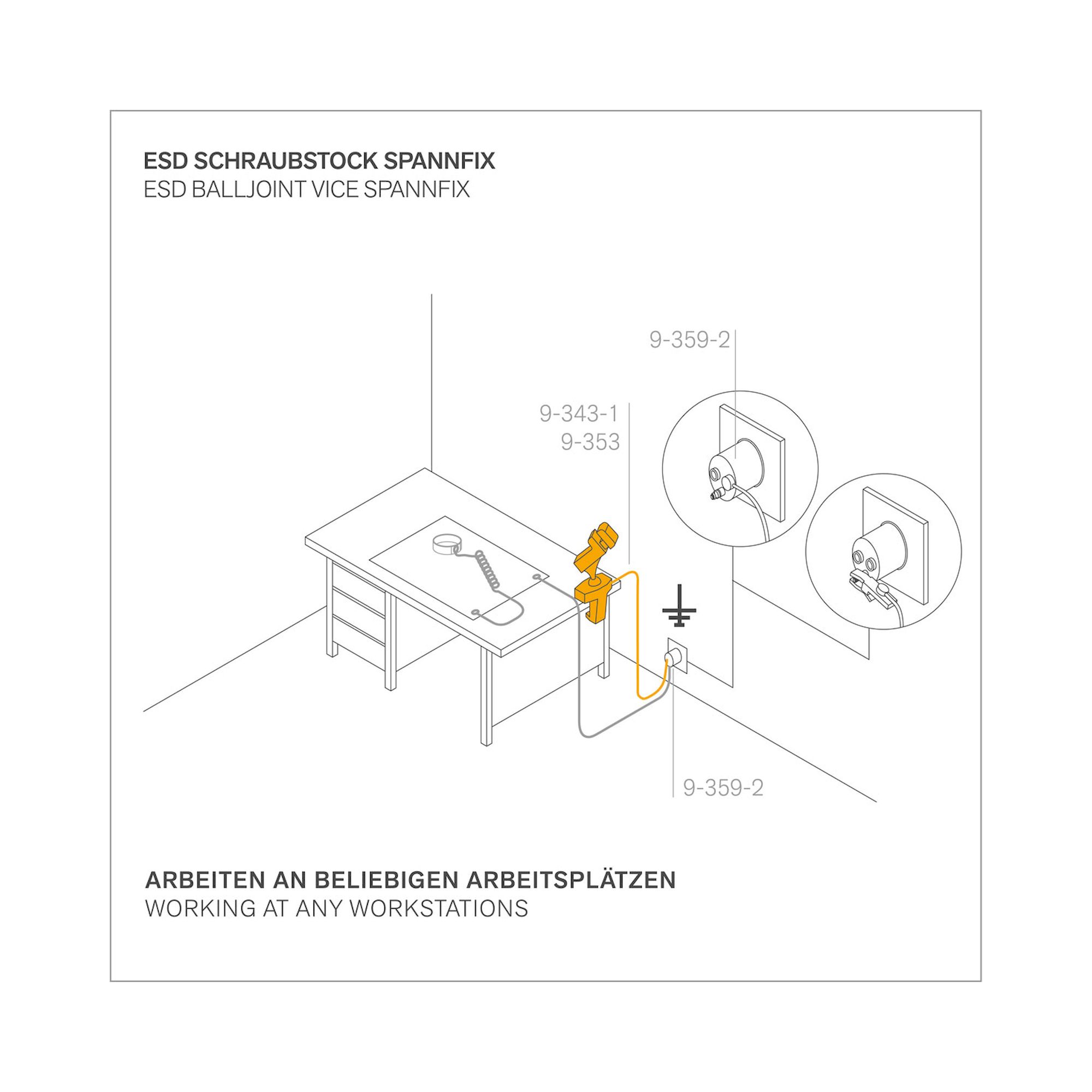

A ball joint holder alone is not enough at the ESD workstation, it must also be demonstrably grounded. Set 9-251-ESD-SET1 combines the SPANNFIX ball joint base with an earth bonding plug and a 1.8 m grounding cable for direct connection to an Earth Bonding Point.
Benefits

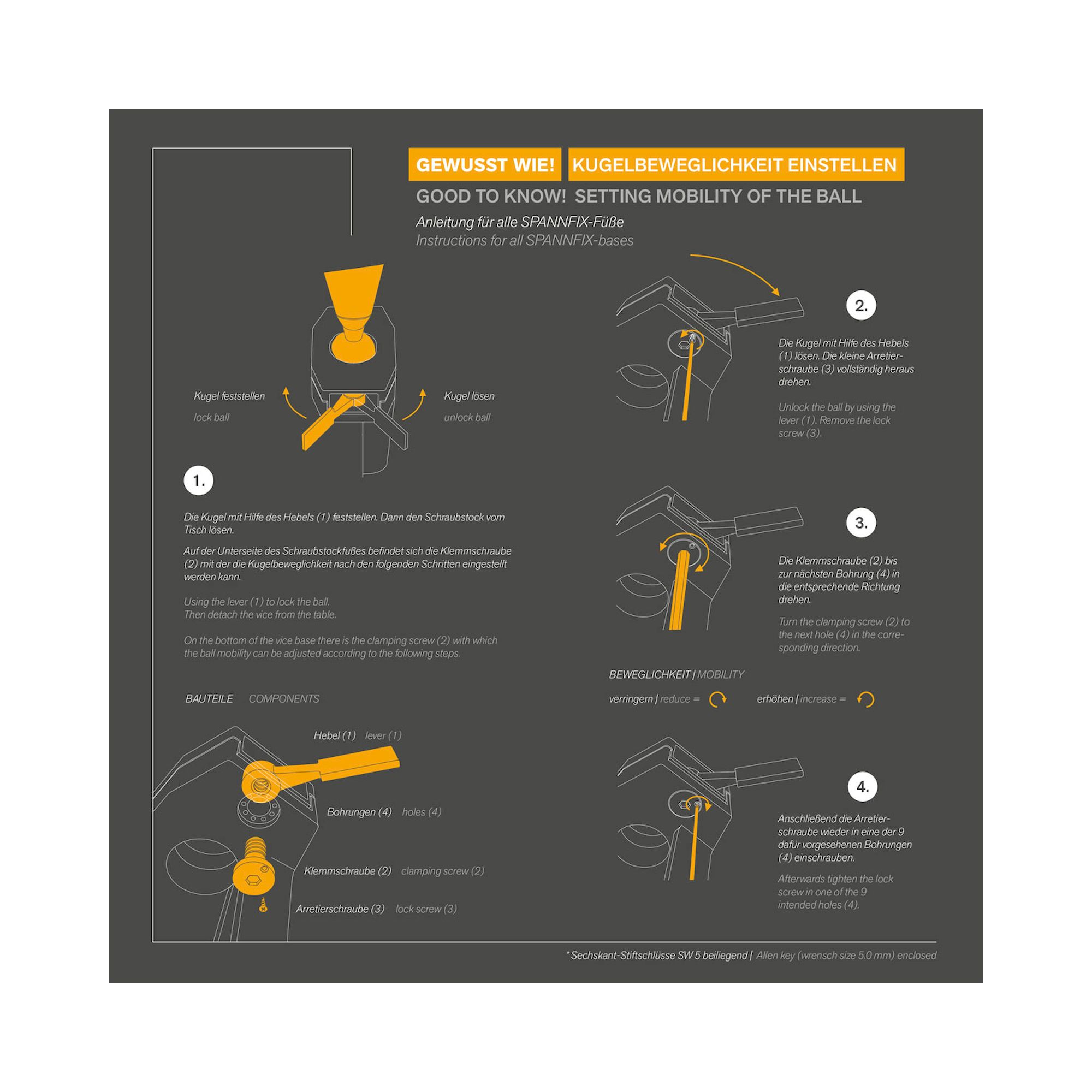

- Ball joint quick release holds even heavy parts, rotates 360 degrees and locks steplessly in any position.

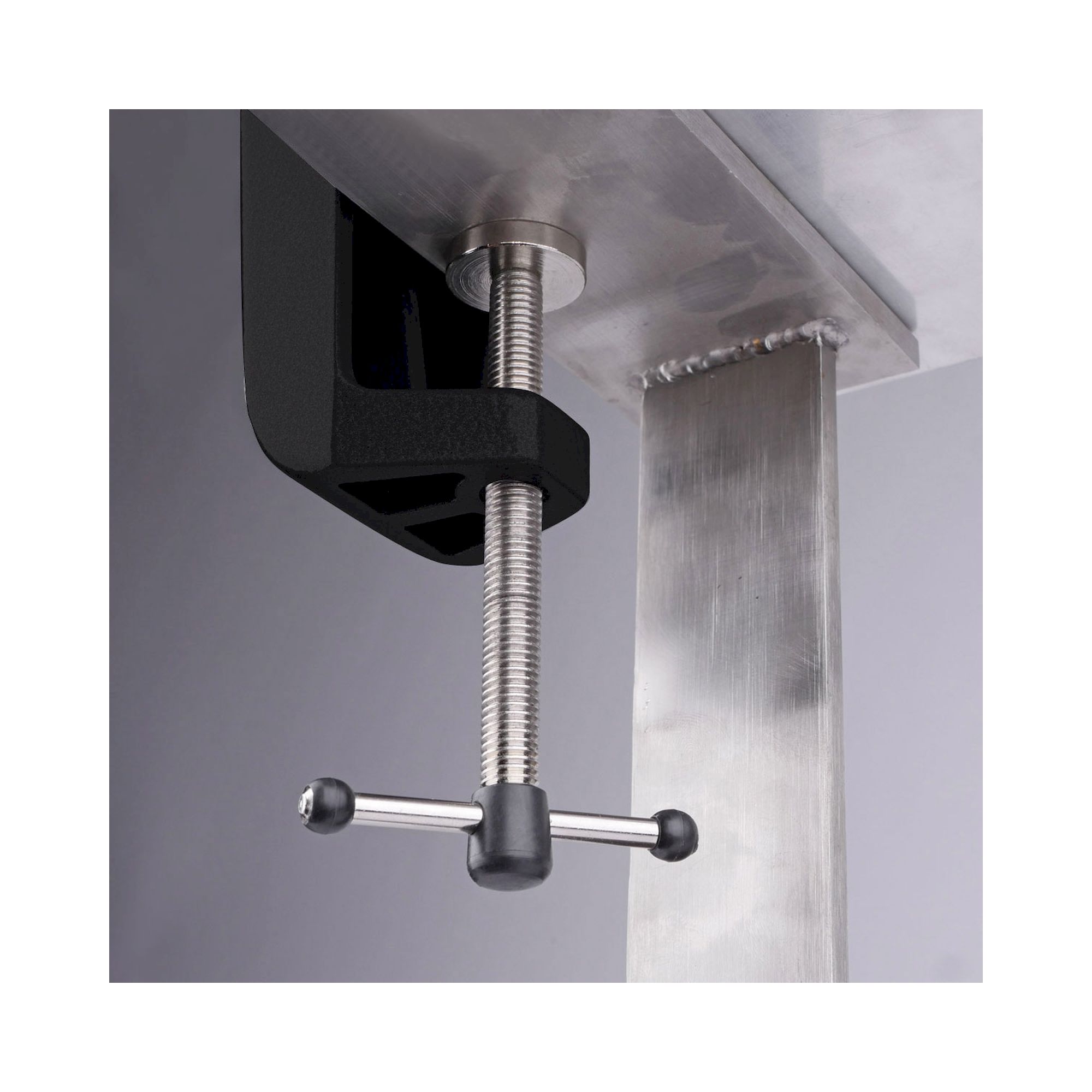

- Clamp mounting fits onto workbenches up to 80 mm table thickness without drilling.
- Earth bonding plug with 2x10 mm and M5 connection links the base and grounding cable securely.
- 1.8 m grounding cable carries electrostatic charge directly to the Earth Bonding Point.
- M12 x 1.5 x 20 mm threaded pin accepts any further SPANNFIX head.
Technical Data
| Feature | Value |
|---|---|
| Ball joint | quick release for heavy parts, rotates 360°, steplessly lockable |
| Origin | Quality product Made in Germany |
| Mounting | clamps onto the workbench, table thickness max. 80 mm |
| Threaded pin | M12 x 1.5 x 20 mm |
| Support surface | approx. Ø 20 mm |
| Inclination angle | +/- 45° |
| Included accessories | Schnorr washer, lock nut and locking nut for the thread |
| Material | cast aluminum, ESD powder coating black |
| Dissipative resistance | 10^7 to 10^8 ohm |
| Dimensions | approx. 220 x 170 x 75 mm |
| Weight | 1000 g |
Application
- Fully grounded ball joint holder for the ESD workstation without sourcing separate grounding parts.
- Base for SPANNFIX PCB holders, screw heads, and clamping plates with tool-free clamp mounting.
- Positioning and safely grounding cameras, sensors, or measuring instruments.
Scope of Delivery

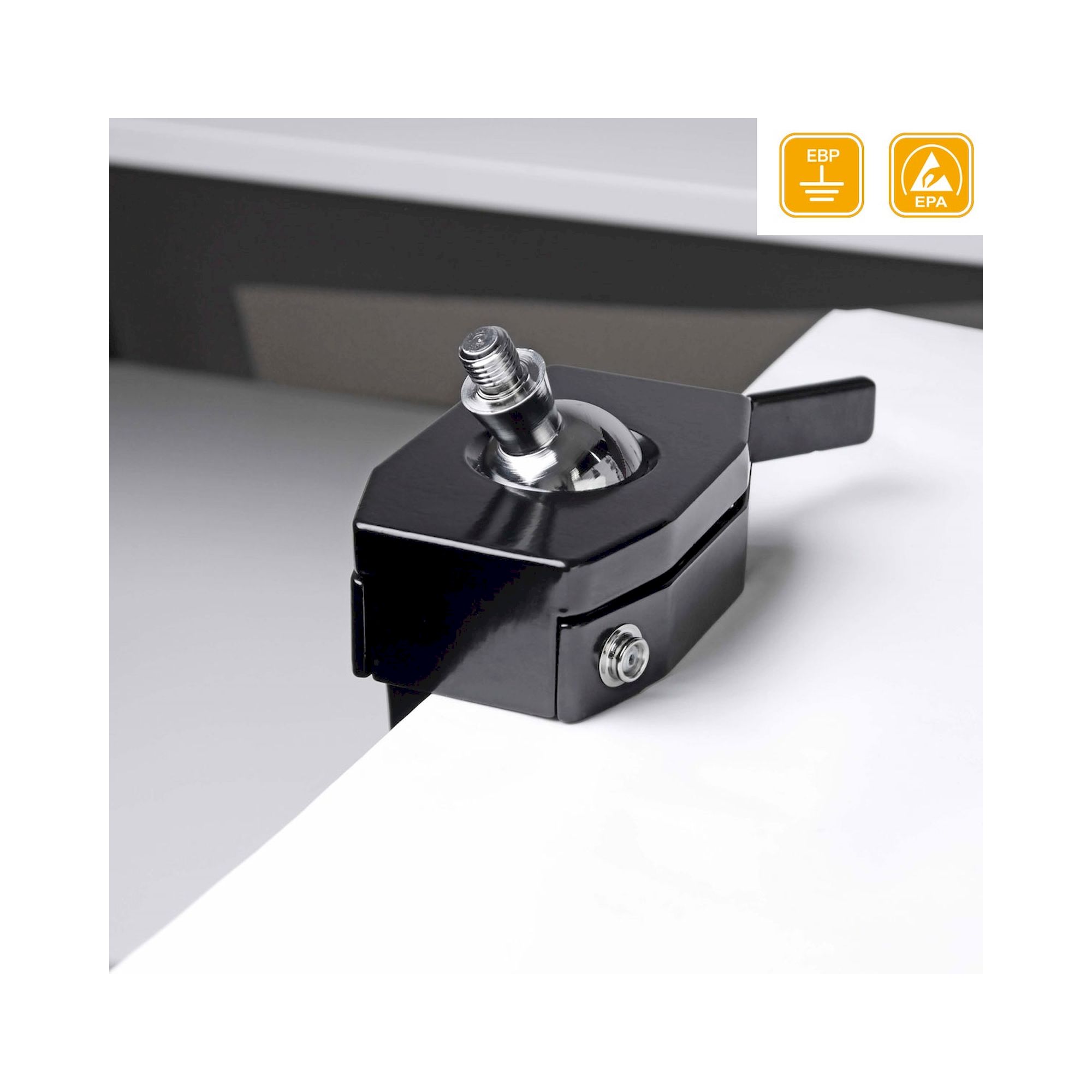

- 9-251 ESD ball joint base SPANNFIX for clamping, dissipative
- 9-359-2 ESD earth bonding plug 2x10 mm and M5 connection
- 9-343-1 ESD grounding cable 1 MOhm, 1800 mm, 2 press studs 10/10
Standards and Delivery Data
- EPA suitable for electrostatic protected areas per DIN EN 61340-5-1
- EAN 4250838529723
- Customs tariff number 82057000
- Country of origin Germany
| Certification | IEC 61340-5-1 |
|---|---|
| ESD version | ESD (antistatic) |
| Manufacturer Nr. | 9-251-ESD-SET1 |
| Manufacturer | Bernstein |
| EAN | 4250838529723 |
| Weight | 1.000000 |
| HS-Code | 82057000 |
| GPSR manufacturer information | BERNSTEIN Werkzeugfabrik Industriehof Trecknase 1 DE-42897 Remscheid www.bernstein-werkzeuge.de |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
