ESD PCB holder SPANNFIX VARIO, adjustable 25 to 270 mm, for clamping - Bernstein 9-270-ESD
Item BS-9-270-ESD
€292.50
Images are examples, some edited with AI. The technical data are authoritative. AI notice
ESD Ball Joint Combination SPANNFIX Vario with 3 Interchangeable Heads and Cable - Bernstein 9-250-ESD

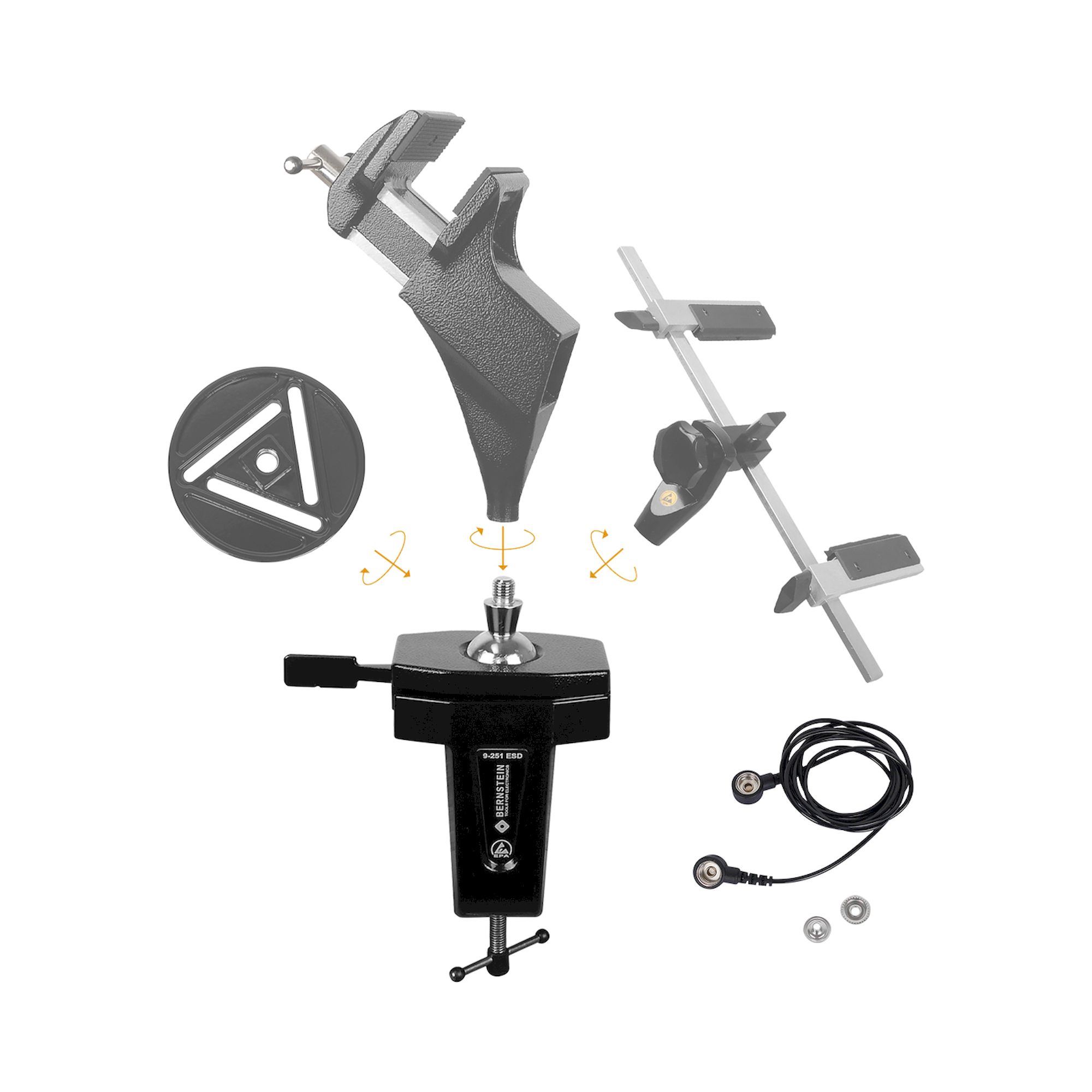

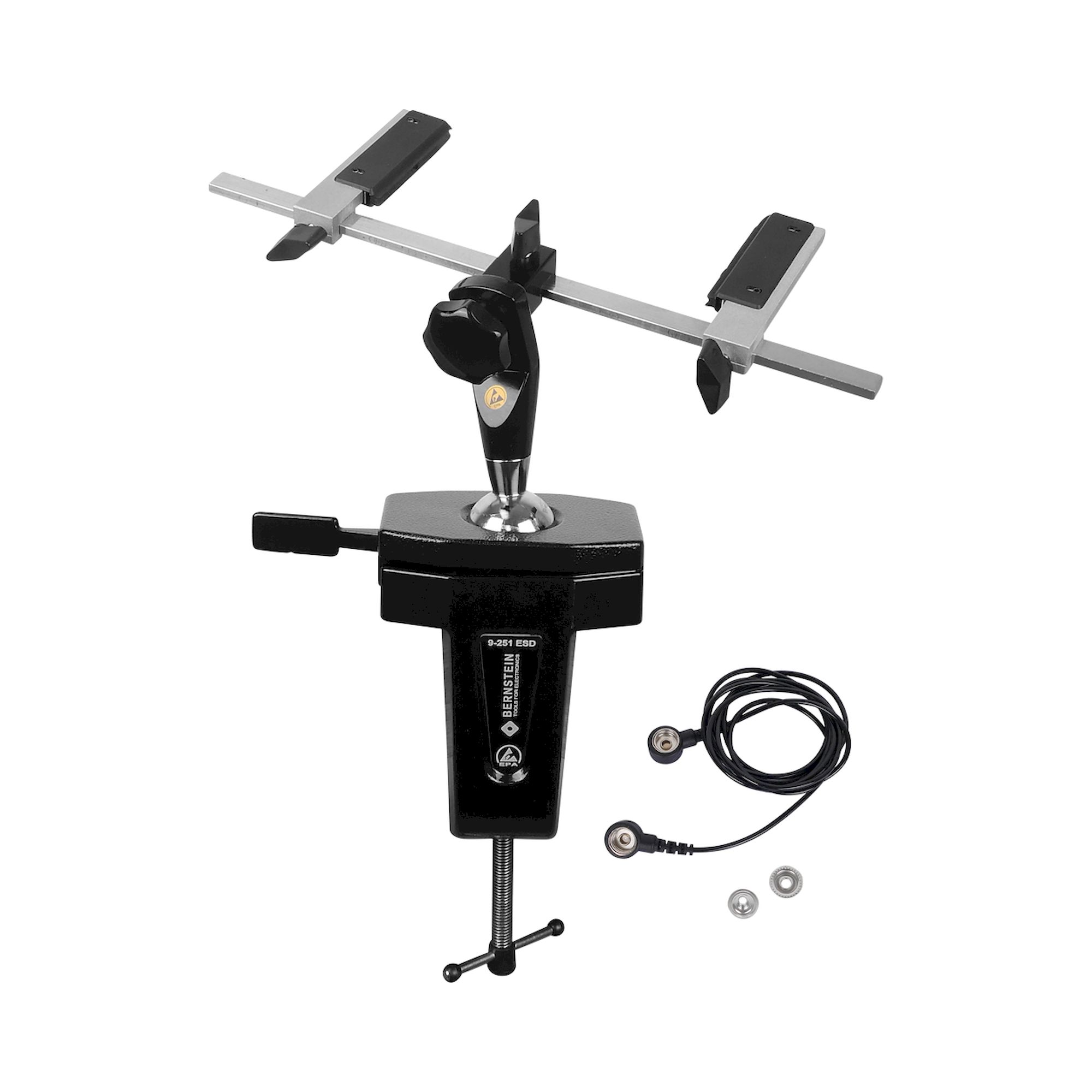

The ESD ball joint combination SPANNFIX Vario combines a screw head, a PCB holder, and a universal clamping plate on one 360-degree rotating ball joint. All three heads swap quickly via a screw connection, clamp onto table tops up to 80 mm thick, and ground through the included 1 MOhm cable.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Changing tasks at a test or soldering station call for different holders, not several separate tools. The ESD ball joint combination SPANNFIX Vario supplies a screw head, a PCB holder, and a universal clamping plate, all used on the same ball joint and the same screw connection.
Benefits
- Three heads, screw head, PCB holder, and universal clamping plate, cover different clamping tasks with a single base.
- Precision ball joint rotates 360 degrees and locks steplessly in any position.
- Spring support protects sensitive boards during clamping and turning.
Application
- Quick head swap between PCB holder and clamping plate at a test or soldering station.
- Securing boards from 25 to 270 mm long in any position via the ball joint.
Standards and Delivery Data
- EPA suitable for electrostatic protected areas per DIN EN 61340-5-1
- EAN 4250838530064
- Customs tariff number 82057000
- Country of origin Germany
Technical data
| Feature | Value |
|---|---|
| Ball joint | rotates 360°, steplessly lockable quick release |
| Origin | Quality product Made in Germany |

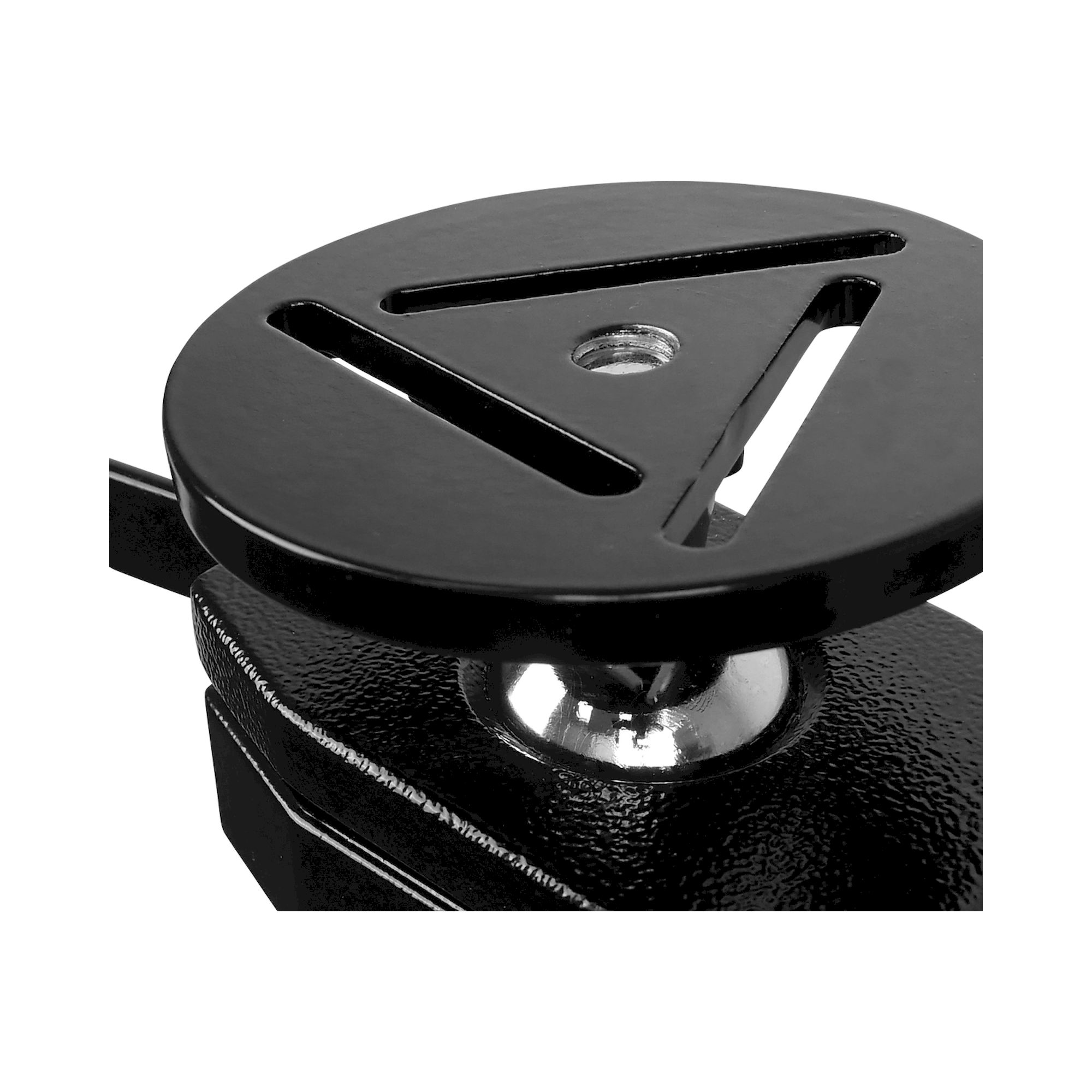

| Head parts | screw head, sturdy PCB holder, universal clamping plate |
| Spring support | for sensitive boards |
| Angle adapter | for greater inclination |
| PCB clamping range | 25 to 270 mm |
| Mounting | clamp-on, table thickness max. 80 mm |
| Inclination angle | +/- 45° |
| Grounding cable | 1 MOhm, length 1.8 m, for EBP / Earth Bonding Point |
| Material | steel, plastic, cast aluminum, ESD powder coating black |
| Dissipative resistance | 10^7 to 10^8 ohm |
| Dimensions | approx. 310 x 170 x 75 mm |
| Weight | 2100 g |
| Manufacturer | Bernstein |
| Manufacturer Nr. | 9-250-ESD |
| EAN | 4250838530064 |
| HS-Code | 82057000 |
| GPSR manufacturer information | BERNSTEIN Werkzeugfabrik Industriehof Trecknase 1 DE-42897 Remscheid www.bernstein-werkzeuge.de |
| Condition of article | New |
| Article authenticity | Original product |
| ESD version | ESD (antistatic) |
| Certification | IEC 61340-5-1 |
Scope of delivery

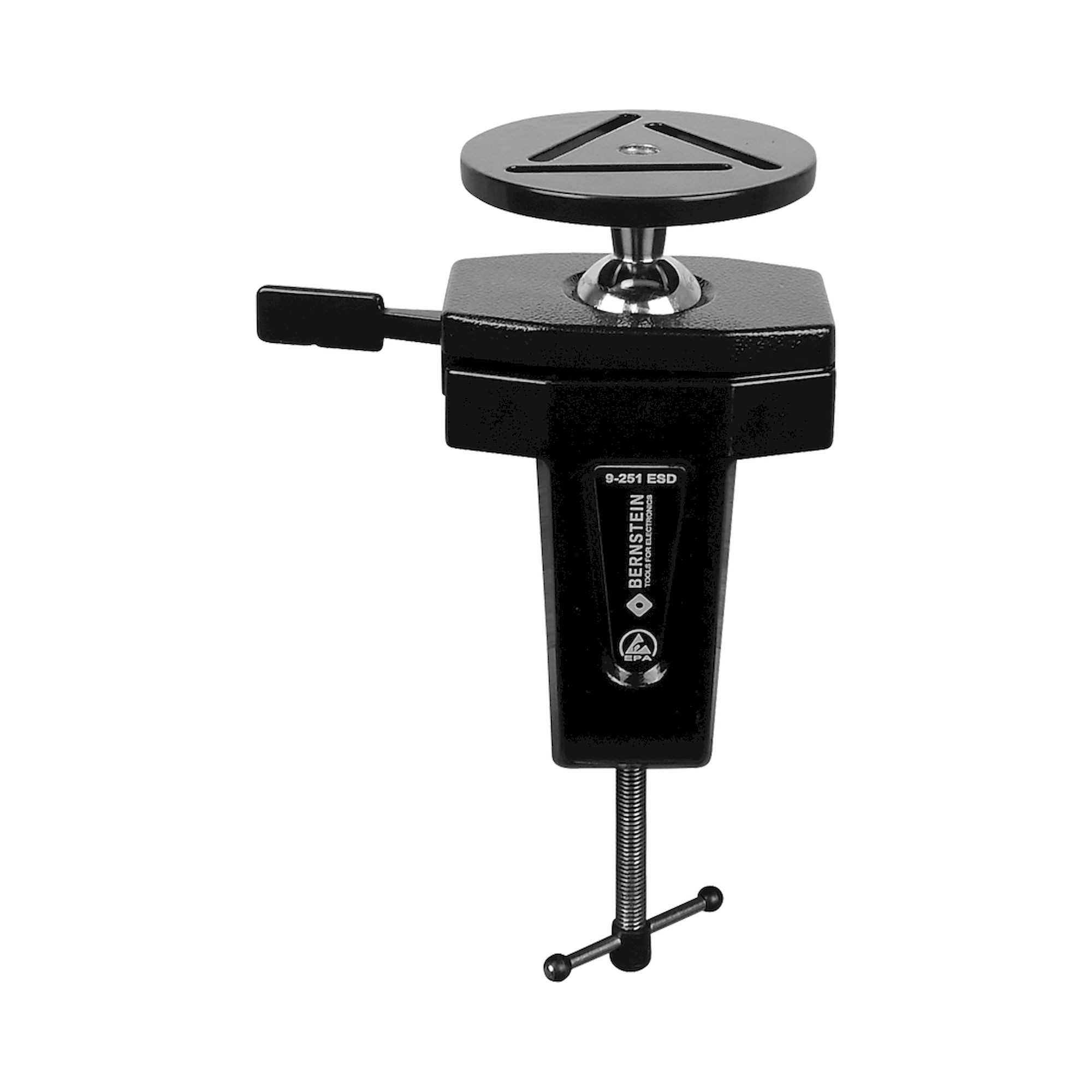

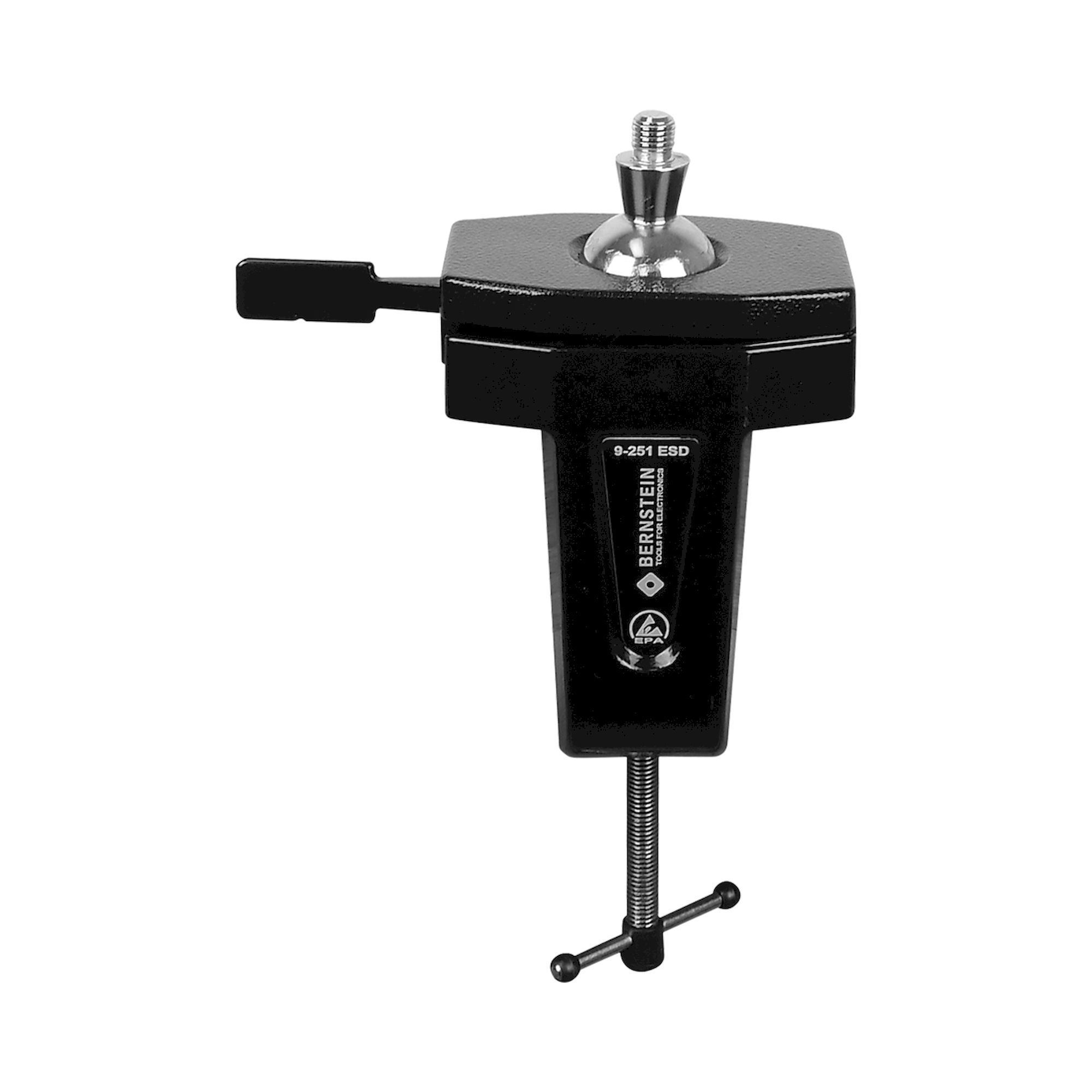

- 9-251 ESD ball joint base SPANNFIX for clamping, threaded pin 20 mm
- 9-252 ESD screw head SPANNFIX for screwing on, M12x1.5

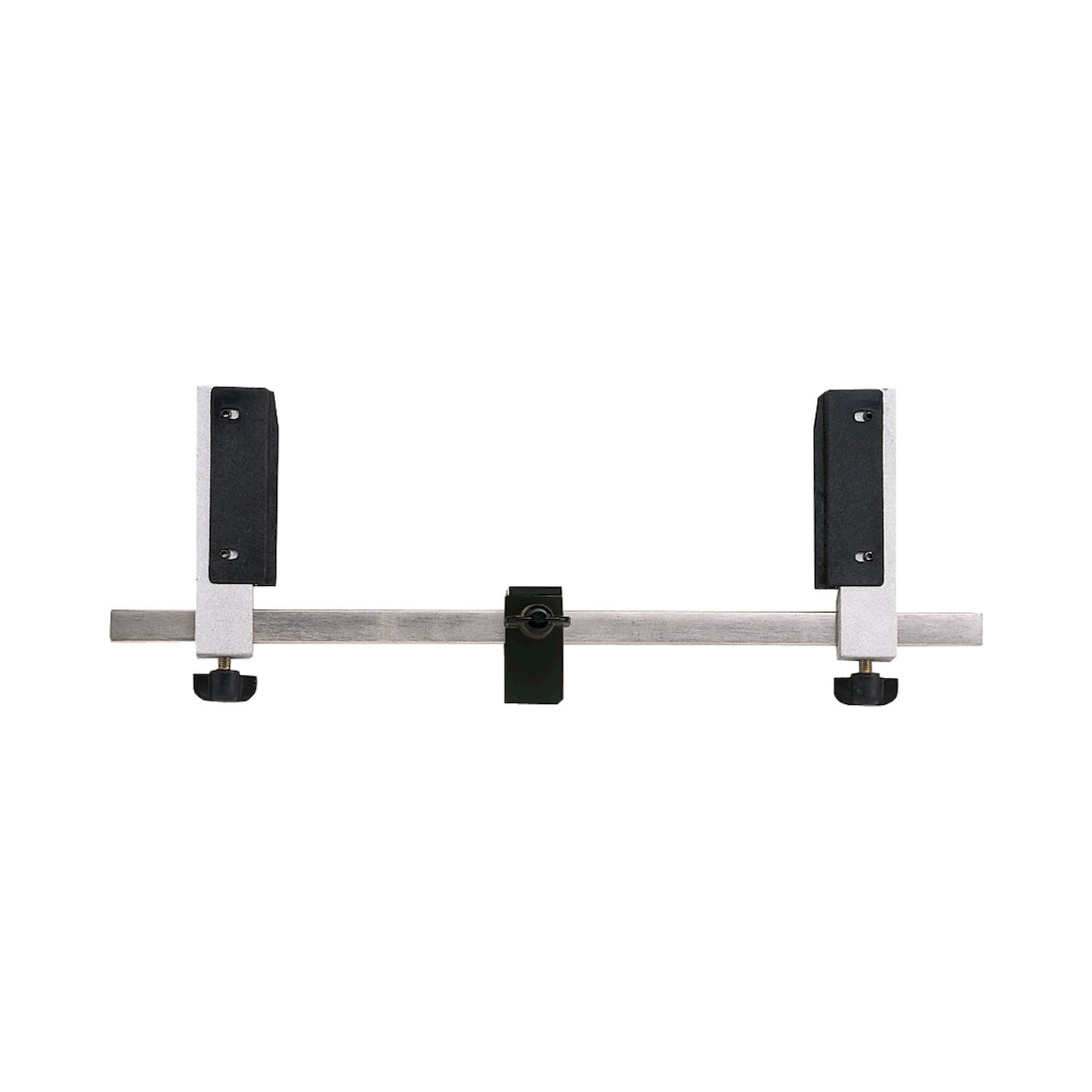

- 9-253 ESD PCB holder for screwing on, M12x1.5

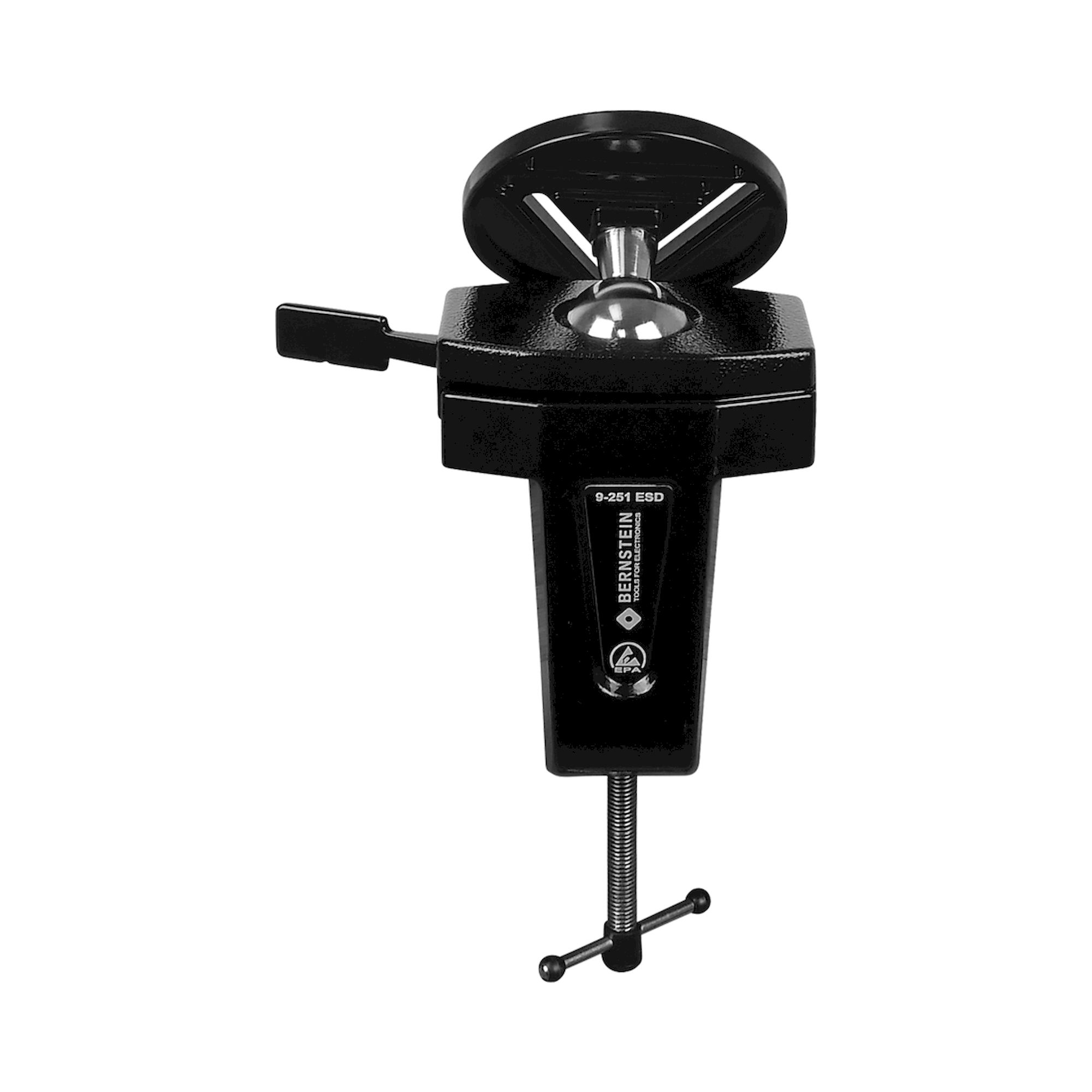

- 9-254 ESD universal clamping plate SPANNFIX for screwing on, M12x1.5

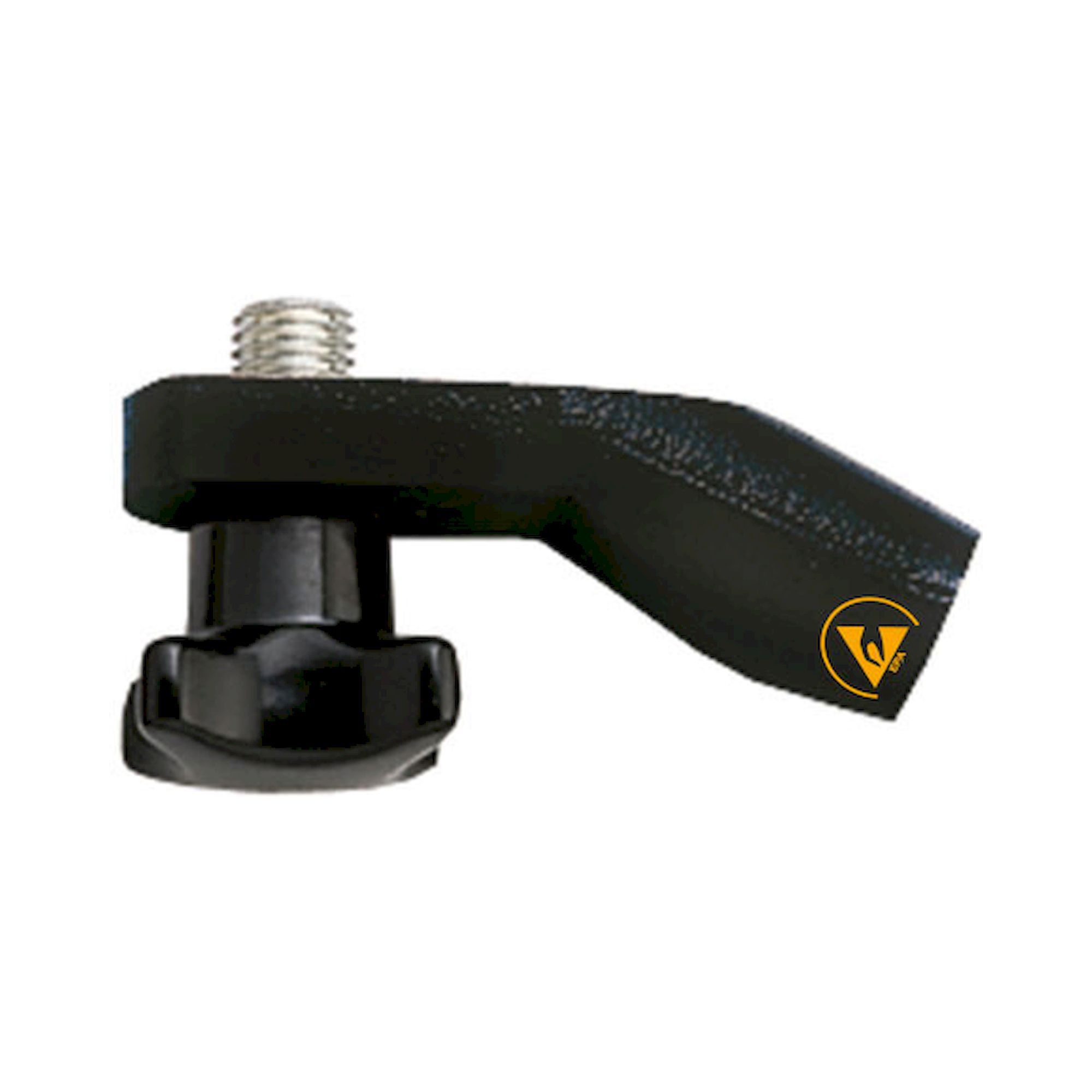

- 9-255 ESD angle adapter SPANNFIX for screwing on, M12x1.5

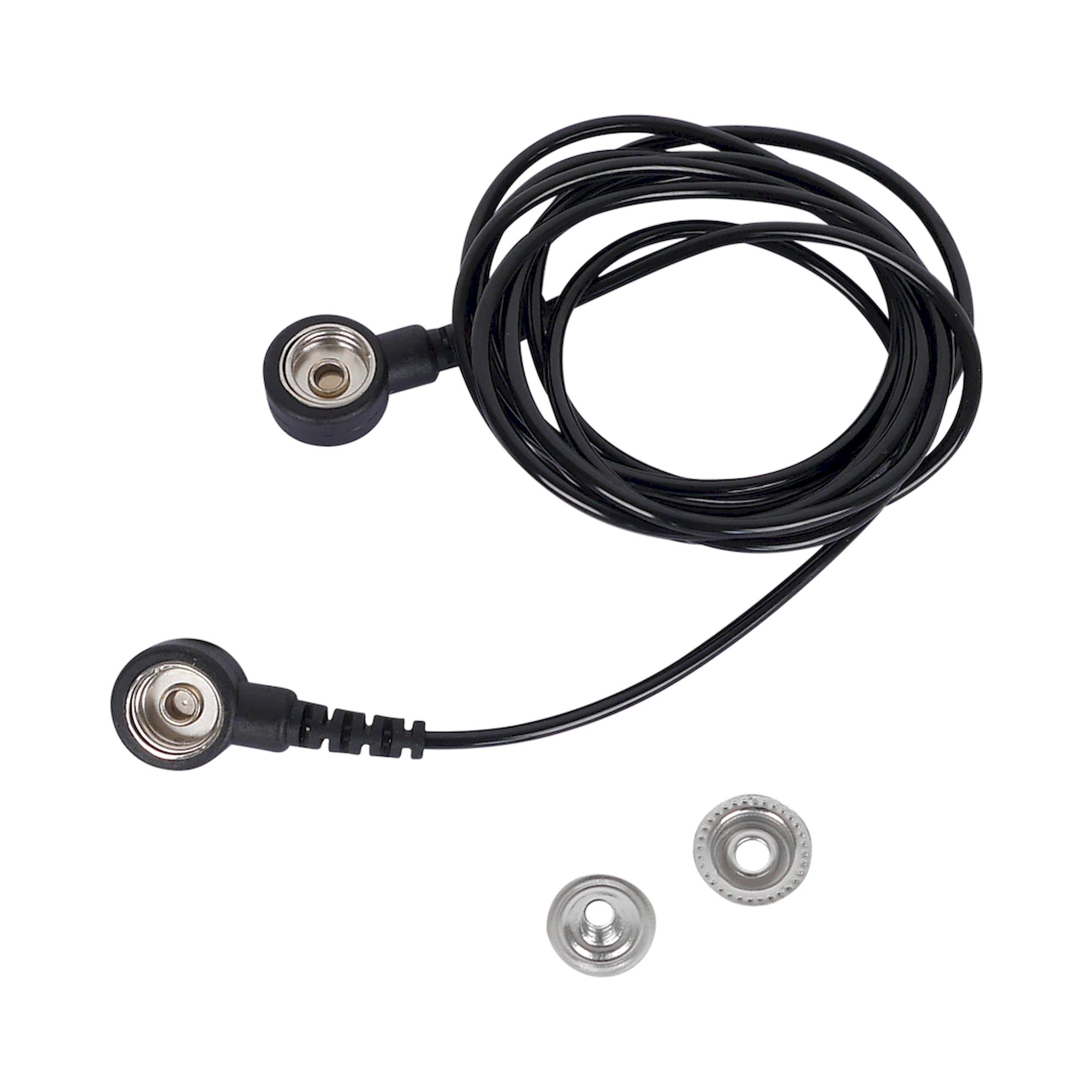

- 9-343-1 ESD grounding cable 1 MOhm, 1800 mm, 2 press studs 10/10
