This 5-piece ESD personal grounding set with a yellow wrist strap safely dissipates electrostatic charge and meets the safety requirements for wrist grounding according to BGFE. It includes a 500 x 400 mm dissipative workplace pad plus a grounding cable and plug with an M5 connection.
ESD Personal Grounding Set 5 pcs Yellow with M5 Grounding Plug and 500x400 mm Table Mat - Bernstein 9-354-A
BERNSTEIN
Original product
Net price (excl. VAT)
€63.43
Item
BS-9-354-A
Manufacturer no.
9-354-A
Zertifiziert nach
IEC 61340-4-1
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.9-354-A
EAN4250838528894
Customs tariff number39269097
ConditionNew
Article
BS-9-354-A
Frequently Bought Together
-
This Item:
€63.43
-
ESD Flat Nose Pliers EUROline Dissipative 130 mm, Slim Design 60 g - Bernstein 3-688-15
€50.82
-
ESD SMD Tweezers Form 7a, 40° Sickle-Shaped, Dissipative - Bernstein 5-055-13
€13.78
Total price

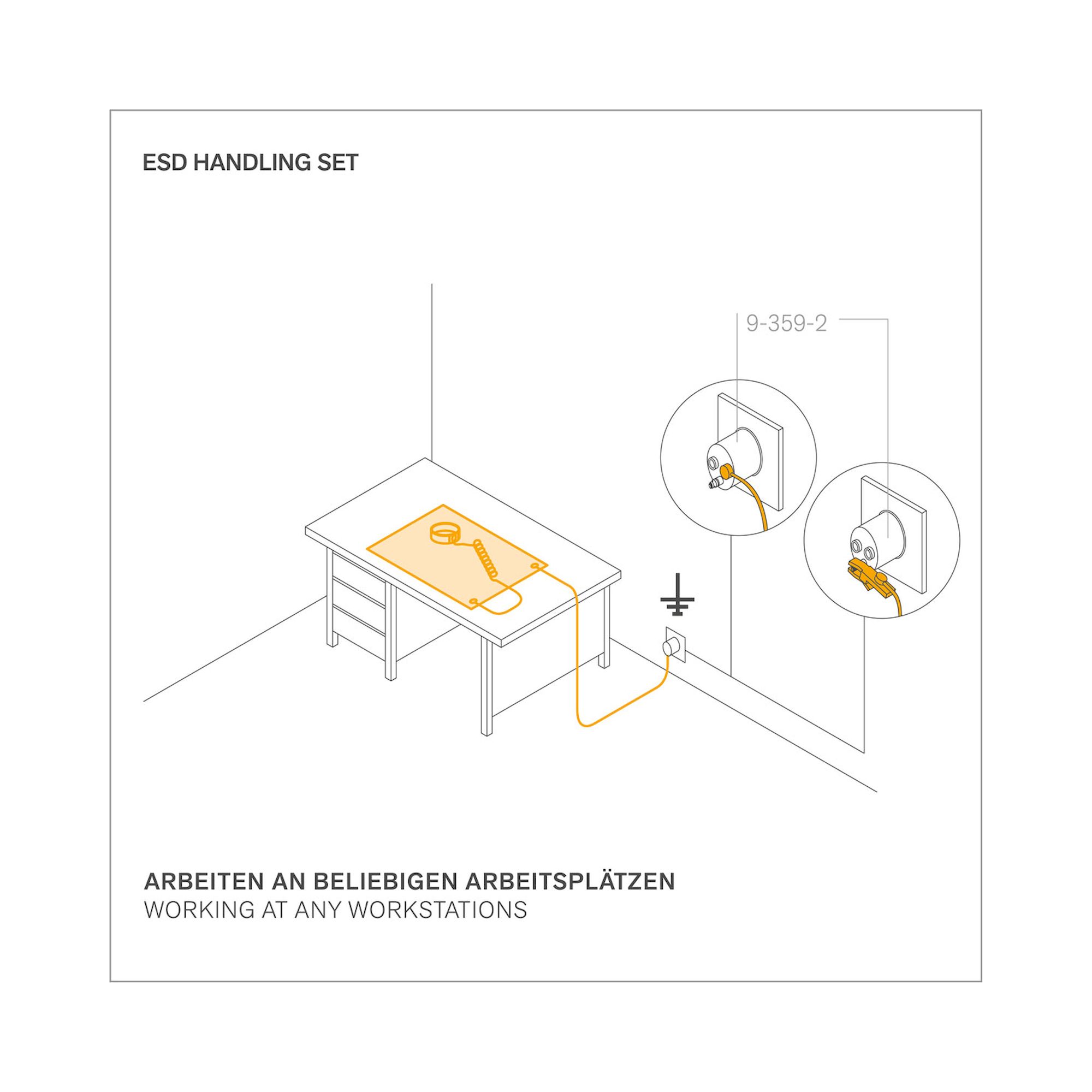

For workplaces where grounding runs through a wall socket, this 5-piece set combines a dissipative workplace pad with a yellow wrist strap and a grounding plug with an M5 connection.
Advantages
- foldable workplace pad 500 x 400 x 0.5 mm, dissipative at 10^8 ohm
- adjustable wrist strap with silver-plated synthetic fibres, allergy-free
- meets the requirements for wrist grounding according to BGFE
- highly elastic spiral cable 2.4 m for a large range of movement
- grounding plug with 2 x 10 mm and M5 connection for EU sockets
Technical Data
| Feature | Value |
|---|---|
| Content | see parts list |
| Workplace pad | foldable, 500 x 400 x 0.5 mm |
| Color / dissipation mat | black, 10^8 ohm to DIN IEC 61340-4-1 |
| Mat connection | 2x 10 mm press buttons |
| Wrist strap | adjustable, silver-plated fibres, allergy-free, yellow |
| Safety standard | BGFE wrist grounding |
| Spiral cable | 2.4 m, highly elastic |
| Grounding cable | 1.8 m, 1x press button and 1x eyelet 4 mm, 1 MOhm |
| Grounding plug | 2 x 10 mm and M5 connection |
| Weight | 160 g |
Application

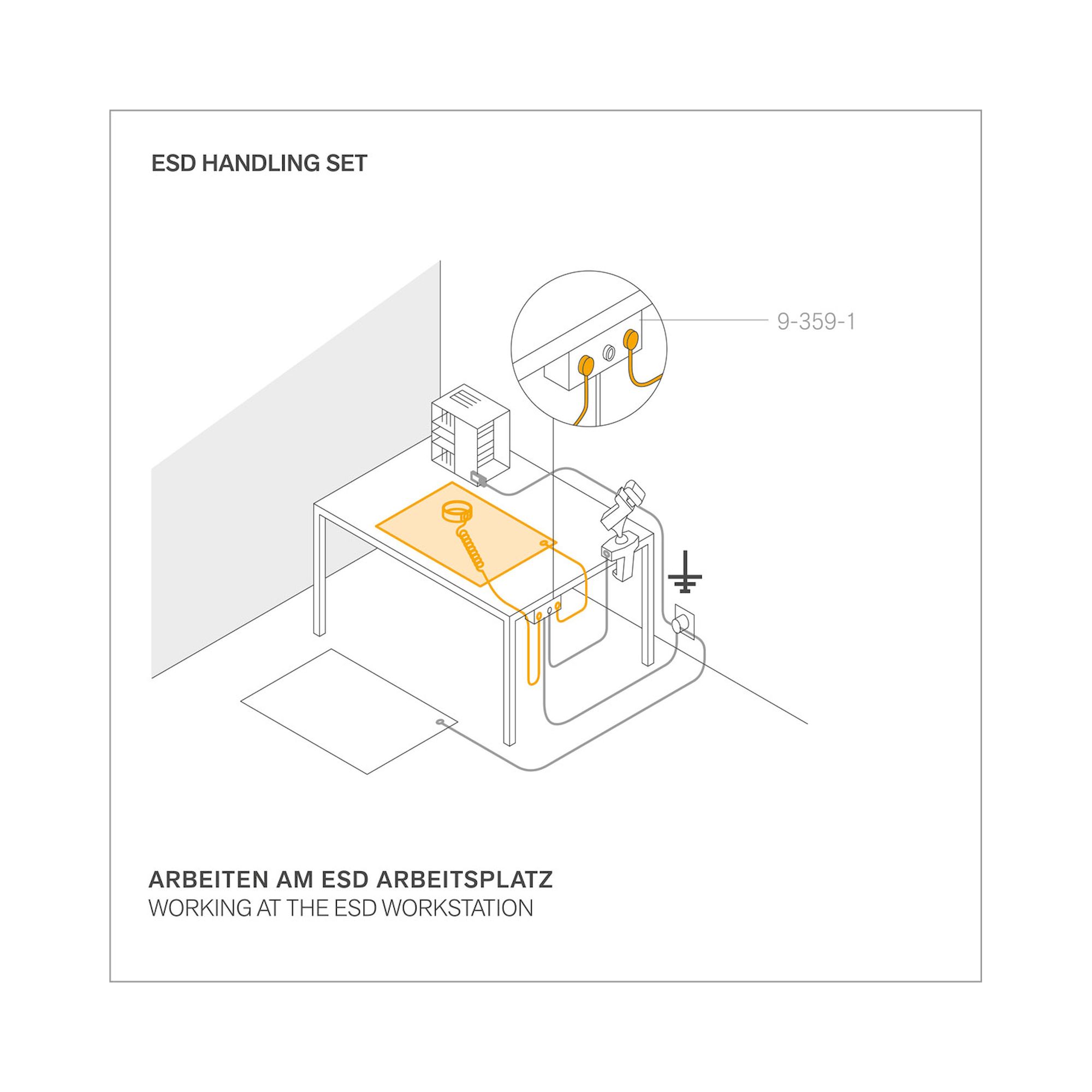

Wrist grounding as a safe method to dissipate electrostatic charge from people. The wristband ensures close skin contact, the spiral cable connects it electrically to the earthing point, approved up to 250 VAC. Store dry only, machine wash up to 30 degrees Celsius with mild detergent, ESD protection is retained for about 30 wash cycles.
Scope of Delivery
- 9-354-100 ESD table mat 500x400x0.5 mm
- 9-341-1 ESD contact bracelet yellow
- 9-341-2 ESD spiral cord for bracelet, 70 to 200 cm, yellow
- 9-344-1 ESD grounding cable 1 MOhm, 1800 mm, 1 press button 10 mm and eyelet 4 mm
- 9-359-2 ESD grounding plug 2x10 mm and M5 connection
Standards and Delivery Data
- DIN IEC 61340-4-1, DIN 54345-1, DIN 53482 mat
- DIN EN 1876-1 cold resistance, NFP 92507 class M2 flame behavior
- BGFE wrist grounding
- EAN 4250838528894
- Customs tariff number 39269097
- Country of origin Taiwan
| Norm | DIN 53482, DIN 54345-1, DIN EN 1876-1 |
|---|---|
| Certification | IEC 61340-4-1 |
| ESD version | ESD (antistatic) |
| Manufacturer Nr. | 9-354-A |
| Manufacturer | Bernstein |
| EAN | 4250838528894 |
| Weight | 0.160000 |
| HS-Code | 39269097 |
| GPSR manufacturer information | BERNSTEIN Werkzeugfabrik Industriehof Trecknase 1 DE-42897 Remscheid www.bernstein-werkzeuge.de |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
