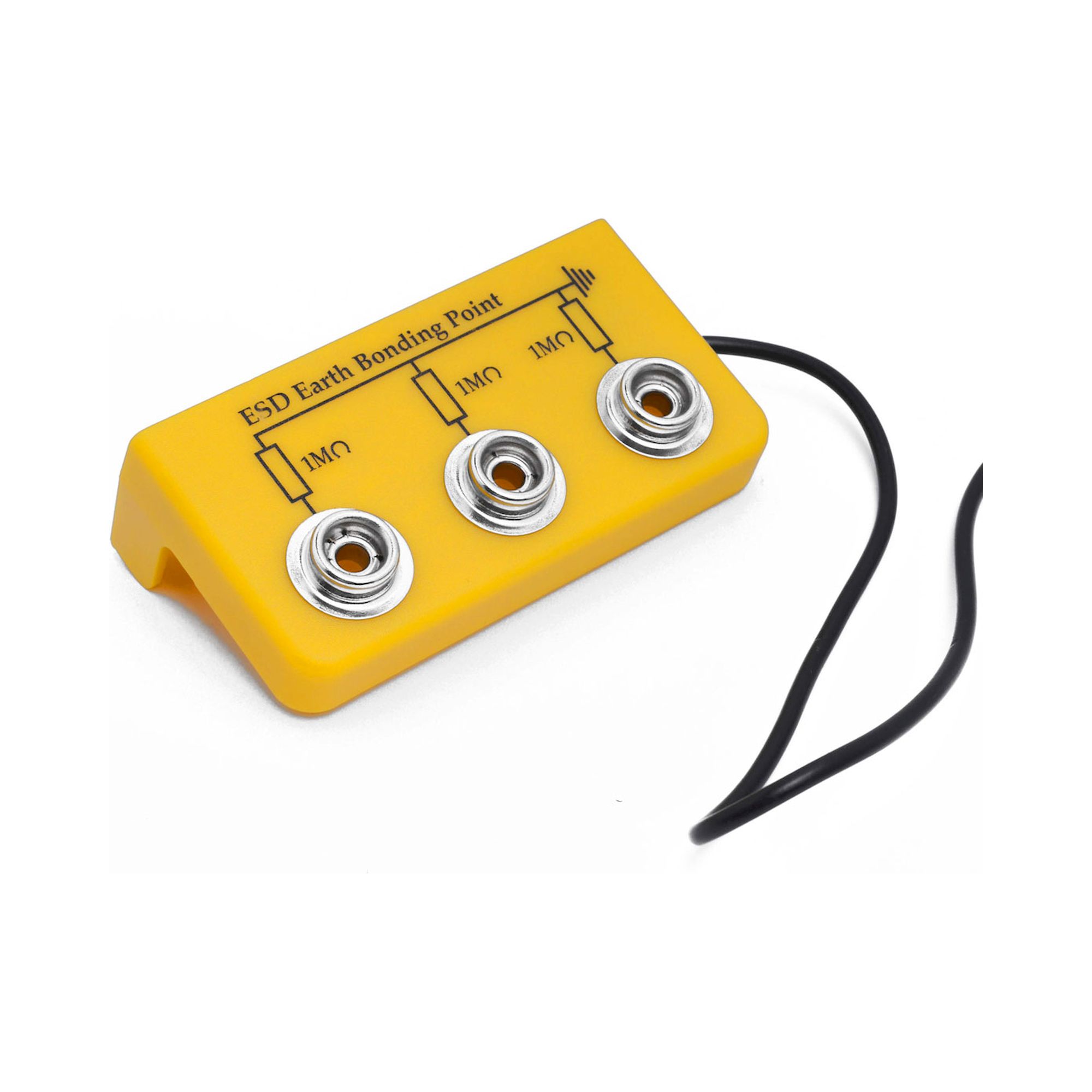

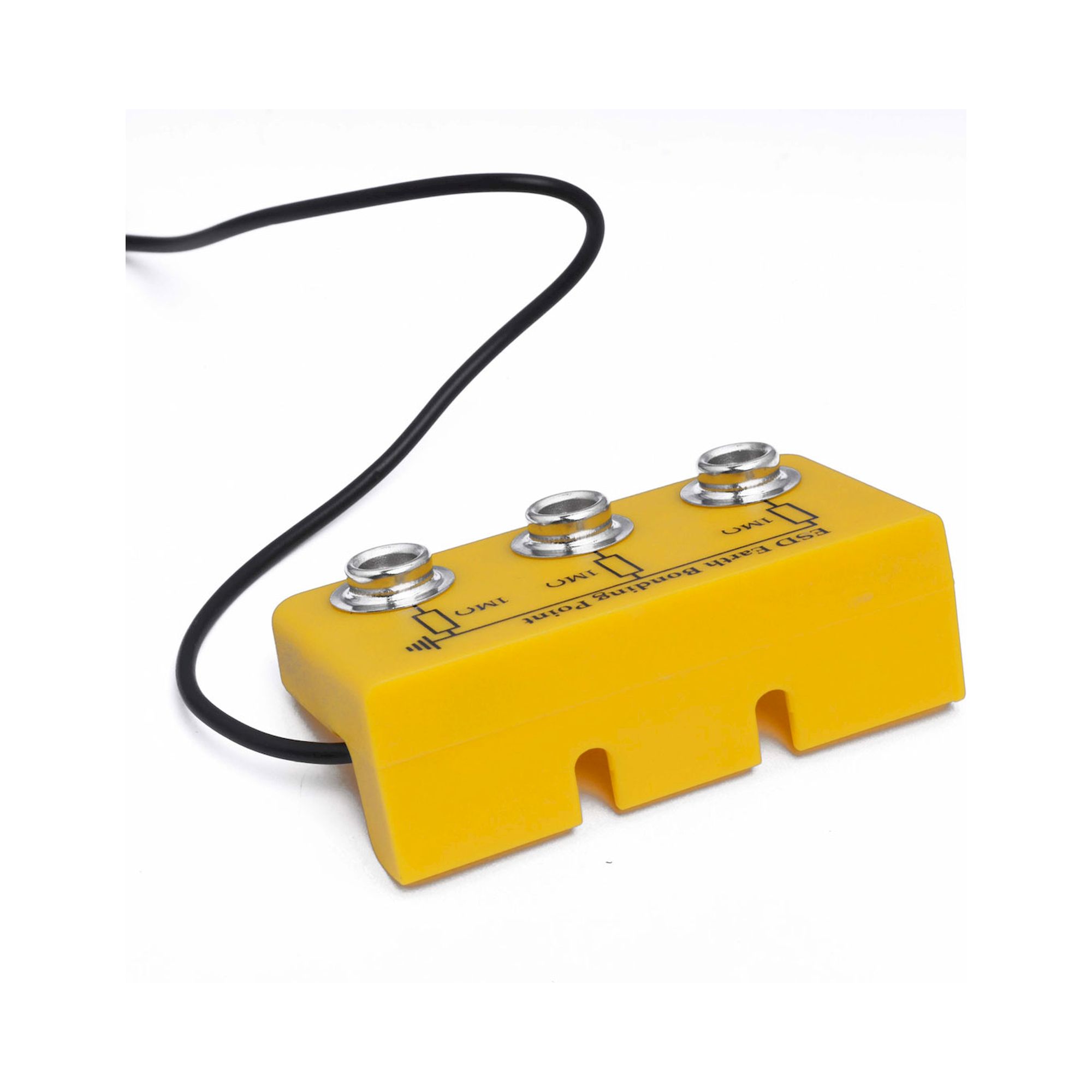

The ESD earth bonding point 9-359-1 mounts beneath the worktop and links connected ESD control elements to a common potential through a 2.9 m cable with a triple 1 MOhm safety resistance. The 10 mm press buttons accept wrist straps or grounding cords for EPA workstations.
ESD Earth Bonding Point for Table Mounting with 2.9 m Cable and 3 x 1 MOhm Connection - Bernstein 9-359-1
BERNSTEIN Original product
Net price (excl. VAT)
€12.87
Item BS-9-359-1
Manufacturer no. 9-359-1
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.9-359-1
EAN4250838527842
Customs tariff number85389099
ConditionNew
Article
BS-9-359-1
Frequently Bought Together
- This Item: €12.87
- ESD Hex Key Screwdriver SW 1.3 mm with Dissipative Rotating Cap Handle - Bernstein 6-633 €4.90
- Flexible Bit Holder for 4 mm Bits (5/32 Inch), Length 200 mm - Bernstein 4-565 €6.66
Total price
Anyone who needs a fixed grounding point beneath the worktop mounts the ESD earth bonding point 9-359-1 with two screws and uses it to bring connected ESD control elements to a common potential, as required for an Earth Bonding Point (EBP).
Advantages
- Fixed mounting beneath the worktop thanks to a compact 70 x 35 mm body
- 2.9 m cable with a 5 mm inside diameter eyelet for flexible positioning of the connection point
- Triple 1 MOhm safety resistance for a controlled discharge current
- 10 mm press buttons take wrist straps and grounding cords directly
- EPA suitable for use in electrostatically protected areas
Technical Data
| Feature | Value |
|---|---|
| Mounting | Table screw mounting |
| Dimensions | Length 70 mm, width 35 mm |
| Cable length | 2.9 m, eyelet at the end Ø 5 mm inside |
| Safety resistance | 3 x 1 MOhm |
| Press buttons | 10 mm |
| Function | Ground connection point for personal grounding (EBP - Earth Bonding Point) |
| EPA suitability | Suitable for electrostatically protected areas (ESD workplace / protection zone) |
| Housing color | Yellow |
| Cable color | Black |
| Weight | 45 g |
Application

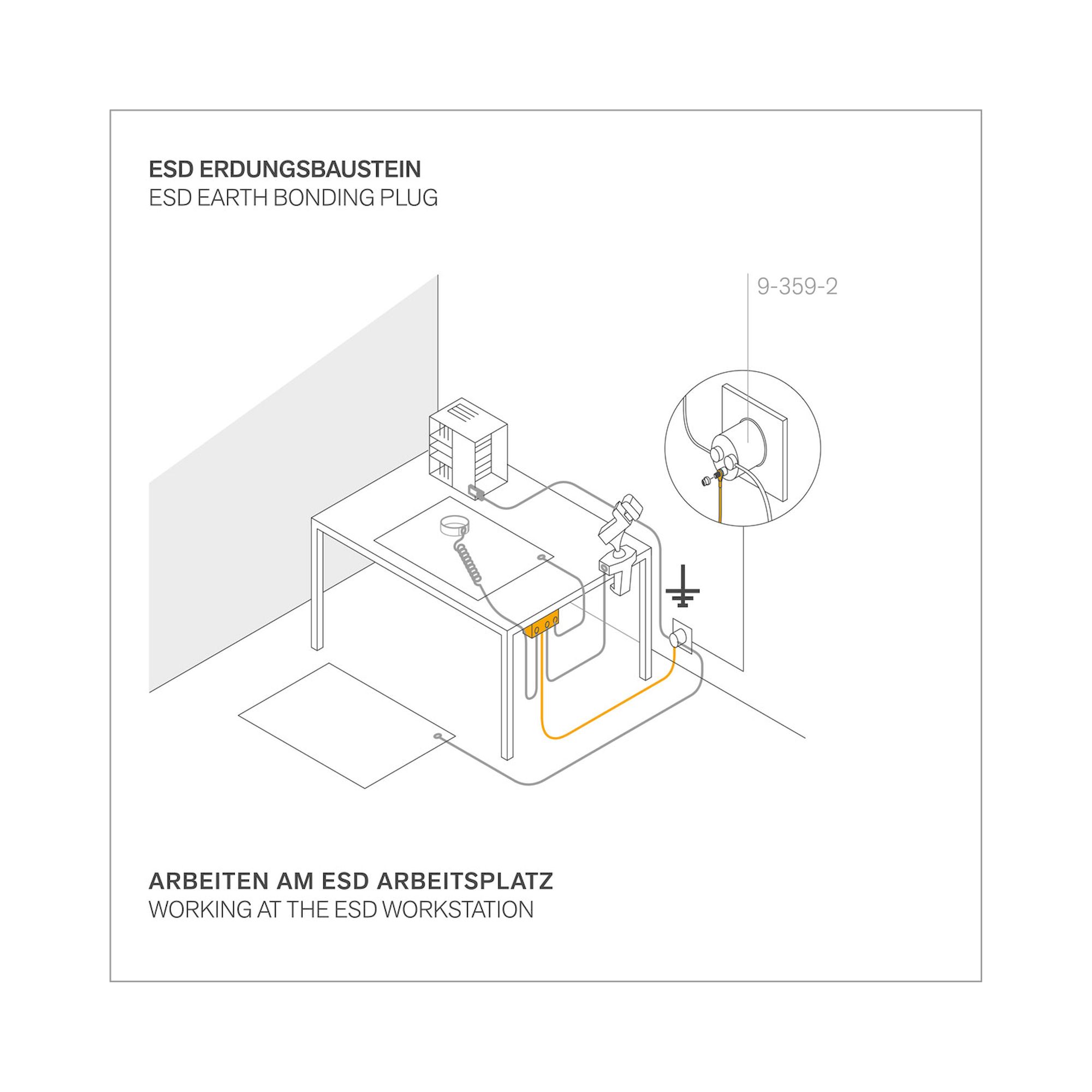

As a central grounding point beneath the work desk, where wrist straps, mats and other ESD control elements are brought to a common potential.
Standards and Supply Data
- EAN 4250838527842
- Customs tariff number 85389099
- Country of origin China
| ESD version | ESD (antistatic) |
|---|---|
| Manufacturer Nr. | 9-359-1 |
| Manufacturer | Bernstein |
| EAN | 4250838527842 |
| Weight | 0.045000 |
| HS-Code | 85389099 |
| GPSR manufacturer information | BERNSTEIN Werkzeugfabrik Industriehof Trecknase 1 DE-42897 Remscheid www.bernstein-werkzeuge.de |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
