ESD Grounding Mat Platinum Grey 610 x 450 x 2 mm for Table, Shelf and Floor - Bernstein 9-367-0
This platinum grey ESD grounding mat measures 610 x 450 x 2 mm and achieves a resistance of 10^6 to 10^7 ohm. It is solder-resistant, scratch-proof and suits table, shelf or floor use in the EPA per DIN EN 61340-5-1.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For solder-resistant workstations and the protection of electrostatically sensitive components, the platinum grey ESD grounding mat measuring 610 x 450 x 2 mm with a resistance of 10^6 to 10^7 ohm provides reliable dissipation.
Advantages
- Resistance of 10^6 to 10^7 ohm, back side additionally conductive at 10^3 to 10^4 ohm
- Solder-resistant, heat-resistant, abrasion-resistant and scratch-proof for daily workshop use
- Wear-resistant and permanently elastic while remaining halogen-free
- 2 press buttons 10 mm for a reliable ground connection
Application

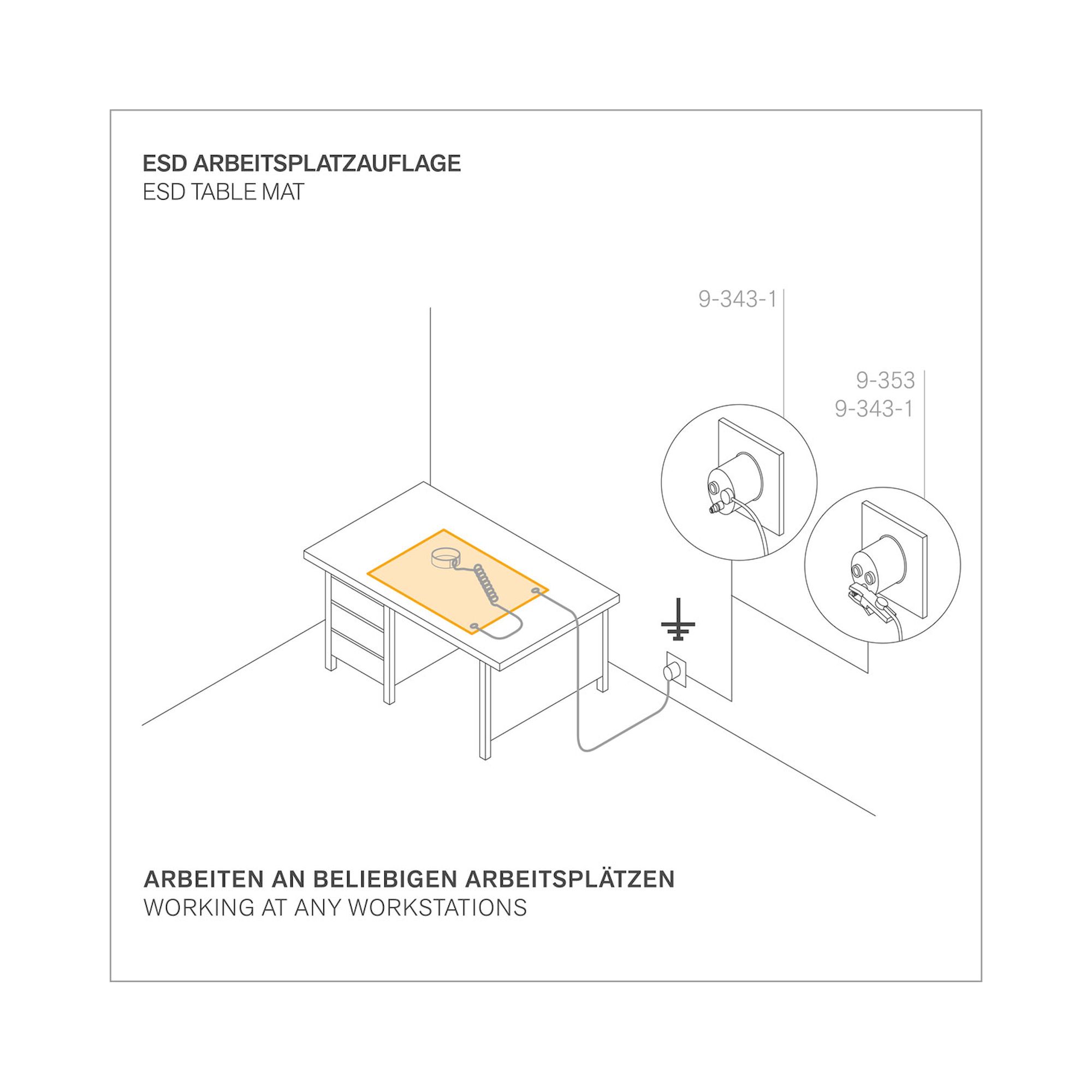

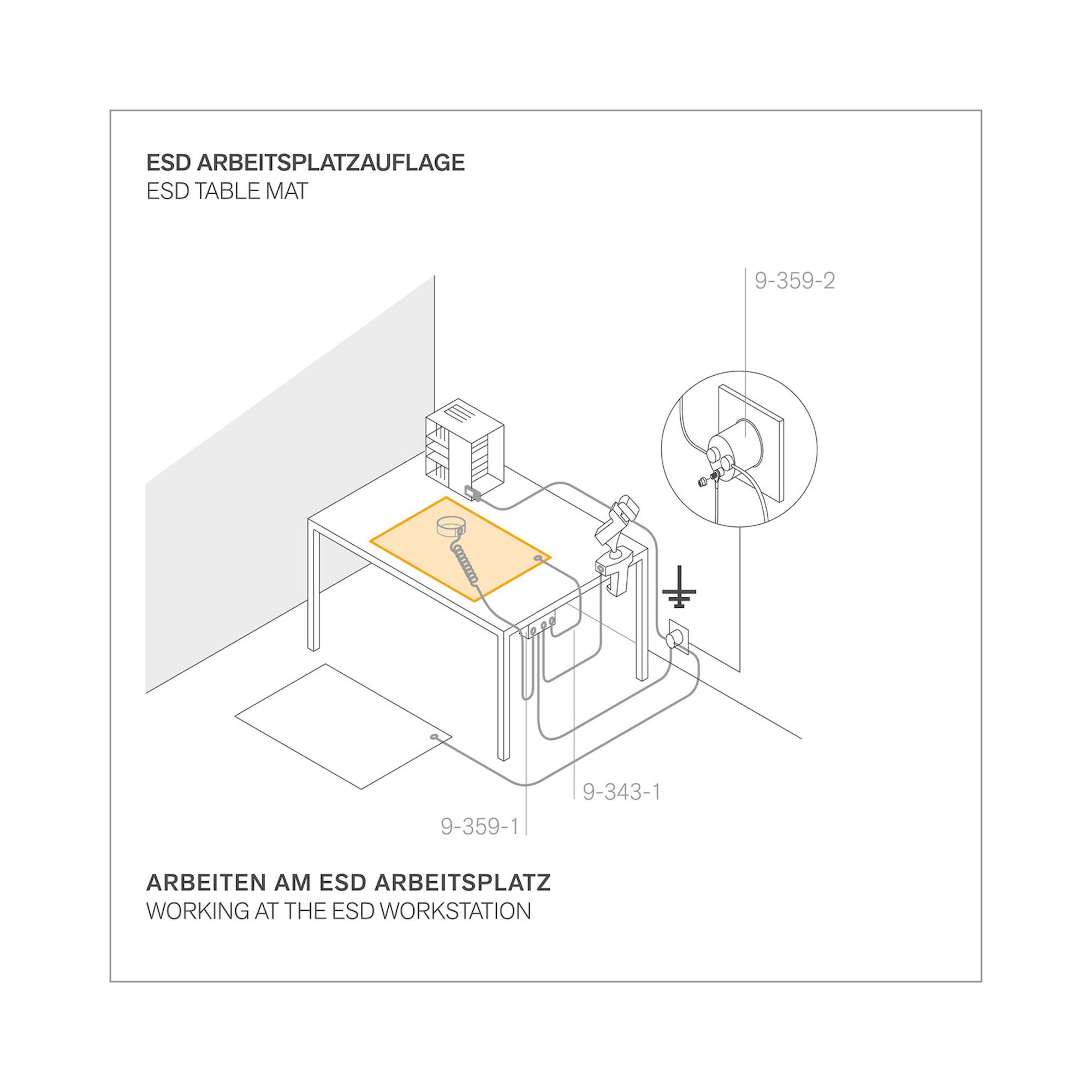

As a table, shelf or floor mat in electrostatic protected areas (EPA), particularly for solder-resistant work. For connection, the earthing module 9-359-1 or the earthing plug 9-359-2 with the grounding cable 9-343-1 (1 megohm, 1.8 m) is recommended.
Standards and Delivery Data
- Meets DIN EN 61340-5-1, EPA suitable
- EAN 4250838528078
- Customs tariff number 40082190
- Country of origin Taiwan
Technical data
| Feature | Value |
|---|---|
| Resistance top side | 10^6 to 10^7 ohm |
| Resistance back side | 10^3 to 10^4 ohm |
| Material | platinum grey top, black back, electrostatically dissipative synthetic rubber |
| Connection | 2 press buttons 10 mm |
| Properties | solder-resistant, heat-resistant, abrasion-resistant, scratch-proof, wear-resistant, permanently elastic, halogen-free |
| Dimensions | 610 x 450 x 2 mm |
| Weight | 700 g |
| Manufacturer | Bernstein |
| Manufacturer Nr. | 9-367-0 |
| EAN | 4250838528078 |
| HS-Code | 40082190 |
| GPSR manufacturer information | BERNSTEIN Werkzeugfabrik Industriehof Trecknase 1 DE-42897 Remscheid www.bernstein-werkzeuge.de |
| Condition of article | New |
| Article authenticity | Original product |
| Colour | Grey |
| ESD version | ESD (antistatic) |
| Certification | IEC 61340-5-1 |
