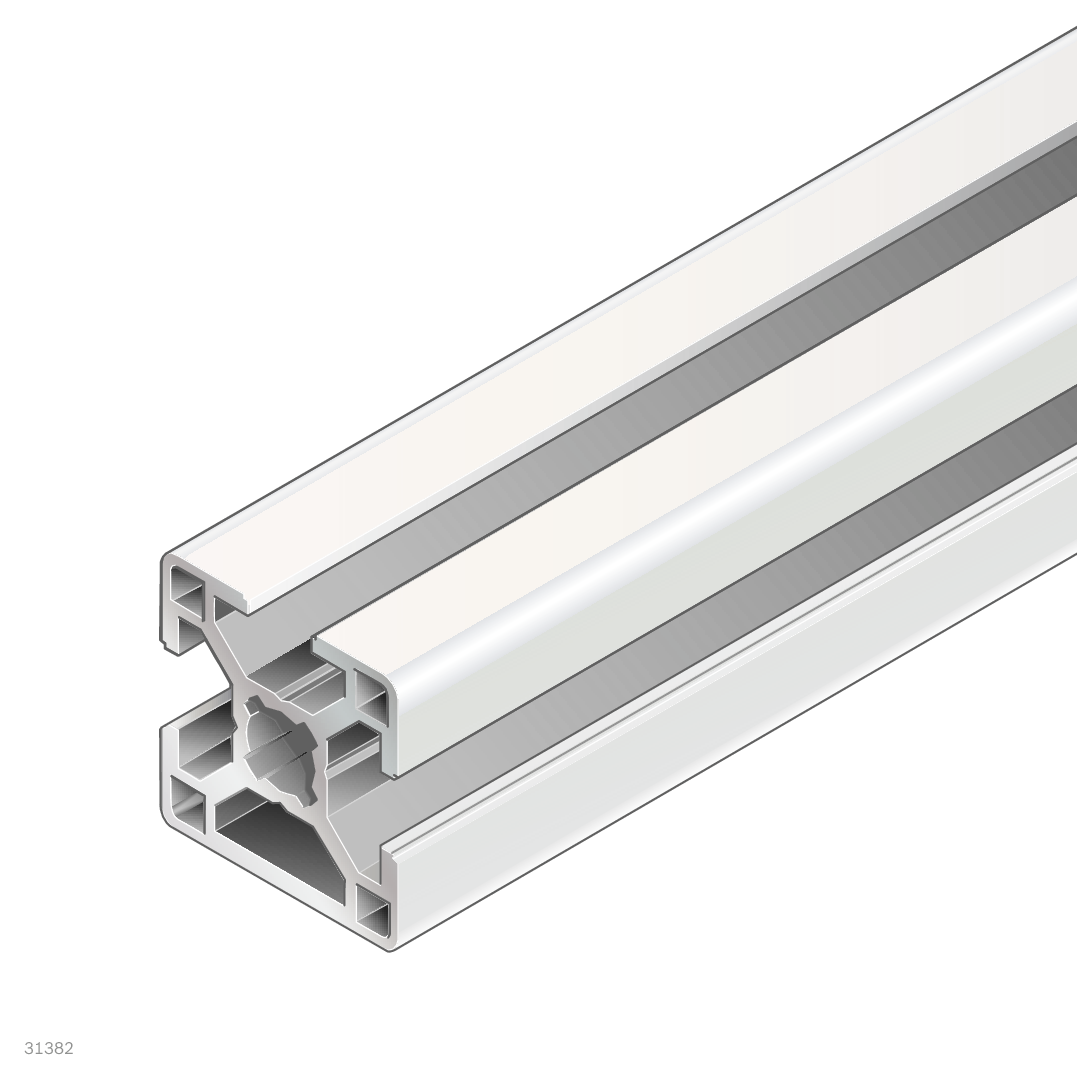

Strut Profile 30x30 3N, Length 6070 mm, Anodized Aluminum, Pack of 20 - Bosch Rexroth 3842557221
Datasheet (PDF)
The product may differ from the illustration
Strut profile with 30x30 mm cross-section, type 3N with 3 open slots (slot 8), in anodized aluminum. Delivery unit: 20 pieces at 6070 mm length, individual mass 0.9 kg. Recommended accessory: cover cap 30x30, black.

Strut Profile 30x30 3N, Length 6070 mm, Anodized Aluminum, Pack of 20 - Bosch Rexroth 3842557221

BOSCH REXROTH Original product
Net price (excl. VAT)
€1,792.46
Excl. 19% VAT , excl. Shipping Cost
Available Fast shipping
Item BRR-3842557221
Manufacturer no. 3842557221
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842557221
Country of originGermany
Customs tariff number76042100
ConditionNew
Add to Wish List Add to Compare
Article
BRR-3842557221
Frequently Bought Together
Total price

The Bosch Rexroth 30x30 3N strut profile is an anodized aluminum structural member for modular assembly and transfer systems. The 30x30 mm type-3N cross-section provides three open slots (slot 8) on a 30 mm modular grid, enabling tool-free connections with standard Rexroth assembly technology fasteners.

  • 3 open slots (slot 8) allow flexible connections on three sides without additional machining
  • Anodized aluminum construction: corrosion-resistant with a hard-anodized surface for long service life
  • High bending and torsional rigidity: lx 3.1 cm⁴, ly 2.8 cm⁴, Wx 2.3 cm³, Wy 2.1 cm³
  • Delivery unit of 20 pieces at 6070 mm - cost-effective stocking for large-scale projects
  • 30 mm modular dimension: compatible with the full Rexroth assembly technology accessory range

Technical data

PropertyValue
Cross-section30x30 mm
Profile type3N
Open slots3
Profile slot8
Length [L]6070 mm
Modular dimension30 mm
MaterialAluminum, anodized
ColorNatural
Profile surface [A]3.3 cm²
Area moment of inertia X [lx]3.1 cm⁴
Area moment of inertia Y [ly]2.8 cm⁴
Moment of resistance X [Wx]2.3 cm³
Moment of resistance Y [Wy]2.1 cm³
Torsional moment of inertia [It]0.86 cm⁴
Moment of torsion resistance [Wt]0.73 cm³
Mass per piece [m]0.9 kg
Delivery unit20 pieces
Total weight, packaging unit122.7 kg
Condition on deliveryPackaging unit in standard length
Recommended accessoriesCover cap 30x30 black, Cover cap with hole 30x30 black, Cover cap with hole 30x30 signal gray
More Information
Manufacturer Nr. 3842557221
Manufacturer Bosch Rexroth
Country of Manufacture Germany
Weight 122.700000
Lenght 6070 mm
Note Gemäß der aktuellen Preisstruktur werden für Bestellungen von Profilen mit einer Länge von 1500 mm zusätzliche Kosten in Höhe von 80,00 Euro berechnet.
HS-Code 76042100
GPSR manufacturer information Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Article authenticity Original product
Condition of article New
Download
File Icon Bosch Rexroth. Katalog Mechanik-Grundelemente (de) (30.56 MB)
File Icon Bosch Rexroth. TSplus Modular Conveyors for Flexible Manufacturing (en) (12.02 MB)
File Icon Bosch Rexroth. Catalog Basic Mechanic Elements (en) (30.55 MB)
File Icon Bosch Rexroth. Aluminum Structural Framing System (en) (29.62 MB)
File Icon Bosch Rexroth. Transfersystem TS 5 (de) (40.69 MB)
File Icon Bosch Rexroth. Transfer system TS 5 (en) (43.75 MB)
File Icon Bosch Rexroth Éléments mécaniques de base (fr) (36.36 MB)
