Profile Joint 120x120 1/2 for Cable Guide Profiles - Bosch Rexroth 3842558246

BOSCH REXROTH Original product
Net price (excl. VAT)
€79.66
Excl. 19% VAT , excl. Shipping Cost
Available Fast shipping
Item BRR-3842558246
Manufacturer no. 3842558246
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842558246
Country of originGermany
Customs tariff number76169990
ConditionNew
Add to Wish List Add to Compare
Article
BRR-3842558246

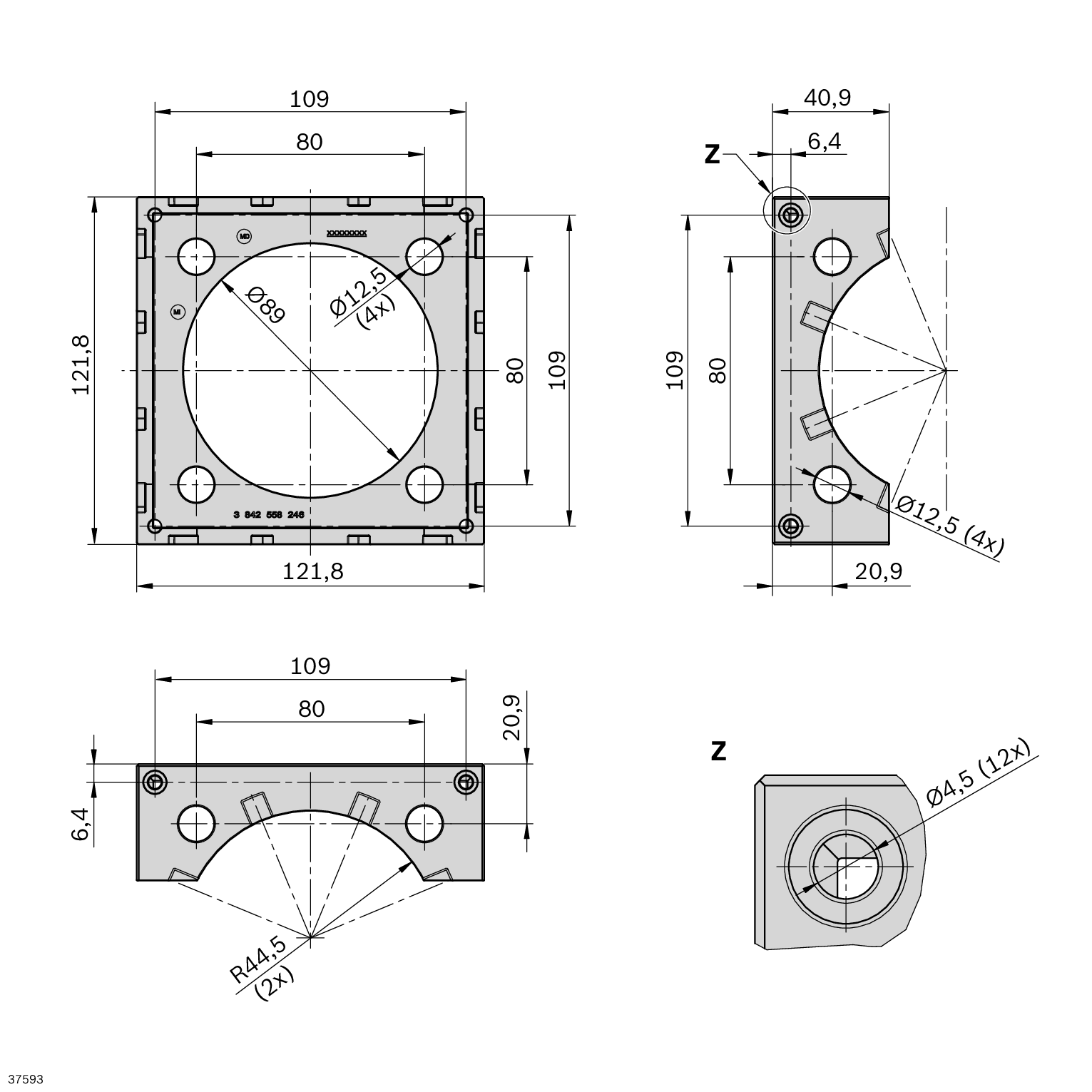

Profile Joint 120x120 1/2 for Cable Guide Profiles - Bosch Rexroth 3842558246
The product may differ from the illustration
Die-cast aluminum profile joint for connecting cable guide profiles or 40x120 / 40x120 5N profiles. Enables protected cable branches with high strength and stability. Secured with a central bolt M12 or S12.
Frequently Bought Together
Total price

The profile joint 120x120 1/2 connects cable guide profiles as well as 40x120 and 40x120 5N profiles, allowing protected cable branches to be integrated cleanly into assembly lines and conveyor systems. The coated diecast aluminum construction combines high mechanical strength with low weight.

  • High load capacity through diecast aluminum design
  • Protected cable routing without exposed conductors
  • Screw connection via central bolt M12x30-T50 (art. 3842530235) or S12x30-T50 (art. 3842530236)
  • Positioning pin (required accessory) simplifies alignment during installation

Technical data

SpecificationValue
TypeProfile joint 120x120 1/2
MaterialDiecast aluminum, coated
ColorSignal gray RAL 7004
Weight0.238 kg
Packaging unit1 piece
Required accessoriesPositioning pin to facilitate assembly; central bolt M12x30-T50 (3842530235) or S12x30-T50 (3842530236)
Recommended accessoriesEdge protector, cover cap, spacer for cover caps, caps
More Information
Manufacturer Nr. 3842558246
Manufacturer Bosch Rexroth
Country of Manufacture Germany
Weight 0.238000
HS-Code 76169990
GPSR manufacturer information Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Article authenticity Original product
Condition of article New
