Frame Profile 22.5x45, Length 6070 mm, Anodized Aluminum, ESD - Bosch Rexroth 3842558303
Datasheet (PDF)

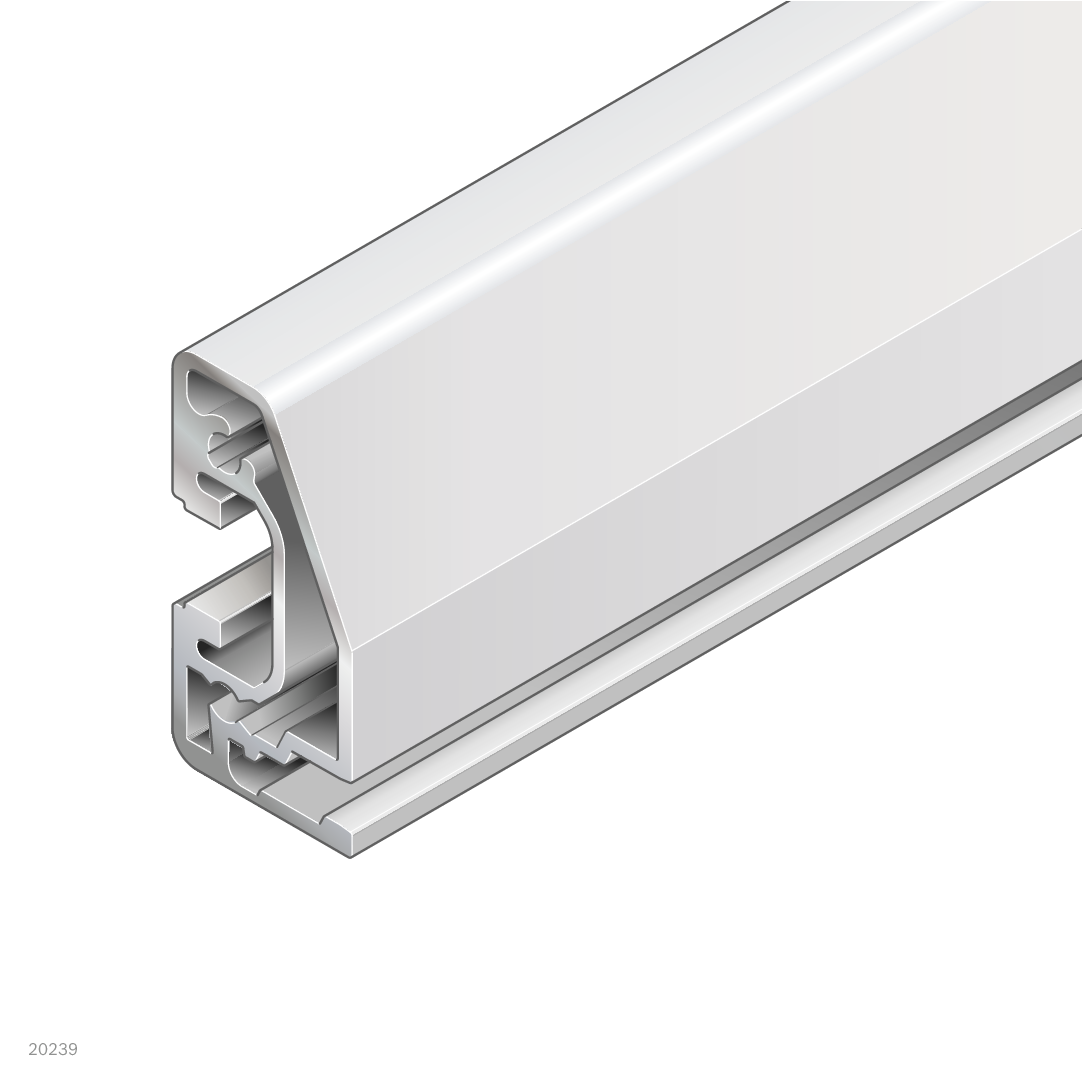

The product may differ from the illustration
Aluminum frame profile with a 22.5x45 mm cross-section and a length of 6070 mm for the Bosch Rexroth assembly technology system. Anodized natural finish, ESD-suitable, with two open slots and profile slot 10 for flexible connections. Recommended accessory: corner piece 22.5x45.

Frame Profile 22.5x45, Length 6070 mm, Anodized Aluminum, ESD - Bosch Rexroth 3842558303

BOSCH REXROTH Original product
Net price (excl. VAT)
€137.01
Excl. 19% VAT , excl. Shipping Cost
Available Fast shipping
Item BRR-3842558303
Manufacturer no. 3842558303
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842558303
Country of originGermany
Customs tariff number76042100
ConditionNew
Add to Wish List Add to Compare
Article
BRR-3842558303

The 22.5x45 frame profile at 6070 mm length is a standard structural member for building workstations, material levels, and manual production systems on the Bosch Rexroth modular grid. Anodized aluminum construction provides corrosion resistance and ESD suitability; two open slots accept standard connectors without additional machining.

  • 22.5x45 mm cross-section, 45 mm modular dimension - fully compatible with the Bosch Rexroth system range
  • Anodized aluminum (natural) - lightweight, corrosion-resistant, and ESD-suitable
  • 2 open slots, profile slot 10 - accessory mounting without drilling or milling
  • Supplied as a single rod in standard length - ready to install, no cutting required
  • Recommended accessory: corner piece 22.5x45 for right-angle frame joints

Technical data

ParameterValue
Cross-section22.5x45 mm
Length [L]6070 mm
Modular dimension45 mm
Profile slot10
Open slots2
Profile typeStandard
MaterialAluminum, anodized
ColorNatural
ESDYes
Profile surface [A]3.4 cm²
Area moment of inertia in x-direction [lx]6.7 cm⁴
Area moment of inertia in y-direction [ly]1.7 cm⁴
Moment of resistance in x-direction [Wx]2.8 cm³
Moment of resistance in y-direction [Wy]1.3 cm³
Mass [m]0.9 kg
Weight5.3 kg
Packaging unit1
Condition on deliverySingle rod in standard length
Recommended accessoryCorner piece 22.5x45
