Material Shelves

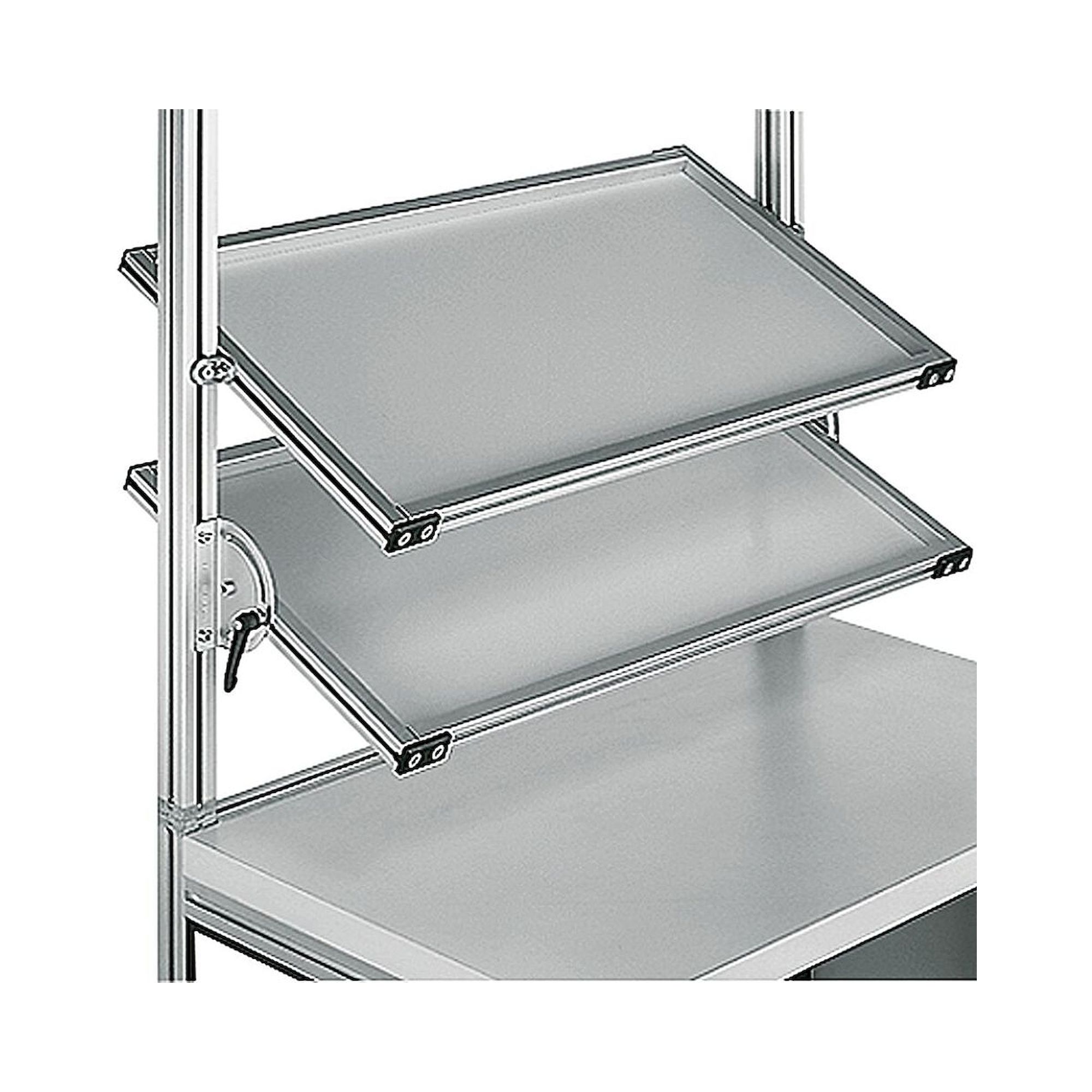

Bosch Rexroth material shelves provide horizontal storage surfaces at manual production workstations. The range covers polypropylene (PP) and sheet steel (SB) versions in two basic formats: 610 x 410 mm and 855 x 410 mm. In addition to the Economic and Basic shelf levels, aluminium versions (3842998155) and label clips in two profile heights (H=22 mm and H=38 mm) are available for material identification and traceability.

16 items
1 manufacturer
Net prices plus VAT

View as Grid view List view

Show

per page

Buying guide

How to choose Material Shelves

What matters when choosing: properties, comparison and typical applications.

Technical features

⚙ Material shelf Economic PP 610x410 - polypropylene, lightweight, corrosion-resistant (3842538456)

⚙ Material shelf Economic SB 610x410 - sheet steel, higher rigidity and load capacity (3842538458)

⚙ Format 855x410 mm - larger shelf for wider workpieces or containers (3842538457)

⬡ Aluminium version - Art. 3842998155, for applications with higher stiffness requirements

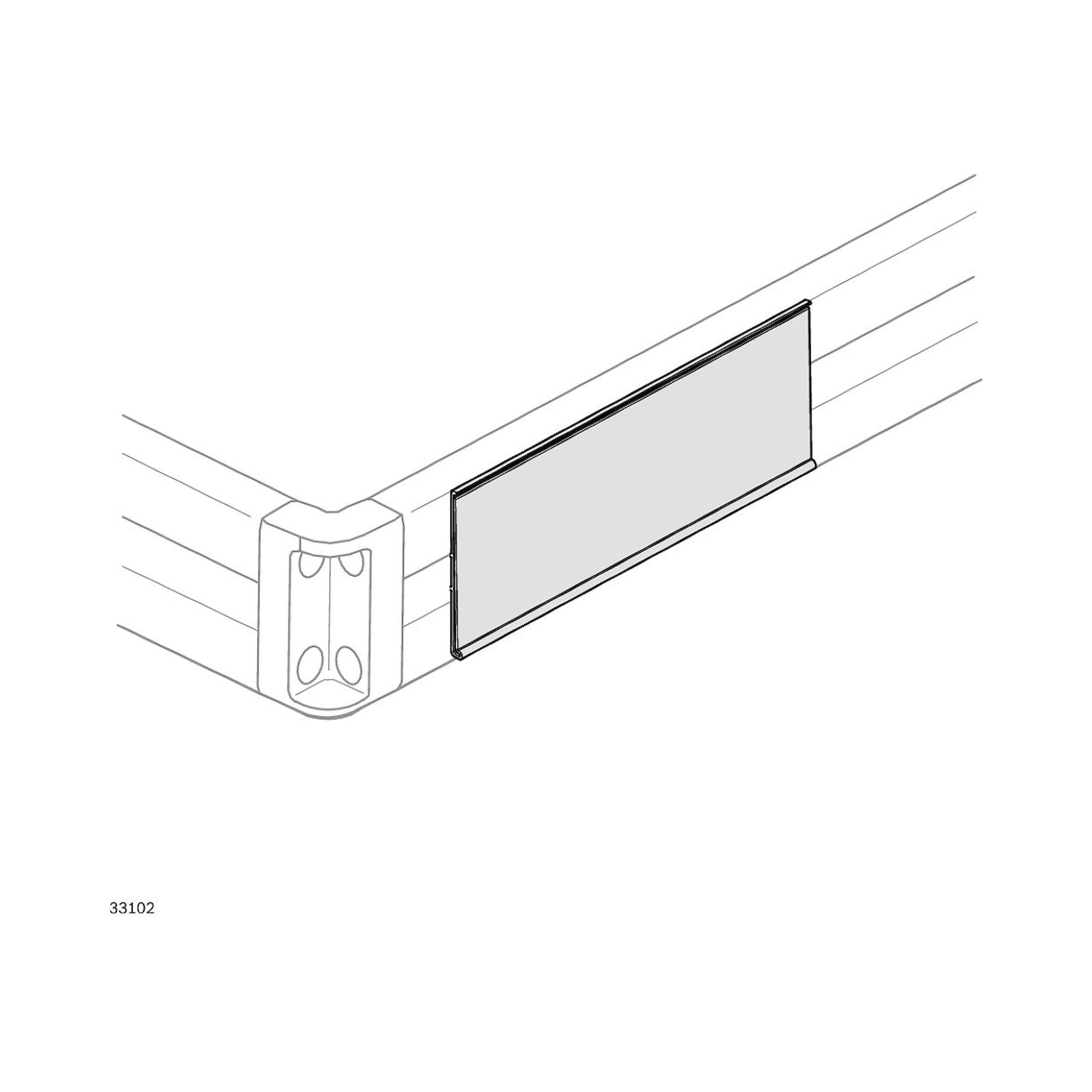

✦ Label clips L=102 and L=2000 - heights 22 mm (8/10 profile) and 38 mm (10 profile), for rack-row labelling

Variants and selection

Type	Dimensions (mm)	Material	Article no.
Economic PP	610 x 410	Polypropylene	3842538456
Economic PP	855 x 410	Polypropylene	3842538457
Economic SB	610 x 410	Sheet steel	3842538458
Basic PP	610 x 410	Polypropylene	3842538460
Basic SB	610 x 410	Sheet steel	3842538461
ALU	-	Aluminium	3842998155

Typical applications

Typical applications: Material staging at manual assembly and inspection workstations, storage of small parts, tools or containers in flow assembly and line production, integration into Bosch Rexroth strut-profile frames, and labelled shelving for KANBAN systems and sequenced material supply.

FAQ

Frequently asked questions about Material Shelves

What are Bosch Rexroth material levels and what industrial applications do they serve?

Bosch Rexroth material levels are modular shelf systems integrated into manual assembly workstations for manufacturing and production environments. These systems provide organised storage surfaces at ergonomic working heights within aluminum profile-based workstation frameworks. Primary applications include automotive assembly lines, electronics manufacturing, pharmaceutical packaging, and general industrial production where components must be systematically arranged for lean manufacturing workflows. The material levels integrate with Bosch Rexroth's broader workstation ecosystem to create efficient pick-and-place operations.

What are the key technical selection criteria for Bosch Rexroth material levels?

Selection criteria for Bosch Rexroth material levels include shelf dimensions ranging from 610x410mm for Basic configurations to 855x410mm for Economic variants, load capacity specifications based on distributed weight requirements, and material composition. Available materials include polypropylene (PP) for chemical resistance, steel-backed (SB) versions for higher load capacity, aluminum (ALU) for lightweight applications, and ESD-dissipative variants for electronics handling. Integration compatibility with 22.5x30mm and 22.5x45mm frame profiles plus 45x45mm aluminum angle profiles determines mounting options within existing workstation structures.

Which international standards apply to Bosch Rexroth material level systems?

Bosch Rexroth material levels comply with EN ISO 14121 for machinery safety risk assessment and DIN EN 1005 for ergonomic workplace design principles. ESD-dissipative variants meet IEC 61340-5-1 standards for electrostatic discharge control with surface resistance values between 10^6 and 10^9 ohms. The aluminum profile framework components conform to DIN EN 755 specifications for extruded aluminum profiles, while load-bearing calculations follow EN 13001 crane and lifting equipment standards. Workstation integration must satisfy ISO 6385 ergonomic design principles for manual handling operations.

What are the main differences between Basic, Economic, PP, SB, ALU, and ESD material level variants?

Basic material levels offer standard 610x410mm dimensions in either polypropylene (PP) or steel-backed (SB) construction for general-purpose applications. Economic variants provide larger 610x410mm and 855x410mm shelf areas with enhanced load distribution for higher-volume component storage. PP variants deliver chemical resistance and lightweight handling, while SB versions incorporate steel backing for increased rigidity and load capacity. ALU material levels provide corrosion resistance and reduced weight for clean room applications, whereas ESD variants feature surface resistivity control between 10^6-10^9 ohms for electronics manufacturing environments.

What installation requirements and system compatibility apply to Bosch Rexroth material levels?

Bosch Rexroth material levels mount directly to aluminum profile frameworks using T-slot connections compatible with 22.5x30mm, 22.5x45mm frame profiles and 45x45mm angle profiles with 6170mm standard lengths. Installation requires profile-specific fasteners and corner brackets for structural integrity, with shelf positioning adjustable in 30mm increments along the profile grooves. The modular system integrates with existing Bosch Rexroth workstation components including height-adjustable legs, monitor arms, and tool holders. Assembly follows standardized connection principles requiring no welding or permanent modification of profile structures.

What safety ratings and environmental specifications apply to Bosch Rexroth material levels?

Bosch Rexroth material levels operate within industrial temperature ranges of -10°C to +60°C with humidity tolerance up to 95% non-condensing according to DIN EN 60068-2 environmental testing standards. Load capacity varies by material composition with distributed loading limits specified per shelf configuration to prevent structural failure. ESD variants maintain surface resistivity between 10^6 and 10^9 ohms per IEC 61340-5-1 requirements for electronics handling safety. The aluminum profile framework provides IP20 protection rating against solid particle ingress while maintaining structural integrity under dynamic loading conditions.

What maintenance schedule and inspection requirements apply to Bosch Rexroth material level systems?

Bosch Rexroth material levels require quarterly visual inspection of T-slot connections, shelf mounting points, and surface integrity according to DIN EN 13306 maintenance terminology standards. ESD variants need monthly surface resistance verification using calibrated resistance meters to ensure values remain within 10^6-10^9 ohm specifications per IEC 61340-5-1 protocols. Profile framework connections should be torque-checked semi-annually to manufacturer specifications, while shelf surfaces require cleaning with appropriate solvents based on material composition. Expected service life exceeds 10 years under normal industrial conditions with proper load distribution and environmental control.
