Profile Joint 120x120 - 3/4 for Cable Guide Profiles, ESD-Conductive - Bosch Rexroth 3842558501
Datasheet (PDF)
The product may differ from the illustration
Die-cast aluminum profile joint for connecting up to three 40x120 or 40x120 5N cable guide profiles at a 3/4 node. Fastened with a central bolt M12 or S12; the fixing screws establish a conductive connection between profiles, making the assembly suitable for ESD-sensitive environments.

Profile Joint 120x120 - 3/4 for Cable Guide Profiles, ESD-Conductive - Bosch Rexroth 3842558501

BOSCH REXROTH Original product
Net price (excl. VAT)
€108.04
Excl. 19% VAT , excl. Shipping Cost
Available Fast shipping
Item BRR-3842558501
Manufacturer no. 3842558501
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842558501
Country of originGermany
Customs tariff number76169990
ConditionNew
Add to Wish List Add to Compare
Article
BRR-3842558501
Frequently Bought Together
Total price

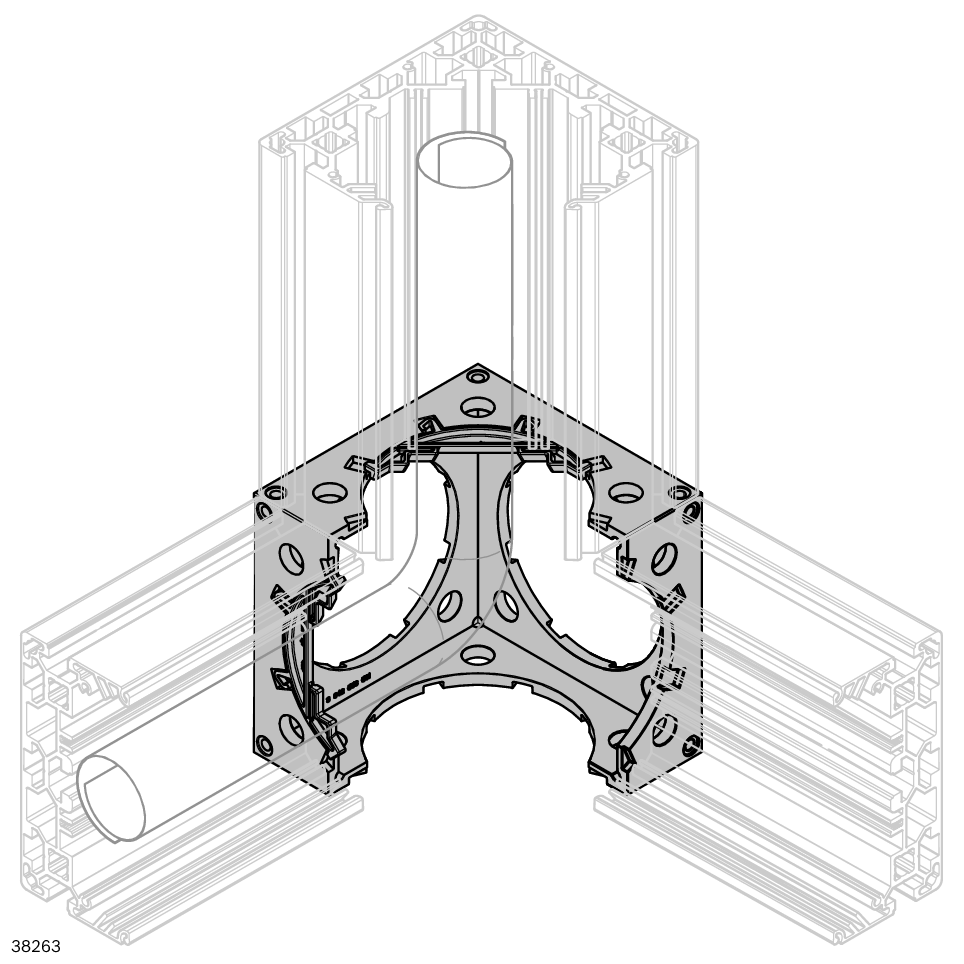

The Profile Joint 120x120-3/4 connects up to three cable guide profiles of type 40x120 or 40x120 5N into a stable, protected cable branch. Fastening is via a central bolt M12x30-T50 (art. 3842530235) or S12x30-T50 (art. 3842530236); the fixing screws establish a conductive connection between the profiles. Note: the surface of the profile joint itself is not ESD-conductive.

  • High strength and stability through die-cast aluminum construction
  • Protected cable branches without exposed edges
  • ESD-conductive connection established via fixing screws
  • Compatible with central bolts M12 and S12

Technical data

PropertyValue
TypeProfile joint 120x120-3/4
MaterialDiecast aluminum, coated
ColorSignal gray RAL 7004
ESDYes (conductive connection via fixing screws; surface not ESD-conductive)
FasteningCentral bolt M12x30-T50 (3842530235) or S12x30-T50 (3842530236)
Packaging unit1 piece
Weight0.376 kg
Required accessoriesPositioning pin to facilitate assembly
Recommended accessoriesEdge protector, cover cap, connection bracket, caps
More Information
Manufacturer Nr. 3842558501
Manufacturer Bosch Rexroth
Country of Manufacture Germany
Weight 0.376000
HS-Code 76169990
GPSR manufacturer information Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Article authenticity Original product
Condition of article New
