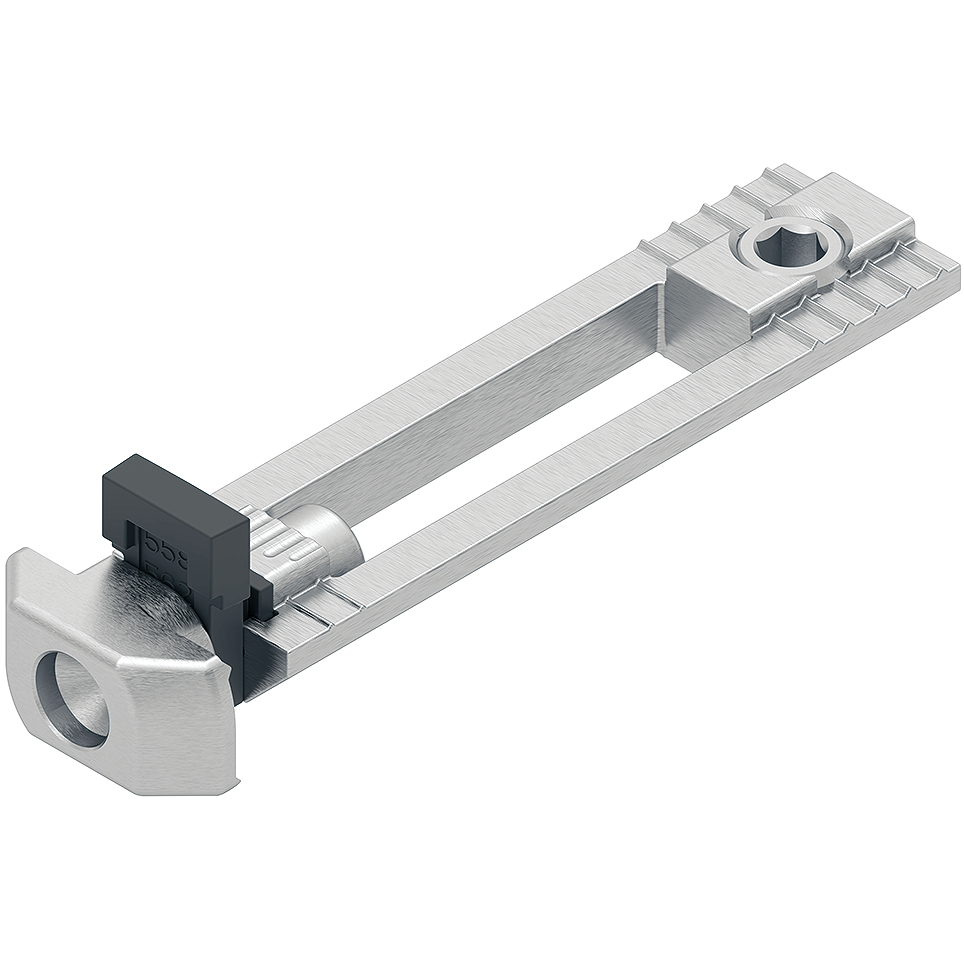

Slot Connector 8/10 for Fast Assembly, Steel Galvanized - Bosch Rexroth 3842558567
Datasheet (PDF)
The product may differ from the illustration
Slot connector for Bosch Rexroth profiles with slot P1/P2 8/10. Slides freely within the slot for flexible positioning and locks in place without any profile machining. Pre-assembled headless setscrew, bending moment 35 Nm, torsional moment 15 Nm.

Slot Connector 8/10 for Fast Assembly, Steel Galvanized - Bosch Rexroth 3842558567

BOSCH REXROTH Original product
Net price (excl. VAT)
€3.71
Excl. 19% VAT , excl. Shipping Cost
Item BRR-3842558567
Manufacturer no. 3842558567
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842558567
Country of originChina
Customs tariff number83024900
ConditionNew
Add to Wish List Add to Compare
Article
BRR-3842558567

The slot connector 3842558567 joins Bosch Rexroth aluminium profiles with slot P1/P2 8/10 without milling or drilling. The connector slides along the slot, is aligned to the required position, and is then secured with the pre-assembled headless setscrew (M4 / M8). The anti-torsion element in PA6 can be removed when a variable orientation in slot 10/10 is needed.

  • No profile finishing required - ready to install as supplied
  • Freely positionable within the slot for fast layout changes
  • Easily accessible screws reduce assembly time on the line
  • ESD-suitable for use in electrostatically protected areas
  • Packaging unit: 10 pieces

Technical data

SpecificationValue
Profile slot P1/P28/10
Tightening torque2.5 Nm (M4) / 10 Nm (M8)
Bending moment35 Nm
Torsional moment15 Nm
Material - connectorSteel, galvanized
Material - anti-torsion elementPA6
ESD-suitableYes
Weight0.034 kg
Packaging unit10 pieces
More Information
Manufacturer Nr.3842558567
ManufacturerBosch Rexroth
Country of ManufactureChina
Weight0.034000
HS-Code83024900
GPSR manufacturer informationBosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Article authenticityOriginal product
Condition of articleNew
