Vertical curve 65+ AL 90° R500 for VarioFlow plus chain conveyor - Bosch Rexroth 3842559126

BOSCH REXROTH Original product
Net price (excl. VAT)
€401.42
Excl. 19% VAT , excl. Shipping Cost
Available Fast shipping
Item BRR-3842559126
Manufacturer no. 3842559126
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842559126
Country of originGermany
Customs tariff number84313900
ConditionNew
Add to Wish List Add to Compare
Article
BRR-3842559126
Vertical curve 65+ AL 90° R500 for VarioFlow plus chain conveyor - Bosch Rexroth 3842559126
The product may differ from the illustration
Vertical aluminium curve, 90° deflection angle, size 65, radius 500 mm for the VarioFlow plus chain conveyor system. The anodized aluminium profile with galvanized steel connectors provides compact vertical redirection. Supplied fully assembled and ready to mount to the AL section profile - slide rail required.
Frequently Bought Together
Total price

The vertical curve 3842559126 redirects conveyor chains in the VarioFlow plus aluminium system through 90° in the vertical plane. At size 65 with an overall dimension A of 636.3 mm, it connects directly to existing AL section profiles. The fully assembled delivery format minimises installation time on the line.

  • Anodized aluminium profile - corrosion-resistant and lightweight, suited to clean and lightly loaded production environments
  • Galvanized steel profile connectors - high mechanical strength at all joint points
  • Diecast aluminium cross connectors - precise geometry at low weight
  • Supplied fully assembled - fastening material for mounting to the AL section profile included

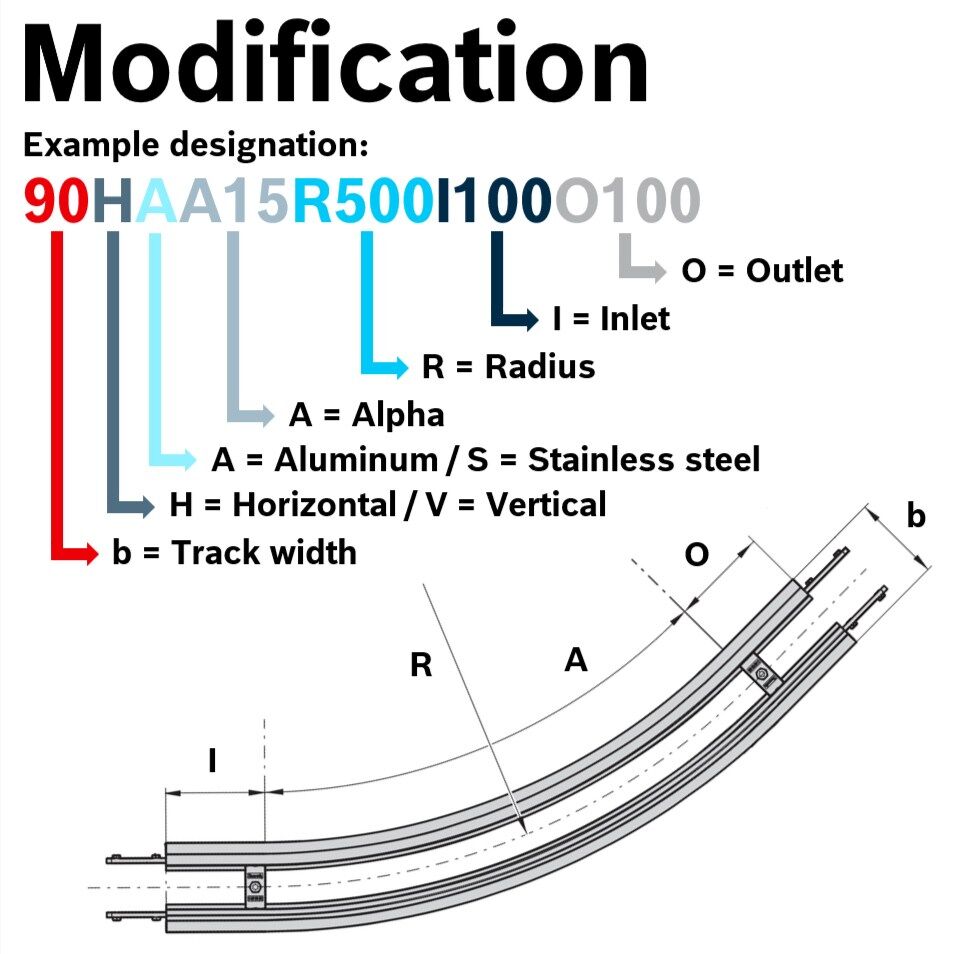

  • Modifications available - additional versions on request (COS@boschrexroth.de)

Technical data

SpecificationValue
SystemVarioFlow plus, aluminium
Deflection angle [α]90°
Size [b]65 mm
Dimension [A]636.3 mm
ProfileAluminium, anodized
Profile connectorSteel, galvanized
Cross connectorDiecast aluminium
Support profile from size 160Non-rusting steel 1.4301
Scope of deliveryIncl. fastening material for mounting to AL section profile
Delivery conditionFully assembled
Required accessoriesSlide rail
Weight2.64 kg
More Information
Manufacturer Nr. 3842559126
Manufacturer Bosch Rexroth
Country of Manufacture Germany
Weight 0.100000
HS-Code 84313900
GPSR manufacturer information Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Article authenticity Original product
Condition of article New
