Workpiece pallet for Bosch Rexroth WT 2/LS flow assembly systems, 320 x 240 mm. Compatible with belt, toothed belt and flat top chain conveying; rated for payloads up to 20 kg. Supplied fully assembled with carrying plates, frame modules, connection elements, positioning bushings and magnetic cover.
Workpiece Pallet WT 2/LS 320x240, ESD-Safe, 20 kg Load Capacity - Bosch Rexroth 3842562353
BOSCH REXROTH
Original product
Net price (excl. VAT)
€1,343.37
Item
BRR-3842562353
Manufacturer no.
3842562353
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842562353
Country of originGermany
Customs tariff number84313900
ConditionNew
Article
BRR-3842562353
Frequently Bought Together
- This Item: €1,343.37

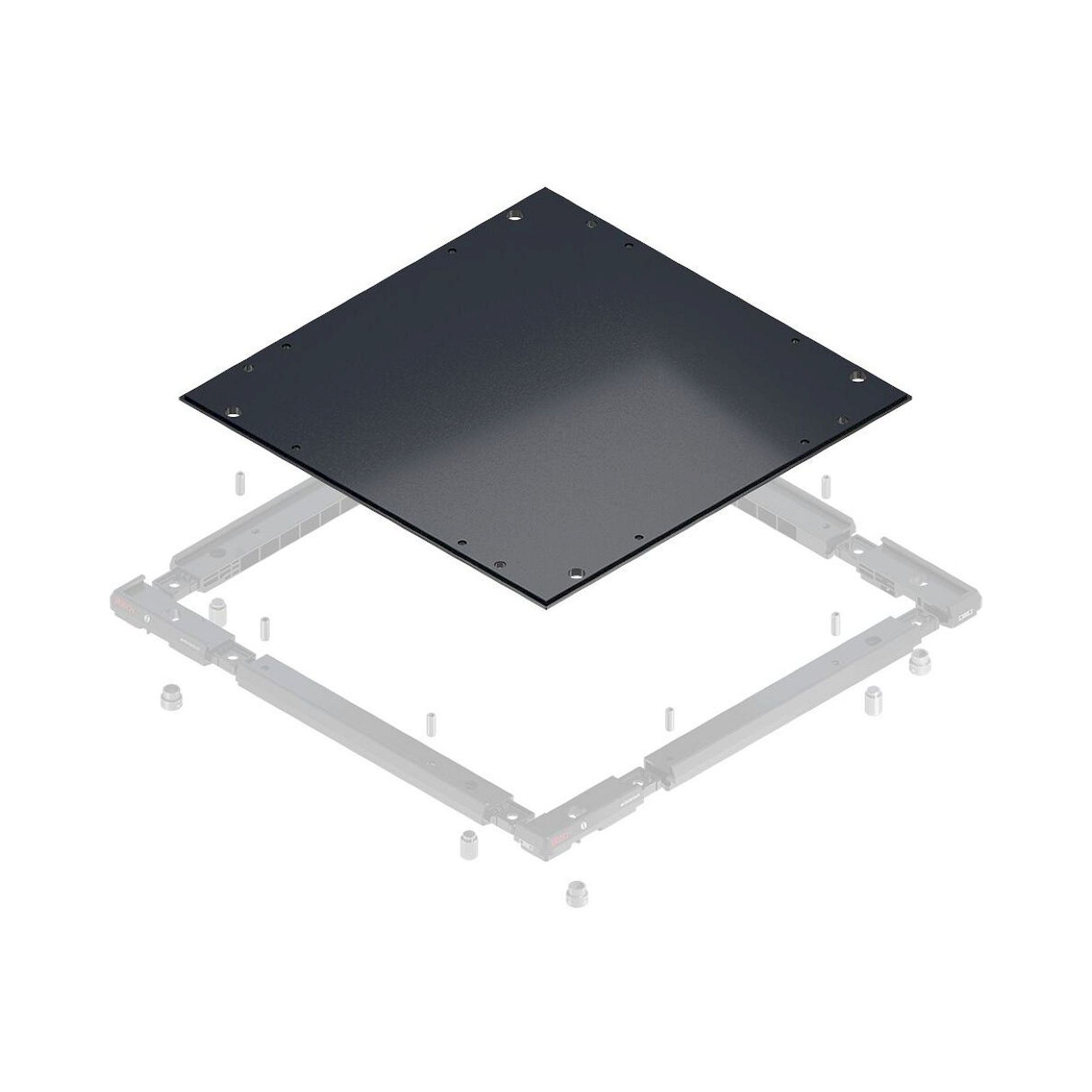

- Carrying plate WT 2/H, aluminum 12.7 mm, 1040 x 1200 - Bosch Rexroth 3842548699 €2,000.91

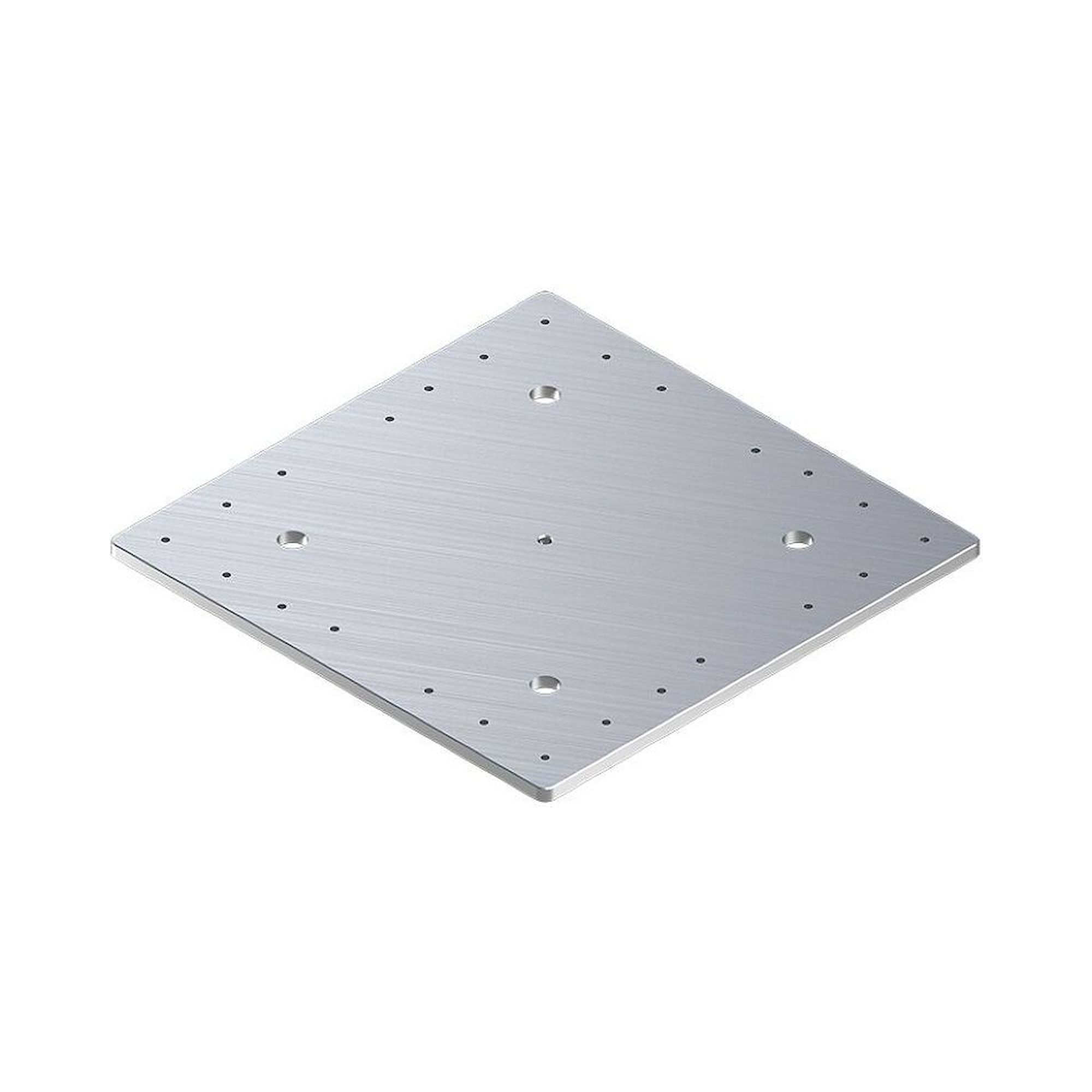

- Carrying Plate WT 2/H, Aluminum 19.05 mm, 800 x 1040 mm - Bosch Rexroth 3842548414 €1,542.62
Total price
The WT 2/LS 320x240 workpiece pallet is designed for integration into Bosch Rexroth flow assembly lines of the WT 2/LS series. With a maximum payload of 20 kg and compatibility with belt, toothed belt and flat top chain drives, it covers a wide range of assembly applications. ESD suitability (EPA-rated) makes it a direct fit for electrostatics-sensitive production environments. Each unit is delivered fully assembled and individually packed with a magnetic cover.
- Payload up to 20 kg - nominal force at room temperature
- Process force Fy up to 500 N; Fz up to 100 N minus current payload
- Single magnetic row for reliable positioning on the conveyor
- Two M5 threaded ports and two kk6 positioning bushings integrated
- EPA-rated for use in electrostatic protected areas
Technical data
| Parameter | Value |
|---|---|
| Workpiece pallet length (lWT) | 240 mm |
| Workpiece pallet width (bWT) | 320 mm |
| Dimension [a] | 1.1 mm |
| Dimension [b] | 168 mm |
| Dimension h | 162 mm |
| Length [l] | 102 mm |
| Workpiece pallet weight (mWT) | 3.44 kg |
| Net weight | 3.33 kg |
| Maximum payload | 20 kg |
| Nominal force F | 28 N |
| Process force Fx | 0 N |
| Process force Fy | 500 N |
| Process force Fz | 100 N max. (minus current payload) |
| Magnetic rows | 1 |
| Threaded ports | 2x M5 |
| Positioning bushings | 2x kk6 |
| Scope of delivery | Carrying plates, frame modules, connection elements, positioning bushings |
| Delivery condition | Assembled, individually packed with magnetic cover |
| ESD / EPA suitable | Yes |
| Manufacturer Nr. | 3842562353 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.100000 |
| HS-Code | 84313900 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
