Bracket 40x80, die-cast aluminum, ESD, slot 10 - Bosch Rexroth 3842529005

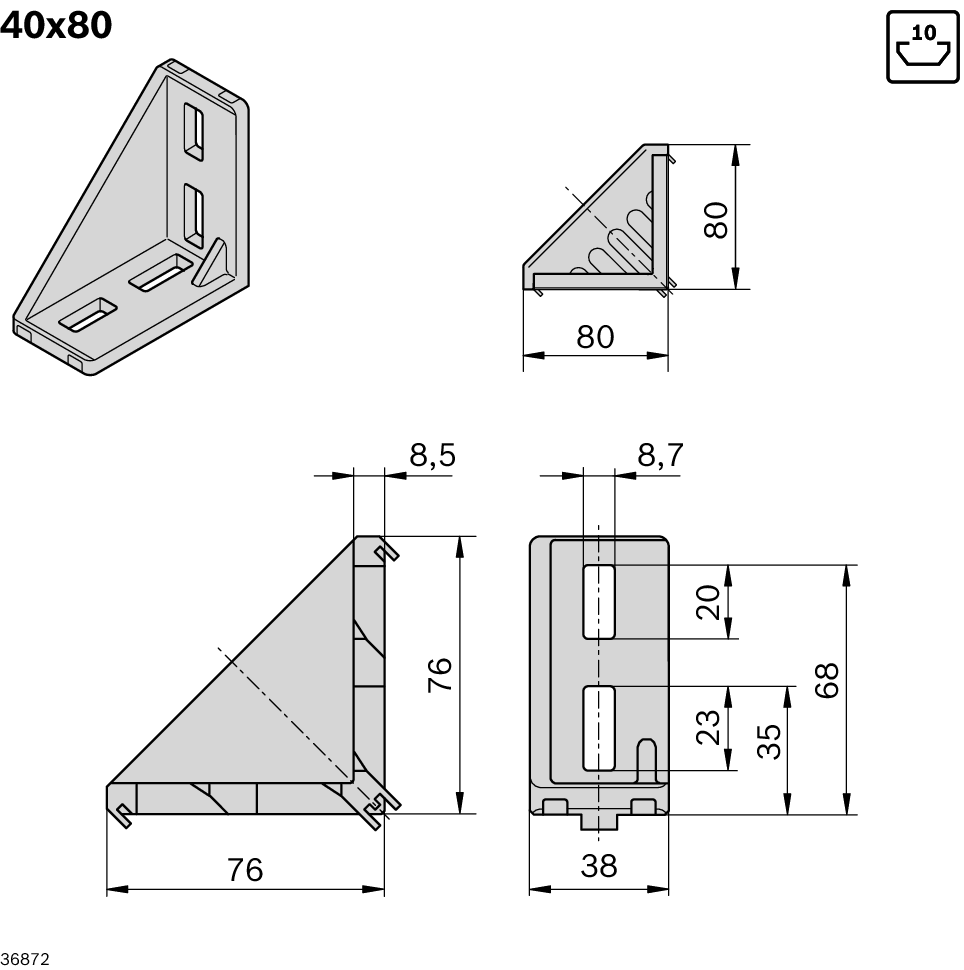

Bracket 40x80, die-cast aluminum, ESD, slot 10 - Bosch Rexroth 3842529005 Dimensional drawing 3842529005

Images are examples, some edited with AI. The technical data are authoritative. AI notice

Bracket 40x80, die-cast aluminum, ESD, slot 10 - Bosch Rexroth 3842529005

Bosch Rexroth ✓ Original product Brand new Made in QU

The 40x80 bracket joins aluminum profiles with slot 10 securely at a right angle. Made of vibratory-ground die-cast aluminum, it is ESD-capable and highly load-bearing. Ideal for building frames, machine bases and fixtures.

Net
€6.54
excl. VAT
Item BRR-3842529005
Manufacturer no. 3842529005
Minimum order quantity: 20 pieces. This item is supplied in multiples of 20.
Save Compare
Question about this item
Datasheet (PDF) 9 documents, all under Downloads
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The 40x80 bracket from Bosch Rexroth joins aluminum profiles with profile slot 10 securely at a right angle. It is designed for building frames, machine bases and fixtures, aimed at design engineers and equipment builders in industrial settings.

  • ESD-capable for applications with electrostatic requirements
  • made of die-cast aluminum, vibratory ground, for high strength
  • high load capacity with bending moment up to 400 Nm
  • matching cover caps available as accessories

Technical data

Profile slot10
Dimensions40x80
ESDyes
MaterialDiecast aluminum, vibratory ground
Bending moment 1180 Nm
Bending moment 2400 Nm
Torsional moment60 Nm
Weight0.115 kg
Packaging unit20
Recommended accessoriesCover cap for bracket 40x80, signal gray (3842548856), black (3842548857)
ManufacturerBosch Rexroth
Manufacturer Nr.3842529005
HS-Code76169910
GPSR manufacturer informationBosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Condition of articleNew
Article authenticityOriginal product
ESD versionESD (antistatic)
