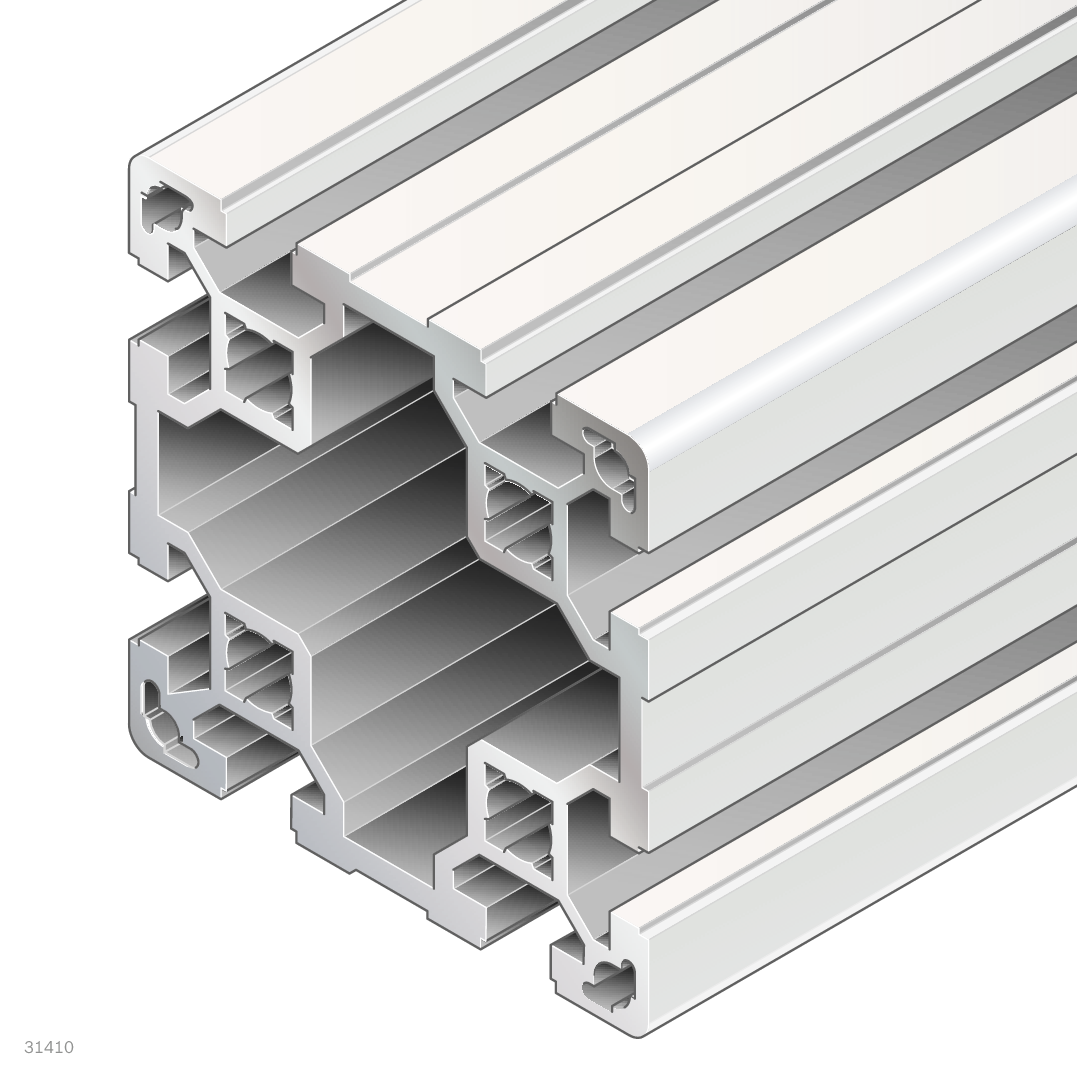

Strut Profile 80x80L, Slot 10, ESD, Anodized Aluminum - Bosch Rexroth 3842529347
Datasheet (PDF)
The product may differ from the illustration
Strut profile 80x80L in anodized aluminum with profile slot 10 and 8 open slots, ESD-capable. A symmetrical cross-section with an 18.2 cm2 profile surface delivers high rigidity for load-bearing frames and structures in machine and plant construction. Supplied as a packaging unit of 6 profiles at 6070 mm each.

Strut Profile 80x80L, Slot 10, ESD, Anodized Aluminum - Bosch Rexroth 3842529347

BOSCH REXROTH Original product
Net price (excl. VAT)
€2,080.98
Excl. 19% VAT , excl. Shipping Cost
Item BRR-3842529347
Manufacturer no. 3842529347
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842529347
Customs tariff number76042100
ConditionNew
Add to Wish List Add to Compare
Article
BRR-3842529347

The Bosch Rexroth 80x80L strut profile is a load-bearing extruded aluminum profile for the modular construction of machine frames, protective enclosures and supporting structures. With profile slot 10, a 40 mm modular dimension and a symmetrical cross-section, it enables stable and precisely aligned connections.

  • Symmetrical cross-section with identical values in the X and Y directions for uniform load capacity
  • 8 open slots on all four sides for flexible attachments and linkages
  • ESD-capable for applications requiring electrostatic dissipation
  • M12 machining in all core bores for face-end connections

Technical data

AttributeValue
Cross-section80x80L
Dimensions80x80 mm
Profile slot10
Modular dimension40 mm
Open slots8
Profile typeStandard
ESDyes
ColorNatural
MaterialAluminum, anodized
Length [L]6070 mm
Delivery unit6 profiles
Condition on deliveryPackaging unit in standard length
Profile surface [A]18.2 cm2
Mass [m]4.9 kg/m
Area moment of inertia Ix132.1 cm4
Area moment of inertia Iy132.1 cm4
Moment of resistance Wx33 cm3
Moment of resistance Wy33 cm3
Torsional moment of inertia It59.8 cm4
Moment of torsion resistance Wt17.2 cm3
Profile machiningM12: in all core bores; D17: in slots A/F, B/E; D17V: in slots C/H, D/G
Recommended accessoriesCover cap 80x80, signal gray; mounting hole plug 80x80, black
Weight (packaging unit)200 kg
More Information
Manufacturer Nr.3842529347
ManufacturerBosch Rexroth
Weight200.000000
Lenght6070 mm
NoteGemäß der aktuellen Preisstruktur werden für Bestellungen von Profilen mit einer Länge von 1500 mm zusätzliche Kosten in Höhe von 80,00 Euro berechnet.
HS-Code76042100
GPSR manufacturer informationBosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Article authenticityOriginal product
Condition of articleNew
Download
File Icon Bosch Rexroth. Systemleuchten LED basic (de) (2.74 MB)
File Icon Bosch Rexroth. Katalog Mechanik-Grundelemente (de) (30.56 MB)
File Icon Bosch Rexroth. TSplus Modular Conveyors for Flexible Manufacturing (en) (12.02 MB)
File Icon Bosch Rexroth. Catalog Basic Mechanic Elements (en) (30.55 MB)
File Icon Bosch Rexroth. Aluminum Structural Framing System (en) (29.62 MB)
File Icon Bosch Rexroth. Transfersystem TS 5 (de) (40.69 MB)
File Icon Bosch Rexroth. Transfer system TS 5 (en) (43.75 MB)
File Icon Bosch Rexroth Éléments mécaniques de base (fr) (36.36 MB)
