Strut profile in anodized aluminum with a 40x40L cross-section, profile type 3N and three open slots in slot size 10. ESD-capable and supplied in the 6070 mm standard length as a packaging unit of 20 pieces for building frames, fixtures and machine bases.

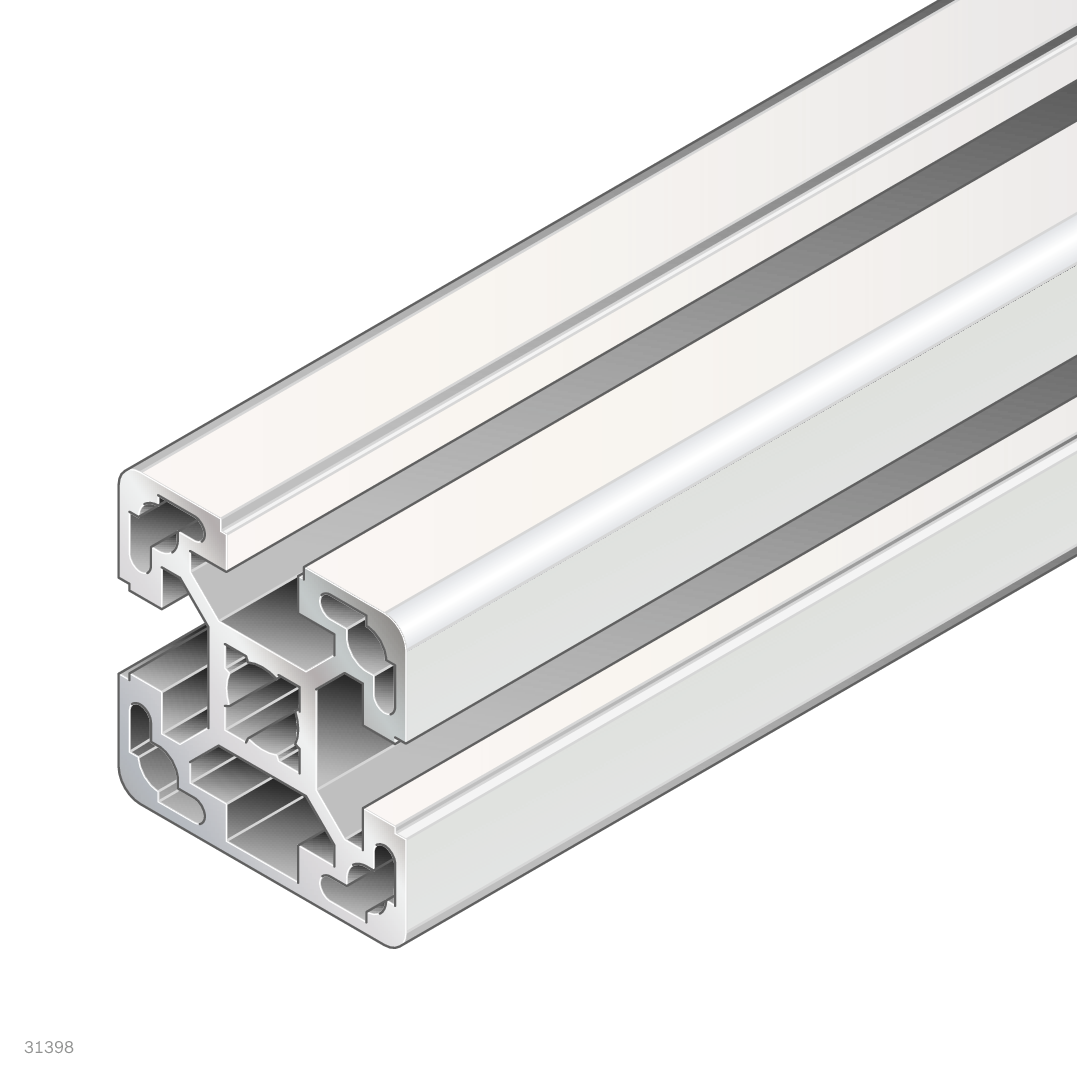

Strut Profile 40x40L 3N, Slot 10, ESD, Anodized - Bosch Rexroth 3842529367
BOSCH REXROTH Original product
Net price (excl. VAT)
€2,388.81
Item BRR-3842529367
Manufacturer no. 3842529367
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842529367
Country of originGermany
Customs tariff number76042100
ConditionNew
Article
BRR-3842529367
Frequently Bought Together
The Bosch Rexroth strut profile 40x40L 3N is an anodized aluminum profile for the modular construction of machine frames, safety enclosures, workstations and fixtures in assembly technology. With its 40 mm modular dimension and slot size 10 it combines freely with the matching connection and mounting accessories.
- 40x40L cross-section with profile type 3N and 3 open slots
- ESD-capable for use in electrostatically protected areas
- High rigidity at low weight thanks to the optimized cross-section
- Supplied as a packaging unit of 20 pieces in the 6070 mm standard length
Technical data
| Cross-section | 40x40L 3N |
|---|---|
| Dimensions | 40x40 |
| Profile type | 3N |
| Modular dimension | 40 mm |
| Profile slot | 10 |
| Open slots | 3 |
| ESD | yes |
| Length [L] | 6070 mm |
| Material | Aluminum, anodized |
| Color | Natural |
| Mass [m] | 1.6 kg/m |
| Profile surface [A] | 5.8 cm² |
| Area moment of inertia X [lx] | 9.7 cm⁴ |
| Area moment of inertia Y [ly] | 9 cm⁴ |
| Moment of resistance X [Wx] | 4.8 cm³ |
| Moment of resistance Y [Wy] | 4.5 cm³ |
| Torsional moment of inertia [It] | 2.6 cm⁴ |
| Moment of torsion resistance [Wt] | 1.7 cm³ |
| Condition on delivery | Packaging unit in standard length |
| Delivery unit | 20 |
| Weight (packaging unit) | 205 kg |
| Manufacturer Nr. | 3842529367 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 205.000000 |
| Lenght | 6070 mm |
| Note | Gemäß der aktuellen Preisstruktur werden für Bestellungen von Profilen mit einer Länge von 1500 mm zusätzliche Kosten in Höhe von 80,00 Euro berechnet. |
| HS-Code | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
