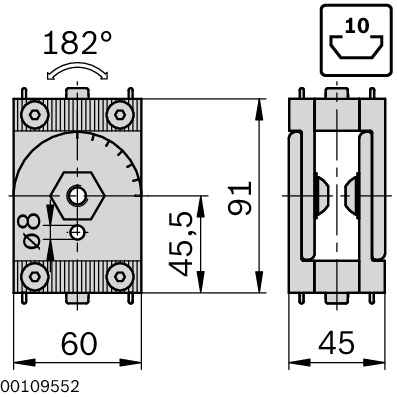

Joint designLINE 60x60, ESD, slot 10, swiveling - Bosch Rexroth 3842539799
Datasheet (PDF)
The product may differ from the illustration
Swiveling designLINE joint made of painted diecast zinc in white aluminum (RAL 9006). ESD-capable, with profile slot 10 and a 182° swivel range. It connects aluminum profiles flexibly on a 60 mm modular grid and carries forces up to 15000 N (F1). Fastening material included.

Joint designLINE 60x60, ESD, slot 10, swiveling - Bosch Rexroth 3842539799

BOSCH REXROTH Original product
Net price (excl. VAT)
€34.78
Excl. 19% VAT , excl. Shipping Cost
Item BRR-3842539799
Manufacturer no. 3842539799
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842539799
Country of originTurkey
Customs tariff number83024900
ConditionNew
Add to Wish List Add to Compare
Article
BRR-3842539799

The 3842539799 designLINE joint from Bosch Rexroth flexibly connects two aluminum profiles and provides a 182° swivel range. It suits ESD-compliant workstations and frames on a 60 mm modular grid.

  • Swiveling joint made of painted diecast zinc
  • ESD-capable, color white aluminum (RAL 9006)
  • High load capacity: F1 up to 15000 N, F2 up to 1000 N
  • Fastening material included

Technical data

Profile slot10
Modular dimension60 mm
Dimensions60x60
Swivel range182°
Force F115000 N
Force F21000 N
ESDyes
designLINEyes
ColorWhite aluminum (RAL 9006)
MaterialDiecast zinc, painted
Fastening material2x cylinder head screw DIN7984-M12x40, 2x washer DIN125-A8.4, 2x cylinder head screw DIN7984-M8x20, 2x T-nut groove 10 M8 (steel, galvanized)
Recommended accessoryClamping lever 3842505144
Packaging unit1
Weight1.1 kg
More Information
Execution ESD (antistatic)
Manufacturer Nr. 3842539799
Manufacturer Bosch Rexroth
Country of Manufacture Turkey
Weight 1.100000
HS-Code 83024900
GPSR manufacturer information Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Article authenticity Original product
Condition of article New
