Modular plate profile with multiple slots for building fixtures and experimental setups of any size. The L/R version has a lateral 8 mm slot that forms the outer closure of a plate assembly. Material anodized aluminum.

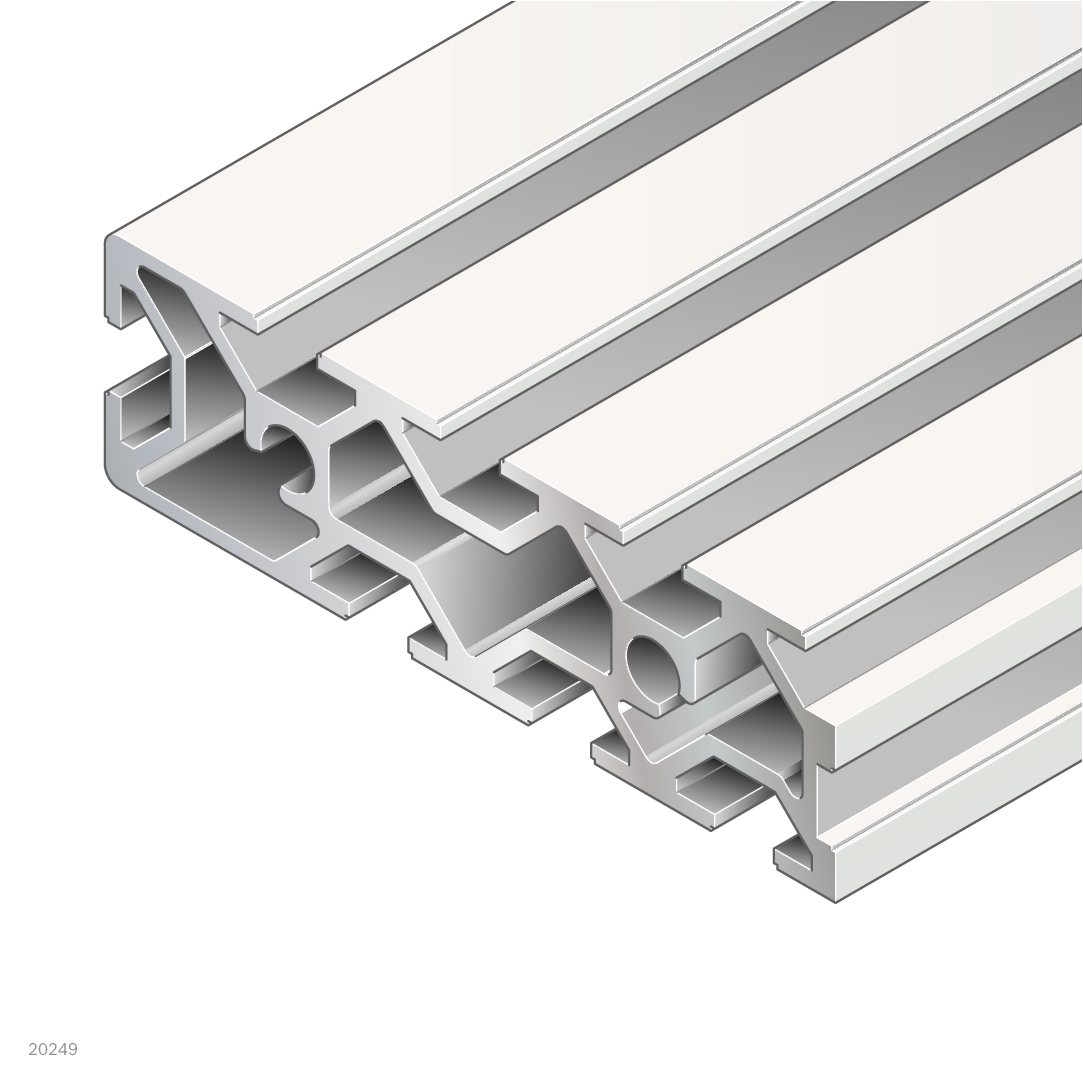

Grooved Plate 30x100 L/R, Anodized Aluminum, Slot 8, L 5600 mm - Bosch Rexroth 3842542696
BOSCH REXROTH Original product
Net price (excl. VAT)
€3,258.07
Item BRR-3842542696
Manufacturer no. 3842542696
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842542696
Customs tariff number76042990
ConditionNew
Article
BRR-3842542696
Frequently Bought Together
- This Item: €3,258.07
- Grooved Plate 30x100 L/R, Length 100-5600 mm, 8 mm Slot - Bosch Rexroth 3842993337 €3.87
- Grooved Plate 30x100 M, 8 mm Slot, L 100-5600 mm, Anodized Aluminium - Bosch Rexroth 3842993336 €3.87
Total price
The Bosch Rexroth grooved plate 30x100 L/R is a modular plate profile with multiple slots for constructing fixtures and experimental setups of any dimension. The L/R version provides a lateral slot 8 as the outer closure of a plate assembly and combines with the 30x100 M variant to build plate fields of any width.
- Modular plate profile with 25 mm modular dimension for free configuration
- Lateral slot 8 as outer stop (L/R edge plate)
- Material anodized aluminum
- Joined with sliding blocks, 3 per meter of profile length recommended
Technical data
| Property | Value |
|---|---|
| Cross-section | 30x100 mm |
| Profile slot | 8 |
| Profile type | Standard |
| Open slots | 7 |
| Modular dimension | 25 mm |
| Material | Aluminum, anodized |
| Length [L] | 5600 mm |
| Mass [m] | 2.6 kg/m |
| Profile surface [A] | 9.7 cm² |
| Area moment of inertia [lx] | 88.8 cm⁴ |
| Moment of resistance [Wx] | 17.8 cm³ |
| Area moment of inertia [ly] | 9.2 cm⁴ |
| Moment of resistance [Wy] | 6 cm³ |
| Delivery unit | 18 pcs |
| Condition on delivery | Packaging unit in standard length |
| Weight (packaging unit) | 280 kg |
| Recommended accessories | Profile 30x30, sliding block |
| Manufacturer Nr. | 3842542696 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Weight | 280.000000 |
| Lenght | 5600 mm |
| Note | Gemäß der aktuellen Preisstruktur werden für Bestellungen von Profilen mit einer Länge von 1500 mm zusätzliche Kosten in Höhe von 80,00 Euro berechnet. |
| HS-Code | 76042990 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
