Adjustable Hinge, Diecast Aluminum, Slot 8/10 - Bosch Rexroth 3842544562
Adjustable Hinge, Diecast Aluminum, Slot 8/10 - Bosch Rexroth 3842544562 Dimensional drawing 3842544562

Images are examples, some edited with AI. The technical data are authoritative. AI notice

Adjustable Hinge, Diecast Aluminum, Slot 8/10 - Bosch Rexroth 3842544562

Bosch Rexroth ✓ Original product Brand new Made in Germany

Adjustable hinge in diecast aluminum for the movable connection of doors and flaps on aluminum profiles with slot 8 and slot 10. It provides a 180° opening angle and withstands forces up to 300 N. Supplied in packs of 2, including fastening material and cover caps.

Net
€17.97
excl. VAT
Item BRR-3842544562
Manufacturer no. 3842544562
Minimum order quantity: 2 pieces. This item is supplied in multiples of 2.
Save Compare
Question about this item
Datasheet (PDF) 8 documents, all under Downloads
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Adjustable hinge in diecast aluminum for the movable connection of doors, flaps and covers on aluminum profiles with slot 8 and slot 10. The adjustability allows precise alignment of the door once mounted.

  • Opening angle up to 180°
  • Load capacity up to 300 N
  • Suitable for profile slot 8 and 10
  • Includes fastening material and 2 cover caps

Technical data

MaterialDiecast aluminum
Profile slot8, 10
Hinge typeadjustable
Force (Fmax)300 N
Opening angle180°
Fastening material2x countersunk screw DIN7991-M8X12, 2x sliding block slot 8 M8, 2x locking screw W158-M8X16, 2x sliding block slot 10 M8
Material informationFastening material: steel, galvanized
Scope of deliveryIncludes fastening material (FS), 2 x cover cap

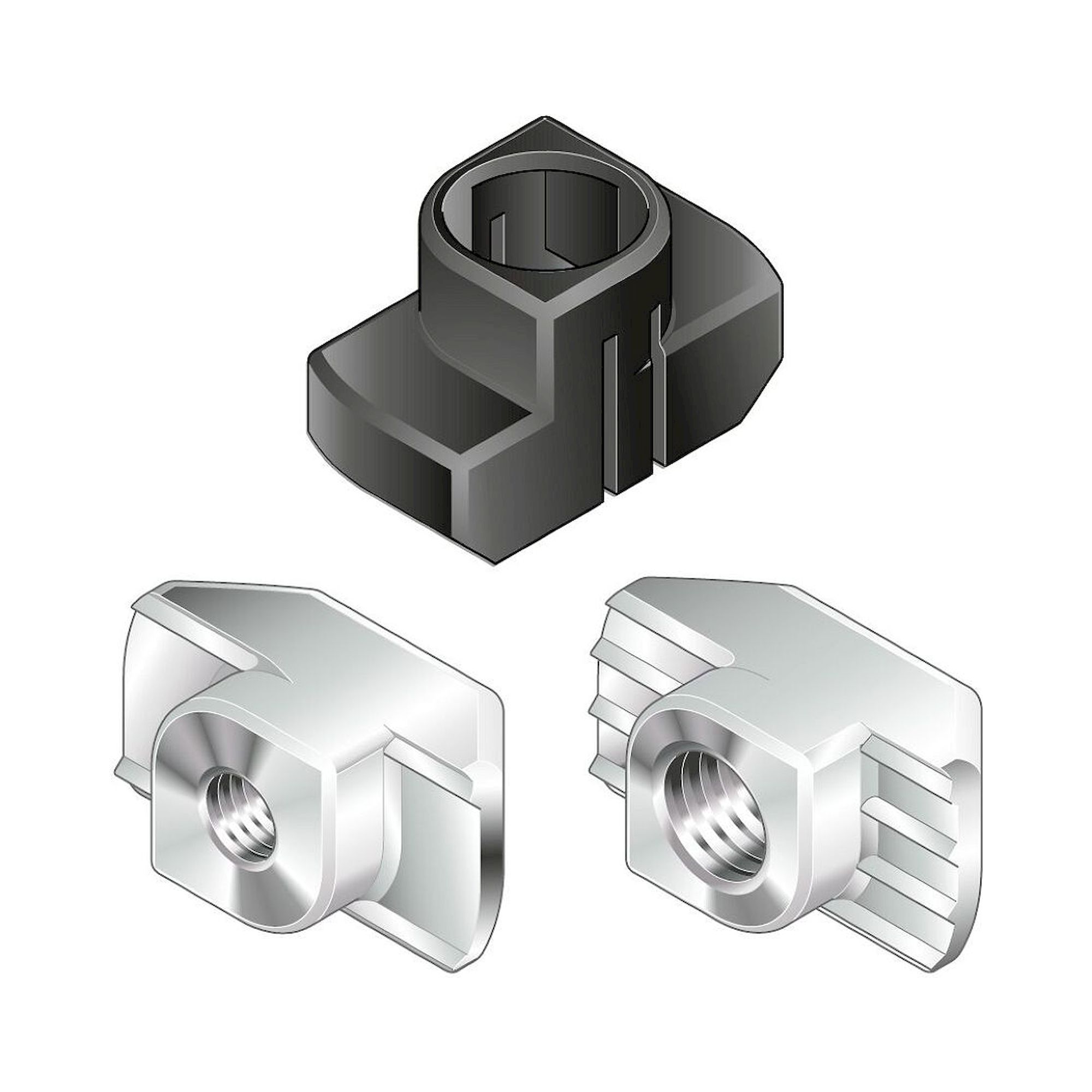

Required accessoriesT-nut slot 10, M8 for fastening a door with 10 mm slot
Packaging unit2
Weight0.273 kg
ManufacturerBosch Rexroth
Manufacturer Nr.3842544562
HS-Code83021000
GPSR manufacturer informationBosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Condition of articleNew
Article authenticityOriginal product
Country of ManufactureGermany
NormDIN 7991
