Doors and fittings
Basic mechanic elements
Bosch Rexroth doors and fittings enable the integration of swing, sliding, and folding doors into aluminium profile structures. The 88-article range includes sliding door profiles in PVC (L=2000 mm, slot 10) and aluminium (40x3000 mm), folding door elements for slot 8/10, guide profiles and insert profiles (each L=3000 mm), sealing profiles in 5 mm and gap versions (each L=10000 mm), and seals 9x13 N6 TPE (L=10 m). Door locks with same-key and differ-key closing, plus a guard-zone lock (36x65x95 mm), control access.

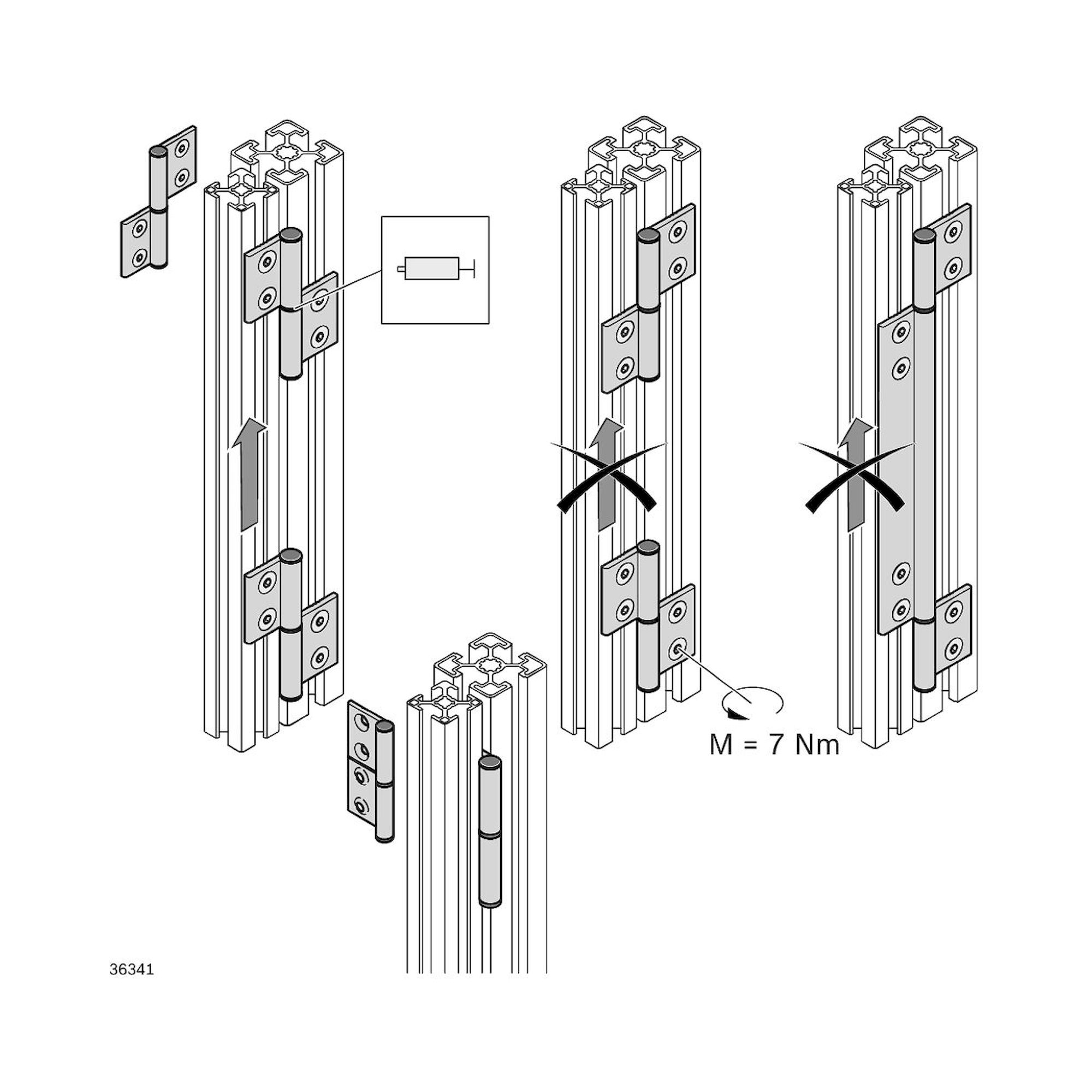

Bow handles in 26x133x50 mm including an ESD-certified version (art. 3842525481), an adapter plate for the guard-zone lock, hinges 20x20, round bars D8 L=2000 mm, and various end caps and retaining brackets (N8/N10 TRANSP) complete the fittings range.
| Component | Version | Typical articles |
|---|---|---|

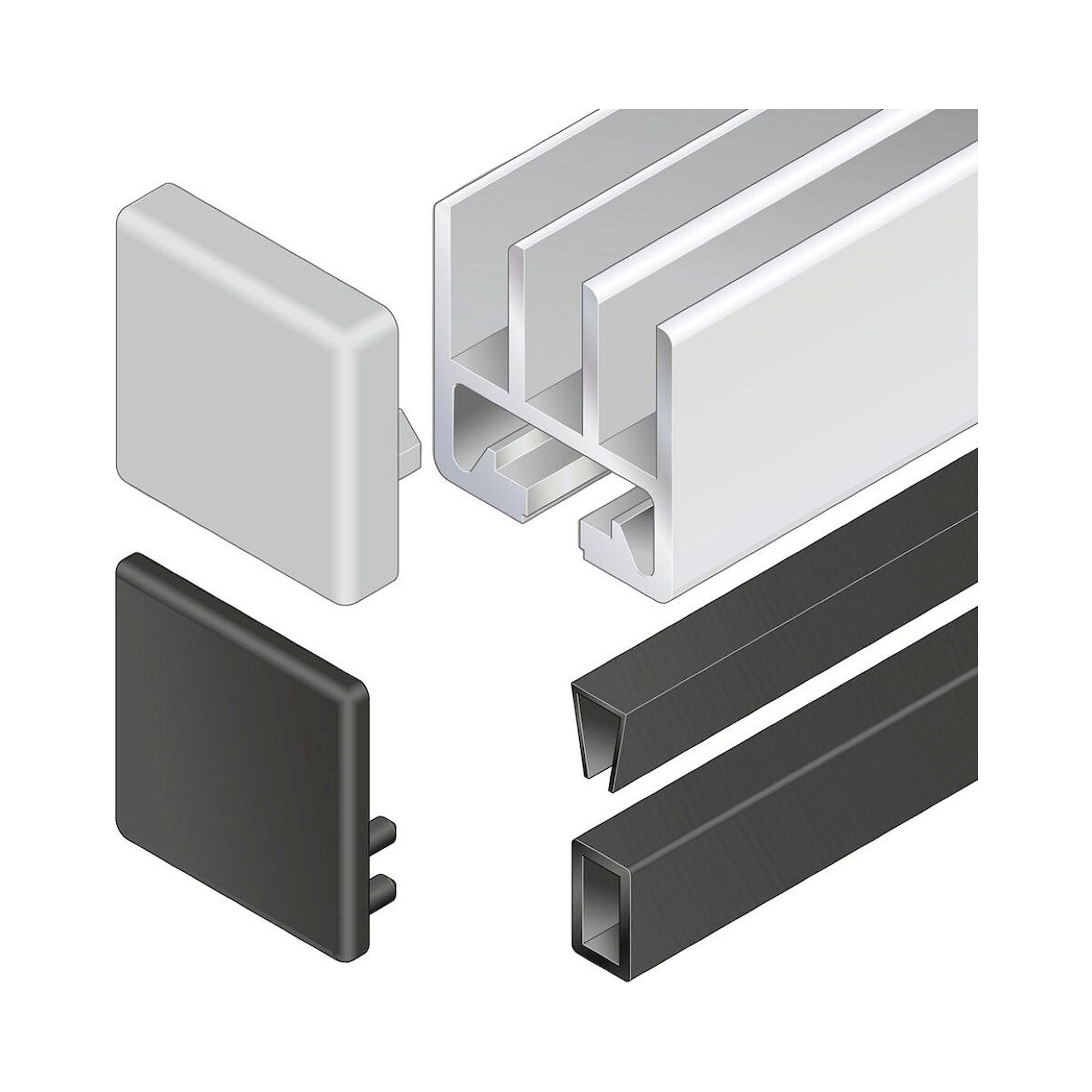

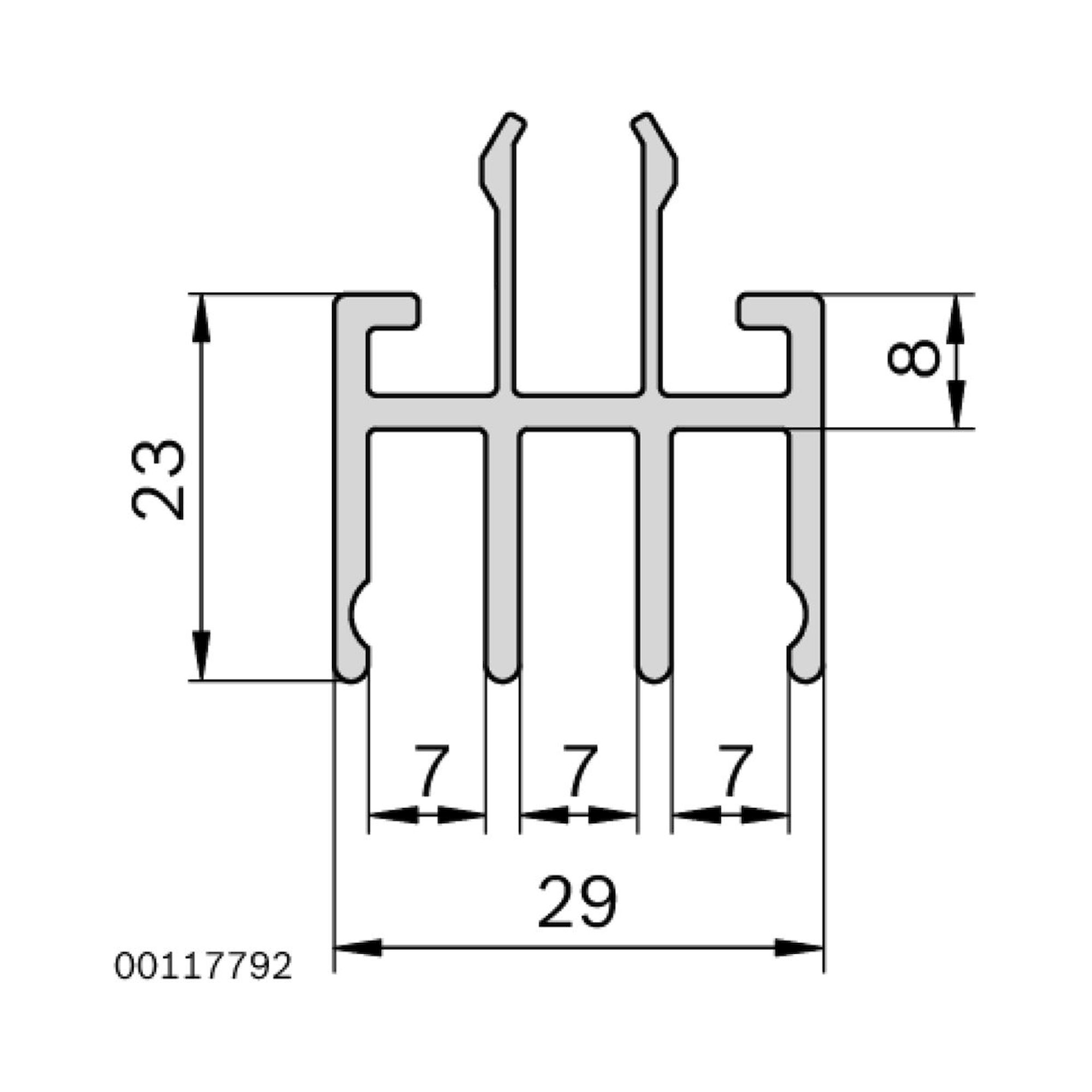

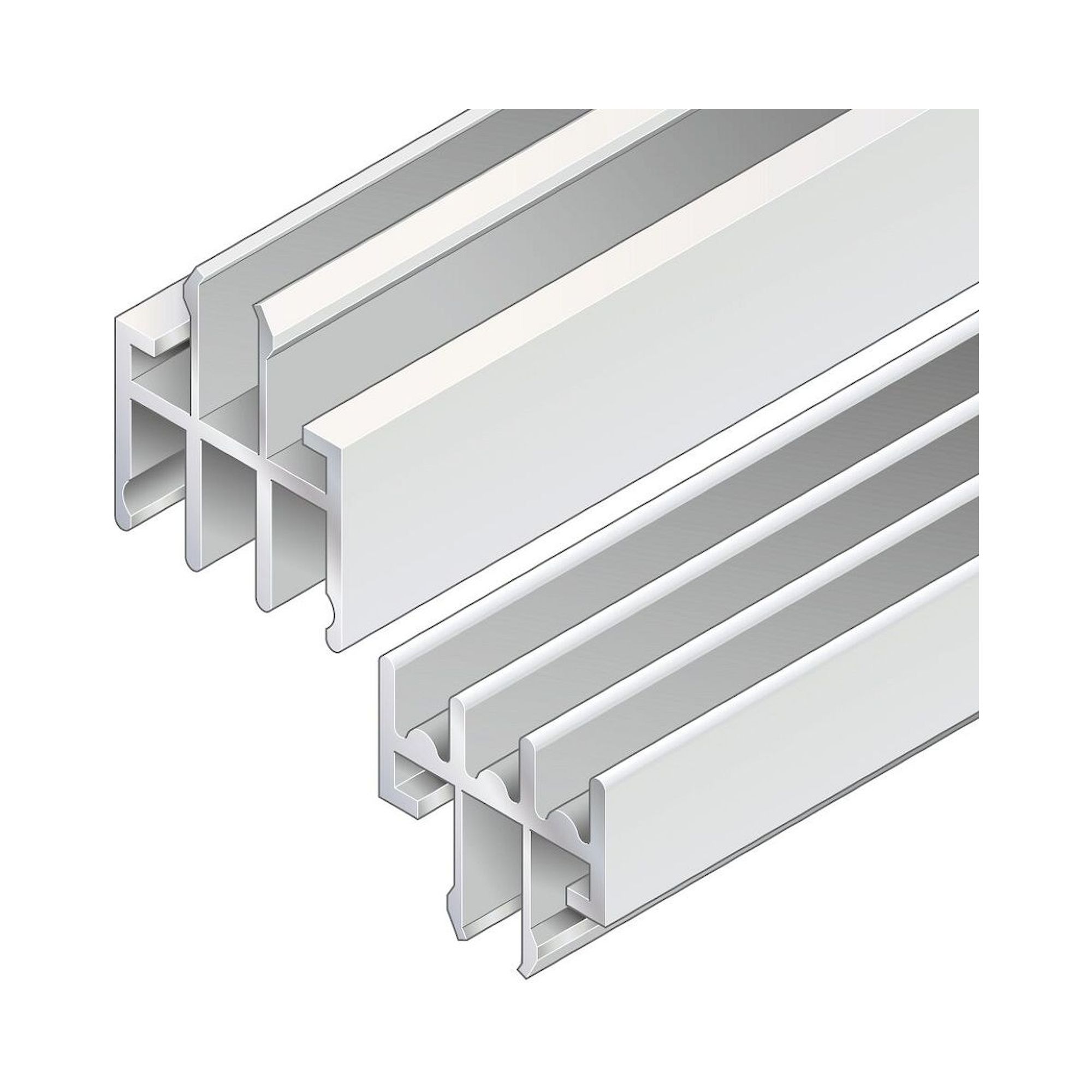

| Sliding door profile | PVC slot 10 (2000 mm) / Al 40 (3000 mm) | 3842555260, 3842536531/32 |
| Guide / insert profile | L=3000 mm | 3842554724, 3842554726 |
| Folding door element | slot 8/10 | 3842516715 |

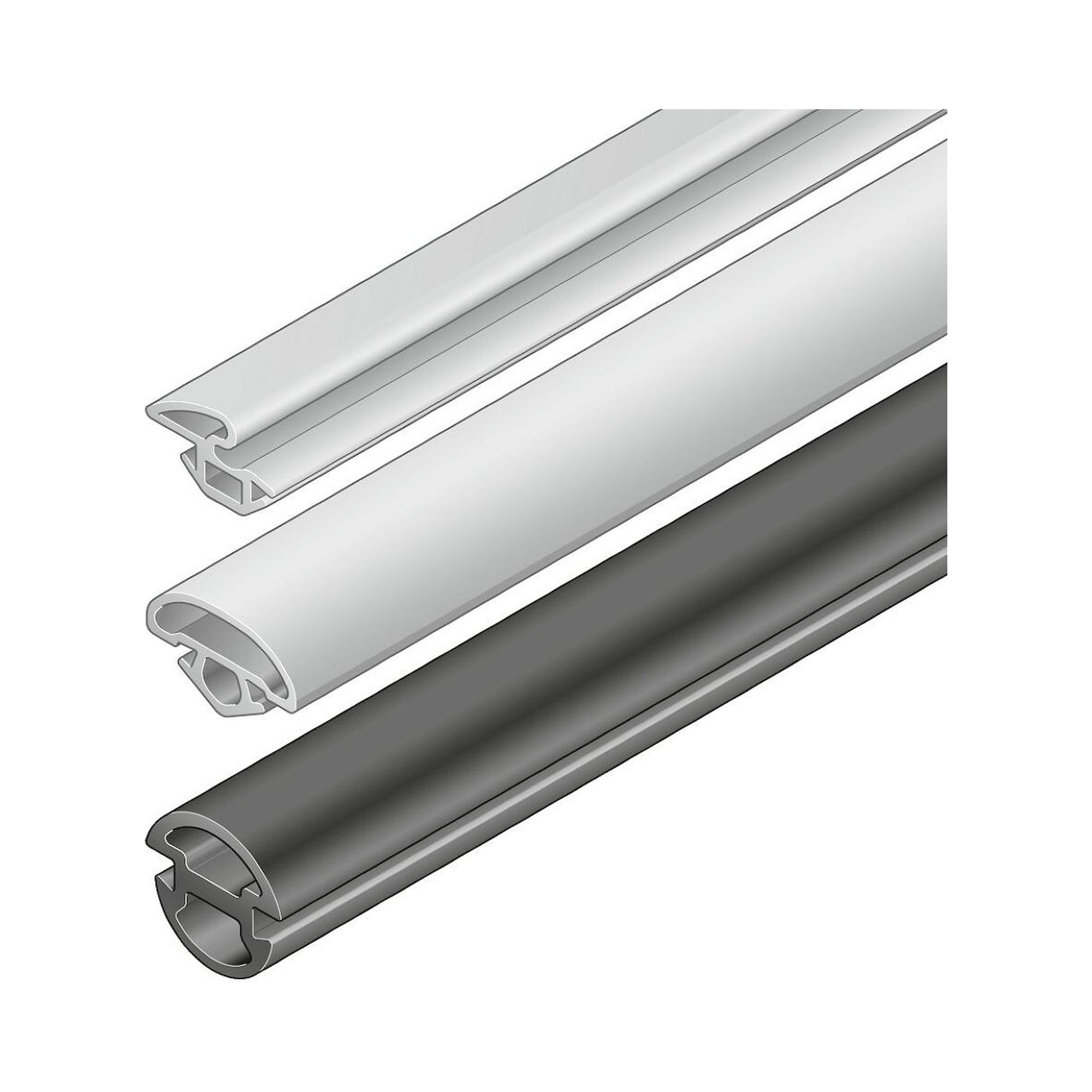

| Sealing profile | 8 5mm / 10 gap 5 (L=10000 mm) | 3842516598, 3842518492 |

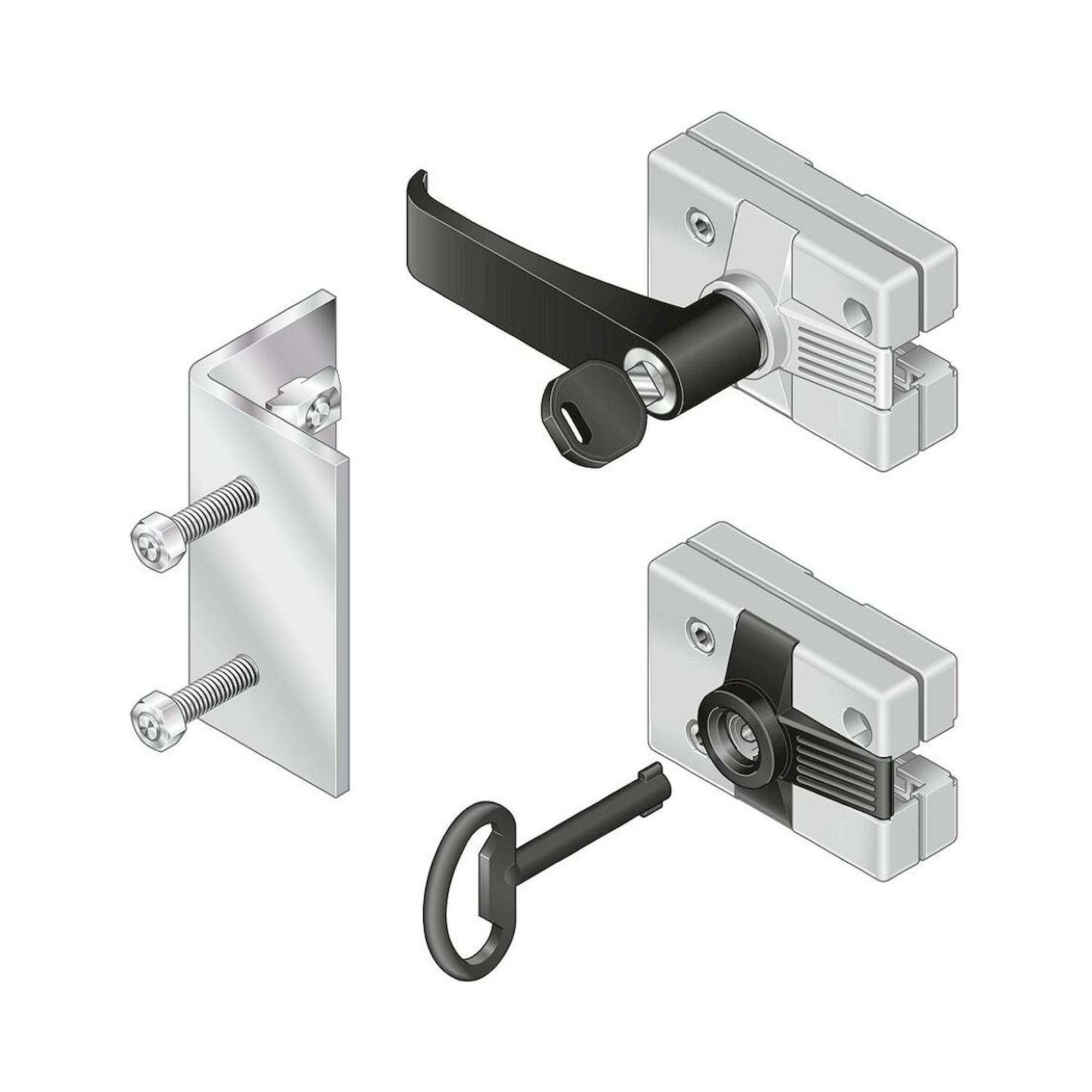

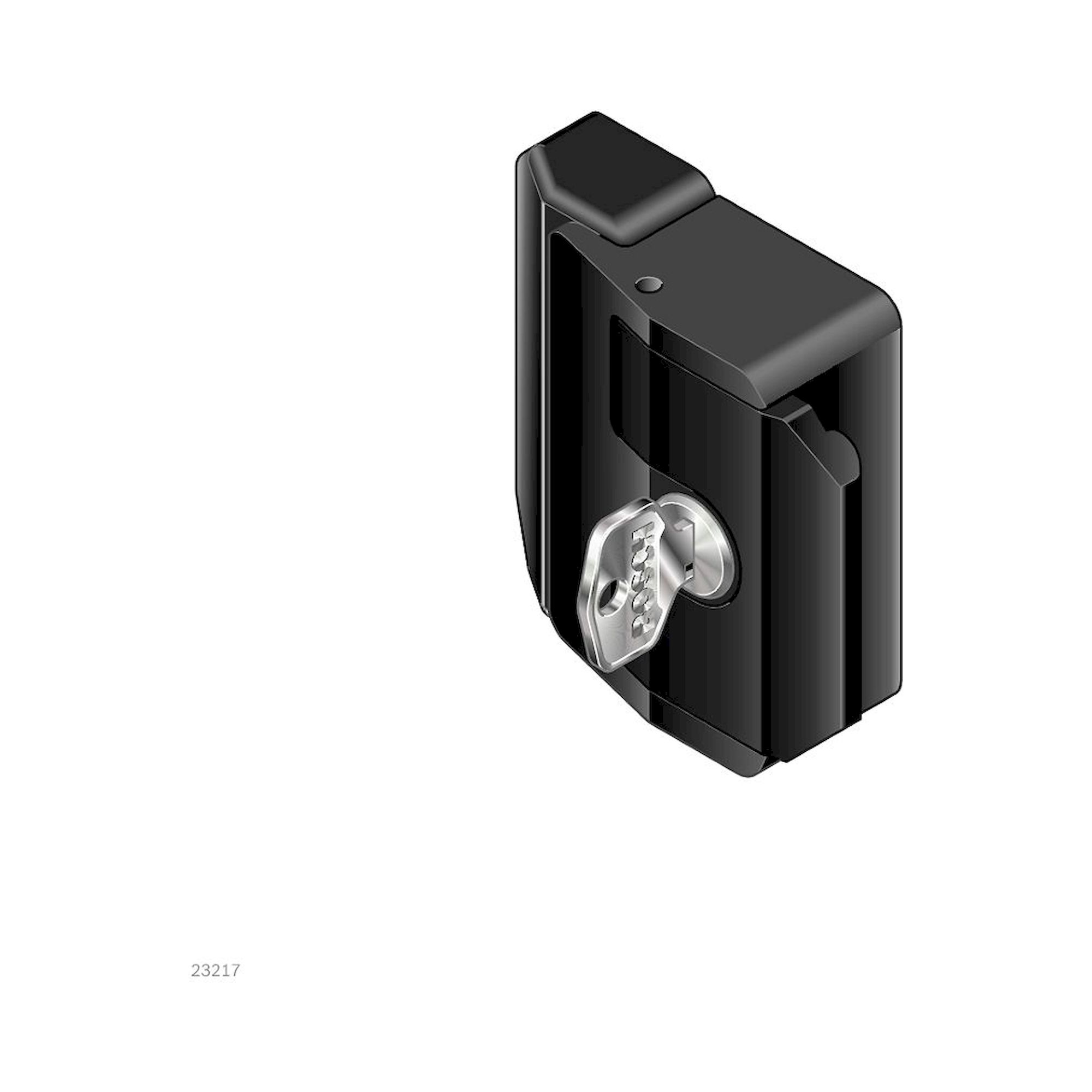

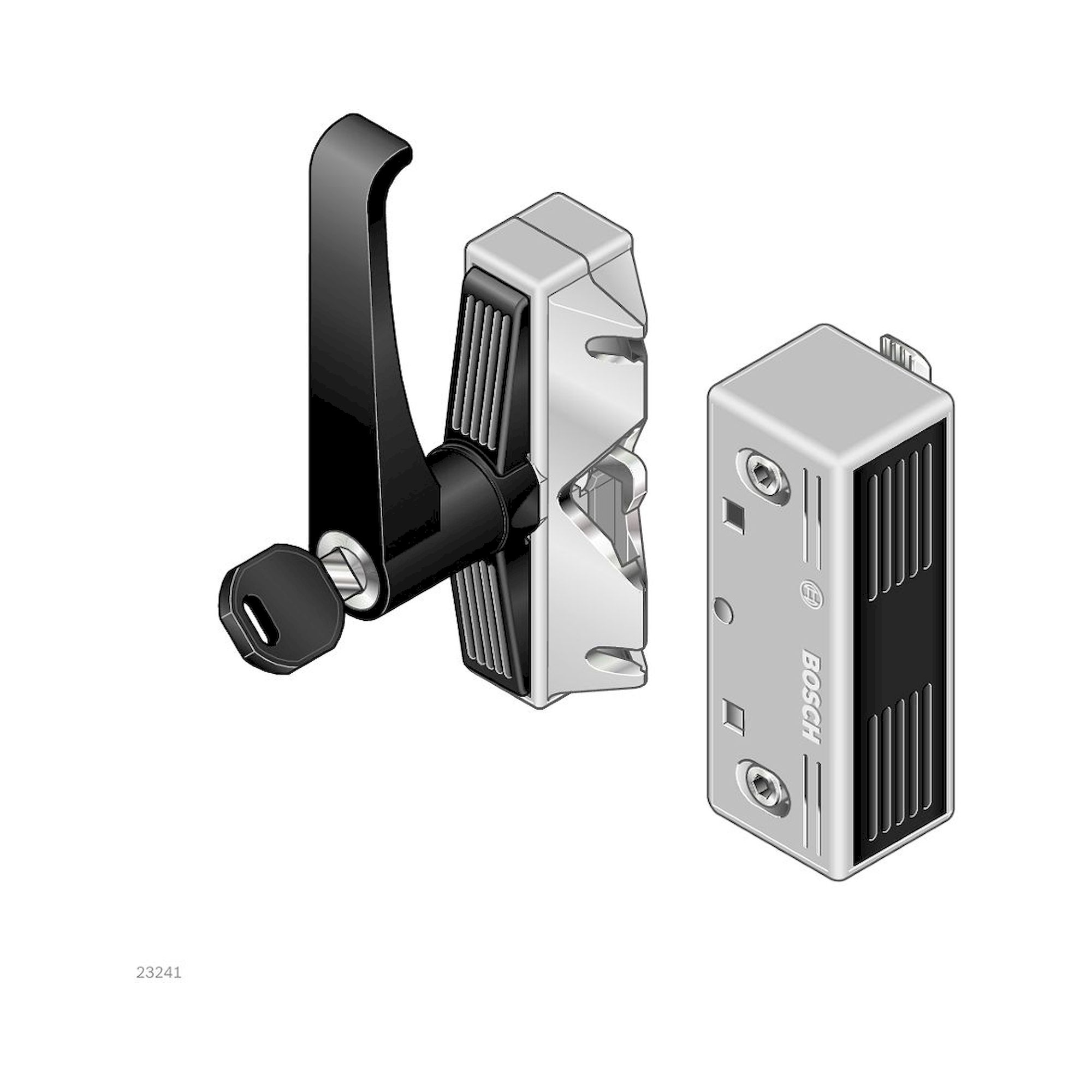

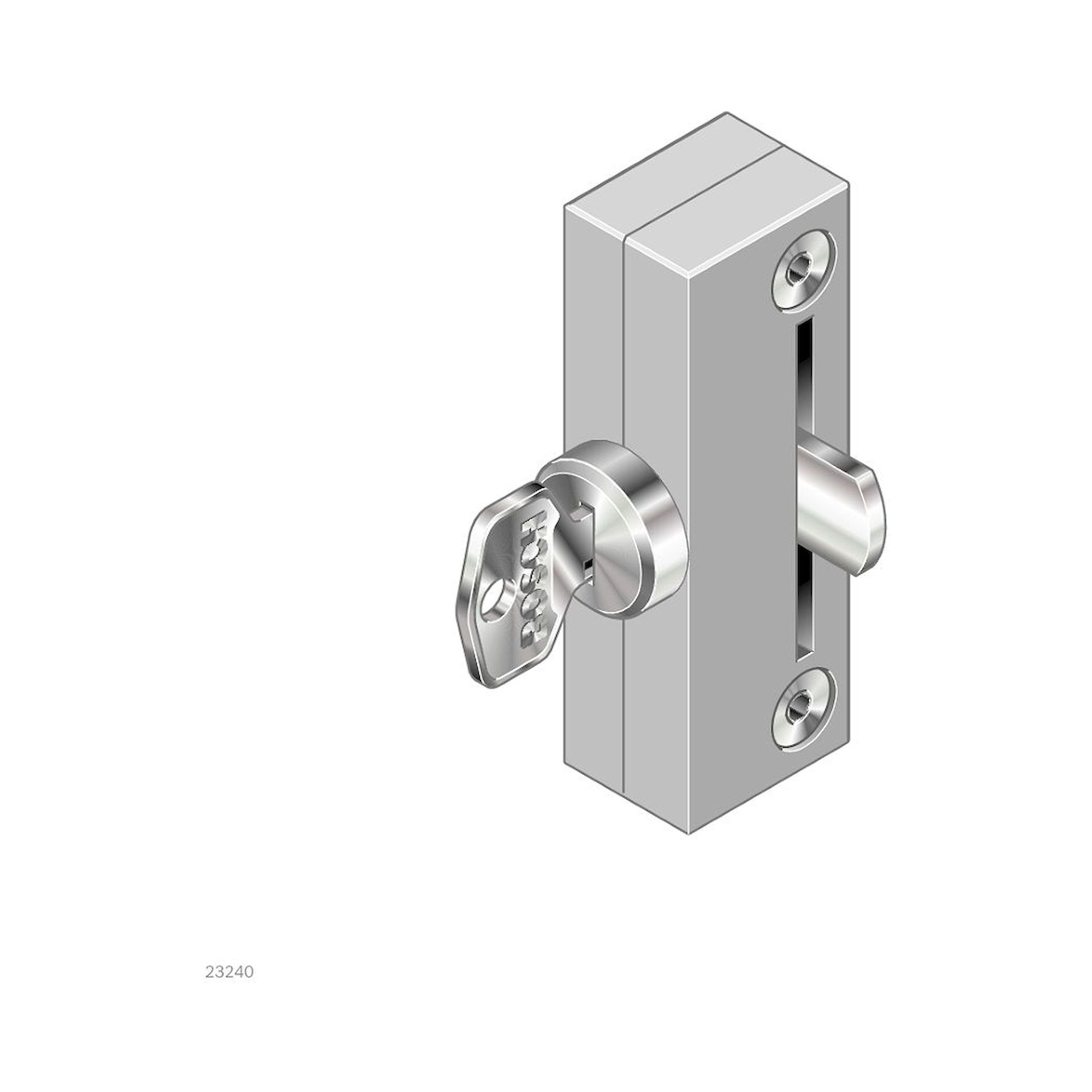

| Door lock | Same-key / differ-key / guard zone | 3842522479, 3842523320, 3842525823 |

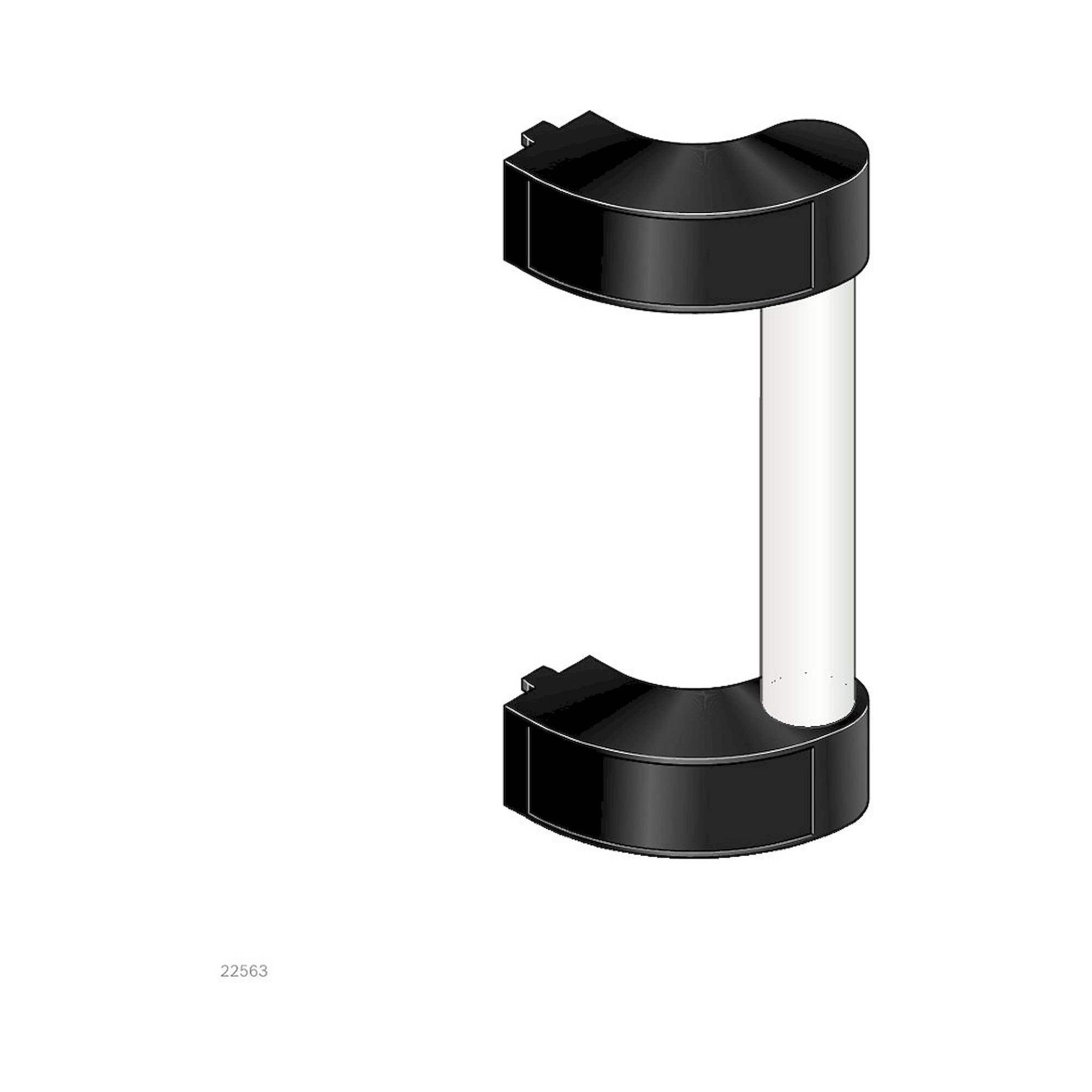

| Bow handle (ESD) | 26x133x50 mm | 3842554718, 3842525481 |
Typical applications: Building machine guards with sliding partitions and lockable access doors, integrating folding doors into warehouse and picking areas, creating antistatic access zones with ESD bow handles and guard-zone locks in EPA environments, and constructing fully sealed room dividers in production areas.
