Cubic Joint 45/3 Set, 3-Outlet, ESD-Compatible, Diecast Aluminum - Bosch Rexroth 3842549872
Datasheet (PDF)
The product may differ from the illustration

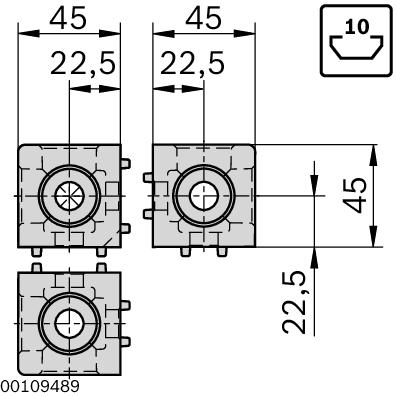

Three-way cubic connector for Bosch Rexroth 45x45 mm aluminum profiles (slot 10), joining three profiles at a single node in a rigid right-angle assembly. The diecast aluminum body creates a conductive connection between profiles, making it suitable for ESD-controlled environments. Set includes the cubic connector, cover cap D24 signal gray (PP), and 3x screw S12x30.

Cubic Joint 45/3 Set, 3-Outlet, ESD-Compatible, Diecast Aluminum - Bosch Rexroth 3842549872

BOSCH REXROTH Original product
Net price (excl. VAT)
€9.53
Excl. 19% VAT , excl. Shipping Cost
Item BRR-3842549872
Manufacturer no. 3842549872
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842549872
Country of originGermany
Customs tariff number83024900
ConditionNew
Add to Wish List Add to Compare
Article
BRR-3842549872
Frequently Bought Together
Total price

The Cubic Joint 45/3 connects three 45x45 mm aluminum profiles (slot 10) at a single corner node, enabling compact three-dimensional frame and structure assemblies within the Bosch Rexroth assembly technology system. The diecast aluminum body creates a conductive, ESD-compatible connection between profiles. Note: the PP cover caps included in the set are not ESD-compatible; for fully ESD-compliant installations, use the Cover Cap D24 black (PP) ordered separately.

  • 3 outlets for three-dimensional corner joints without additional angle brackets
  • Bending moment 1: 170 Nm - rigid enough for load-bearing structures
  • Conductive ESD-compatible connection via diecast aluminum body
  • Fastening material included: 3x screw S12x30 (steel, galvanized)
  • Cover cap D24, signal gray (PP) included in set

Technical data

PropertyValue
Profile dimensions45x45 mm
Profile slot10
Number of outlets3
Bending moment 1170 Nm
Cubic connector materialDiecast aluminum
Fastening materialSteel, galvanized
ColorSignal gray
ESDYes (conductive connection; cover caps not ESD-compatible)
Fastening hardware3x screw S12x30
Scope of deliveryCubic connector, cover cap D24 signal gray (PP), 3x screw S12x30
Recommended accessoryCover cap D24, black (PP)
Weight0.215 kg
More Information
ExecutionESD (antistatic)
Manufacturer Nr.3842549872
ManufacturerBosch Rexroth
Country of ManufactureGermany
Weight0.215000
HS-Code83024900
GPSR manufacturer informationBosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Article authenticityOriginal product
Condition of articleNew
Download
File Icon Bosch Rexroth. Katalog Mechanik-Grundelemente (de) (30.56 MB)
File Icon Bosch Rexroth. TSplus Modular Conveyors for Flexible Manufacturing (en) (12.02 MB)
File Icon Bosch Rexroth. Catalog Basic Mechanic Elements (en) (30.55 MB)
File Icon Bosch Rexroth. Aluminum Structural Framing System (en) (29.62 MB)
File Icon Bosch Rexroth. Transfersystem TS 5 (de) (40.69 MB)
File Icon Bosch Rexroth. Transfer system TS 5 (en) (43.75 MB)
File Icon Bosch Rexroth Éléments mécaniques de base (fr) (36.36 MB)
