The product may differ from the illustration
Right-angle bracket for 30x30 mm slot-8 profiles, made from diecast aluminum, vibratory ground and painted white aluminum (RAL 9006). The designLINE version is ESD-rated and ships as a complete set with all fastening hardware included. Bending moment up to 75 Nm suits structural connections in assembly and automation systems.
Gusset 30x30 designLINE, Slot 8, ESD-rated, White Aluminum - Bosch Rexroth 3842551598
BOSCH REXROTH Original product
Net price (excl. VAT)
€4.49
Excl. 19% VAT , excl. Shipping Cost
Item BRR-3842551598
Manufacturer no. 3842551598
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842551598
Country of originGermany
Customs tariff number83024900
ConditionNew
Article
BRR-3842551598
Frequently Bought Together
- This Item: €4.49Excl. 19% VAT , excl. Shipping Cost
- Bracket 30x60 set ESD, diecast aluminum, slot 8 - Bosch Rexroth 3842523541 €5.45Excl. 19% VAT , excl. Shipping Cost
Total price
The Gusset 30x30 designLINE connects slot-8 profiles at 90° and is rated for use in ESD-sensitive environments. Diecast aluminum construction, vibratory ground and painted in white aluminum (RAL 9006), it delivers a flush, edge-free finish characteristic of the designLINE range. The set includes all fastening hardware, so no additional parts are needed for installation.
- Bending moment 1: 25 Nm - handles light lateral loads
- Bending moment 2: 75 Nm - suitable for structural connections under higher bending stress
- ESD-rated: safe use at electrostatically sensitive workstations
- designLINE finish: flush profile surface, no exposed edges or cavities
- Complete set: fastening hardware included, no additional order required
Technical data
| Attribute | Value |
|---|---|
| Dimensions | 30x30 mm |
| Profile slot | 8 |
| Bending moment 1 | 25 Nm |
| Bending moment 2 | 75 Nm |
| Material | Diecast aluminum, vibratory ground and painted |
| Color | White aluminum (RAL 9006) |
| ESD | yes |
| designLINE | yes |
| Fastening material | 2x cylinder head screw DIN7984-M6X14, 2x T-nut slot 8 M6 |
| Scope of delivery | Bracket designLINE incl. fastening material |
| Recommended accessories | Intermediate element slot 10 mm (3842523537), Cover cap 30x30 signal gray (3842548846), Cover cap 30x30 black (3842548847) |
| Weight | 0.039 kg |
| Execution | ESD (antistatic) |
|---|---|
| Manufacturer Nr. | 3842551598 |
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 0.039320 |
| HS-Code | 83024900 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
Download
Write Your Own Review
Customers Who Bought This Item Also Bought
Bernstein 9-256. Clamping lid SPANNFIX equipment for 9-253
€69.82
Excl. 19% VAT , excl. Shipping Cost
ESD earthing plug with 2x M5 screw terminal, yellow - Safeguard WL24953
€13.90
Excl. 19% VAT , excl. Shipping Cost
ESD earthing plug with 3x 4 mm banana socket, yellow - Safeguard WL42571
€12.37
Excl. 19% VAT , excl. Shipping Cost
ESD earthing module without cable with banana socket, black - Warmbier WL18783
€15.88
Excl. 19% VAT , excl. Shipping Cost
ESD earthing point with 3x 10 mm snap and 3 m earth lead, yellow - Safeguard WL24948
€10.90
Excl. 19% VAT , excl. Shipping Cost
ESD-MultiClean floor cleaner concentrate, 5 l stackable canister - A1-ESD EP1204005
€29.80
Excl. 19% VAT , excl. Shipping Cost
Related Products
Check items to add to the cart or
-
ESD Cover Cap for Bracket 30x30 mm, PP Black - Bosch Rexroth 3842548847€0.91Excl. 19% VAT , excl. Shipping Cost -

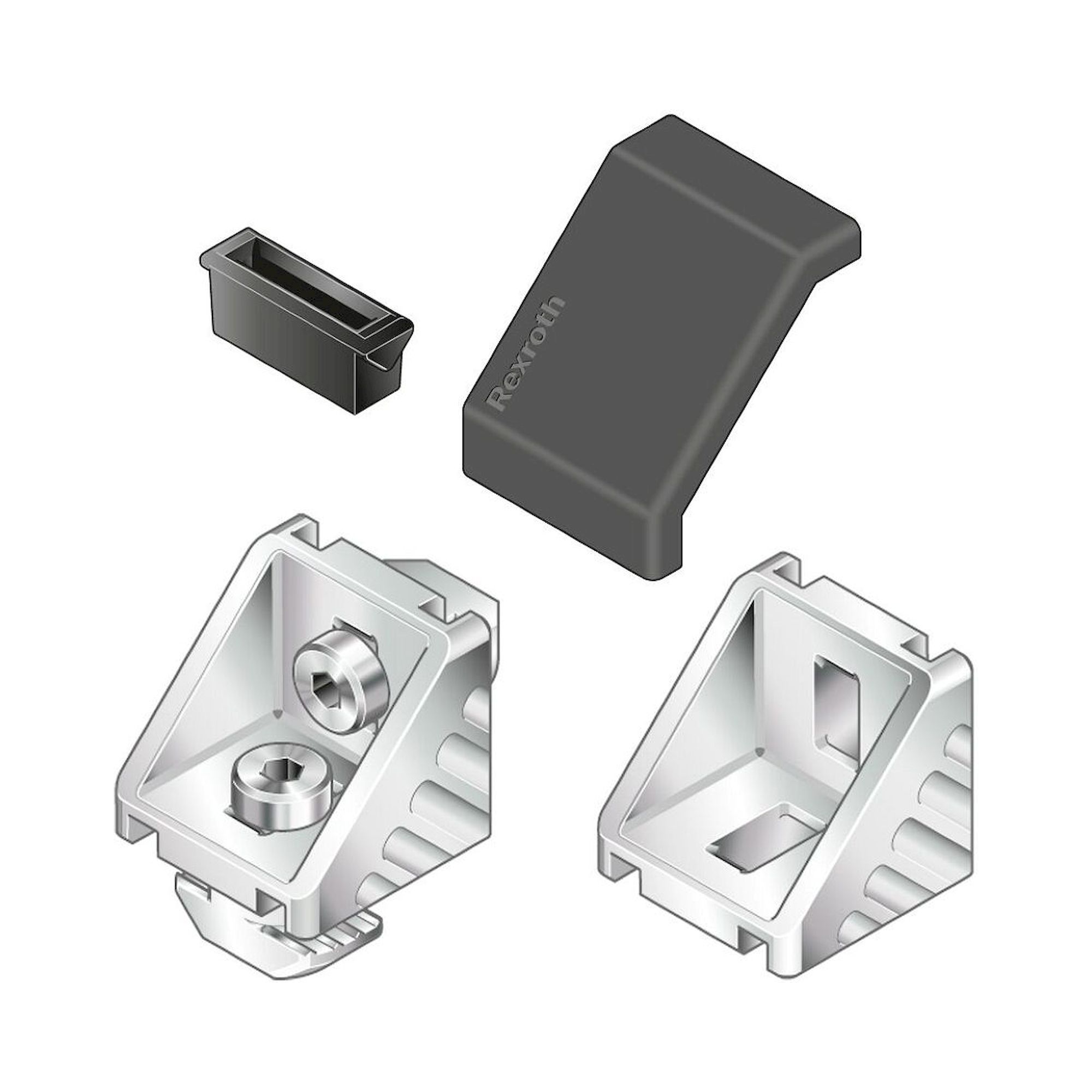

Cover Cap for Gusset Bracket 30x30 Signal Gray PP - Bosch Rexroth 3842548846€0.79Excl. 19% VAT , excl. Shipping Cost
