Gusset 90x90 designLINE, ESD-rated, RAL 9006, incl. T-bolts M8 - Bosch Rexroth 3842551613
Datasheet (PDF)
The product may differ from the illustration
90x90 mm right-angle bracket for Bosch Rexroth slot-10 aluminum profiles, designLINE finish in white aluminum (RAL 9006). Rated to bending moments up to 800 Nm and torsional moment of 200 Nm, ESD-compliant. Complete fastening set (8x T-bolt M8x25, 8x flange nut M8) included.

Gusset 90x90 designLINE, ESD-rated, RAL 9006, incl. T-bolts M8 - Bosch Rexroth 3842551613

BOSCH REXROTH Original product
Net price (excl. VAT)
€14.18
Excl. 19% VAT , excl. Shipping Cost
Item BRR-3842551613
Manufacturer no. 3842551613
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842551613
Country of originGermany
Customs tariff number83024900
ConditionNew
Add to Wish List Add to Compare
Article
BRR-3842551613
Frequently Bought Together
Total price

The Gusset 90x90 Silver Set connects two slot-10 aluminum profiles at a right angle and belongs to the Bosch Rexroth designLINE range: diecast aluminum, vibratory ground and painted in white aluminum (RAL 9006) for a high-quality appearance in visible machine areas. ESD suitability and the included fastening hardware mean the bracket is ready to install straight from the box.

  • High load capacity: bending moment 1 370 Nm, bending moment 2 800 Nm, torsional moment 200 Nm
  • ESD-rated for use in electrostatic-sensitive production and test environments
  • designLINE surface: vibratory ground and painted, suitable for presentation areas
  • Complete set: 8x T-bolt M8x25 and 8x flange nut M8 (steel, galvanized) included

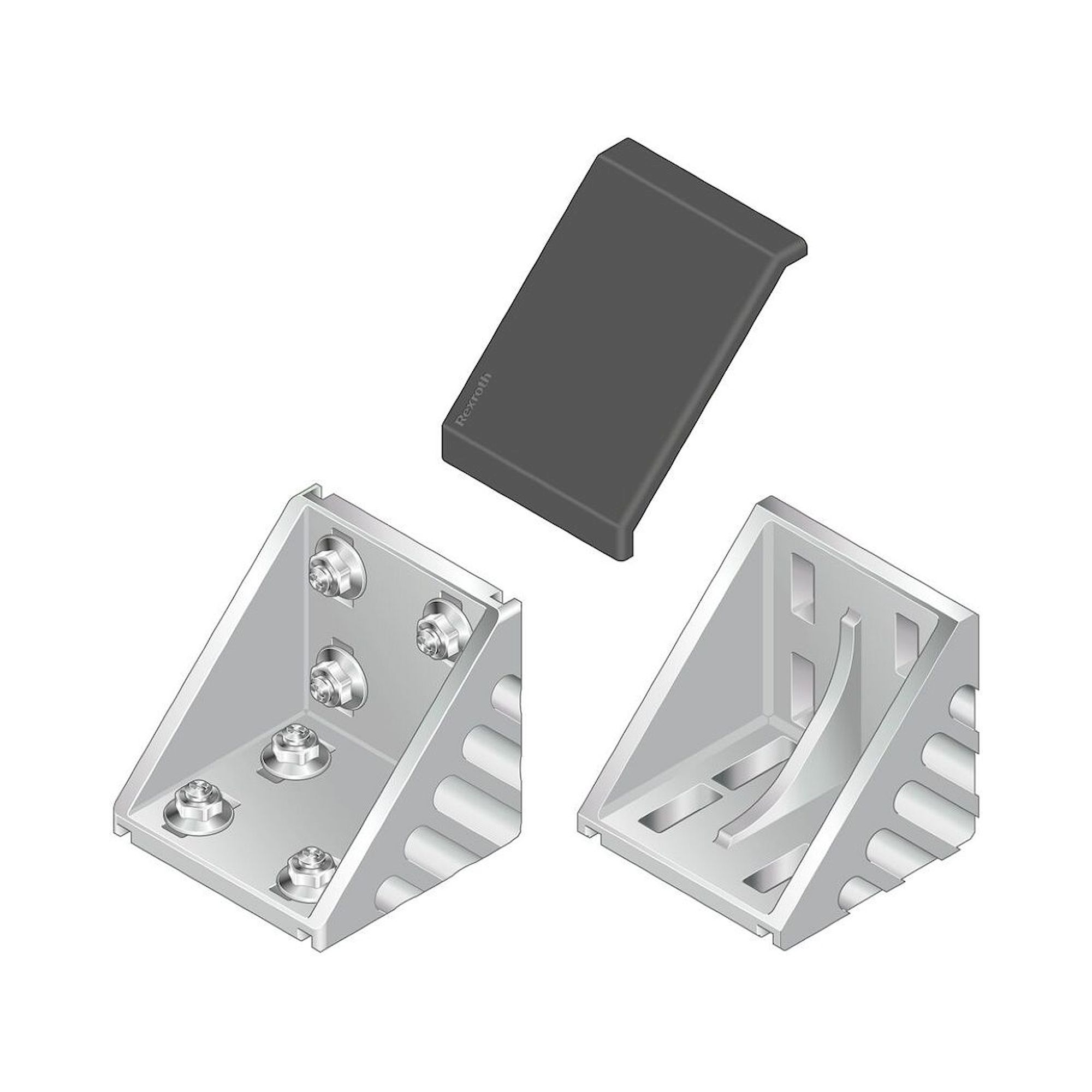

  • Recommended accessories: cover cap for bracket 90x90 in signal gray (3842548868) or black (3842548869)

Technical data

PropertyValue
Dimensions90x90 mm
Profile slot10
ColorWhite aluminum (RAL 9006)
Bracket materialDiecast aluminum, vibratory ground and painted
Fastening materialSteel, galvanized
Bending moment 1370 Nm
Bending moment 2800 Nm
Torsional moment200 Nm
Fastening material8x T-bolt M8x25, 8x flange nut M8
ESD-ratedyes
designLINEyes
Weight0.514 kg
More Information
ExecutionESD (antistatic)
Manufacturer Nr.3842551613
ManufacturerBosch Rexroth
Country of ManufactureGermany
Weight0.513640
HS-Code83024900
GPSR manufacturer informationBosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Article authenticityOriginal product
Condition of articleNew
