Protective housing for the Bosch Rexroth HD 2/H transfer system, sized for 800 mm wide and 640 mm long workpiece pallets, with 180° opening angle. Covers drive and mechanical components below the conveying level against contamination and unintended contact. Protection above the conveying level must be specified per application.

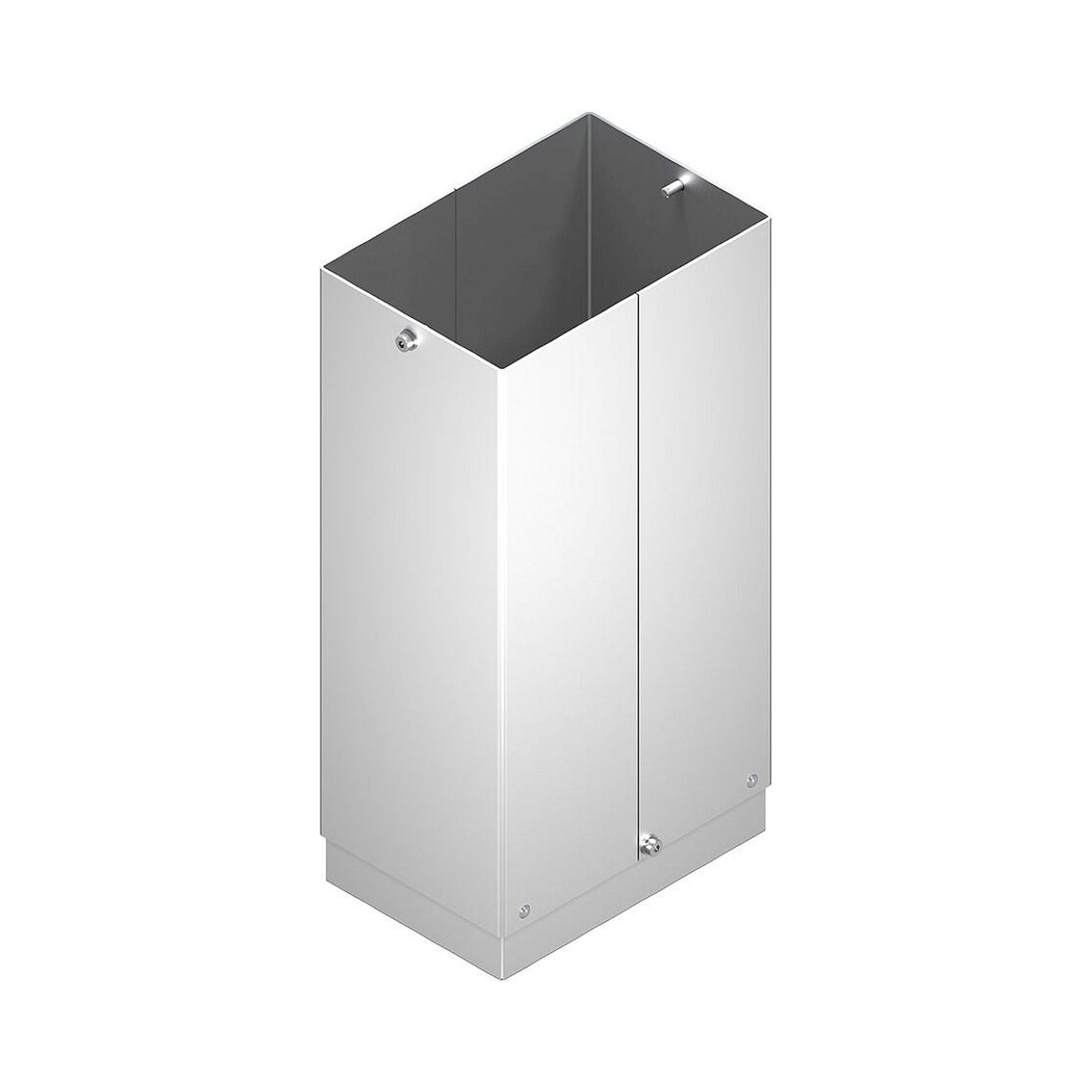

Housing Element for HD 2/H Transfer System, 800/640, 180° - Bosch Rexroth 3842552622
BOSCH REXROTH
Original product
Net price (excl. VAT)
€900.94
Item
BRR-3842552622
Manufacturer no.
3842552622
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.3842552622
Country of originGermany
Customs tariff number73089059
ConditionNew
Article
BRR-3842552622
Frequently Bought Together
-
This Item:
€900.94
-
Positioning Unit PE 2/LS for TS 2plus Transfer System, Track Width 240 mm - Bosch Rexroth 3842563403
€1,768.42
-
Anvil plate HP2/K 160 x 160 mm for workpiece pallet - Bosch Rexroth 3842242375
€112.47
Total price
The housing element 3842552622 protects drive and mechanical components of the HD 2/H transfer system in the area below the conveying level. It is matched to workpiece pallets measuring 800 mm wide by 640 mm long and mounts at a 180° opening angle for straightforward maintenance access. Protection above the conveying level is to be configured individually for each application.
- Exact fit for workpiece pallet dimensions 800 x 640 mm
- 180° opening angle provides unobstructed access during maintenance and setup
- Shields drive and mechanical components below the conveying level from contamination and unintended contact
- Dedicated system component for the Bosch Rexroth HD 2/H transfer system
Technical data
| Parameter | Value |
|---|---|
| Article number | 3842552622 |
| System | HD 2/H |
| Workpiece pallet length [lWT] | 640 mm |
| Workpiece pallet width [bWT] | 800 mm |
| Opening angle | 180° |
| Weight | 11.01 kg |
| Weight | 0.009900 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Manufacturer Nr. | 3842552622 |
| HS-Code | 73089059 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| ESD version | TEC |
