Strut profile in cross-section 45x90L 2NVS, made from anodized aluminum, ESD-rated, supplied as a packaging unit of 12 pieces at 6070 mm each. Six open slots and a 45 mm modular dimension allow direct integration into Bosch Rexroth profile structures. Recommended accessory: cover cap 45x90.
Strut Profile 45x90L 2NVS, 12 x 6070 mm, Anodized Aluminum, ESD - Bosch Rexroth 3842555652
BOSCH REXROTH Original product
Net price (excl. VAT)
€3,166.43
Excl. 19% VAT , excl. Shipping Cost
Item BRR-3842555652
Manufacturer no. 3842555652
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.3842555652
Country of originGermany
Customs tariff number76042100
ConditionNew
Article
BRR-3842555652
Frequently Bought Together
- This Item: €3,166.43Excl. 19% VAT , excl. Shipping Cost
- Strut Profile 45x60 F1/F1, Anodized Aluminum, Slot 10, 4 Open Slots - Bosch Rexroth 3842990584 €16.71Excl. 19% VAT , excl. Shipping Cost
- Strut Profile 45x180 D17/D17, Anodized Aluminum, 1000 mm - Bosch Rexroth 3842990342-1000 €132.47Excl. 19% VAT , excl. Shipping Cost
Total price
The Bosch Rexroth strut profile 45x90L 2NVS is a structural component for modular machine frames and assembly systems built on the 45 mm grid. Six open slots (profile slot 10) allow connections in multiple directions without additional machining, while the anodized aluminum construction meets ESD requirements for use in electrostatic-sensitive environments.
- High bending stiffness in Y-direction: area moment of inertia ly = 90.6 cm⁴, moment of resistance Wy = 40.3 cm³
- ESD-rated anodized aluminum for use in electrostatic protected areas
- Six open slots for flexible connections throughout the full profile length
- Supplied as a packaging unit of 12 pieces in standard length 6070 mm
- Direct fit into the Bosch Rexroth 45 mm modular grid system
Technical data
| Property | Value |
|---|---|

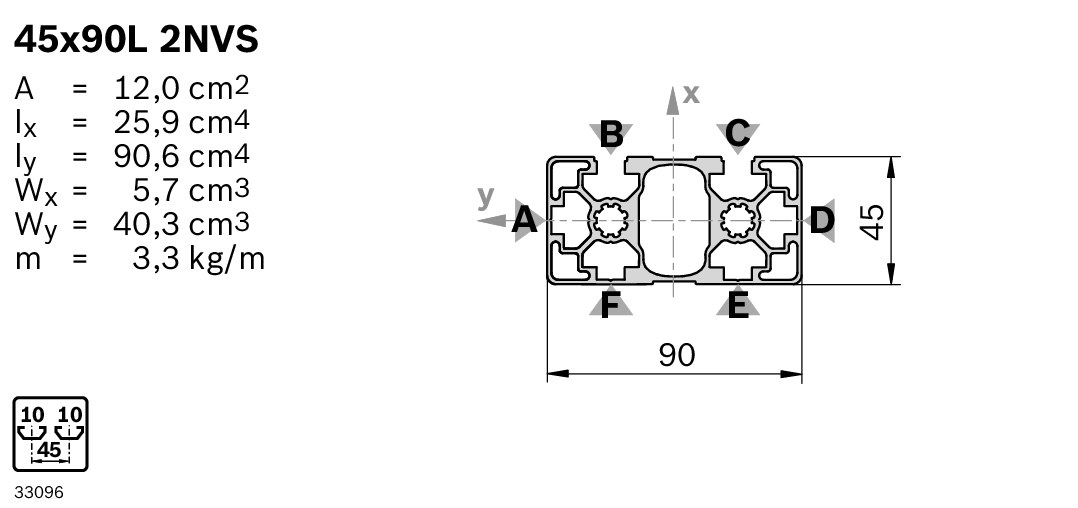

| Cross-section | 45x90L 2NVS |
| Profile type | 2NVS |
| Length [L] | 6070 mm |
| Dimensions | 45x90 mm |
| Modular dimension | 45 mm |
| Profile slot | 10 |
| Open slots | 6 |
| Material | Aluminum, anodized |
| Color | Natural |
| ESD | Yes |
| Profile surface [A] | 12.1 cm² |
| Mass [m] | 3.3 kg |
| Area moment of inertia X [lx] | 25.9 cm⁴ |
| Moment of resistance X [Wx] | 5.7 cm³ |
| Area moment of inertia Y [ly] | 90.6 cm⁴ |
| Moment of resistance Y [Wy] | 40.3 cm³ |
| Torsional moment of inertia [It] | 31.7 cm⁴ |
| Moment of torsion resistance [Wt] | 7.7 cm³ |
| Delivery unit | 12 pieces |
| Condition on delivery | Packaging unit in standard length |
| Weight (packaging unit) | 255 kg |
| Recommended accessories | Cover cap 45x90 black, Cover cap 45x90 signal gray, Cover cap with hole 45x90 black, Cover cap with hole 45x90 signal gray |
| Manufacturer Nr. | 3842555652 |
|---|---|
| Manufacturer | Bosch Rexroth |
| Country of Manufacture | Germany |
| Weight | 255.000000 |
| Lenght | 6070 mm |
| Note | Gemäß der aktuellen Preisstruktur werden für Bestellungen von Profilen mit einer Länge von 1500 mm zusätzliche Kosten in Höhe von 80,00 Euro berechnet. |
| HS-Code | 76042100 |
| GPSR manufacturer information | Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com |
| Article authenticity | Original product |
| Condition of article | New |
