Strut profiles Bosch Rexroth, slot 10, modular dimensions 45
Strut profiles Bosch Rexroth
- Bosch Rexroth 3842547827. Strut profile 45x90x90L 4N, 8xL=6070mm€4,500.08Excl. 19% VAT , excl. Shipping Cost
- Bosch Rexroth 3842537823. Strut profile 45x90x90L, 8xL=6070mm€4,040.90Excl. 19% VAT , excl. Shipping Cost
- Bosch Rexroth 3842553617. Strut profile 90x180, 3xL=6070mm€3,938.33Excl. 19% VAT , excl. Shipping Cost
- Bosch Rexroth 3842553616. Strut profile 45x180, 6xL=6070mm€3,624.17Excl. 19% VAT , excl. Shipping Cost
- Bosch Rexroth 3842553615. Strut profile 45x90, 12xL=6070mm€3,567.94Excl. 19% VAT , excl. Shipping Cost
- Bosch Rexroth 3842538296. Strut profile 90x90L 4NVS, 6xL=6070mm€3,179.20Excl. 19% VAT , excl. Shipping Cost
- Bosch Rexroth 3842538297. Strut profile 90x90L 4N, 6xL=6070mm€3,179.20Excl. 19% VAT , excl. Shipping Cost
- Bosch Rexroth 3842538298. Strut profile 45x90L 3NVS, 12xL=6070mm€3,179.20Excl. 19% VAT , excl. Shipping Cost
- Bosch Rexroth 3842538299. Strut profile 45x90L 2N, 12xL=6070mm€3,179.20Excl. 19% VAT , excl. Shipping Cost
- Bosch Rexroth 3842555652. Strut profile 45x90L 2NVS, 12xL=6070 mm€3,166.43Excl. 19% VAT , excl. Shipping Cost
- Bosch Rexroth 3842553614. Strut profile 45x45, 20xL=6070mm€2,857.15Excl. 19% VAT , excl. Shipping Cost

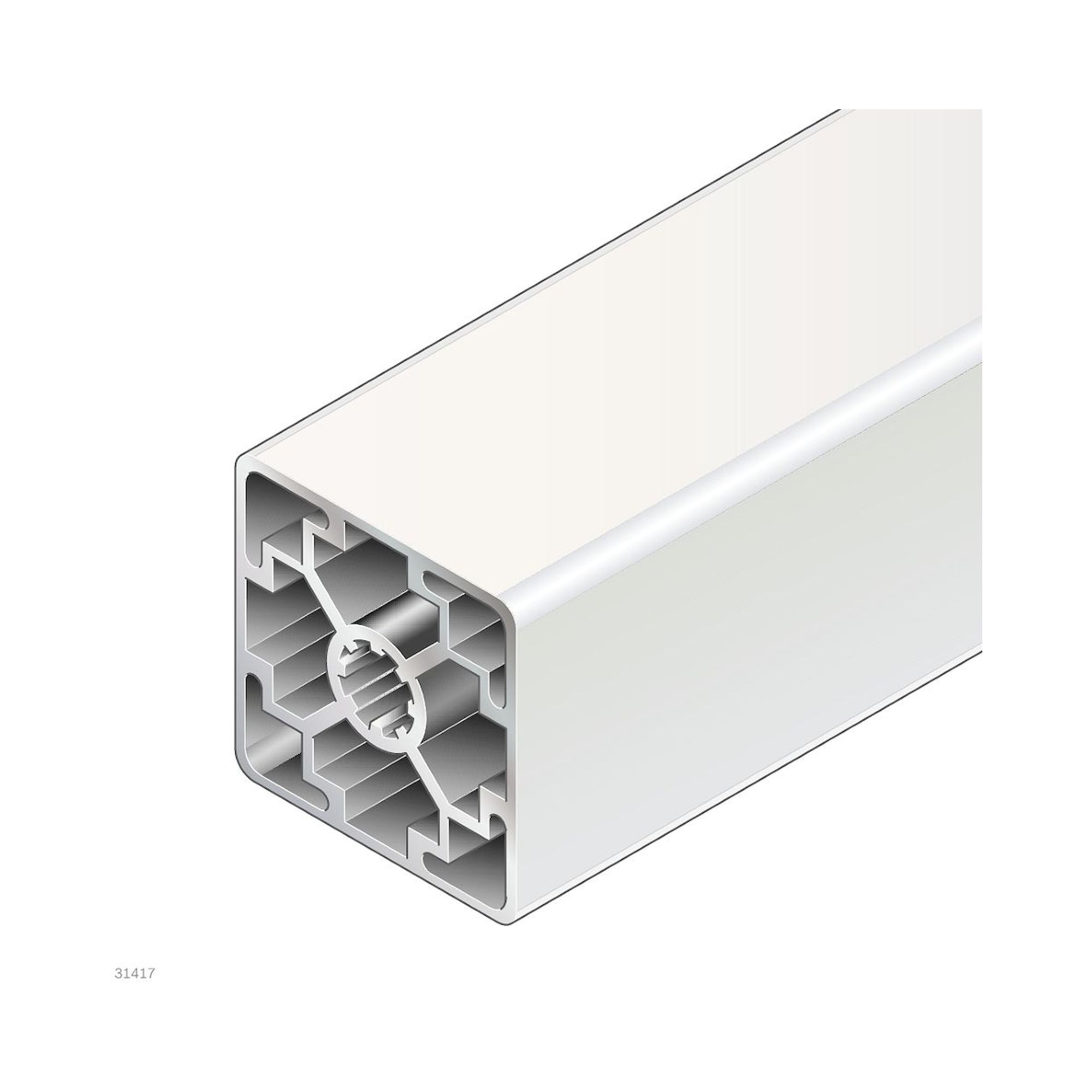

- Bosch Rexroth 3842540955. Strut profile 45x45L 0N, 20xL=6070mm€2,719.51Excl. 19% VAT , excl. Shipping Cost
Bosch Rexroth Nut 10 R45 strut profiles are structural aluminum extrusions engineered for the 45 mm grid system, featuring a 10 mm slot width that accepts M8 fasteners, T-slot nuts, and angle brackets without disassembly. Wall thicknesses range from 2.0 to 4.5 mm depending on cross-section, delivering static load capacities from 0.8 kN to over 12 kN per element - verified under DIN EN ISO 9283 load-cycle testing. The natural-finish T-slot geometry conforms to Bosch Rexroth profile standard R310 and is compatible with the full TS 2plus and TS 5 transfer-system ecosystem.
esd.equipment stocks 326 strut-profile variants in the R45 Nut 10 series - from lightweight 20x20 mm mini-profiles to heavy-duty 160x160 mm solid sections - covering single-slot, double-slot, and 4-sided groove configurations. All profiles ship cut-to-length or in standard 6 m bar stock, compliant with RoHS 2011/65/EU and EN 573-3 (aluminum alloy EN AW-6063-T6).
Bosch Rexroth R45 Nut 10 - Profile series overview
| Profile series | Cross-section | Slot sides | Typical load capacity | Typical application |
|---|---|---|---|---|
| Strut 20x20 | 20x20 mm | 2-sided | ca. 0.8 kN | Light guards, enclosures |
| Strut 30x30 | 30x30 mm | 4-sided | ca. 1.8 kN | Workstation frames, small fixtures |
| Strut 45x45 | 45x45 mm | 4-sided | ca. 3.5 kN | Assembly tables, machine guards |
| Strut 45x90 | 45x90 mm | 6-sided | ca. 6.2 kN | Overhead beams, conveyor frames |
| Strut 90x90 | 90x90 mm | 4-sided | ca. 9.0 kN | Heavy-duty frames, robot cells |
| Strut 160x160 | 160x160 mm | 4-sided | >12 kN | Structural columns, press frames |
Typical application areas: Automotive body-in-white assembly (VDA 6.3, IATF 16949), electronics SMT line framing (IPC-A-620, IEC 61340-5-1 ESD-safe configurations), semiconductor fab equipment structures (SEMI S2/S8), medical device manufacturing (ISO 13485), aerospace ground support equipment (AS9100D), industrial machine guarding (EN ISO 14120), intralogistics conveyor and rack systems (DIN EN 15620).
