T-Slot Plate 22.5x180, 6x L=6070mm, Anodized Aluminum, ESD - Bosch Rexroth 3842557944

T-Slot Plate 22.5x180, 6x L=6070mm, Anodized Aluminum, ESD - Bosch Rexroth 3842557944

Skip to the beginning of the images gallery

The product may differ from the illustration

Flat aluminum strut profile with a 22.5x180 mm cross-section, 9 open slots (profile slot 10, modular dimension 45 mm) in an ESD-compliant design. Each packaging unit contains 6 pieces at 6070 mm length, with an individual mass of 5.8 kg per piece. Suited for building antistatic assembly systems within the Bosch Rexroth aluminum profile construction kit.

T-Slot Plate 22.5x180, 6x L=6070mm, Anodized Aluminum, ESD - Bosch Rexroth 3842557944

Name: T-Slot Plate 22.5x180, 6x L=6070mm, Anodized Aluminum, ESD - Bosch Rexroth 3842557944
Brand: Bosch Rexroth
SKU: BRR-3842557944
Price: 2880.35 EUR
Availability: InStock

BOSCH REXROTH Original product

Net price (excl. VAT)

€2,880.35

Excl. 19% VAT , excl. Shipping Cost

Item BRR-3842557944

Manufacturer no. 3842557944

Personal expert advice

Brand new Specialist dealer since 2009 Original product Worldwide shipping

Product data

Manufacturer no.3842557944

Country of originSweden

Customs tariff number76109090

ConditionNew

Article

BRR-3842557944

Frequently Bought Together

This Item: T-Slot Plate 22.5x180, 6x L=6070mm, Anodized Aluminum, ESD - Bosch Rexroth 3842557944
€2,880.35

Excl. 19% VAT , excl. Shipping Cost
VE 5/OCD-301 Damped Stop Gate, 5-6 bar Pneumatic - Bosch Rexroth 3842998080
€808.93

Excl. 19% VAT , excl. Shipping Cost
Diverter VF65-45° Left, VarioFlow Chain Conveyor - Bosch Rexroth 3842538267
€1,465.96

Excl. 19% VAT , excl. Shipping Cost

Total price

Details

The T-Slot Plate 22.5x180 is a flat aluminum strut profile for building assembly lines, workstations, and fixtures within the Bosch Rexroth modular construction system. The anodized profile is ESD-compliant, making it suitable for electrostatically sensitive production environments. Supplied as a packaging unit of 6 pieces at the standard length of 6070 mm.

9 open slots and profile slot 10 for maximum connection flexibility on a 45 mm modular grid
ESD design for use in electrostatic protected areas (EPA)
High bending stiffness: area moment of inertia lx = 581 cm⁴, moment of resistance Wx = 66.8 cm³
Profile machining D28: holes pre-machined in slots G and I at the factory
Anodized aluminum (color: natural) - corrosion-resistant with a durable surface finish
Packaging unit of 6 pieces, individual mass 5.8 kg each, total unit weight 226.8 kg

Technical data

Property	Value
Cross-section	22.5x180 mm
Dimensions (inner)	11.5x180 mm
Length [L]	6070 mm
Profile type	Standard
Profile slot	10
Modular dimension	45 mm
Open slots	9
ESD	yes
Material	Aluminum, anodized
Color	Natural
Profile surface [A]	21.6 cm²
Area moment of inertia in x-direction [lx]	581 cm⁴
Moment of resistance in x-direction [Wx]	66.8 cm³
Area moment of inertia in y-direction [ly]	11.8 cm⁴
Moment of resistance in y-direction [Wy]	14.7 cm³
Profile machining	D28: holes in slots G and I
Mass [m] (per piece)	5.8 kg
Delivery unit	6 pieces
Condition on delivery	Packaging unit in standard length
Total unit weight	226.8 kg

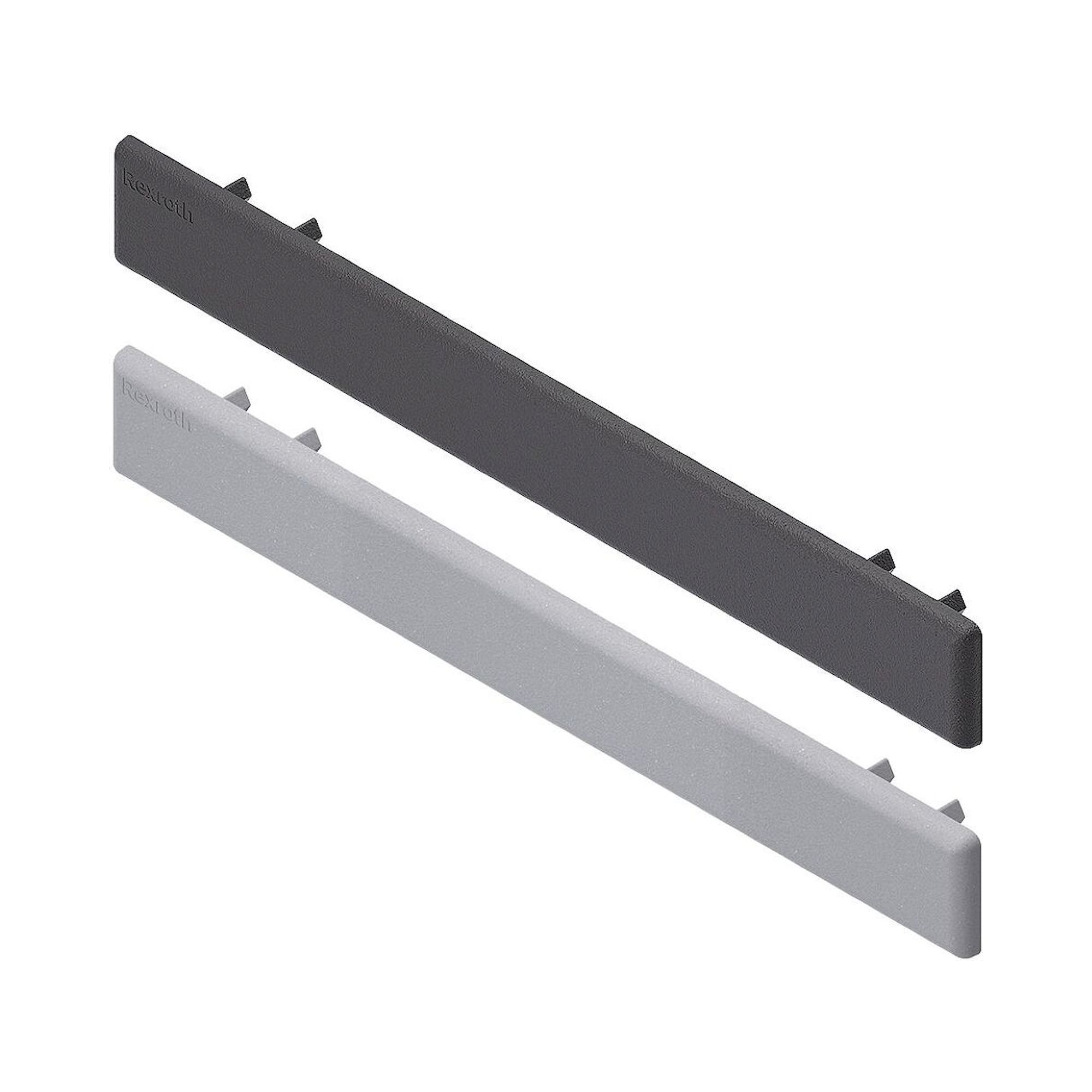

Recommended accessories	Cover cap 22.5x180, black ESD; Cover cap 22.5x180, signal gray

Information

More Information
Manufacturer Nr.	3842557944
Manufacturer	Bosch Rexroth
Country of Manufacture	Sweden
Weight	226.800000
Lenght	6070 mm
HS-Code	76109090
GPSR manufacturer information	Bosch Rexroth AG, Zum Eisengießer 1, DE-97816 Lohr am Main, www.boschrexroth.com
Article authenticity	Original product
Condition of article	New
